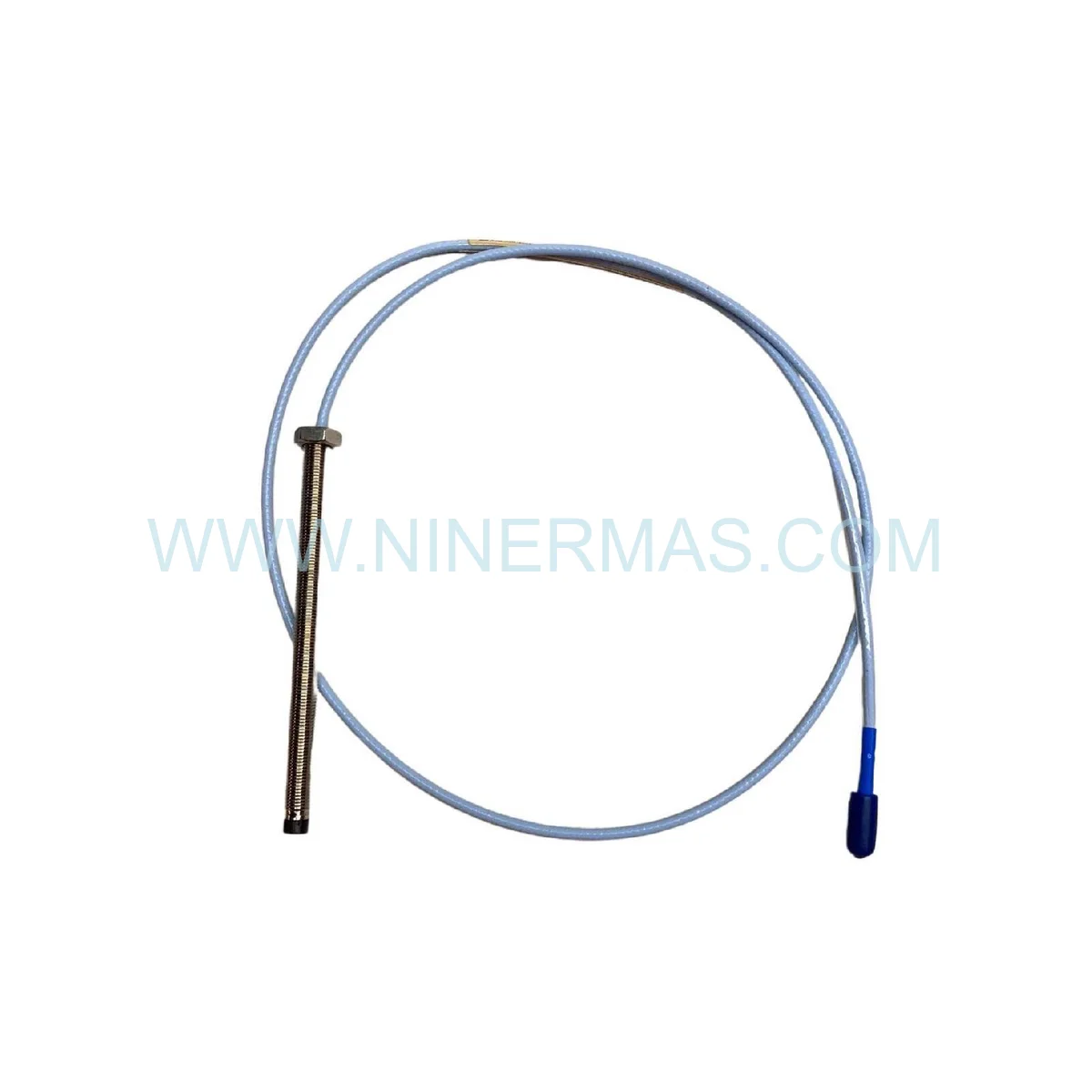

Bently Nevada 330141-08-10-12-00-00 Proximity Probe (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330141-08-10-12-00-00 is an industrial-grade 8mm proximity probe engineered for non-contact displacement and vibration measurement in critical rotating machinery. Utilizing eddy current sensing technology combined with precision mechanical design, this sensor delivers real-time shaft position tracking, radial vibration analysis, and axial thrust monitoring across turbines, compressors, generators, and high-speed pumps.

Designed for harsh industrial environments including power generation plants, petrochemical facilities, and heavy manufacturing operations, this probe addresses common challenges such as bearing wear detection, rotor eccentricity measurement, and early fault identification. It helps prevent catastrophic failures by providing continuous condition monitoring data to machinery protection systems and predictive maintenance programs.

Through standardized M12 threading and compatibility with the proven 3300 XL proximitor platform, this product offers reliable installation, field-proven accuracy, and long-term stability. Suitable for design engineers, system integrators, maintenance teams, and OEM equipment manufacturers requiring API 670 compliant monitoring solutions. Contact our application engineers for customized selection guidance, calibration support, and technical documentation.

Core Features & Advantages

• Compact 8mm Diameter Design
  Fits into confined bearing housings and tight installation spaces where standard 11mm or 14mm probes cannot be accommodated, enabling monitoring on small-frame turbines and compact gearbox assemblies.
• Extended Temperature Performance
  Operates reliably from -40°C to +177°C (-40°F to +350°F), suitable for high-temperature zones near turbine casings, exhaust manifolds, and steam systems without requiring additional cooling or thermal barriers.
• Wide Frequency Response (DC to 10 kHz)
  Captures both slow-roll shaft position (0 Hz) and high-frequency blade-pass vibrations up to 10 kHz, providing complete diagnostic coverage from startup transients to full-speed operation.
• Robust Stainless Steel Construction
  Corrosion-resistant housing withstands exposure to moisture, chemical vapors, oil mist, and mechanical vibration common in offshore platforms, chemical plants, and marine propulsion systems.
• Seamless 3300 XL System Integration
  Direct compatibility with Bently Nevada proximitor modules, extension cables, and monitoring racks eliminates configuration complexity and ensures plug-and-play deployment in existing infrastructure.
• Linear Measurement Range (0-2.0mm Typical)
  Provides accurate displacement readings within the optimal operating zone, with factory calibration against 4140 steel targets ensuring measurement repeatability better than ±1% of full scale.

Typical Application Scenarios

This proximity probe is engineered for applications demanding high reliability, continuous operation, and precise non-contact measurement, particularly in:

• Steam & Gas Turbine Monitoring
  Measures journal bearing clearance, rotor eccentricity, and differential expansion in utility-scale power turbines, enabling early detection of rubs, misalignment, and thermal growth anomalies.
• Centrifugal Compressor Protection
  Tracks radial shaft displacement and thrust position in multi-stage compressors used for natural gas transmission, air separation, and refrigeration cycles, preventing surge-induced damage and bearing failures.
• Large Motor & Generator Condition Monitoring
  Provides continuous surveillance of rotor position in synchronous motors, induction machines, and turbine-generators rated above 500 kW, supporting predictive maintenance strategies and reducing unplanned downtime.
• High-Speed Pump & Gearbox Applications
  Monitors shaft runout and axial float in boiler feed pumps, pipeline boosters, and industrial gearboxes operating above 3,600 RPM, where conventional contact sensors cannot survive.
• Critical Process Equipment in Oil & Gas
  Integrates into API 670 machinery protection systems for offshore platforms, LNG terminals, and refinery process trains, meeting stringent safety and reliability standards.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide comprehensive technical data for the 330141-08-10-12-00-00 proximity probe. Custom configurations are available for specialized target materials, extended cable lengths, or extreme environmental conditions.

Selection Recommendations: When specifying this probe, consider the following factors: target shaft material and surface finish (Ra < 1.6 μm recommended), available radial clearance for probe installation, ambient temperature at mounting location, total cable run length from probe to proximitor module (consult factory for runs exceeding 9 meters), and required measurement bandwidth for your application. For non-standard target materials such as aluminum, Inconel, or titanium, request custom calibration data. Our application engineers can provide system-level design support including gap voltage calculations, cable length compensation, and integration with DCS/SCADA platforms.

System Integration & Compatibility

The 330141-08-10-12-00-00 probe functions as part of a complete proximity measurement chain:

• Proximitor Modules: Pairs with 3300 XL proximitor modules (such as 330180 or 330780 series) that provide excitation voltage, signal conditioning, and buffered outputs for monitoring systems.
• Extension Cables: Connects via field-selectable extension cables (330130 series) available in lengths from 1 to 9 meters, allowing flexible routing in congested machinery spaces.
• Monitoring Systems: Integrates with Bently Nevada 3500 rack-based monitors, portable diagnostic instruments, and third-party vibration analyzers via industry-standard -24 VDC buffered outputs.
• Calibration: Factory-calibrated against AISI 4140 steel targets; field verification recommended using precision gap setting tools and oscilloscope measurement of gap voltage slope.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom configurations or large-quantity orders typically require 2-4 weeks for production and quality testing.

Warranty Coverage: Each probe includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy. Extended warranty programs available for critical applications.

Technical Support: Our engineering team provides pre-sales application consulting, installation guidance, calibration verification procedures, and troubleshooting assistance via phone, email, and remote diagnostics. On-site commissioning services available in select regions.

Documentation Package: Every shipment includes factory calibration certificate, installation drawing with dimensional tolerances, electrical connection diagram, gap voltage calibration curve, and operation/maintenance manual in PDF format. CAD models (STEP/IGES) available upon request for mechanical design integration.

Frequently Asked Questions (FAQ)

Q: How does the 8mm proximity probe connect to existing 3300 XL monitoring systems?
A: The probe uses a standard coaxial connector that mates with 330130-series extension cables. The extension cable then connects to a 3300 XL proximitor module (such as 330180 or 330780), which provides signal conditioning and outputs compatible with monitoring racks, PLCs, or DCS systems. Total system cable length (probe integral cable + extension) should not exceed proximitor input specifications—typically 9 meters for standard configurations.

Q: What is the maximum number of probes that can be monitored on a single turbine or compressor?
A: A typical turbomachinery installation uses 2 probes per bearing (X-Y radial measurement) plus 1-2 probes for axial thrust position. For a machine with 2 bearings, this totals 5-6 probes. Each probe requires a dedicated proximitor module and monitoring channel. System architecture depends on machinery criticality and applicable standards (API 670, API 617).

Q: Can this proximity probe measure vibration on aluminum or non-ferrous rotating shafts?
A: The sensor is optimized for ferrous targets (steel, iron). Non-ferrous materials like aluminum, brass, or titanium have different electrical conductivity, which alters the calibration curve and may reduce effective sensing range by 30-50%. For non-ferrous applications, request custom calibration data or consider alternative sensor technologies such as laser displacement sensors.

Q: What installation torque should be applied to prevent loosening under vibration?
A: Apply 20-25 N·m (15-18 lb-ft) torque to the M12 x 1.0 threads using a calibrated torque wrench. Always use a lock washer or thread-locking compound (medium-strength Loctite 243 recommended) to prevent backing out due to machinery vibration. Verify probe gap after torquing and periodically during maintenance outages.

Q: Does the probe support remote monitoring and data acquisition for Industry 4.0 applications?
A: When paired with modern 3300 XL proximitor modules and connected to Bently Nevada 3500 monitoring systems or third-party data acquisition platforms, the probe output can be integrated into SCADA, DCS, or cloud-based condition monitoring platforms. Communication protocols include 4-20mA analog, Modbus RTU/TCP, OPC-UA, and proprietary Bently Nevada protocols for advanced diagnostics.

Q: What are the environmental protection requirements for outdoor or corrosive installations?
A: The stainless steel housing provides inherent corrosion resistance suitable for most industrial environments. For offshore, marine, or chemical exposure applications, ensure proper cable sealing at the connector interface (IP65 rating when correctly installed). In extremely corrosive atmospheres, consider additional protective coatings or enclosures. Operating humidity range is 0-95% non-condensing.

Request Technical Support & Quotation

To receive detailed application engineering support, customized system design, or project quotation, please provide the following information to our technical sales team:

• Project name and application description (e.g., "Gas turbine vibration monitoring upgrade")
• Machinery type and operating speed range (RPM)
• Shaft material and diameter at measurement location
• Number of measurement points required (radial, axial)
• Ambient temperature and environmental conditions
• Existing monitoring system infrastructure (if retrofit application)
• Required delivery timeline and quantity

Our application engineers will respond within 24 hours with technical recommendations, system architecture drawings, and commercial quotation. For urgent requirements, expedited processing and air freight options are available.
