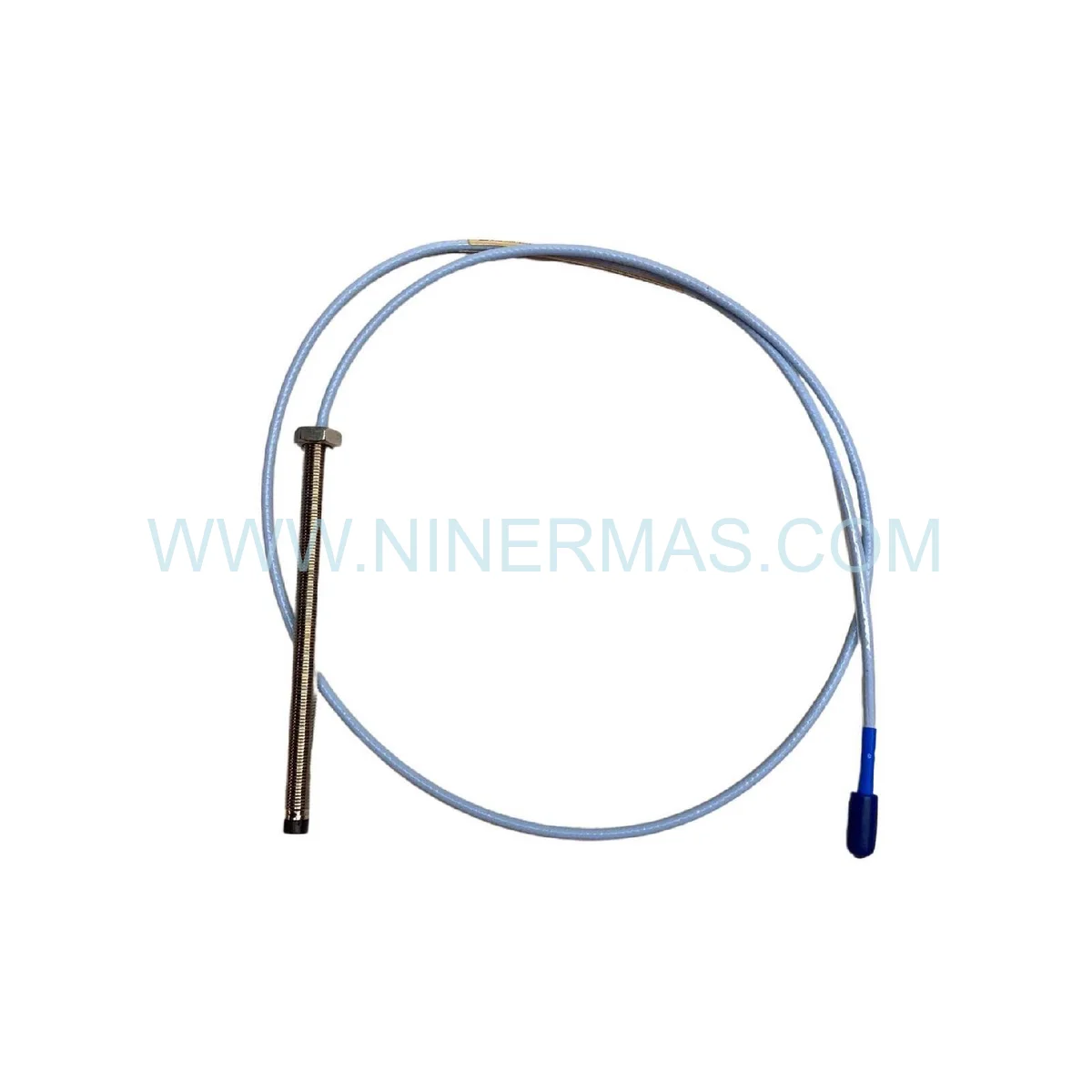

Bently Nevada 3300 XL 8mm Proximity Probe (Industrial Vibration Monitoring System)

The Bently Nevada 330141-08-10-11-00-00 is a precision-engineered 8mm proximity probe designed for non-contacting measurement of shaft displacement, vibration, and rotational speed in critical rotating machinery. Through advanced eddy current sensing technology combined with factory-calibrated transducer systems, this probe delivers reliable real-time monitoring of shaft position and dynamic movement in turbines, compressors, pumps, and generators.

Ideal for power generation plants, petrochemical facilities, oil & gas processing units, steel mills, and heavy industrial manufacturing environments where continuous machinery health monitoring is essential. This probe helps solve critical challenges including undetected bearing wear, shaft misalignment, rotor imbalance, thermal growth issues, and unexpected catastrophic failures that lead to costly unplanned downtime.

Featuring standardized 3300 XL system architecture with flexible customization options, this proximity probe offers exceptional temperature stability (-52°C to +177°C), armored cable protection, ClickLoc quick-connect reliability, and seamless integration with existing Bently Nevada monitoring systems. Suitable for design engineers, maintenance teams, reliability engineers, and plant operators seeking proven condition monitoring solutions. Contact our application engineers for system configuration guidance and technical specifications.

Core Features & Technical Advantages

• Factory-Calibrated Precision Sensing
  Each probe is factory-matched with its proximitor sensor to ensure linear output accuracy across the full measurement range, eliminating field calibration requirements and reducing installation time by up to 40%.
• Extended Temperature Performance
  Operates reliably from -52°C to +177°C, making it suitable for extreme environments including steam turbine applications, cryogenic pump monitoring, and high-temperature compressor systems where standard sensors fail.
• Rugged Armored Cable Construction
  Integrated armored cable with 330 N (75 lbf) pull strength protects against mechanical damage, chemical exposure, and electromagnetic interference in harsh industrial environments, significantly reducing cable failure incidents.
• ClickLoc Quick-Connect System
  Miniature coaxial ClickLoc connector enables rapid installation and replacement without specialized tools, reducing maintenance downtime and ensuring consistent electrical connection quality through vibration cycles.
• Multi-Parameter Monitoring Capability
  Simultaneously measures radial vibration, axial position, differential expansion, eccentricity, and rotational speed from a single probe installation point, maximizing diagnostic information while minimizing intrusion points.
• System-Level Compatibility
  Fully compatible with 3300 XL extension cables, proximitor sensors, and rack monitoring systems, allowing seamless integration into existing Bently Nevada infrastructure or new greenfield installations.

Typical Application Scenarios

This proximity probe system is engineered for applications demanding continuous shaft monitoring, precise position measurement, and early fault detection capabilities, particularly in:

• Power Generation Turbomachinery
  Monitors steam turbines, gas turbines, and hydro generators for bearing clearance, thrust position, and rotor vibration, preventing catastrophic failures in critical power generation assets operating 24/7/365.
• Petrochemical Rotating Equipment
  Tracks centrifugal compressors, process pumps, and expander-compressor trains in refineries and chemical plants, ensuring safe operation within API 670 machinery protection standards and reducing unplanned shutdowns.
• Oil & Gas Production Facilities
  Provides continuous surveillance of offshore platform compressors, pipeline pumps, and LNG facility turbomachinery where remote locations demand ultra-reliable monitoring with minimal maintenance intervention.
• Heavy Industrial Manufacturing
  Supports condition-based maintenance programs for steel mill rolling equipment, paper machine dryers, mining conveyors, and cement kiln drives, optimizing maintenance schedules and extending equipment service life.
• Aerospace Engine Test Facilities
  Enables precision measurement during jet engine development testing, turbine balancing operations, and high-speed rotor dynamics research requiring sub-micron resolution and exceptional signal stability.

Technical Specifications & Selection Guide

To facilitate engineering design and system specification, we provide comprehensive technical parameters for the 330141-08-10-11-00-00 proximity probe. Custom configurations available for specialized applications.

Selection Considerations: When specifying proximity probes, evaluate target shaft material (4140 steel recommended), required measurement range (typically 0-80 mils), installation space constraints, ambient temperature extremes, and total system length requirements (probe + extension cable + proximitor). For applications requiring hazardous area certification (ATEX, IECEx, CSA), extended temperature ranges beyond +177°C, or custom cable lengths, consult with our application engineering team who can recommend appropriate model variations and provide system-level design validation.

Advanced System Integration Capabilities

• Multi-Channel Rack Monitoring
  Integrates seamlessly with Bently Nevada 3500 rack systems supporting up to 20 channels per rack, enabling centralized monitoring of entire turbine trains with unified alarm management and trending capabilities.
• Digital Communication Protocols
  When paired with compatible proximitors and rack I/O modules, supports Modbus, 4-20mA analog output, relay contacts, and Ethernet connectivity for SCADA integration and remote diagnostics.
• Predictive Maintenance Analytics
  Provides high-fidelity vibration data compatible with advanced diagnostic software for orbit analysis, Bode plots, polar plots, shaft centerline tracking, and machine learning-based anomaly detection algorithms.
• Redundant Measurement Configurations
  Supports dual-probe installations at 90° orientation for XY orbit generation, triple-probe thrust monitoring, and quad-probe differential expansion measurement in critical machinery protection applications.

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed units typically ship within 3-5 business days from regional distribution centers. Custom configurations or hazardous area certified models require 4-6 weeks manufacturing lead time.

Warranty Coverage: All proximity probes include a comprehensive 12-month manufacturer warranty covering materials and workmanship defects. Extended warranty programs available for critical applications.

Technical Support: Complimentary application engineering consultation for system design validation, installation guidance, and troubleshooting assistance. On-site commissioning support and training services available upon request (regional availability varies).

Documentation Package: Each probe ships with factory calibration certificate, dimensional installation drawing (141092), electrical connection diagram, material certifications, and comprehensive operation/maintenance manual in PDF format.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system with full material traceability. Meets API 670 machinery protection system requirements and ASME B40.7 vibration monitoring standards.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 3300 XL proximity probe integrate with existing monitoring systems?
A: The 330141 probe connects via ClickLoc connector to a 3300 XL extension cable, which then interfaces with a 3300 XL Proximitor Sensor. The proximitor converts the probe's RF signal into a -24 VDC linear output proportional to gap distance. This output integrates with any monitoring system accepting ±10V or 4-20mA signals, including Bently Nevada 3500 racks, DCS systems, PLCs, or standalone vibration monitors. System configuration requires matching probe serial number with proximitor for factory calibration accuracy.

Q: What is the maximum total system length for the 3300 XL 8mm proximity probe?
A: The 330141-08-10-11-00-00 includes 1.0m integral cable. When combined with 3300 XL extension cables (available in 1m, 5m, 9m lengths) and proximitor connection, total system length can reach up to 10 meters while maintaining calibration accuracy. For installations exceeding 10m, consult application engineering as signal conditioning may be required to preserve measurement linearity and temperature stability.

Q: Can this proximity probe be used in hazardous area classifications?
A: The standard 330141-08-10-11-00-00 model is approved for non-hazardous areas. For installations in Class I Division 1/2, Zone 0/1/2, or ATEX/IECEx classified locations, specify hazardous area certified models with appropriate agency approval suffix codes. Intrinsically safe (IS) and explosion-proof (XP) configurations available with corresponding proximitor and barrier requirements.

Q: What installation environment requirements must be considered?
A: Probe operates reliably in -52°C to +177°C ambient temperatures with IP65 equivalent sealing when properly installed per drawing 141092. Mounting surface must provide rigid support to prevent probe vibration. Minimum clearance of 3x probe diameter from adjacent metallic objects required to avoid eddy current field distortion. Target shaft material should be 4140 steel or equivalent magnetic permeability; non-magnetic materials (stainless 300 series, aluminum, titanium) require special calibration and reduced sensitivity.

Q: Does the system support remote monitoring and predictive maintenance analytics?
A: Yes, when integrated with Bently Nevada 3500 rack systems or compatible DCS platforms, the probe data enables real-time remote monitoring via Ethernet, Modbus TCP/IP, or OPC protocols. Advanced diagnostic software can perform FFT analysis, order tracking, transient capture, and machine learning-based anomaly detection. Cloud-based condition monitoring platforms support multi-site fleet management and predictive maintenance scheduling based on vibration trend analysis.

Q: What is the expected service life and maintenance requirements?
A: Proximity probes are solid-state devices with no moving parts, typically providing 15-20 years of continuous service in properly maintained installations. Routine maintenance involves annual visual inspection of cable armor integrity, connector cleanliness verification, and gap voltage verification against baseline values. Probe replacement recommended if gap voltage drifts beyond ±10% of factory calibration or physical damage observed. No field recalibration possible; probes must be returned to factory for recertification if required.
