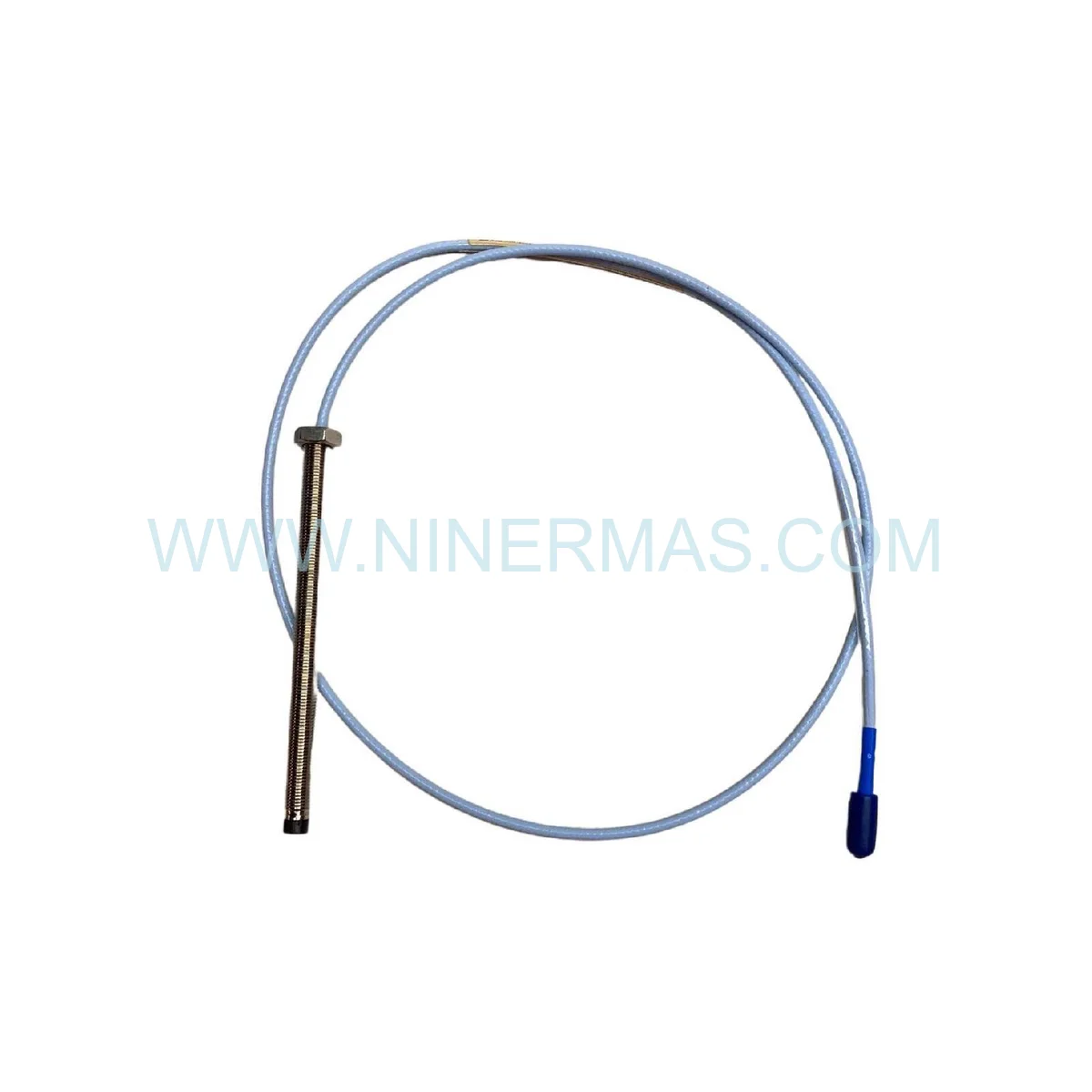

Bently Nevada 330141 8mm Proximity Probe (Industrial Vibration Monitoring System)

The Bently Nevada 330141-08-05-12-05-00 is an industrial-grade 8mm proximity transducer probe engineered for continuous radial vibration and shaft displacement monitoring in critical rotating machinery. Through eddy current sensing technology and precision mechanical design, it delivers real-time displacement measurement with exceptional linearity and temperature stability, enabling early fault detection and predictive maintenance strategies.

Designed for high-reliability applications in power generation, oil & gas processing, and heavy manufacturing environments, this probe addresses common challenges including bearing wear detection, shaft eccentricity measurement, rotor dynamic analysis, and thermal growth monitoring. It is ideal for turbine-generator sets, centrifugal compressors, large pumps, and critical process equipment where unplanned downtime carries significant operational and financial consequences.

With standardized 3300 XL system compatibility and field-proven durability, the 330141 probe offers rapid installation, minimal calibration requirements, excellent EMI immunity, and long-term measurement stability. Suitable for design engineers, maintenance teams, instrumentation contractors, and plant reliability specialists. Contact our application engineers for system configuration guidance, cable routing recommendations, and technical specifications tailored to your machinery protection requirements.

Core Features & Advantages

• High-Precision Eddy Current Sensing
  Utilizes non-contact eddy current technology with 8mm sensing diameter, providing 0.4–2.0mm linear measurement range and ±1% full-scale accuracy. Ideal for detecting micro-level shaft displacement changes that indicate bearing degradation or rotor imbalance.
• Extended Temperature Performance
  Operates reliably across -40°C to +105°C ambient range, maintaining calibration stability in extreme environments including steam turbine casings, compressor housings, and outdoor installations. Reduces false alarms caused by thermal drift.
• Rugged Industrial Construction
  Features 300-series stainless steel body with 5/8-18 UNC-2A threaded mounting, hermetically sealed coil assembly, and integral 5-meter armored cable. Withstands shock, vibration, moisture, and electromagnetic interference common in industrial plants.
• Seamless System Integration
  Fully compatible with Bently Nevada 3300 XL proximitor housings, extension cables, and monitoring systems. Supports both legacy installations and modern DCS/SCADA integration via 4-20mA or digital protocols, minimizing retrofit complexity.
• Wide Frequency Response
  Captures vibration events from DC (static displacement) to 10 kHz, covering subsynchronous, synchronous, and high-frequency phenomena. Essential for comprehensive rotor dynamics analysis and transient event recording during startups and shutdowns.
• Proven Reliability & Low Maintenance
  Field-proven design with MTBF exceeding 100,000 hours in typical applications. Requires no periodic recalibration when used with matched proximitor systems. Reduces lifecycle costs and maintenance intervals compared to contact-type sensors.

Typical Application Scenarios

This proximity probe is engineered for machinery protection and condition monitoring systems where continuous shaft position measurement is critical for safe operation and asset longevity:

• Steam & Gas Turbine Monitoring
  Measures radial shaft vibration and axial position in turbine-generator sets, detecting rotor rubs, bearing failures, and thermal bowing. Commonly installed at journal bearings and thrust collars in power plants and cogeneration facilities.
• Centrifugal & Axial Compressor Protection
  Monitors compressor rotor displacement to prevent surge-induced damage and bearing failures in oil & gas processing, petrochemical plants, and air separation units. Enables real-time surge detection and automated shutdown sequences.
• Large Pump & Motor Condition Monitoring
  Tracks shaft runout, misalignment, and bearing clearance changes in boiler feed pumps, cooling water pumps, and high-horsepower motors. Supports predictive maintenance programs in utilities, mining, and manufacturing sectors.
• Industrial Gearbox & Coupling Analysis
  Detects torsional vibration, gear mesh faults, and coupling wear in critical drive trains. Applied in steel mills, paper machines, cement kilns, and material handling systems where gearbox failures cause extended production losses.
• Rotating Equipment Test Stands
  Provides precision displacement measurement for R&D testing, balancing operations, and acceptance testing of turbomachinery. Used by OEMs, repair shops, and university research laboratories for rotor dynamics validation.

Technical Parameters & Selection Guide

To facilitate system design and probe selection, we provide comprehensive specifications for the 330141 series. Custom cable lengths, mounting adapters, and hazardous area certifications are available for project-specific requirements.

Selection Recommendations:
When specifying proximity probes, consider the following factors: shaft diameter and material (carbon steel, stainless steel, or Inconel), available radial clearance for probe installation, required measurement range and gap voltage, ambient temperature and vibration environment, cable routing distance from probe to proximitor, and hazardous area classification. For turbomachinery applications, consult API 670 standards for probe quantity, placement, and alarm setpoint recommendations. Our application engineers can review your P&ID drawings, machinery datasheets, and installation constraints to recommend optimal probe configuration, extension cable lengths, and proximitor housing selection.

System Integration & Compatibility

The 330141 probe integrates seamlessly with the complete Bently Nevada 3300 XL monitoring ecosystem:

• Proximitor Housings: Compatible with 3300 XL 8mm, 11mm, and 5mm proximitor models (330180, 330105 series). Supports both standard and NSv (Negative Supply voltage) configurations.
• Extension Cables: Field-installable extension cables available in 1m, 5m, and 9m lengths. Total system cable length (probe + extension) should not exceed 9 meters for optimal performance.
• Monitoring Systems: Direct integration with Bently Nevada 3500 rack monitoring systems, ADAPT software, System 1 condition monitoring platforms, and third-party DCS/PLC systems via analog or Modbus protocols.
• Calibration & Documentation: Each probe ships with individual calibration certificate traceable to NIST standards. System calibration curves provided for common shaft materials and proximitor combinations.

Delivery, Service & Quality Assurance

Lead Time: Standard configuration probes typically ship within 3–5 business days from stock. Custom cable lengths or special thread configurations require 2–3 weeks manufacturing lead time.

Warranty Coverage: All Bently Nevada 330141 proximity probes include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Extended warranty programs available for critical applications.

Technical Support: Our instrumentation specialists provide pre-sales application engineering, installation guidance, troubleshooting assistance, and system commissioning support. Remote consultation available; on-site services quoted separately based on location and scope.

Documentation Package: Each probe shipment includes installation instructions, dimensional drawings, electrical connection diagrams, calibration certificates, and material traceability documentation. CAD models and 3D STEP files available upon request for mechanical design integration.

Quality Certifications: Manufactured under ISO 9001 quality management system. Complies with API 670 machinery protection system standards. Material certifications and NACE MR0175 compliance available for sour service applications.

Frequently Asked Questions (FAQ)

Q: How do I select the correct probe diameter for my application?
A: Probe diameter selection depends on shaft diameter, available radial clearance, and required measurement range. For shafts 50–200mm diameter, 8mm probes are standard. Smaller shafts (25–75mm) may use 5mm probes for tighter clearances. Larger shafts (>200mm) can accommodate 11mm probes for extended range. Consult API 670 guidelines or contact our engineers with your shaft dimensions.

Q: What is the maximum total cable length for the 330141 probe system?
A: The combined length of probe integral cable plus extension cable should not exceed 9 meters (30 feet) to maintain system accuracy and frequency response. For longer distances, consider relocating the proximitor housing closer to the probe or using signal conditioning modules.

Q: Can this probe measure axial (thrust) position in addition to radial vibration?
A: Yes, the 330141 probe can measure both radial shaft displacement and axial position when installed perpendicular to shaft rotation (radial) or facing a thrust collar (axial). Axial installations typically require different mounting hardware and may have different linear range characteristics.

Q: Is the 330141 probe compatible with non-ferrous shaft materials like stainless steel or titanium?
A: The probe works with any electrically conductive shaft material, but sensitivity and linear range vary with material conductivity and magnetic permeability. Stainless steel (300-series) provides approximately 70% of carbon steel sensitivity. Titanium and aluminum require closer gap settings. Custom calibration curves are available for non-ferrous materials.

Q: What proximitor housing model should I pair with this probe?
A: The 330141-08 probe pairs with Bently Nevada 330180 series 8mm proximitor housings (e.g., 330180-90-00 or 330180-91-00). Ensure the proximitor output range matches your monitoring system input requirements (typically -10 to -2 VDC gap voltage or 4-20mA).

Q: How often does the probe require recalibration?
A: When used as a matched system with the original proximitor and extension cable, the 330141 probe typically requires no field recalibration throughout its service life. System verification is recommended during major overhauls or if components are replaced. Annual functional testing per plant maintenance procedures is advised.

Q: Can I use this probe in hazardous (explosive atmosphere) locations?
A: Yes, when installed with intrinsically safe proximitor barriers (such as Bently Nevada 330780 series), the system meets Class I, Division 2, Groups A-D requirements. For Class I, Division 1 or ATEX Zone 1 applications, consult factory for certified barrier configurations and installation drawings.

Request Technical Consultation

For detailed system design assistance, custom configurations, or project quotations, please provide the following information to our application engineering team:

• Project name and application description (turbine model, compressor type, etc.)
• Machinery specifications: shaft diameter, material, operating speed (RPM)
• Number of measurement points and probe locations (radial/axial)
• Environmental conditions: temperature range, hazardous area classification
• Cable routing requirements and distances
• Monitoring system interface requirements (analog, digital, protocol)
• Delivery timeline and quantity requirements

Our instrumentation specialists will provide one-on-one selection guidance, system architecture recommendations, and detailed technical proposals tailored to your machinery protection objectives.
