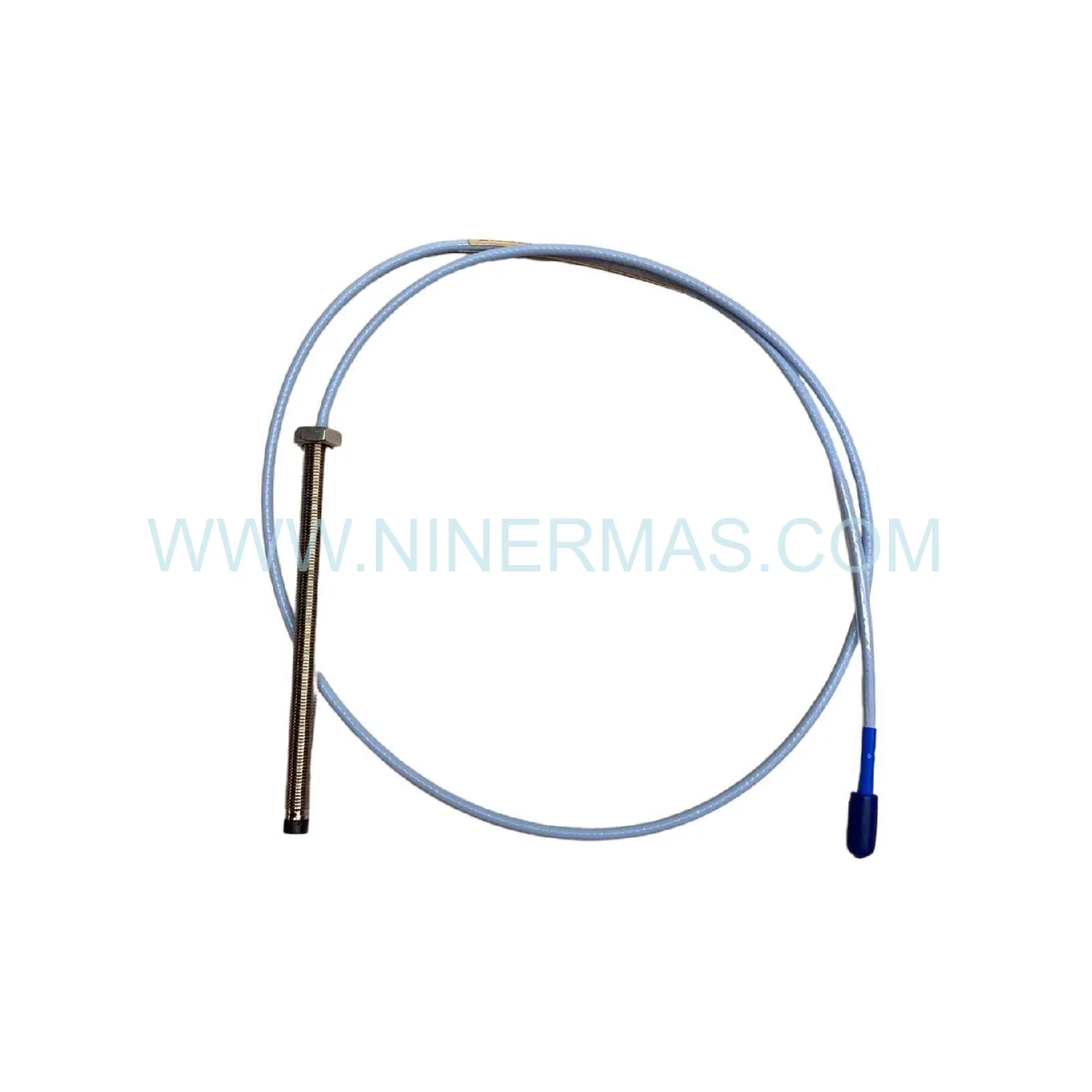

Bently Nevada 8mm Proximity Probe for Industrial Vibration Monitoring

The Bently Nevada 330141-08-05-11-00-00 is an industrial-grade 8mm proximity probe designed for non-contact vibration measurement in critical rotating machinery. Through eddy current sensing technology and precision signal conditioning, this 3300 XL series probe delivers real-time monitoring of shaft displacement, radial vibration, and axial position across turbomachinery applications.

Engineered for power generation plants, petrochemical facilities, oil & gas processing units, and heavy manufacturing operations, this probe addresses common challenges including unplanned downtime, bearing failures, rotor imbalance detection, and catastrophic equipment damage. It enables condition-based maintenance strategies by providing continuous machinery health data to prevent costly failures before they occur.

Built with standardized 5/16-24 UNF threading and customizable cable configurations, the 330141-08-05-11-00-00 offers proven reliability with extended temperature tolerance, corrosion-resistant construction, and seamless system integration capabilities. Ideal for design engineers, maintenance teams, instrumentation contractors, and plant reliability managers seeking OEM-quality vibration monitoring solutions. Contact our application engineers for system design assistance and technical specifications tailored to your machinery configuration.

Core Features & Performance Advantages

• High-Frequency Response Capability
  DC to 10 kHz bandwidth (-3dB point) captures both low-speed imbalance signatures and high-frequency bearing defect patterns, enabling comprehensive fault diagnosis across variable operating speeds.
• Extended Measurement Range
  Typical 0 to 80 mils (2.0mm) linear range accommodates normal operating clearances plus transient excursions during startup/shutdown cycles, reducing false alarm rates while maintaining sensitivity.
• Extreme Environment Durability
  -40°C to +125°C operational rating withstands cryogenic service, steam turbine casings, and desert installations. Stainless steel housing resists corrosive atmospheres, hydraulic fluids, and chemical exposure common in process industries.
• Universal System Compatibility
  Backward-compatible with legacy 3300 proximitor modules while supporting current 3300 XL and 3500 monitoring frameworks. Simplifies retrofit projects and spare parts inventory management across mixed-generation installations.
• Integral Armored Cable Construction
  Factory-terminated BNC connector and reinforced cable sheath eliminate field termination errors, resist mechanical damage from vibration and flexing, and maintain signal integrity in high-EMI environments near VFDs and motor drives.
• Precision Eddy Current Sensing
  Non-contact measurement principle eliminates wear, requires no recalibration for normal drift, and operates reliably in contaminated environments where optical or capacitive sensors fail due to oil mist, dust, or condensation.

Typical Application Scenarios

This proximity probe serves critical machinery protection and condition monitoring requirements across multiple industrial sectors:

• Steam & Gas Turbine Generator Sets
  Monitors journal bearing clearances, thrust position, and differential expansion in power generation units from 5 MW to 500+ MW capacity. Detects rotor bow during startup, prevents blade tip rubs, and validates alignment after maintenance outages.
• Centrifugal & Axial Compressor Trains
  Tracks shaft vibration in multi-stage air compressors, refrigeration systems, and gas pipeline booster stations. Early detection of surge conditions, impeller fouling, and seal degradation reduces unplanned shutdowns in continuous process operations.
• Large Industrial Motors & Generators
  Provides rotor eccentricity measurement in synchronous motors above 500 HP, induction motors with sleeve bearings, and wound-rotor machines. Identifies soft foot conditions, foundation settling, and electromagnetic imbalance before insulation failure occurs.
• Petrochemical Rotating Equipment
  Supports API 670 machinery protection systems in refineries, chemical plants, and offshore platforms. Monitors pumps handling corrosive fluids, agitators in reactor vessels, and expander-compressor sets in cryogenic service where reliability directly impacts production uptime.
• Pulp & Paper Mill Machinery
  Measures vibration in high-speed paper machine rolls, refiner plates, and dryer section bearings operating in humid, high-temperature environments. Detects coating buildup, roll eccentricity, and bearing wear patterns unique to continuous web processing.

Technical Parameters & Selection Guide

To ensure optimal performance and compatibility, the following specifications define the operational envelope and physical characteristics of the 330141-08-05-11-00-00 probe:

Selection Considerations: When specifying this probe, confirm the following project parameters: target shaft material and surface finish (Ra < 32 microinches recommended), available radial clearance for probe installation (minimum 0.100" gap required), mounting location accessibility for cable routing, ambient temperature extremes including transient conditions, and proximitor module compatibility (3300 XL or 3500 series). For applications involving non-standard shaft materials, high-temperature excursions beyond +125°C, or specialized cable lengths exceeding 5 meters, consult our application engineering team with machinery drawings and operating profiles for customized solutions.

System Integration & Configuration Options

The 330141-08-05-11-00-00 probe functions as the sensing element within a complete proximity measurement chain. Typical system architecture includes:

• Proximitor Signal Conditioner: Pairs with Bently Nevada 3300 XL proximitor modules (such as 330180 or 330105 series) that provide -24 VDC excitation, linearization, and buffered output signals compatible with PLC analog inputs, DCS systems, or dedicated vibration monitors.
• Extension Cable Assemblies: Field-configurable extension cables (330130 series) enable total system lengths up to 9 meters while maintaining calibration accuracy. Cable selection must account for electrical length to prevent resonance effects above 5 kHz.
• Mounting Hardware: Standard probe brackets, clamps, and adapters accommodate various bearing housing geometries. Custom mounting solutions available for retrofit installations with limited access or non-standard orientations.
• Monitoring System Interface: Output signals integrate with Bently Nevada 3500 rack-based monitors, portable data collectors, or third-party SCADA platforms via 4-20mA loops or Modbus protocols for centralized condition monitoring and automated alarm generation.

Installation Guidelines & Best Practices

Proper installation directly impacts measurement accuracy and long-term reliability. Follow these field-proven procedures:

• Probe Positioning: Install perpendicular to shaft surface within ±5 degrees. For radial vibration, mount two probes at 90-degree separation (X-Y configuration). Axial position monitoring requires probe facing thrust collar or coupling hub.
• Gap Voltage Verification: After installation, measure static gap voltage with shaft at rest. Typical values range from -8 to -12 VDC for proper operating point. Adjust probe depth to achieve mid-range voltage, allowing equal headroom for positive and negative displacement.
• Target Surface Preparation: Shaft observation area must be free of keyways, coupling bolt holes, and surface defects. Minimum observation length equals 3× probe diameter (24mm for 8mm probe). Surface runout should not exceed 2 mils TIR.
• Cable Routing: Secure armored cable to prevent fatigue from vibration. Maintain minimum 6-inch separation from power cables and VFD wiring. Use ferrite cores if routed near high-frequency noise sources.
• Environmental Sealing: Apply thread sealant (Loctite 567 or equivalent) to mounting threads. Verify cable entry gland integrity to maintain IP rating in washdown or outdoor installations.

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed OEM units typically ship within 3-5 business days from stock. Custom cable lengths or special configurations require 2-3 weeks manufacturing lead time.

Warranty Coverage: Each probe includes a comprehensive 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty covers factory repair or replacement at our discretion.

Technical Support Services: Our application engineering team provides pre-sale system design consultation, post-installation troubleshooting assistance, and calibration verification guidance. Remote support available via phone and email; on-site commissioning services offered for multi-probe installations (regional availability applies).

Documentation Package: Every shipment includes product datasheet with dimensional drawings, electrical specifications, installation instructions with torque values, and material traceability certificate. Calibration certificates traceable to NIST standards available upon request for an additional fee.

Frequently Asked Questions

Q: How does the 330141-08-05-11-00-00 compare to the older 3300 series probes without XL designation?
A: The 3300 XL series offers improved temperature stability (±1% vs ±2% over full range), enhanced EMI immunity per IEC 61000-4-3 standards, and tighter manufacturing tolerances for better unit-to-unit interchangeability. Electrical interface remains fully compatible with legacy proximitor modules, allowing drop-in replacement during maintenance cycles.

Q: What is the maximum system cable length from probe tip to proximitor module?
A: Total electrical length (integral cable plus extension cable) should not exceed 9 meters (30 feet) to maintain frequency response and avoid signal degradation. For installations requiring longer distances, consider relocating the proximitor closer to the measurement point or using a 3500 series monitor with remote I/O capabilities.

Q: Can this probe measure both radial vibration and axial position simultaneously?
A: No, each probe measures displacement along a single axis. Complete radial vibration analysis requires two probes mounted 90 degrees apart (X-Y plane). Axial thrust position monitoring needs a separate probe oriented parallel to the shaft axis, facing a thrust collar or coupling face. A typical turbine installation uses 4-6 probes per bearing: two radial, one axial, and optional keyphasor.

Q: What shaft surface finish is required for accurate proximity measurements?
A: Target surface roughness should be 32 microinches Ra (0.8 micrometers) or smoother. Rougher finishes introduce electrical runout that appears as false vibration. Avoid measuring on keyways, oil holes, or threaded sections. For shafts with chrome plating or thermal spray coatings, verify material conductivity meets probe specifications (minimum 10% IACS for ferromagnetic targets).

Q: Is the probe compatible with non-ferrous shaft materials like stainless steel or titanium?
A: Standard 3300 XL probes are optimized for ferromagnetic materials (carbon steel, 4140 alloy steel). Non-magnetic materials require specialized NSv (Non-Standard velocity) probes with different sensing coils and calibration curves. Contact technical support with shaft material specifications and operating speed range for proper probe selection.

Q: How often does the probe require recalibration or replacement?
A: Proximity probes are passive sensors with no wearing components. Under normal operating conditions, recalibration is not required. Recommended replacement intervals: every 10 years for continuous critical service, or upon physical damage, cable insulation degradation, or if gap voltage drifts beyond ±1 VDC from baseline readings. Annual verification testing recommended for API 670 machinery protection systems.

Q: Can I install this probe in hazardous area classifications (Class I Div 1 or ATEX Zone 1)?
A: The probe itself is a passive device, but system certification depends on the proximitor module and barrier configuration. For hazardous area installations, use intrinsically safe proximitor barriers (such as Bently Nevada 330780 series) rated for the specific zone classification. Complete system must be installed per NEC Article 504 or IEC 60079 standards with proper grounding and cable gland selection.

Request Technical Consultation & Quotation

To receive a customized system design recommendation, pricing quotation, or application-specific technical support, please provide the following information to our engineering team:

• Project name and machinery type (e.g., steam turbine, centrifugal compressor model)
• Shaft diameter, material, and surface finish at measurement location
• Operating speed range (minimum, normal, maximum RPM)
• Number of measurement points required (radial, axial, keyphasor)
• Ambient temperature range and environmental conditions (indoor/outdoor, corrosive atmosphere)
• Existing monitoring system details (if retrofit) or preferred output signal type (4-20mA, voltage, digital)
• Installation timeline and quantity requirements

Our application engineers will respond within one business day with probe selection verification, system architecture recommendations, and detailed pricing including proximitor modules, cables, and mounting hardware.
