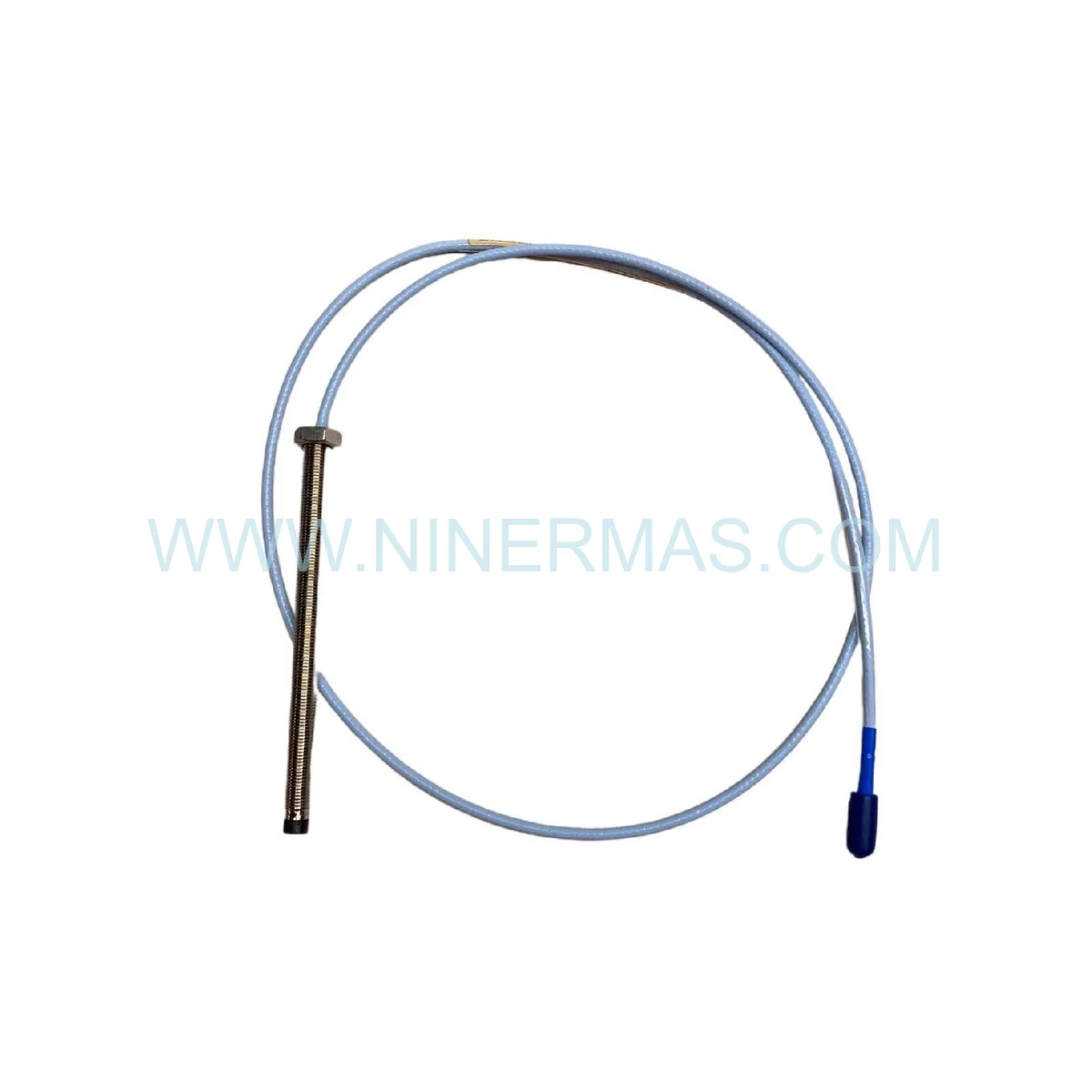

Bently Nevada 330141-08-05-02-05-00 8mm Proximity Probe – Industrial Vibration Monitoring Solution

The Bently Nevada 330141-08-05-02-05-00 is an industrial-grade 8mm proximity transducer designed for continuous shaft displacement and vibration monitoring in mission-critical rotating equipment. As part of the proven 3300 XL NSv™ proximity system, this sensor provides reliable, real-time data for turbines, compressors, motors, and pumps operating in demanding industrial environments.

Ideal for power generation facilities, petrochemical plants, manufacturing operations, and process industries, this proximity probe helps maintenance teams detect early signs of bearing degradation, shaft misalignment, rotor imbalance, and mechanical looseness—preventing costly unplanned downtime and catastrophic equipment failure.

Engineered with stainless steel construction and wide temperature tolerance, the 330141-08-05-02-05-00 delivers consistent performance across harsh operating conditions. Compatible with Bently Nevada 3300 XL proximitor signal conditioners, this probe integrates seamlessly into existing machinery protection systems and condition monitoring networks. Contact our application engineers for custom cable configurations, installation guidance, and system integration support.

Core Features & Technical Advantages

High-Frequency Response for Dynamic Monitoring
With a frequency response of 0 to 10 kHz (-3 dB), this probe captures both slow-roll displacement and high-frequency vibration events, enabling comprehensive machinery health assessment from startup through full-load operation.

Extended Temperature Range for Harsh Environments
Operates reliably from -40°C to +105°C (-40°F to +221°F), making it suitable for outdoor installations, high-temperature process equipment, and cold climate applications without performance degradation or calibration drift.

Precision 8mm Sensing Element
The 8mm probe diameter provides extended linear measurement range and improved signal-to-noise ratio compared to smaller probes, ideal for large shaft applications and installations requiring greater standoff distance.

Rugged Stainless Steel Construction
Corrosion-resistant housing withstands exposure to moisture, chemical vapors, and mechanical vibration, ensuring long-term reliability in petrochemical, marine, and heavy industrial environments.

Factory-Calibrated Sensitivity
Typical sensitivity of 200 mV/mil (7.87 mV/μm) when paired with compatible 3300 XL proximitors ensures accurate displacement measurement without field recalibration for ferromagnetic targets.

Flexible Cable Configuration Options
Available with custom cable lengths and termination styles to accommodate diverse installation requirements, from compact gearbox housings to large turbine pedestals with remote monitoring rooms.

Typical Application Scenarios

This proximity probe is engineered for installations where shaft position stability, vibration amplitude control, and early fault detection are critical to operational safety and asset reliability:

Steam & Gas Turbine Monitoring
Measures radial shaft displacement and differential expansion in power generation turbines, providing trip-level protection against bearing failure, rotor rubs, and thrust bearing collapse in units ranging from 10 MW to 500+ MW.

Centrifugal & Axial Compressor Surveillance
Tracks rotor position and vibration in API 617/API 672 compressor trains, detecting surge conditions, aerodynamic instability, and seal rubs before they escalate into forced outages or secondary damage.

High-Speed Motor Shaft Position Tracking
Monitors shaft runout and bearing clearance in variable-speed drives, induction motors, and synchronous motors operating above 3,600 RPM, supporting predictive maintenance programs and condition-based monitoring strategies.

Pump Radial Vibration Measurement
Provides continuous vibration monitoring for boiler feed pumps, cooling water pumps, and process pumps in accordance with ISO 10816 and API 610 standards, enabling early detection of cavitation, impeller imbalance, and coupling misalignment.

Generator Rotor Displacement Monitoring
Installed in hydro, steam, and gas turbine generators to measure rotor eccentricity, pole-pass vibration, and electromagnetic pull, supporting grid stability and preventing catastrophic rotor-to-stator contact.

Technical Parameters & Selection Guide

To ensure optimal performance and compatibility with your machinery protection system, review the following specifications and selection criteria:

Selection Considerations:

When specifying this proximity probe for your application, consider the following factors to ensure proper system performance:

• Shaft Material & Surface Finish: Probe is calibrated for ferromagnetic targets (steel, iron). Non-magnetic materials (aluminum, titanium, stainless steel 300-series) require system recalibration and may reduce linear range.
• Installation Clearance: Verify adequate radial clearance for 8mm probe body plus mounting hardware. Typical installation requires 15-20mm radial space from shaft centerline.
• Cable Routing Distance: Specify cable length based on distance from probe mounting location to proximitor installation point. Standard lengths range from 1m to 9m; custom lengths available.
• Operating Temperature: Confirm ambient temperature at probe installation point falls within -40°C to +105°C range. For extreme temperatures, consult factory for extended-range options.
• Proximitor Compatibility: This probe requires a compatible 3300 XL proximitor (such as 330180 or 330780 series) for signal conditioning and power supply.
• Vibration Severity: Ensure probe mounting structure provides rigid, vibration-isolated support to prevent measurement errors from probe body resonance.

For application-specific guidance, provide our engineering team with the following information: shaft diameter, shaft material, operating speed range, expected vibration levels, ambient temperature, and available mounting configuration. We will recommend the optimal probe model, cable length, and proximitor pairing for your installation.

System Integration & Compatibility

The 330141-08-05-02-05-00 proximity probe is designed for seamless integration with Bently Nevada 3300 XL monitoring systems and third-party machinery protection platforms:

3300 XL Proximitor Signal Conditioners
Pairs with 330180, 330780, and other 3300 XL proximitor modules to provide -24 Vdc excitation, signal buffering, and output scaling. Proximitor outputs connect directly to PLC analog inputs, DCS systems, or dedicated vibration monitors.

3500 Machinery Protection Systems
Integrates with Bently Nevada 3500/42M, 3500/40M, and other 3500 rack-based monitors for continuous online monitoring, alarm generation, and machinery trip functions in accordance with API 670 standards.

System 1 Condition Monitoring Software
Supports data acquisition and trending through Bently Nevada System 1 software platforms, enabling remote diagnostics, historical analysis, and predictive maintenance workflows.

Third-Party DCS & SCADA Integration
Proximitor outputs (typically 4-20 mA or ±10 Vdc) interface with Honeywell, Emerson, Siemens, and other control systems via standard analog input modules, supporting plant-wide asset management strategies.

Delivery, Service & Technical Support

Lead Time & Availability
Standard configuration units typically ship within 3-5 business days from stock. Custom cable lengths or special configurations may require 2-3 weeks for factory assembly and testing. Contact our sales team for current availability and expedited delivery options.

Warranty Coverage
All proximity probes include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Warranty includes replacement or repair at our discretion, with return shipping covered for confirmed warranty claims.

Installation & Commissioning Support
Our application engineers provide remote technical guidance for probe installation, gap voltage verification, and system calibration. On-site commissioning services available for large projects or complex multi-probe installations (fees apply based on location and scope).

Technical Documentation Package
Each unit ships with complete technical documentation including: dimensional drawings, installation instructions, wiring diagrams, calibration data sheets, and proximitor pairing recommendations. Additional resources available through our online technical library.

Lifecycle Support & Spare Parts
Bently Nevada maintains long-term product support for 3300 XL series components. Replacement probes, extension cables, and mounting hardware available for the product lifecycle. Consult our team for obsolescence planning and upgrade paths for aging installations.

Frequently Asked Questions (FAQ)

Q: What is the difference between 5mm and 8mm proximity probes for vibration monitoring applications?
A: 8mm probes offer approximately 60% greater linear measurement range (typically 80 mils vs. 50 mils) and improved signal strength compared to 5mm probes, making them ideal for large shaft diameters (above 100mm), high-vibration applications, or installations requiring extended standoff distance. 5mm probes are preferred for compact machinery with limited radial clearance or smaller shaft diameters below 75mm.

Q: Can this proximity probe be used with non-Bently Nevada proximitor signal conditioners?
A: While the probe may physically connect to third-party proximitors, we strongly recommend using Bently Nevada 3300 XL proximitors to maintain factory calibration accuracy and system warranty coverage. Non-Bently proximitors may require field recalibration and can introduce measurement errors due to different excitation voltages and impedance characteristics.

Q: What shaft target material is required for accurate proximity measurement?
A: This probe is factory-calibrated for ferromagnetic materials including carbon steel, alloy steel, and cast iron. Non-magnetic materials (aluminum, brass, titanium, austenitic stainless steel) will function but require system recalibration and typically exhibit 30-50% reduced linear range. For non-ferrous shafts, consider eddy current probes as an alternative.

Q: How do I verify proper probe installation and gap voltage after mounting?
A: Use a Bently Nevada TK-3 test kit or compatible proximitor output meter to measure gap voltage at the installed operating clearance (typically 40-60 mils). Verify voltage falls within the linear range specified on the proximitor calibration chart. Slowly move the shaft toward and away from the probe while monitoring voltage to confirm linear response across the expected vibration range.

Q: What is the maximum cable length between the proximity probe and proximitor?
A: Standard 3300 XL system supports probe-to-proximitor cable lengths up to 9 meters (30 feet) without signal degradation. For longer distances, consider using extension cables with impedance-matched connectors or relocating the proximitor closer to the probe mounting point. Cables exceeding 9m may require system recalibration.

Q: Is this probe suitable for hazardous area installations (ATEX, IECEx, Class I Div 2)?
A: The standard 330141-08-05-02-05-00 is designed for general industrial use. For hazardous area applications, consult Bently Nevada for intrinsically safe (IS) barrier configurations or explosion-proof proximitor housings that meet ATEX, IECEx, or NEC 500 requirements. The probe itself is passive and can be used in hazardous zones when paired with appropriate barriers.

Request Technical Consultation & Custom Quotation

Our application engineering team is ready to assist with probe selection, system design, and integration planning for your machinery monitoring project. To receive a detailed technical proposal and pricing, please provide the following information:

• Project Overview: Facility type, equipment description, monitoring objectives
• Machinery Details: Equipment type (turbine, compressor, motor, pump), manufacturer, model, rated power/capacity
• Shaft Specifications: Diameter, material, surface finish, operating speed range (RPM)
• Installation Environment: Ambient temperature range, exposure to moisture/chemicals, available mounting access
• System Requirements: Number of measurement points, proximitor preferences, output signal type (4-20mA, ±Vdc), integration with existing DCS/PLC
• Cable Configuration: Required length from probe to proximitor, routing constraints, connector preferences
• Delivery Timeline: Project schedule, commissioning date, any expedited delivery requirements

Submit your inquiry through our contact form, email our technical sales team, or call our application hotline for immediate assistance. We provide complimentary pre-sales engineering support including probe sizing calculations, mounting recommendations, and system architecture review.
