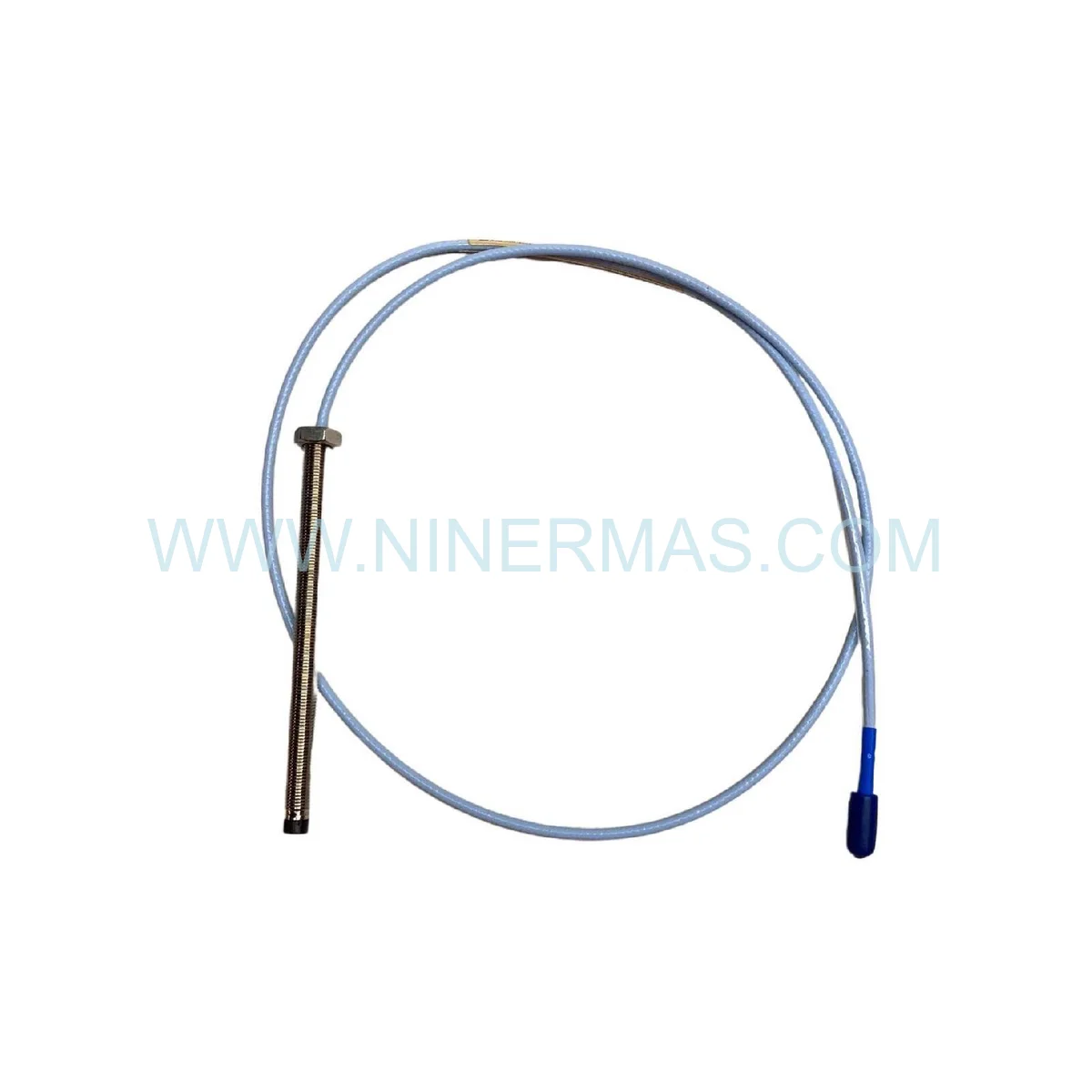

Bently Nevada 330141-08-05-02-05-00 8mm Proximity Probe (Industrial-Grade Vibration Monitoring System)

The Bently Nevada 330141-08-05-02-05-00 is an industrial-grade 8mm proximity transducer designed for continuous shaft displacement and vibration monitoring in critical rotating machinery. Utilizing eddy current sensing technology combined with 3300 XL NSv™ proximitor signal conditioning, it delivers real-time radial position measurement with exceptional accuracy and electromagnetic immunity.

Engineered for high-reliability applications including steam turbines, centrifugal compressors, industrial pumps, and power generation equipment, this sensor addresses common challenges such as bearing degradation detection, rotor imbalance identification, shaft misalignment monitoring, and machinery protection trip initiation—reducing unplanned downtime and catastrophic failure risks.

Through standardized design with customizable cable lengths and mounting configurations, the 330141-08-05-02-05-00 offers proven durability, wide temperature tolerance, SIL-capable protection integration, and seamless compatibility with Bently Nevada monitoring systems. Ideal for design engineers, EPC contractors, equipment integrators, and plant maintenance teams. Contact our application engineers for selection guidance and technical specifications.

Core Features & Advantages

• High-Precision Eddy Current Sensing
  Non-contact measurement technology with 200 mV/mil (7.87 mV/μm) typical sensitivity provides accurate shaft displacement data without mechanical wear, ensuring long-term measurement stability and eliminating sensor-induced vibration.
• Extended Operating Temperature Range
  Qualified for -40°C to +105°C (-40°F to +221°F) continuous operation, suitable for extreme environments including steam turbine casings, compressor discharge zones, and outdoor installations with minimal performance degradation.
• Wide Frequency Response for Dynamic Monitoring
  0 to 10 kHz (-3 dB) bandwidth captures both low-frequency shaft runout and high-frequency bearing fault signatures, enabling comprehensive condition assessment from startup transients to steady-state operation.
• Robust Stainless Steel Construction
  Hermetically sealed housing with 8mm x 1.0 metric thread provides superior resistance to moisture ingress, chemical exposure, and mechanical shock—extending service life in harsh industrial environments compared to standard industrial sensors.
• SIL-Capable Safety Integration
  Certified for use in Safety Instrumented Systems (SIS) when paired with qualified proximitors and monitoring platforms, supporting machinery protection functions that meet IEC 61508 requirements for process safety applications.
• Seamless 3300 XL System Compatibility
  Factory-matched to Bently Nevada proximitors (such as 125808-01C) with pre-calibrated scale factors, eliminating field calibration complexity and ensuring measurement accuracy within ±1% of full-scale range per API 670 standards.

Typical Application Scenarios

This proximity probe is engineered for installations demanding continuous reliability, precise displacement measurement, and early fault detection capabilities, particularly in:

• Steam & Gas Turbine Monitoring
  Measures journal bearing clearance and rotor axial/radial position in power generation turbines, detecting thrust bearing wear and thermal growth anomalies before critical clearance loss occurs, protecting multi-million-dollar assets.
• Centrifugal & Axial Compressor Surveillance
  Tracks shaft vibration amplitude and phase in oil & gas compression trains, identifying surge conditions, aerodynamic instability, and rotor rubs that can lead to catastrophic impeller failure or seal damage in high-pressure applications.
• High-Speed Motor & Generator Protection
  Monitors rotor eccentricity and magnetic center position in large synchronous motors and generators (2-pole to 8-pole configurations), enabling early detection of electromagnetic imbalance, foundation settling, or coupling misalignment issues.
• Industrial Pump Condition Monitoring
  Provides radial vibration measurement in boiler feed pumps, pipeline pumps, and process circulation systems, helping maintenance teams identify cavitation, impeller imbalance, and bearing deterioration through trend analysis and alarm threshold management.
• Critical Machinery Protection Systems
  Integrates with plant DCS/PLC platforms via 4-20mA or Modbus interfaces for automated shutdown logic, preventing secondary damage when vibration or displacement exceeds API 670 or ISO 20816 alarm limits in unmanned facilities.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive specifications for the 330141-08-05-02-05-00 model. Custom configurations are available for non-standard cable lengths, special thread adapters, or extreme environment requirements.

Selection Recommendations:
When specifying this proximity probe, consider the following application parameters: shaft diameter and material composition, required measurement range and linearity tolerance, installation space constraints and radial clearance, operating temperature extremes and thermal cycling, cable routing distance from probe to proximitor, and electromagnetic interference environment. For assistance with probe positioning, gap voltage verification, or system integration, please provide your machinery specifications—our application engineers will recommend optimal configurations and compatible proximitor models.

Extended Capabilities

• Multi-Channel Monitoring Integration: Deploy multiple probes in XY configuration for orbit analysis, or combine with keyphasor sensors for phase-referenced vibration vectors and rotor dynamic characterization.
• Remote Monitoring Compatibility: Integrate with Bently Nevada System 1 or third-party SCADA platforms via 4-20mA output modules, enabling centralized condition monitoring and predictive maintenance analytics across distributed facilities.
• Hazardous Area Certification: Available with ATEX/IECEx intrinsically safe barriers for Zone 1/Division 1 installations in petrochemical and offshore applications (consult factory for certified configurations).
• Retrofit & Upgrade Solutions: Direct replacement for legacy 7200-series and 3300-series probes with backward-compatible mounting dimensions, simplifying obsolescence management without machinery modification.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable lengths or special configurations typically require 2-3 weeks for factory assembly and calibration verification.

Warranty Coverage: All proximity probes include a 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended warranty programs available for critical applications.

Technical Support: Complimentary installation guidance, gap voltage troubleshooting, and system commissioning assistance provided via phone/email. On-site calibration verification and training services available (regional availability varies).

Documentation Package: Each unit ships with certified calibration data sheet, dimensional drawings with mounting torque specifications, cable termination diagrams, and proximitor pairing recommendations—ensuring seamless integration and compliance with plant documentation requirements.

Frequently Asked Questions (FAQ)

Q: How does the 8mm proximity probe differ from 5mm models in measurement capability?
A: The 8mm probe offers approximately 60% greater linear measurement range (0-80 mils vs. 0-50 mils) and improved signal-to-noise ratio for large shaft applications (>100mm diameter). The 5mm variant is preferred for compact installations with limited radial clearance or smaller shaft diameters where space constraints prevent 8mm probe installation.

Q: Can this Bently Nevada probe be used with third-party proximitor signal conditioners?
A: While electrically compatible with some third-party systems, we strongly recommend pairing with Bently Nevada 3300 XL proximitors to maintain factory calibration accuracy (±1% FSR). Non-Bently proximitors may require field recalibration using precision gap standards and may void warranty coverage if measurement errors occur.

Q: What shaft target material is required for accurate displacement measurement?
A: The probe is factory-calibrated for ferromagnetic targets (carbon steel, 4140 alloy steel, cast iron). Non-magnetic materials such as stainless steel 300-series, aluminum, or titanium require system recalibration with material-specific extension cables and may reduce usable measurement range by 30-50%.

Q: How do I verify probe functionality after installation?
A: Use a Bently Nevada TK-3 test kit or compatible proximitor with built-in gap voltage display. Verify -2V to -22V gap voltage range across the linear measurement zone using precision feeler gauges. Consult proximitor datasheet for expected voltage vs. gap characteristics and linearity tolerance limits.

Q: What is the maximum cable length between probe and proximitor?
A: Standard system cable lengths range from 1 to 9 meters (3 to 30 feet). Extended cable runs up to 15 meters are possible with low-capacitance cable specifications, though sensitivity may decrease slightly. For cable runs exceeding 9 meters, consult factory for impedance matching recommendations.

Q: Is this probe suitable for hazardous area installations?
A: The probe itself is passive (no electrical power) and can be installed in Zone 1/Division 1 areas when paired with certified intrinsically safe barriers on the proximitor side. Consult your regional safety authority and request ATEX/IECEx documentation for specific installation classifications.

Request Selection Assistance & Quotation

To receive detailed application engineering support, pricing, and delivery information, please provide the following project details:

• Project name and application type (turbine, compressor, pump, motor, etc.)
• Machinery specifications: shaft diameter, operating speed (RPM), bearing type
• Required measurement range and accuracy tolerance
• Installation environment: temperature range, vibration levels, hazardous area classification
• Cable length requirement and routing constraints
• Proximitor model (if already selected) or monitoring system interface requirements
• Quantity required and preferred delivery schedule

Our application engineers will provide one-on-one selection guidance, system configuration recommendations, and competitive quotations within 24 business hours.
