8mm Proximity Probe for Industrial Turbomachinery Monitoring (3300 XL Series)

The 330140-08-50-12-00-00 is an industrial-grade eddy current proximity probe designed for continuous shaft displacement and vibration monitoring in critical rotating equipment. Through non-contact sensing technology combined with a factory-terminated 12-meter low-noise cable, this transducer delivers precise radial position data for turbines, compressors, pumps, and motor-driven machinery operating under extreme environmental conditions.

Engineered for power generation plants, petrochemical facilities, oil and gas processing units, and heavy manufacturing operations, this probe addresses common challenges including bearing failure prediction, rotor imbalance detection, shaft misalignment identification, and thermal growth measurement. The extended cable length eliminates field splicing requirements in installations where signal conditioning modules must be mounted remotely from measurement points.

Built with standardized 8mm metric threading and stainless steel construction, the system offers field-proven reliability with customizable mounting configurations. Suitable for design engineers, instrumentation contractors, maintenance teams, and OEM integrators requiring API 670 machinery protection compliance. Contact our application engineers for system configuration assistance and technical specifications tailored to your operating parameters.

Core Features & Performance Advantages

• Extended Cable Integration

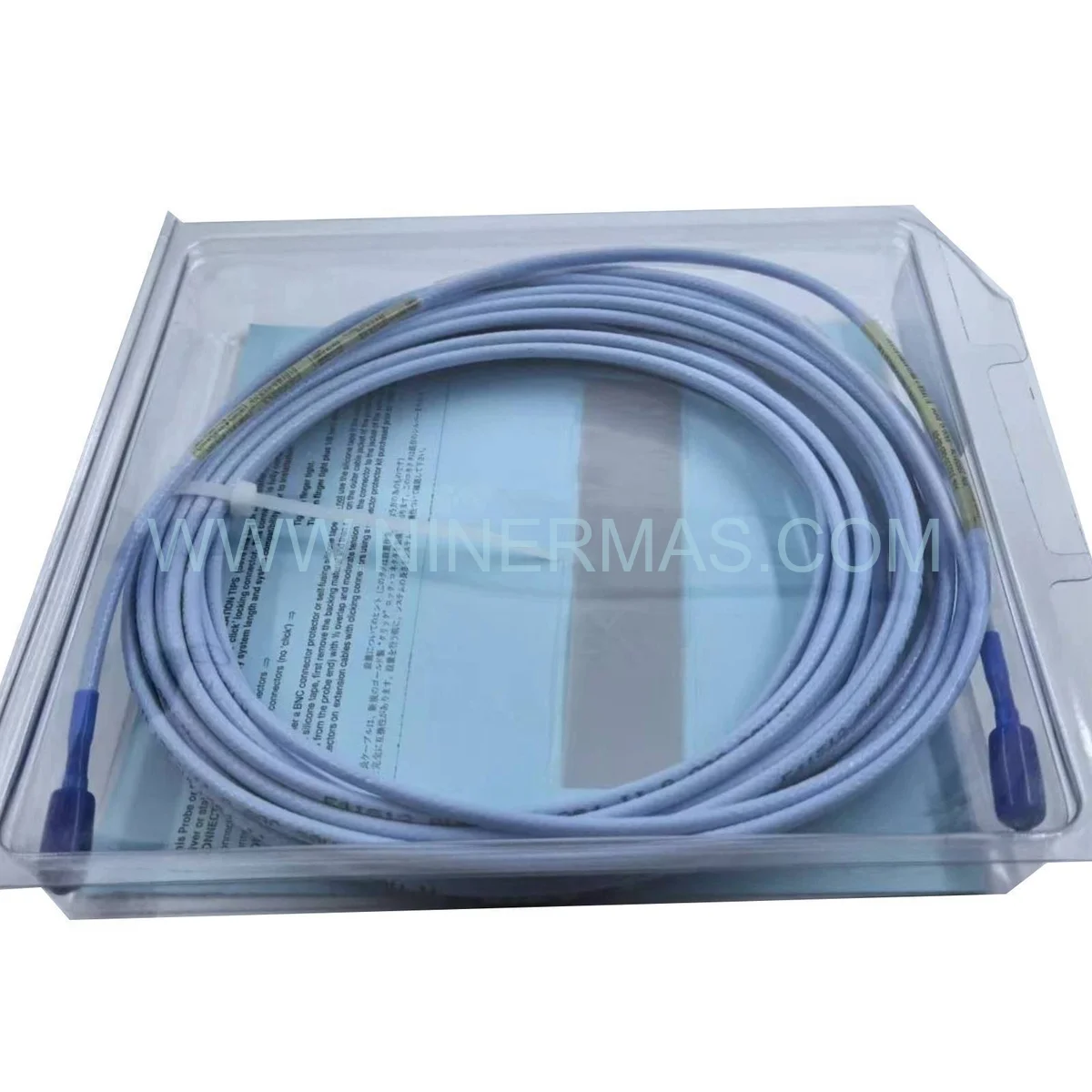

  Factory-bonded 12-meter coaxial cable eliminates splice points and associated failure modes, reducing installation labor by 40-60% compared to field-terminated alternatives while maintaining signal integrity across the full frequency spectrum.
• Wide Frequency Response
  DC to 10 kHz bandwidth captures both slow-roll shaft position (0.1 Hz) and high-frequency bearing defect signatures (8-10 kHz), enabling comprehensive condition monitoring from startup transients through full-speed operation.
• Extreme Temperature Capability
  Continuous operation from -40°C to +105°C supports arctic installations, desert climates, and high-temperature process environments without performance degradation or recalibration requirements.
• Precision Measurement Range
  2.0mm linear operating range with ±1% linearity provides accurate gap voltage correlation for both static position measurement and dynamic vibration amplitude tracking within API 670 tolerance specifications.
• Robust Construction Standards
  300-series stainless steel body with hermetically sealed electronics resists corrosive atmospheres, moisture ingress, and mechanical shock, delivering 10+ year service life in harsh industrial environments.
• Universal System Compatibility
  Direct integration with 3300 XL proximitor modules, legacy 3300 systems, and third-party monitoring platforms through standardized -7.87 V/mm sensitivity and 200 mV/mil output scaling.

Typical Application Scenarios

This proximity probe serves critical machinery protection and predictive maintenance programs across multiple industrial sectors:

• Steam & Gas Turbine Monitoring
  Measures journal bearing clearances, thrust position, and differential expansion in power generation turbines rated 10-500 MW, providing early warning of bearing wear, rotor bow, and thermal distortion before catastrophic failure.
• Centrifugal Compressor Protection
  Tracks radial vibration and axial position in multi-stage compressors handling natural gas, air, refrigerants, and process gases, enabling automated shutdown sequences when displacement exceeds alarm thresholds per API 617 standards.
• High-Speed Pump Surveillance
  Monitors shaft runout and bearing condition in boiler feed pumps, pipeline transfer pumps, and refinery process pumps operating above 3600 RPM, where conventional accelerometers cannot resolve low-frequency instabilities.
• Electric Motor & Generator Sets
  Provides continuous eccentricity measurement in large induction motors (>500 HP) and synchronous generators, detecting rotor-to-stator air gap variations that indicate foundation settling, soft foot conditions, or electromagnetic imbalance.
• Gearbox & Coupling Systems
  Captures torsional oscillations and lateral displacement in reduction gearboxes and flexible couplings, identifying misalignment, gear tooth wear, and coupling degradation through orbit analysis and phase relationship studies.

Technical Parameters & Selection Guide

To ensure optimal performance and compatibility, the following specifications define the operational envelope and installation requirements:

Selection Considerations: When specifying this probe system, evaluate maximum shaft diameter (minimum 24mm for 8mm probe), available mounting space (radial and axial clearances), environmental conditions (temperature, humidity, chemical exposure), required cable routing distance, and compatibility with existing proximitor signal conditioners. For non-standard applications including high-temperature variants (up to 177°C), armored cable protection, or explosion-proof certifications, consult factory engineering for custom configurations. Our technical team can provide dimensioned installation drawings, calibration curves, and system integration guidance based on your machinery specifications.

System Integration & Compatible Components

The proximity probe functions as the sensing element within a complete transducer system requiring matched signal conditioning electronics:

• Proximitor Sensor Modules: Pair with 3300 XL proximitor housings (e.g., 330180 series) that provide -24 VDC excitation, signal buffering, and standardized 4-20 mA or ±10 VDC outputs for PLC/DCS integration.
• Rack-Mount Monitors: Integrate with 3500 series monitoring frameworks or 1900/65A general-purpose monitors for alarm setpoint management, trend recording, and relay contact outputs.
• Extension Cables: When total run exceeds 12 meters, use factory-certified extension cables (330130 series) maintaining 50-ohm impedance matching to preserve frequency response and noise immunity.
• Calibration Equipment: Verify installation accuracy using TK-3E test kits or precision gap measurement fixtures to confirm voltage-to-displacement correlation across the full 2mm range.

Installation Guidelines & Best Practices

Proper installation directly impacts measurement accuracy and long-term reliability:

Mechanical Mounting: Install probe perpendicular to shaft surface (90° ±2°) using lock washers and thread sealant rated for operating temperature. Ensure mounting boss provides rigid support without flexure under vibration. Verify target area is free from keyways, coupling bolts, or surface discontinuities that create electrical runout.

Electrical Routing: Maintain minimum 300mm separation from AC power cables, VFD output conductors, and high-current bus bars. Use grounded metal conduit or shielded cable trays in high-EMI environments. Avoid sharp bends, kinks, or compression points that damage cable shielding. Ground proximitor housing to machinery frame using dedicated ground strap (≤1 ohm resistance).

Gap Setting Procedure: Set initial gap to 1.0mm using feeler gauges or dial indicator. Verify gap voltage reads -10 VDC ±0.5 VDC at proximitor output. Rotate shaft slowly (≤10 RPM) and observe voltage variation; total electrical runout should not exceed 25% of vibration alarm limit. Document as-installed gap and voltage for future reference.

Commissioning Verification: Perform slow-roll compensation to establish baseline electrical runout signature. Conduct bump tests or coast-down analysis to verify resonance frequencies. Compare measured vibration amplitudes against acceptance criteria (typically 25 μm pk-pk for journal bearings, 50 μm for thrust bearings). Archive baseline data for trending analysis.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable lengths or special certifications require 2-3 weeks manufacturing lead time. Expedited processing available for emergency outage support.

Warranty Coverage: 12-month warranty against manufacturing defects and material failures from date of shipment. Extended warranty programs (24-36 months) available for critical service applications requiring maximum uptime assurance.

Technical Support: Factory-trained application engineers provide remote installation guidance, troubleshooting assistance, and system optimization recommendations. On-site commissioning services available in major industrial regions (pricing varies by location and scope).

Documentation Package: Each probe ships with calibration certificate (voltage vs. gap curve), dimensional outline drawing, installation instructions, and material traceability records. Electrical schematics and proximitor wiring diagrams provided upon request for system integrators.

Quality Standards: Manufactured under ISO 9001:2015 certified processes with full lot traceability. 100% electrical testing and calibration verification performed before shipment. Complies with API 670 machinery protection system requirements and CE marking directives for industrial equipment.

Frequently Asked Questions (FAQ)

Q: How does the 12-meter cable version differ from standard 5-meter models?
A: The extended cable eliminates field splicing requirements in applications where proximitor housings must be mounted in remote junction boxes or control rooms located far from the probe installation point. This reduces potential failure modes, simplifies installation labor, and maintains signal integrity without impedance discontinuities. Ideal for large turbine pedestals, elevated compressor platforms, or installations with long conduit runs.

Q: What is the maximum vibration amplitude this probe can measure?
A: Within the 2.0mm linear range, the probe accurately tracks peak-to-peak vibration amplitudes up to approximately 1.6mm (allowing for DC gap offset). For machinery exhibiting higher vibration levels, consider larger-diameter probes (11mm or 14mm models) offering extended linear ranges of 2.5-4.0mm. Consult vibration severity standards (ISO 10816, API 684) to determine appropriate measurement range for your equipment class.

Q: Can this probe be used with non-ferrous shafts such as stainless steel or titanium?
A: Eddy current probes require ferromagnetic target materials (carbon steel, low-alloy steel, cast iron) for proper operation. Austenitic stainless steels (300-series) and titanium alloys are non-magnetic and incompatible. For non-ferrous shafts, install a ferromagnetic sleeve (416 stainless or 4140 steel) over the measurement zone, or consider alternative sensing technologies such as laser displacement sensors or capacitive probes.

Q: How do I verify probe calibration after installation?
A: Use a precision micrometer or dial indicator to measure actual gap while recording proximitor output voltage. Plot voltage vs. gap at 0.25mm increments across the full 2.0mm range. Compare measured curve against factory calibration certificate; deviation should not exceed ±2% of full scale. For field verification without removing the probe, use a TK-3E test kit to inject calibrated signals and verify proximitor response. Recalibration intervals typically range from 2-5 years depending on operating severity.

Q: What causes excessive electrical runout and how can it be minimized?
A: Electrical runout results from variations in target material properties (hardness, permeability, conductivity) around the shaft circumference. Common sources include weld seams, keyways, coupling bolt holes, and surface finish variations. Minimize runout by selecting smooth, homogeneous measurement zones, avoiding heat-affected zones near welds, and ensuring surface finish ≤6.3 μm Ra. Slow-roll compensation algorithms in modern monitoring systems can subtract electrical runout from dynamic vibration signals.

Q: Is this probe compatible with legacy 3300 series proximitor systems?
A: Yes, 3300 XL probes maintain full backward compatibility with original 3300 proximitor sensor housings when properly configured. Verify proximitor model supports the probe's -7.87 V/mm sensitivity and cable length. Some older proximitors may require firmware updates or output scaling adjustments. Consult system documentation or contact technical support for compatibility verification and configuration guidance.

Request Technical Consultation & Quotation

For detailed system design assistance, custom configurations, or project-specific pricing, please provide the following information to our application engineering team:

• Project name and application description (equipment type, operating conditions)
• Machinery specifications (shaft diameter, operating speed, bearing type)
• Measurement requirements (vibration limits, position accuracy, frequency range)
• Environmental conditions (temperature range, humidity, chemical exposure)
• Quantity required and delivery timeline
• Existing monitoring system details (if integrating with installed equipment)

Our engineers will provide one-on-one selection guidance, dimensioned installation drawings, system wiring diagrams, and competitive quotations within 24-48 hours.
