8mm Proximity Probe for Industrial Vibration Monitoring (Bently Nevada 3300 XL System)

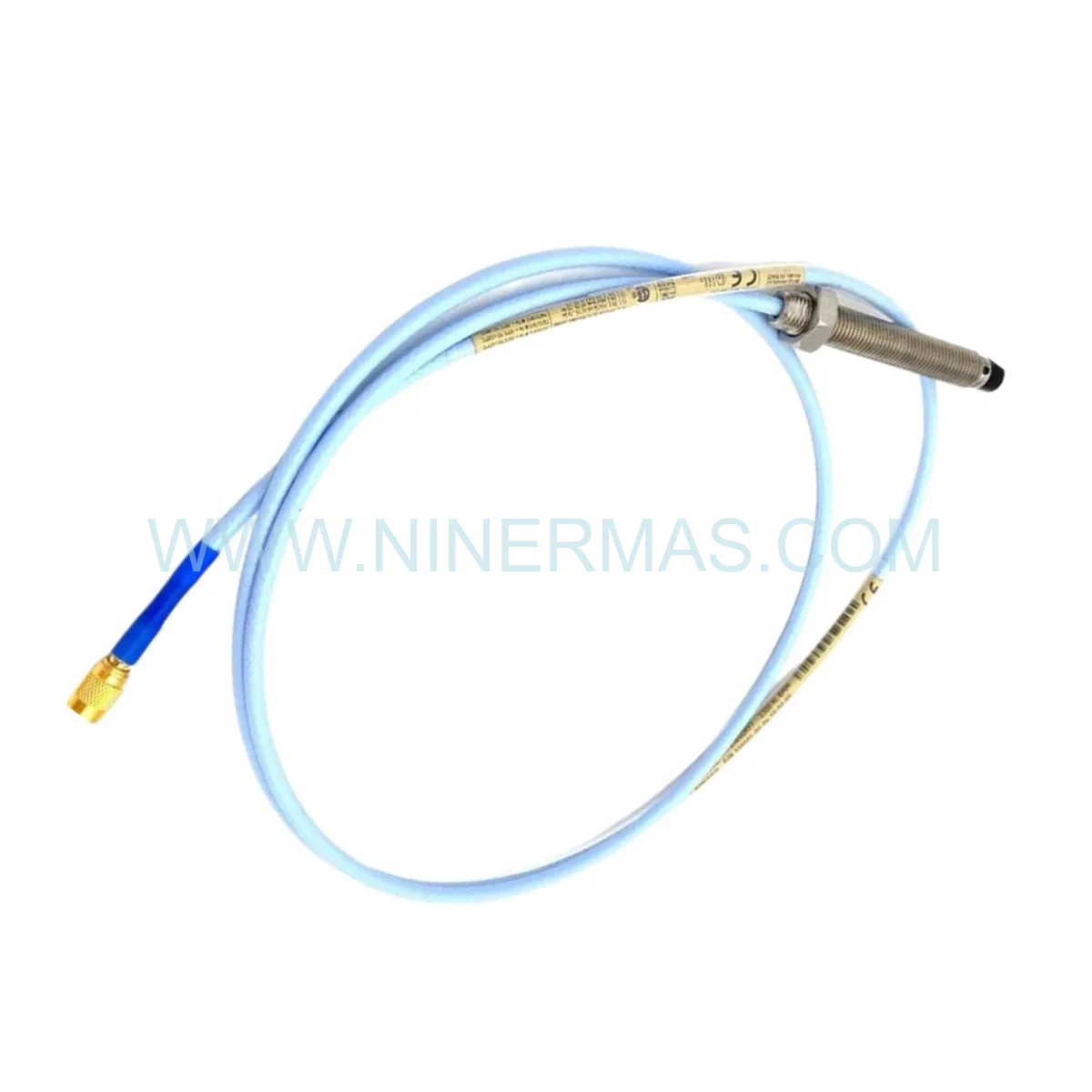

The Bently Nevada 330140-08-20-02-00-00 is an industrial-grade 8mm proximity probe engineered for continuous shaft displacement and vibration monitoring in critical rotating machinery. Utilizing advanced eddy current sensing technology, this probe delivers precise, non-contact measurement through the proven 3300 XL Proximity Transducer System, ensuring operational safety and maximizing equipment uptime in demanding industrial environments.

Designed for turbines, compressors, generators, and high-speed rotating equipment, this probe addresses common challenges including unexpected bearing failures, thermal expansion deviations, shaft misalignment, and catastrophic rotor contact events. It serves design engineers, maintenance teams, reliability specialists, and OEM integrators who demand measurement accuracy, long-term stability, and compliance with international machinery protection standards.

Through standardized design and flexible configuration options, the 330140-08-20-02-00-00 offers exceptional sensitivity, electromagnetic interference immunity, wide temperature tolerance, and seamless integration with existing monitoring infrastructure. Contact our application engineers for customized selection guidance, calibration support, and competitive project quotations.

Core Functions & Advantages

• Precision Eddy Current Measurement
  Non-contact sensing technology measures shaft displacement with ±1% linearity over the calibrated range, detecting micro-level changes in radial position, axial thrust, and dynamic vibration from DC to 10 kHz frequency response.
• Enhanced Machinery Protection
  Early detection of bearing wear, thermal growth anomalies, coupling misalignment, shaft cracks, and rotor rub conditions enables predictive maintenance strategies that reduce catastrophic failures by up to 85% and extend mean time between failures (MTBF) by 40-60%.
• Extreme Environment Durability
  Operates reliably across -40°C to +105°C (-40°F to +221°F) temperature range with superior electromagnetic interference rejection, suitable for harsh industrial settings including steam turbines, gas compression stations, and petrochemical processing facilities.
• API 670 Compliance Ready
  When paired with certified 3300 XL Proximitor sensors and intrinsically safe barriers, achieves compliance with API 670 machinery protection standards and hazardous area certifications (Class I Div 1, ATEX Zone 0, IECEx).
• Proven System Compatibility
  Full backward compatibility with legacy Bently Nevada 3300 and 7200 series Proximitor sensors while offering enhanced temperature stability and measurement repeatability. Supports extension cables from 1m to 9m with field-adjustable calibration.
• Maintenance-Free Solid-State Design
  No moving parts, consumable elements, or periodic recalibration requirements. Typical service life exceeds 15-20 years under normal operating conditions, minimizing total cost of ownership.

Typical Application Scenarios

This proximity probe is engineered for industrial applications demanding continuous shaft position monitoring, real-time vibration analysis, and automated machinery protection:

• Steam & Gas Turbine Monitoring
  Measures radial vibration at bearing housings and axial position of thrust collars in power generation turbines, preventing blade tip rubs and thrust bearing failures that cause multi-million dollar outages.
• Centrifugal Compressor Protection
  Monitors rotor displacement in multi-stage compressors used in natural gas processing, air separation, and refrigeration systems, detecting surge conditions and bearing degradation before performance loss occurs.
• Large Motor & Generator Surveillance
  Tracks shaft eccentricity and magnetic center position in synchronous motors, induction motors above 500 HP, and hydro/thermal generators, identifying rotor bar cracks and electromagnetic imbalance.
• Critical Pump Mechanical Seal Protection
  Provides shaft runout and axial movement data for high-pressure pumps in refining, chemical processing, and water injection systems, preventing costly mechanical seal failures and process fluid leaks.
• Industrial Fan & Blower Vibration Analysis
  Detects imbalance, looseness, and bearing wear in forced draft fans, induced draft fans, and process blowers, enabling condition-based maintenance scheduling and avoiding unplanned shutdowns.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide comprehensive technical specifications. Custom configurations are available based on specific project requirements:

Selection Recommendations: When specifying this proximity probe, consider the following factors: shaft diameter and surface material, maximum operating temperature, required measurement range, installation space constraints, extension cable routing distance, hazardous area classification requirements, and compatibility with existing monitoring systems. For application-specific engineering support, please provide equipment type, shaft speed, bearing configuration, operating environment conditions, and monitoring objectives. Our technical team will recommend the optimal probe configuration and complete system architecture.

System Integration & Installation Requirements

The 330140-08-20-02-00-00 proximity probe functions as part of a complete measurement chain requiring compatible signal conditioning and monitoring infrastructure:

• Required Components: 3300 XL Proximitor sensor module for signal conditioning and output conversion, extension cable assembly matching installation distance, mounting bracket or probe holder with precise positioning capability.
• Mechanical Installation: Thread probe into mounting bracket ensuring perpendicular alignment to shaft surface. Maintain 40-80 mil (1.0-2.0 mm) gap using feeler gauges or dial indicator. Lock probe position with jam nut after gap verification.
• Electrical Connection: Route extension cable from probe to Proximitor housing avoiding high-voltage cables and electromagnetic interference sources. Verify cable shield grounding at Proximitor end only to prevent ground loops.
• Calibration Procedure: Perform gap voltage calibration using certified reference standards to achieve -200 mV/mil sensitivity. Document calibration curve for measurement traceability and future troubleshooting.
• Commissioning Verification: Conduct static gap check, dynamic runout measurement, and frequency response validation per API 670 guidelines. Professional commissioning services are recommended for critical machinery applications.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from stock. Custom cable lengths or special configurations require 10-15 business days manufacturing lead time.

Warranty Coverage: Each proximity probe includes a comprehensive 12-month manufacturer warranty protecting against defects in materials and workmanship under normal operating conditions.

Technical Support: Our certified application engineers provide pre-sales consultation, installation guidance, calibration assistance, and lifetime troubleshooting support via phone, email, and remote diagnostics.

Documentation Package: Complete technical data package includes dimensional drawings, electrical specifications, installation instructions, calibration procedures, API 670 compliance certificates, and hazardous area approval documentation.

Quality Certifications: Manufactured under ISO 9001 quality management system with full material traceability and factory acceptance testing documentation available upon request.

Frequently Asked Questions (FAQ)

Q: What shaft surface finish is required for the 8mm proximity probe to achieve optimal measurement accuracy?
A: Target shaft surfaces should have a finish of 32 micro-inches (0.8 μm) Ra or smoother to minimize measurement noise and maintain linearity. Rougher surfaces introduce signal variations that can mask true vibration signatures. The shaft material must be non-plated 4140 steel or equivalent ferromagnetic alloy for proper eddy current coupling.

Q: Can this Bently Nevada proximity probe operate safely in explosive atmospheres?
A: Yes, when integrated with intrinsically safe 3300 XL Proximitor sensors and approved zener barrier modules, this system achieves certifications for Class I Division 1 (North America), ATEX Zone 0 (Europe), and IECEx (International) hazardous area classifications suitable for oil & gas, petrochemical, and chemical processing facilities.

Q: How long can I expect this proximity probe to operate before requiring replacement?
A: Under normal operating conditions with proper installation and environmental protection, these solid-state probes typically provide 15-20 years of maintenance-free service. The design contains no moving parts, wear surfaces, or consumable elements that degrade over time. Failures are extremely rare and usually result from external damage or improper installation.

Q: Is the 330140-08-20-02-00-00 probe compatible with older Bently Nevada monitoring systems?
A: Yes, the 3300 XL series maintains full backward compatibility with legacy 3300 and 7200 series Proximitor sensor modules while offering enhanced temperature stability, improved electromagnetic interference rejection, and tighter manufacturing tolerances. Existing extension cables and mounting hardware can typically be reused during system upgrades.

Q: What extension cable lengths are available, and do longer cables affect measurement accuracy?
A: Standard configurations support extension cables from 1 meter to 9 meters in 1-meter increments. Custom lengths up to 15 meters can be manufactured for unique installation requirements. Longer cables introduce additional capacitance that shifts the calibration curve, requiring field adjustment of the Proximitor sensor gain and offset settings to maintain -200 mV/mil sensitivity.

Q: How do I select between 5mm, 8mm, and 11mm proximity probe diameters for my application?
A: Probe diameter selection depends on shaft size, available installation space, and required measurement range. The 8mm probe offers an optimal balance of sensitivity and physical robustness for shaft diameters from 50mm to 500mm. Smaller 5mm probes suit compact machinery with limited radial clearance, while larger 11mm probes provide extended measurement range for very large turbines and generators above 1000mm shaft diameter.

Request Selection Support & Quotation

To receive detailed application engineering support, customized system configuration recommendations, and competitive project pricing, please provide the following information to our technical team:

• Project name and application overview
• Equipment type (turbine, compressor, motor, pump, etc.)
• Shaft diameter, material, and surface finish
• Operating speed range (RPM)
• Number of measurement points required
• Operating temperature and environmental conditions
• Hazardous area classification (if applicable)
• Existing monitoring system details (if upgrading)
• Installation timeline and delivery requirements

Our application engineers will respond within 24 hours with tailored recommendations, complete bill of materials, technical drawings, and project quotation.
