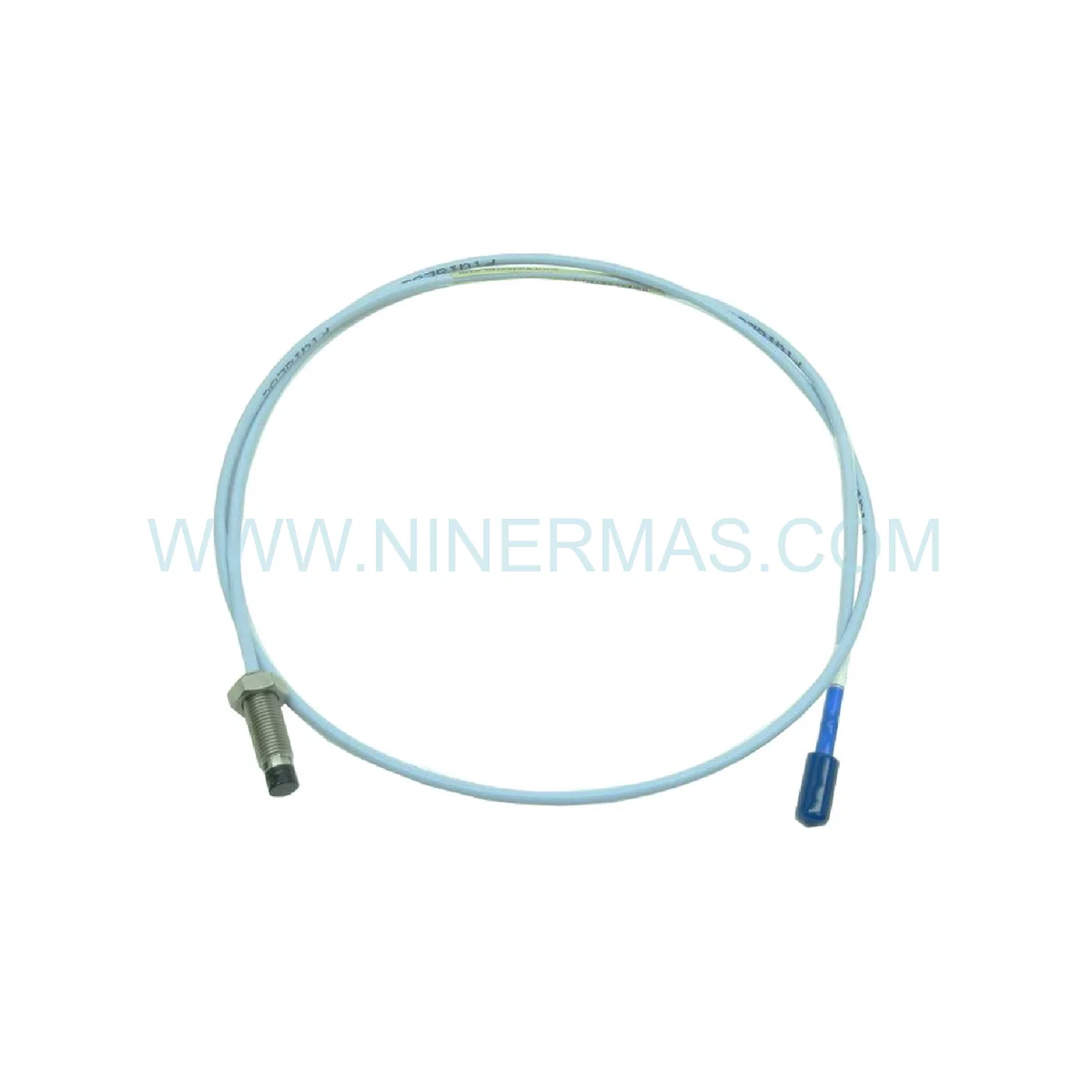

8mm Proximity Transducer Probe for Industrial Vibration Monitoring (Bently Nevada 3300 XL Series)

The Bently Nevada 330140-08-15-11-00-00 is an industrial-grade 8mm proximity transducer probe designed for critical rotating machinery vibration monitoring and shaft displacement measurement. Through eddy current sensing technology and precision mechanical design, it delivers real-time non-contact measurement of radial shaft position, enabling early fault detection and continuous condition monitoring in turbines, compressors, generators, and high-speed rotating equipment.

Suitable for power generation plants, oil & gas facilities, petrochemical processing units, steel mills, and industrial manufacturing environments where machinery uptime and reliability are mission-critical. This probe helps solve challenges including undetected bearing wear, shaft misalignment, rotor imbalance, thermal growth deviation, and inadequate early warning systems that lead to catastrophic failures and unplanned shutdowns.

With standardized 5/8-18 UNF thread mounting and field-proven compatibility across Bently Nevada 3300 XL monitoring ecosystems, the 330140-08-15-11-00-00 offers exceptional measurement stability, electromagnetic immunity, and long-term calibration retention. Ideal for design engineers, instrumentation contractors, plant maintenance teams, and OEM integrators. Contact our application engineers for customized selection guidance, cable length configuration, and technical quotations.

Core Features & Technical Advantages

High-Precision Eddy Current Sensing
Utilizes non-contact electromagnetic induction principle with 8mm sensing diameter, achieving micron-level resolution across a 2.0mm typical linear range. Provides accurate shaft displacement data for trend analysis, alarm threshold setting, and predictive maintenance scheduling.

Extended Operating Temperature Range
Engineered for continuous operation from -40°C to +105°C, withstanding extreme thermal cycling in steam turbine casings, gas compressor housings, and outdoor installations. Hermetically sealed construction prevents moisture ingress and contamination-related drift.

Wide Frequency Response Bandwidth
Captures vibration events from DC (static displacement) to 10 kHz (-3dB point), covering subsynchronous instabilities, running speed harmonics, gear mesh frequencies, and bearing defect signatures. Enables comprehensive machinery diagnostics across multiple failure modes.

Robust Mechanical Construction
Stainless steel housing with 5/8-18 UNF-2A external thread ensures secure mounting in high-vibration environments. Integral cable strain relief and industrial-grade connector termination minimize installation failures and field service calls.

Seamless System Integration
Direct compatibility with Bently Nevada 3300 XL proximitor sensors, extension cables (e.g., 130732 series), and rack-mounted monitoring systems. Supports both legacy and modern DCS/SCADA integration via 4-20mA, -10V to +10V buffered outputs, and digital communication protocols.

Long-Term Measurement Stability
Factory-calibrated sensor maintains accuracy specifications over multi-year service intervals, reducing recalibration costs and eliminating false alarms. Low thermal drift characteristics ensure consistent performance across seasonal temperature variations.

Typical Application Scenarios

This proximity transducer probe is engineered for installations demanding continuous shaft position monitoring, high reliability, and integration with comprehensive machinery protection systems, including:

Steam & Gas Turbine Generator Sets
Monitors journal bearing clearances, thrust position, and differential expansion in utility-scale power generation units. Detects rotor bow during startup/shutdown transients, prevents blade tip rubs, and provides emergency shutdown signals for bearing failure conditions.

Centrifugal & Axial Compressor Trains
Tracks radial shaft vibration and axial position in multi-stage compression systems for natural gas pipelines, air separation plants, and refinery process units. Identifies surge events, aerodynamic instabilities, and mechanical seal degradation before catastrophic damage occurs.

High-Speed Motor & Pump Systems
Provides non-contact measurement in boiler feed pumps, cooling water circulation pumps, and variable-speed drive motor applications. Enables condition-based maintenance strategies by trending bearing wear patterns and detecting shaft eccentricity growth.

Industrial Gearbox & Coupling Monitoring
Measures shaft displacement at gearbox input/output shafts and flexible coupling locations in paper mills, cement plants, and mining conveyors. Captures torsional oscillations, coupling misalignment, and gear tooth wear progression for reliability-centered maintenance programs.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment specification, we provide comprehensive technical data for the 330140-08-15-11-00-00 proximity transducer probe. Custom configurations including cable length, connector type, and mounting accessories are available for project-specific requirements.

Selection Recommendations:
When specifying proximity transducer probes, consider the following application parameters: maximum shaft vibration amplitude, required measurement gap (standoff distance), ambient temperature profile, mounting space constraints, cable routing length, and proximitor sensor compatibility. For installations requiring non-standard cable lengths, special thread configurations, or high-temperature variants beyond +105°C, consult our engineering team with detailed machinery drawings and operating condition data for customized solutions.

Extended Capabilities & System Architecture

Multi-Channel Monitoring Configurations
Deploy multiple probes in XY orthogonal pairs for orbit analysis, or in axial/radial combinations for comprehensive rotor dynamics characterization. Supports API 670 machinery protection system requirements for critical equipment classes.

Redundant Measurement Schemes
Implement dual-probe voting logic for safety-instrumented systems (SIS) in accordance with IEC 61508 functional safety standards. Enables 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) architectures for high-availability applications.

Remote Monitoring Integration
Connect to Bently Nevada System 1 condition monitoring software, OSI-PI historians, or third-party SCADA platforms via Modbus TCP, OPC UA, or proprietary communication protocols. Facilitates centralized asset performance management and predictive analytics.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured probes with non-standard cable lengths or special certifications require 2-3 weeks manufacturing lead time. Expedited processing available for emergency outage support.

Warranty Coverage:
All proximity transducer probes include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy. Extended warranty programs and spare parts kits available for long-term service agreements.

Installation & Commissioning Support:
Technical assistance includes pre-installation design review, on-site commissioning supervision (subject to geographic availability), and post-startup performance verification. Complete documentation package provided: dimensional drawings, electrical schematics, calibration certificates, and installation instructions.

Technical Documentation:
Each shipment includes factory calibration data sheets, material traceability certificates, installation torque specifications, and recommended proximitor sensor pairing guidelines. CAD models (STEP/IGES formats) and 3D mounting templates available upon request for mechanical design integration.

Frequently Asked Questions (FAQ)

Q: How does the 8mm proximity transducer probe interface with existing Bently Nevada monitoring systems?
A: The 330140-08-15-11-00-00 connects directly to compatible 3300 XL 8mm proximitor sensors via integral armored cable. The proximitor provides -24 VDC excitation, signal conditioning, and buffered output (-10V to +10V or 4-20mA) for connection to monitoring racks, PLCs, or DCS systems. Verify proximitor model compatibility and cable length requirements during system design.

Q: What is the maximum measurement gap (standoff distance) for reliable operation?
A: The probe's 2.0mm linear range represents the usable displacement measurement span, not the installation gap. Typical installation gap is 1.0-1.5mm (40-60 mils) from the shaft surface at normal operating clearance, allowing ±1.0mm vibration measurement before signal saturation. Consult factory calibration curves for specific target material and temperature conditions.

Q: Can this proximity probe operate in hazardous area classifications?
A: The standard 330140-08-15-11-00-00 is designed for general industrial environments. For installations in Class I Division 2 (Zone 2) hazardous locations, specify intrinsically safe (IS) barrier interfaces or explosion-proof proximitor housings. Contact our compliance team for ATEX, IECEx, or CSA certification documentation requirements.

Q: How often does the proximity transducer probe require recalibration?
A: Under normal operating conditions, Bently Nevada proximity probes maintain factory calibration accuracy for 5+ years. Recalibration is recommended only after physical damage, exposure to temperatures exceeding rated limits, or when trending data indicates systematic measurement drift. In-situ calibration verification can be performed using precision gap measurement tools without probe removal.

Q: What cable length options are available, and how does length affect signal quality?
A: Standard catalog configurations offer cable lengths from 1 meter to 9 meters (model code suffix indicates length). Maximum recommended total system length (probe cable + extension cable) is typically 9 meters to maintain signal integrity. For longer distances, use proximitor sensors with buffered outputs or install field-mounted signal conditioners to prevent noise pickup and capacitance loading effects.

Q: Is the probe compatible with non-ferrous shaft materials like stainless steel or titanium?
A: Eddy current proximity probes are optimized for ferrous (magnetic) target materials such as carbon steel and 400-series stainless steel. For non-magnetic materials (300-series stainless, titanium, aluminum), sensitivity is significantly reduced and linear range decreases. Consider alternative sensing technologies (capacitive probes, laser displacement sensors) or install ferrous target sleeves on non-magnetic shafts.

Request Technical Consultation & Quotation

To receive detailed application engineering support, customized system architecture recommendations, or project-specific pricing, please provide the following information to our technical sales team:

• Project Overview: Facility type, equipment criticality classification, and monitoring objectives
• Machinery Details: Equipment type (turbine/compressor/motor), shaft diameter, operating speed range, bearing type
• Measurement Requirements: Number of measurement points, XY/axial configuration, required measurement range
• Environmental Conditions: Ambient temperature range, hazardous area classification, vibration/shock levels
• System Integration: Existing monitoring infrastructure (Bently Nevada/other), communication protocol requirements, DCS/SCADA interface needs
• Cable & Mounting: Required cable length, mounting thread preferences, space constraints

Our application engineers will provide one-on-one selection guidance, system configuration drawings, and comprehensive technical quotations within 24-48 hours.
