8mm Proximity Probe for Industrial Vibration Monitoring (Bently Nevada 3300 XL Series)

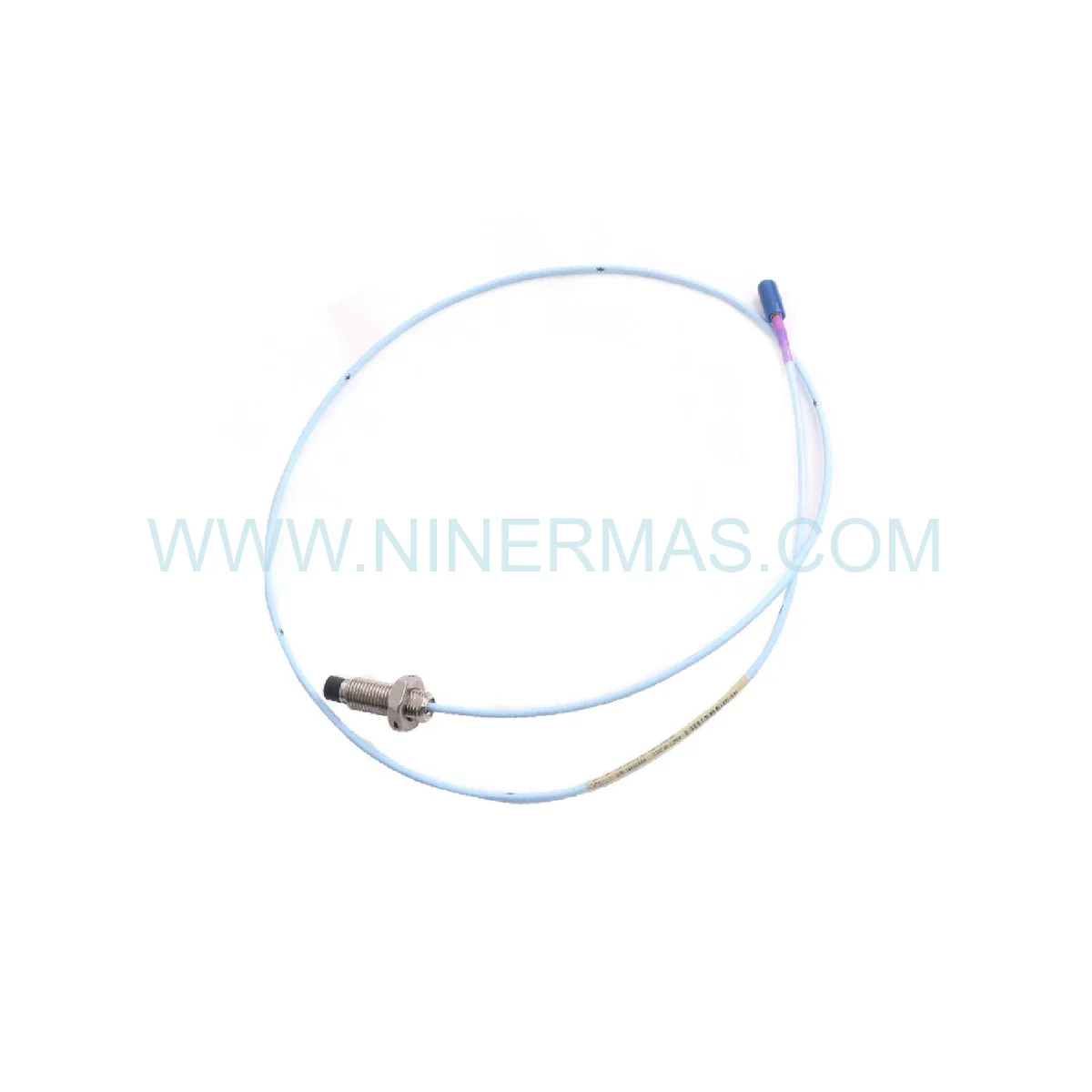

The Bently Nevada 330140-08-15-01-00-00 is an industrial-grade 8mm eddy current proximity probe engineered for continuous vibration and displacement monitoring in critical rotating machinery. Utilizing non-contact sensing technology with PLC-compatible signal output, this probe delivers real-time shaft position data for turbines, compressors, pumps, and motor-driven systems across power generation, petrochemical, and heavy manufacturing facilities.

Designed for high-reliability applications where equipment downtime translates to significant operational losses, this probe addresses common challenges including bearing wear detection, rotor eccentricity tracking, thrust position monitoring, and early fault diagnosis. Suitable for design engineers, maintenance teams, system integrators, and OEM equipment manufacturers seeking API 670-compliant vibration monitoring solutions.

Through standardized M12 threading and universal cable compatibility, the 330140-08-15-01-00-00 integrates seamlessly with existing Bently Nevada 3300 XL Proximitor systems while offering field-proven durability in temperatures ranging from -40°C to +105°C. Contact our application engineers for customized system configuration, technical drawings, and project-specific quotations.

Core Features & Technical Advantages

Non-Contact Eddy Current Sensing
Utilizes electromagnetic induction principles to measure shaft displacement without physical contact, eliminating wear-related failures and extending sensor lifespan beyond 100,000 operating hours in continuous-duty applications.

Wide Temperature Stability
Maintains ±1% linearity across -40°C to +105°C ambient conditions through temperature-compensated coil design, ensuring accurate measurements in steam turbine casings, refrigeration compressors, and furnace-adjacent installations.

Hermetic Sealing for Harsh Environments
IP67-rated stainless steel housing with PEEK insulation resists moisture ingress, oil mist, chemical vapors, and particulate contamination common in offshore platforms, cement plants, and pulp & paper mills.

Plug-and-Play System Integration
Factory-calibrated for direct pairing with Bently Nevada 3300 XL Proximitor sensors (330180/330780 series), eliminating field calibration requirements and reducing commissioning time by approximately 60% compared to legacy analog systems.

High-Frequency Response Capability
0-10 kHz bandwidth captures both low-speed imbalance signatures and high-frequency bearing defect patterns, enabling comprehensive condition monitoring from startup transients through rated operating speeds.

Maintenance-Free Solid-State Design
Contains no moving parts, batteries, or consumable components, delivering 10+ year service life with zero scheduled maintenance beyond periodic cable inspection and target surface cleaning.

Typical Application Scenarios

This proximity probe serves industries and equipment types where continuous shaft position monitoring directly impacts safety, efficiency, and asset longevity:

Steam & Gas Turbine Monitoring
Tracks radial vibration and axial thrust position in power generation turbines operating at 3,000-3,600 RPM, providing early warning of bearing degradation, rotor bow, and coupling misalignment before catastrophic failure occurs.

Centrifugal Compressor Protection
Monitors thrust bearing clearance and radial runout in API 617 compressor trains handling natural gas, air separation, and refrigeration duties, preventing costly unplanned shutdowns in continuous process facilities.

Large Motor & Generator Systems
Measures rotor eccentricity and bearing clearance in motors exceeding 500 HP and generators above 10 MW, supporting predictive maintenance programs that reduce bearing replacement costs by 40-50% through optimized intervention timing.

Industrial Pump Condition Monitoring
Detects cavitation-induced vibration, impeller imbalance, and seal wear in boiler feed pumps, cooling water pumps, and chemical transfer pumps, extending mean time between failures (MTBF) from 18 months to 36+ months.

Gearbox & Drivetrain Analysis
Captures gear mesh frequencies and shaft misalignment signatures in wind turbine gearboxes, marine propulsion systems, and rolling mill drives, enabling condition-based maintenance strategies that reduce inspection labor by 70%.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive specifications aligned with industry standards:

Selection Considerations:
When specifying this proximity probe, engineers should evaluate: (1) maximum shaft displacement expected during startup/shutdown transients, (2) ambient temperature extremes at mounting location, (3) target shaft material and surface finish (Ra < 1.6 μm recommended), (4) available installation depth and radial clearance, (5) required cable length from probe tip to Proximitor sensor location. For applications requiring hazardous area certification (ATEX/IECEx Zone 1), custom configurations are available upon request.

System Integration & Compatibility

Compatible Proximitor Sensors: 330180-50-00, 330180-90-00, 330180-91-00, 330780-50-00, 330780-90-00 (all 3300 XL series models)

Recommended Extension Cables: Bently Nevada 330130 series in lengths from 1m to 9m, maintaining system accuracy within ±2% when total cable length (probe + extension) does not exceed 9 meters

Monitoring System Integration: Outputs connect to 3500 rack-based monitoring systems, ADAPT distributed monitoring platforms, or third-party DCS/SCADA systems accepting 4-20mA or -10V to +10V analog signals

Retrofit Compatibility: Direct replacement for legacy 7200/3300 series probes in existing installations, requiring only Proximitor sensor upgrade for full 3300 XL performance benefits

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers; custom configurations (special cable lengths, hazardous area certifications) require 4-6 weeks manufacturing lead time

Warranty Coverage: 18-month comprehensive warranty covering material defects and workmanship failures from date of shipment; extended warranty programs available for critical applications

Technical Support: Complimentary installation guidance via phone/email; on-site commissioning support and vibration analysis training available through regional service partners (fees apply based on location)

Documentation Package: Each probe ships with factory calibration certificate traceable to NIST standards, dimensional drawings in DWG/PDF formats, installation instructions, and material certifications (MTRs available upon request)

Quality Certifications: Manufactured under ISO 9001:2015 quality management system; individual serial number traceability for full lifecycle documentation

Frequently Asked Questions (FAQ)

Q: How does this 8mm proximity probe integrate with non-Bently Nevada monitoring systems?
A: While optimized for 3300 XL Proximitor sensors, the probe generates standard eddy current signals compatible with any monitoring system accepting -24V DC excitation and mV/mil output scaling. Third-party integration requires matching the Proximitor sensor's signal conditioning characteristics or using universal eddy current driver modules. Consult your monitoring system vendor for specific interface requirements.

Q: What is the maximum shaft speed this probe can accurately monitor?
A: The 10 kHz frequency response supports shaft speeds up to 600,000 RPM theoretically, though practical limits depend on target surface quality and vibration amplitude. For typical turbomachinery applications (3,000-15,000 RPM), the probe captures all relevant vibration harmonics including blade pass frequencies and bearing defect signatures with excellent signal-to-noise ratio.

Q: Can I install this probe in steam turbine casings where temperatures exceed 105°C?
A: The probe body is rated to +105°C continuous; installations in higher-temperature zones require thermal barriers, cooling jackets, or extended probe bodies that position the sensing tip closer to the shaft while keeping electronics in cooler regions. For steam turbine applications above 120°C, we recommend the 330145 high-temperature series or consulting our application engineers for custom thermal management solutions.

Q: What target shaft surface finish is required for accurate measurements?
A: Target surfaces should have Ra < 1.6 μm (63 microinches) surface roughness and be free of plating, coatings, or oxide layers exceeding 25 μm thickness. Shafts with chrome plating, thermal spray coatings, or significant corrosion may require surface preparation or target sleeve installation. Runout compensation during commissioning accounts for minor surface irregularities.

Q: Is this proximity probe suitable for hazardous area installations (explosive atmospheres)?
A: The standard 330140-08-15-01-00-00 model is designed for general industrial use (non-hazardous areas). For Zone 1/Division 1 installations in oil & gas facilities, we offer ATEX/IECEx/FM-approved variants with intrinsically safe (IS) barriers and certified cable assemblies. Specify hazardous area requirements at time of order for proper certification documentation.

Q: What components are included with the proximity probe, and what must be ordered separately?
A: Each probe includes: (1) proximity sensor with integral cable stub, (2) M12 lock nut and washer, (3) factory calibration certificate, (4) installation instructions. Items ordered separately: extension cables (330130 series), Proximitor sensor (330180/330780 series), mounting brackets, and cable glands. Complete system kits bundling all components are available for new installations.

Request Technical Consultation & Quotation

Our vibration monitoring specialists provide complimentary application engineering support to ensure optimal sensor selection and system configuration. To receive a detailed proposal including component recommendations, system architecture drawings, and project pricing, please provide:

• Project Overview: Facility type, equipment being monitored (turbine/compressor/motor model)
• Operating Conditions: Shaft diameter, operating speed range (RPM), ambient temperature
• Monitoring Objectives: Radial vibration, axial position, or both; alarm/trip setpoints if known
• System Architecture: Number of measurement points, distance from probes to control room, existing monitoring infrastructure
• Compliance Requirements: API standards, hazardous area classifications, customer specifications
• Timeline: Project schedule, commissioning date, budget approval cycle

Submit inquiries via email with equipment nameplates, P&ID drawings, or vibration specifications for fastest response. Our engineering team typically provides preliminary recommendations within 24-48 hours for standard applications.
