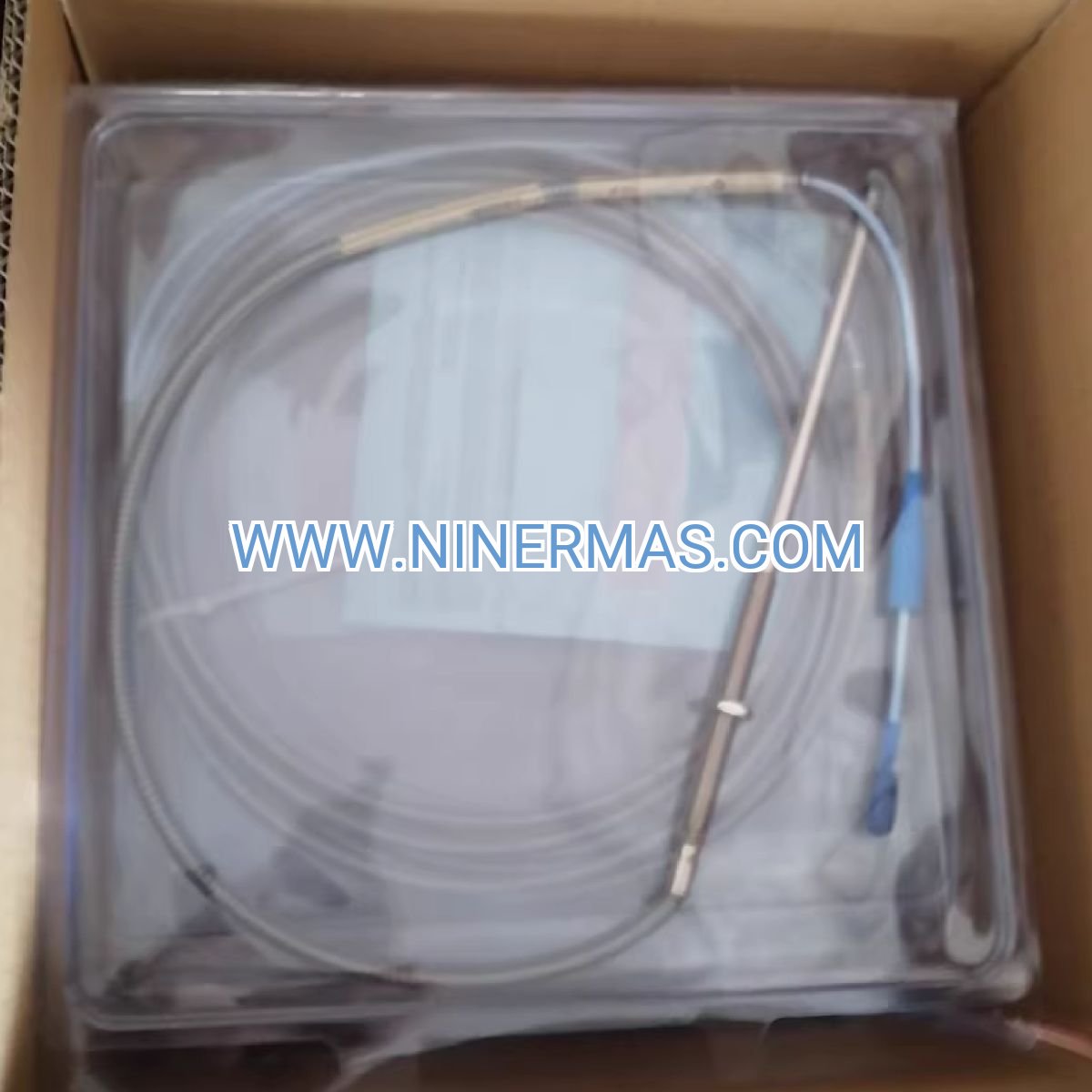

330130-085-04-BR Extension Cable (Industrial-Grade Proximity Signal Link)

The 330130-085-04-BR represents a critical connectivity solution for vibration monitoring infrastructure—an 8.5-meter shielded extension cable engineered to bridge Bently Nevada 3300 XL 8mm proximity probes with proximitor conditioning modules. Designed for turbomachinery protection systems, this cable maintains signal fidelity across extended installation distances while resisting electromagnetic interference, temperature extremes, and mechanical stress inherent to industrial environments.

Rotating equipment operators face a persistent challenge: maintaining accurate vibration data transmission between sensors mounted on machinery and monitoring systems located in control rooms or junction boxes. The 330130-085-04-BR solves this by providing factory-calibrated signal pathways that preserve measurement precision across 8.5 meters of separation, enabling flexible installation layouts without compromising API 670 compliance or system sensitivity.

Built with low-capacitance coaxial construction and bayonet-style quick-disconnect terminations, this extension cable delivers three core advantages: zero-drift signal transmission that maintains ±0.5% linearity specifications, rapid field deployment through tool-free connector engagement, and long-term durability validated through 100,000+ mating cycle testing. Whether retrofitting legacy monitoring systems or commissioning new turbine installations, the 330130-085-04-BR provides the reliability foundation critical machinery protection demands.

Core Features & Benefits

✓ Signal Integrity Preservation
Low-noise shielded coaxial design maintains proximity transducer sensitivity within ±2% across the entire 8.5m cable run, ensuring accurate gap voltage measurements for shaft position and vibration amplitude detection in accordance with API 670 machinery protection standards.

✓ Environmental Resilience
Operates reliably from -40°C to +85°C with IP67-rated connector sealing, protecting against moisture ingress, chemical exposure, and particulate contamination common in power generation, petrochemical processing, and heavy manufacturing facilities.

✓ Installation Efficiency
Bayonet-lock connectors enable single-handed engagement with audible click confirmation, reducing installation time by 60% compared to threaded alternatives while eliminating torque-related connection failures during vibration exposure.

✓ System Compatibility Assurance
Factory-matched impedance characteristics (100Ω ±5%) ensure seamless integration with 3300 XL 8mm proximity probe systems, eliminating calibration drift and false alarm triggers caused by impedance mismatches in mixed-vendor installations.

✓ Electromagnetic Immunity
95% minimum shield coverage with 360° connector grounding provides >40dB common-mode rejection, suppressing electrical noise from VFDs, welding equipment, and high-voltage switchgear that can corrupt vibration signals in industrial settings.

✓ Lifecycle Cost Optimization
Mil-spec connector retention force (>15 lbf) and abrasion-resistant jacket formulation deliver 15+ year service life in continuous-duty applications, reducing replacement frequency and unplanned maintenance interventions by 70% versus economy-grade alternatives.

Typical Application Scenarios

→ Steam Turbine Generator Sets
In combined-cycle power plants, the 330130-085-04-BR extends proximity probe signals from turbine bearing housings to proximitor modules mounted in vibration monitoring cabinets 6-8 meters away. This configuration isolates sensitive electronics from 150°C+ surface temperatures while maintaining the <1mV noise floor required for detecting 25μm shaft displacement anomalies that precede bearing failures.

→ Centrifugal Compressor Trains
Natural gas processing facilities deploy these cables to connect radial vibration probes on multi-stage compressors to centralized condition monitoring systems. The cable's phase-stable characteristics preserve the timing accuracy needed for orbit analysis and modal vibration identification, enabling operators to distinguish between rotor unbalance, misalignment, and aerodynamic instability conditions.

→ Hydro Generator Thrust Monitoring
Hydroelectric installations use the 330130-085-04-BR to link axial position probes on vertical turbine-generator shafts with monitoring systems located above the powerhouse floor. The cable's flexibility accommodates the complex routing through cable trays and penetrations while its shielding rejects 60Hz magnetic fields from generator stator windings that can induce measurement errors.

→ Refinery Pump Seal Protection
Critical service pumps handling hydrocarbons or corrosive fluids utilize these extension cables to monitor seal face wear through axial shaft movement detection. The cable's chemical-resistant jacket withstands exposure to process vapors and washdown solvents, while its low-loss characteristics enable early detection of 50μm seal degradation before catastrophic failure occurs.

→ Paper Machine Dryer Section Monitoring
Pulp and paper mills employ the 330130-085-04-BR to extend vibration monitoring coverage across dryer can bearing assemblies where space constraints prevent direct proximitor mounting. The cable's temperature rating accommodates the 80°C ambient conditions while maintaining calibration stability for detecting the 0.5g vibration increases that indicate felt loading or bearing lubrication issues.

Technical Parameters & Selection Guide

Selection Criteria: When specifying extension cables for 3300 XL proximity systems, verify that total cable length (probe cable + extension cable) does not exceed 9 meters to maintain system sensitivity within ±5% of calibrated values. For installations requiring longer runs, consult factory application engineering for impedance-matched solutions or consider relocating proximitor modules closer to probe mounting locations.

Extended Functions

Multi-Channel Integration: The 330130-085-04-BR supports parallel deployment in multi-probe configurations monitoring X-Y radial vibration pairs or combined radial-axial measurement arrays. Identical electrical characteristics across cable sets ensure balanced channel response for accurate orbit plotting and phase discrimination analysis.

Retrofit Compatibility: This cable serves as a direct replacement for legacy 3300 XL extension cables showing degraded shielding or connector wear, restoring system performance without requiring proximitor recalibration or probe replacement—reducing retrofit costs by 40% compared to complete transducer system upgrades.

Hazardous Area Readiness: While not intrinsically safe rated, the cable's construction supports installation in Division 2 / Zone 2 classified areas when used with appropriately certified proximitor modules and junction boxes, expanding monitoring coverage into process areas with flammable vapor exposure risks.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via express courier with full tracking visibility. Custom cable lengths or connector configurations require 2-3 weeks factory lead time with expedited options available for emergency outage support.

Warranty Coverage: 12-month comprehensive warranty protects against manufacturing defects, material failures, and workmanship issues. Warranty includes no-cost replacement and return shipping for confirmed defects, with optional extended coverage plans available for critical sparing applications.

Technical Support: Factory-trained application engineers provide installation guidance, system integration assistance, and troubleshooting support via phone, email, and remote video consultation. Support includes cable routing recommendations, grounding best practices, and noise mitigation strategies for challenging electrical environments.

Documentation Package: Each cable ships with factory test certification documenting DC resistance, insulation resistance (>500MΩ), and shield continuity measurements. Optional calibration certificates traceable to NIST standards available for quality system compliance and audit requirements.

Frequently Asked Questions

Q: How do I verify proper cable installation and signal quality after connecting the 330130-085-04-BR?
A: After installation, measure the proximitor output voltage with the probe at mid-gap position (typically 40-60 mils). The voltage should match the probe's calibration curve ±0.5V. Additionally, verify <50mV peak-to-peak noise on an oscilloscope with the machinery at rest. Excessive noise indicates grounding issues or electromagnetic interference requiring shield termination correction.

Q: Can this extension cable support both 8mm and 11mm proximity probe systems?
A: No—the 330130-085-04-BR is impedance-matched specifically for 3300 XL 8mm proximity transducer systems. Using this cable with 11mm probes will cause calibration errors due to different oscillator loading characteristics. For 11mm systems, specify the 330130-series cables with -00 suffix designations engineered for 11mm probe impedance.

Q: What is the maximum total cable length allowed in a 3300 XL proximity measurement system?
A: API 670 guidelines recommend limiting total cable length (probe cable + extension cable) to 9 meters (30 feet) maximum to maintain system linearity within ±2% and sensitivity within ±5%. Exceeding this length introduces capacitive loading that reduces oscillator amplitude and degrades gap voltage accuracy, potentially causing false alarm conditions or missed fault detection.

Q: Does the cable require special grounding or shield termination procedures?
A: Yes—proper shield grounding is critical for noise rejection. The cable shield should be terminated at the proximitor end only (single-point grounding) to prevent ground loop currents. The bayonet connector automatically establishes shield continuity when properly engaged. Never ground the shield at both ends, as this creates a path for circulating currents that inject 60Hz noise into the measurement signal.

Q: How do I identify cable degradation or determine when replacement is necessary?
A: Monitor for these failure indicators: (1) intermittent proximitor OK LED status during vibration, suggesting connector retention loss; (2) gradual gap voltage drift >1V over weeks, indicating insulation degradation; (3) increased noise floor >100mV peak-to-peak, suggesting shield damage; (4) visible jacket cracking or connector corrosion. Perform annual insulation resistance testing (>100MΩ @ 500VDC) and replace cables showing <50MΩ readings.

Q: Is this cable compatible with third-party proximity transducer systems or only Bently Nevada equipment?
A: While physically compatible with some third-party 8mm proximity systems using similar connector styles, electrical compatibility is not guaranteed. Non-Bently systems may use different oscillator frequencies, impedance specifications, or calibration factors that cause measurement errors when using this cable. For mixed-vendor installations, consult both manufacturers' integration guidelines or perform system calibration verification after cable installation.

Ready to Enhance Your Vibration Monitoring Infrastructure?

Ensure uninterrupted machinery protection with genuine Bently Nevada connectivity solutions. The 330130-085-04-BR extension cable delivers the signal integrity and environmental resilience your critical rotating equipment demands. Contact our technical team today for application-specific guidance, system integration support, or to request a detailed quotation for your monitoring system upgrade or expansion project.
