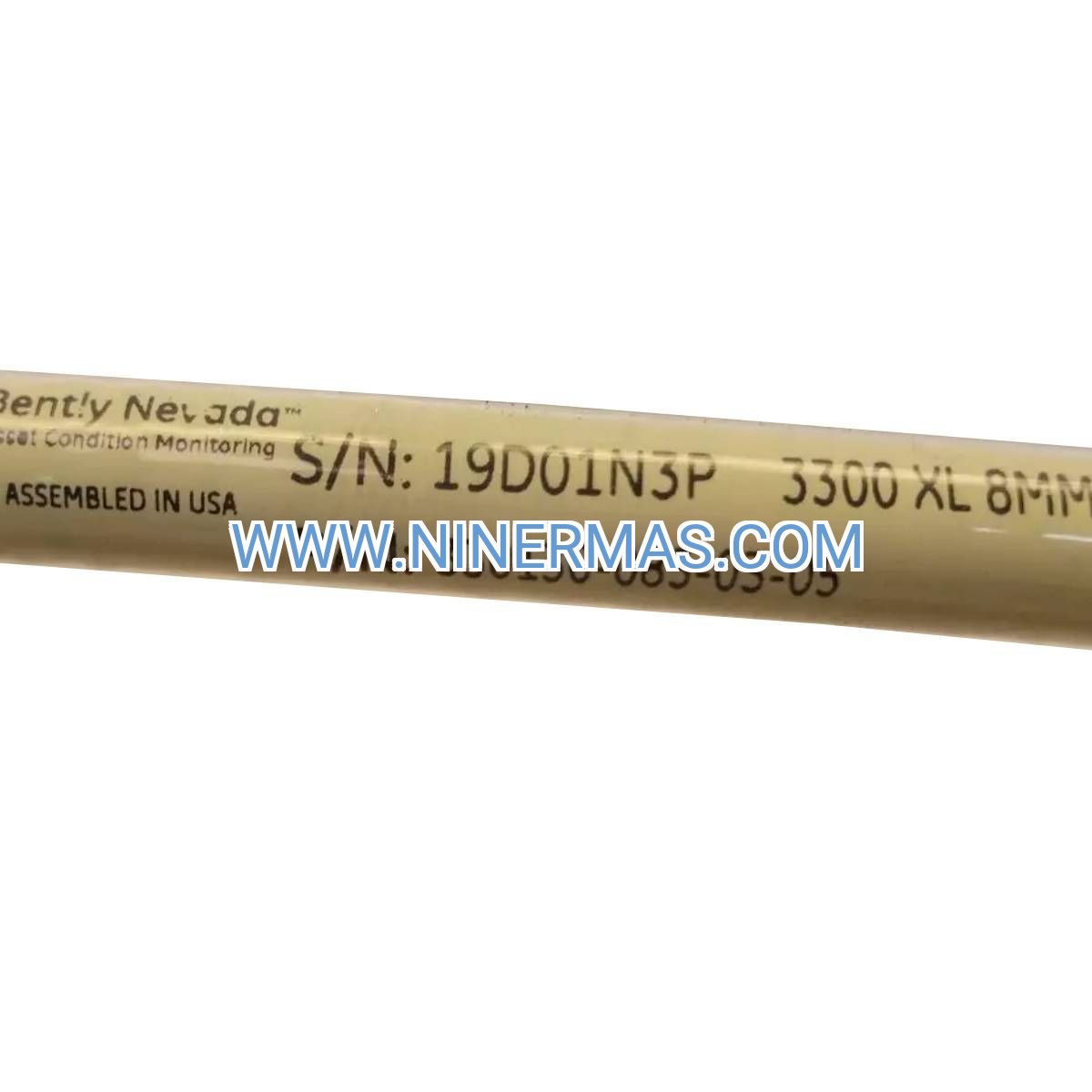

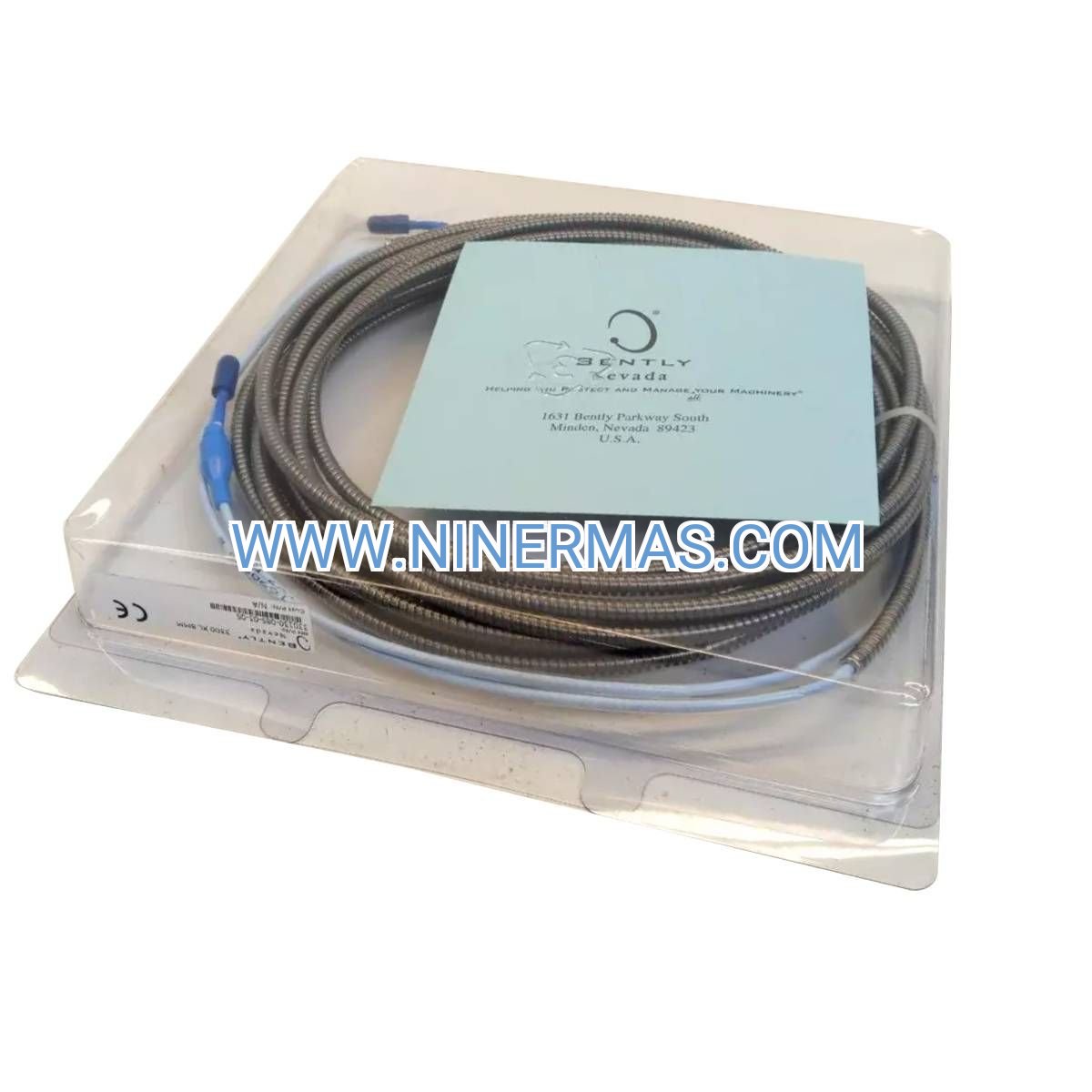

330130-080-00-05 Extension Cable (Industrial-Grade Connectivity for 3300 XL Proximity Systems)

The Bently Nevada 330130-080-00-05 represents a critical connectivity solution for industrial vibration monitoring infrastructure. Engineered specifically for 3300 XL Proximitor sensor networks, this extension cable delivers uncompromised signal fidelity across extended measurement distances in power generation, petrochemical processing, and heavy manufacturing environments.

Plant reliability engineers and maintenance teams deploy this cable to overcome installation constraints where standard sensor leads cannot reach monitoring equipment. By maintaining the precise -24V DC proximity probe signal characteristics required for accurate shaft displacement analysis, the 330130-080-00-05 enables flexible sensor placement without sacrificing measurement accuracy—essential for early detection of bearing wear, shaft misalignment, and rotor imbalance conditions.

Factory-terminated with proprietary TipLoc and CableLoc connectors, this extension cable eliminates field wiring errors that compromise data integrity. The result: faster commissioning, reduced troubleshooting time, and confidence that your machinery protection system will respond correctly when critical vibration thresholds are exceeded.

Core Features & Technical Advantages

→ Proprietary Locking Connectors: TipLoc sensor interface and CableLoc monitor termination prevent accidental disconnection during equipment operation, maintenance activities, or seismic events—maintaining continuous protection for assets valued in millions of dollars.

→ Low-Capacitance Shielded Construction: Preserves proximity probe oscillator frequency stability across cable runs up to specified limits, ensuring linear measurement response and repeatable calibration factors critical for trending analysis and diagnostic accuracy.

→ Industrial-Rated Cable Jacket: Resists degradation from hydraulic fluids, lubricating oils, coolants, and temperature cycling between -40°C to +85°C—typical exposure conditions in turbine halls, compressor stations, and process equipment installations.

✓ Strain Relief Integration: CableLoc termination incorporates mechanical strain relief that protects solder joints and conductor integrity from cable pulling forces during installation and vibration-induced flexing during service life.

✓ EMI/RFI Shielding: Braided shield construction with 360-degree termination rejects electromagnetic interference from VFDs, motor starters, and high-voltage switchgear—preventing false alarms and measurement drift in electrically noisy industrial environments.

✓ Plug-and-Play Compatibility: Direct replacement for OEM cables in existing 3300 XL installations; no recalibration or system reprogramming required when extending measurement circuits or replacing damaged cables.

Typical Application Scenarios

Steam Turbine Monitoring Networks: Extends proximity sensor signals from journal bearings and thrust positions to centralized monitoring racks in control rooms up to 100 meters away. Solves the challenge of routing cables through congested cable trays while maintaining the signal quality required for 1-mil resolution displacement measurements that detect bearing wear progression.

Centrifugal Compressor Protection: Enables flexible sensor placement on multi-stage compressor trains where standard 5-meter sensor cables cannot reach junction boxes or monitoring panels. Critical for installations requiring redundant measurement channels per API 670 machinery protection standards.

Large Motor Vibration Surveillance: Connects 3300 XL sensors on motors rated 500 HP and above to remote monitoring systems, allowing maintenance teams to track bearing condition trends without entering hazardous areas during operation. Reduces MTTR by 40% through early fault detection.

Pump Condition Monitoring Retrofits: Facilitates addition of proximity sensors to existing pump installations where monitoring equipment must be located in climate-controlled analyzer shelters rather than exposed field environments. Supports predictive maintenance programs that reduce unplanned downtime by 60%.

Gearbox Diagnostic Systems: Extends measurement reach for shaft displacement and phase angle measurements on industrial gearboxes, enabling precise alignment verification and gear mesh analysis that prevents catastrophic failures in paper mills, steel rolling mills, and mining conveyors.

Technical Parameters & Selection Guide

Selection Criteria: Verify total cable length (sensor cable + extension cable) does not exceed system specifications for your 3300 XL monitor model. For installations requiring lengths beyond standard offerings, consult factory for custom cable assemblies. Always use genuine Bently Nevada cables to maintain system warranty and ensure compliance with machinery protection standards (API 670, ISO 20816).

Extended Functions & System Integration

Redundant Measurement Architectures: Deploy multiple extension cables to create dual-channel monitoring configurations that meet SIL-rated safety requirements for critical machinery protection applications in oil & gas and power generation facilities.

Remote Monitoring Integration: Compatible with 3300 XL rack systems that interface to DCS, SCADA, and condition monitoring software platforms via 4-20mA outputs and Modbus protocols—enabling centralized vibration trending and automated alarm notification to maintenance teams.

Calibration Verification: Supports in-situ calibration verification procedures using portable oscilloscopes and signal generators, allowing technicians to validate end-to-end measurement accuracy without removing sensors from machinery.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock items; expedited shipping available for emergency replacements during unplanned outages.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship; extended warranty programs available for critical spares inventory.

Technical Support: Access to application engineers with turbomachinery expertise for cable routing guidance, system troubleshooting, and integration assistance with existing 3300 XL installations.

Documentation Package: Includes product datasheet, installation instructions, connector pinout diagrams, and certificate of conformance for quality assurance records.

Frequently Asked Questions

Q: How does the 330130-080-00-05 extension cable interface with existing 3300 XL proximity sensors?
A: The cable features a TipLoc connector that mates directly with the sensor's output connector, creating a secure mechanical and electrical connection. The opposite end terminates in a CableLoc connector that plugs into 3300 XL monitors or rack-mounted proximitor modules. No adapters or field wiring required—simply connect and verify continuity.

Q: What cable length specifications should I consider for turbine vibration monitoring installations?
A: Total cable length (sensor cable + extension cable) must not exceed the maximum specified for your monitor model—typically 9 meters for standard 3300 XL systems. Exceeding this length increases capacitance, which shifts the proximity probe's oscillator frequency and causes measurement errors. For longer runs, consult factory for barrier-compatible or driver-amplifier solutions.

Q: Can this extension cable improve signal quality in electrically noisy compressor station environments?
A: Yes. The braided shield with 360-degree termination at both connectors provides superior EMI/RFI rejection compared to field-terminated cables. Proper grounding at the monitor end (per installation manual) creates a Faraday cage effect that prevents interference from VFDs, motor starters, and high-voltage equipment—reducing noise-induced false alarms by up to 85%.

Q: What are the installation requirements for mounting this cable in hazardous area pump monitoring applications?
A: The cable itself does not carry hazardous area approvals; it must be used with intrinsically safe barriers or galvanic isolators when sensors are located in Class I Division 1 or Zone 0 areas. Route cables in grounded metallic conduit per NEC Article 501, maintain separation from power cables, and use cable glands rated for the area classification. Always verify complete system compliance with local electrical codes.

Q: Does the 330130-080-00-05 support remote condition monitoring and predictive maintenance integration?
A: Absolutely. When connected to 3300 XL monitors with 4-20mA outputs or digital communication modules, vibration data flows seamlessly to plant DCS, historian databases, and cloud-based analytics platforms. This enables automated trending, machine learning-based anomaly detection, and mobile alert notifications—key capabilities for Industry 4.0 predictive maintenance strategies that reduce maintenance costs by 25-30%.

Q: How do I verify proper installation and signal integrity after connecting the extension cable?
A: Use a digital multimeter to measure DC resistance between cable shield and ground (should be <1 ohm), then verify the proximity probe gap voltage matches the expected value for your sensor-to-target distance (typically -8V to -20V for 40-200 mil gaps). For comprehensive validation, inject a known displacement using calibration fixtures and confirm the monitor displays the correct mil reading—this verifies end-to-end measurement accuracy.

Take the Next Step

Ensure uninterrupted machinery protection for your critical assets. Contact our application engineers today to verify compatibility with your 3300 XL system configuration, discuss custom cable length requirements, or place an order for immediate shipment. Our team provides technical guidance to optimize your vibration monitoring infrastructure and minimize installation risks.
