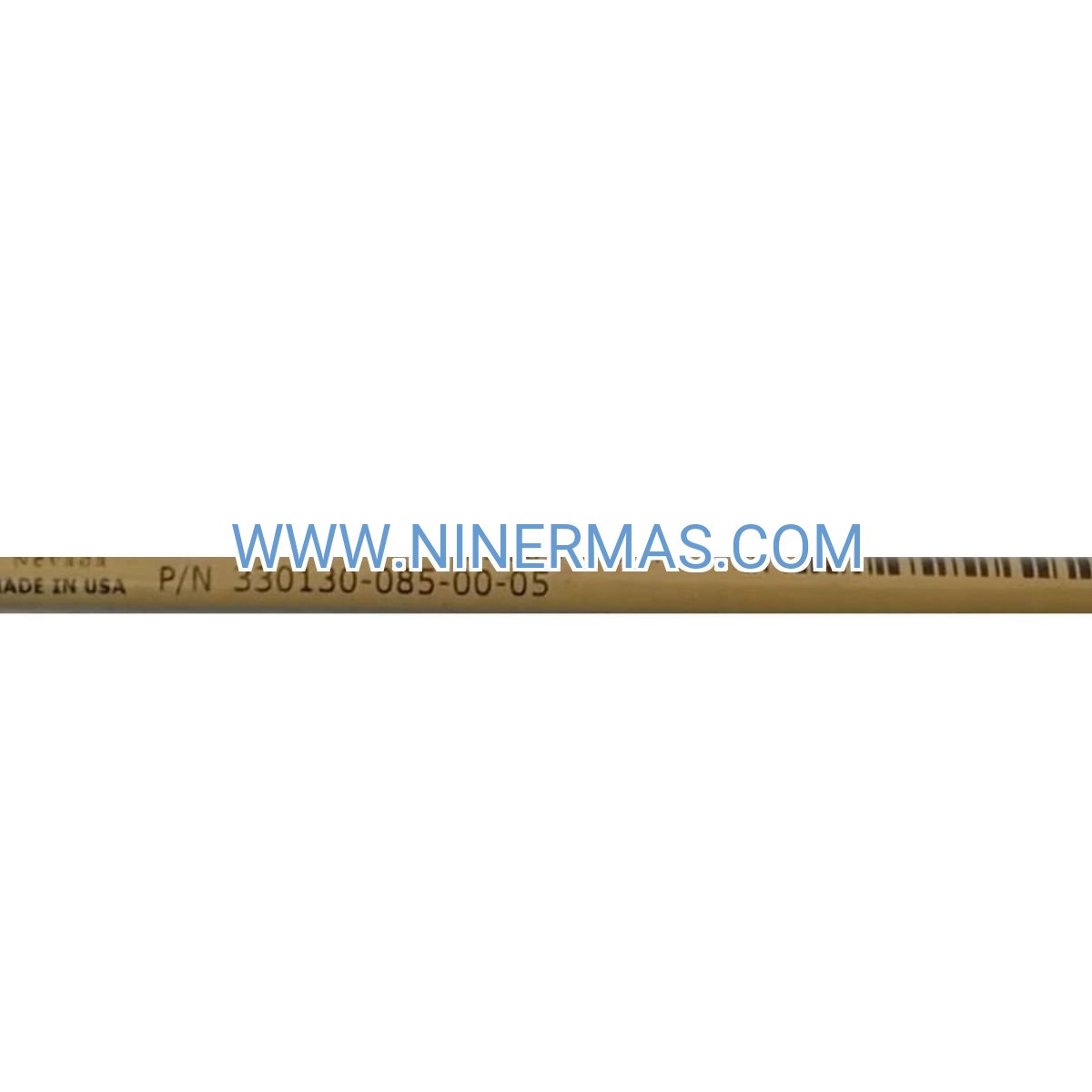

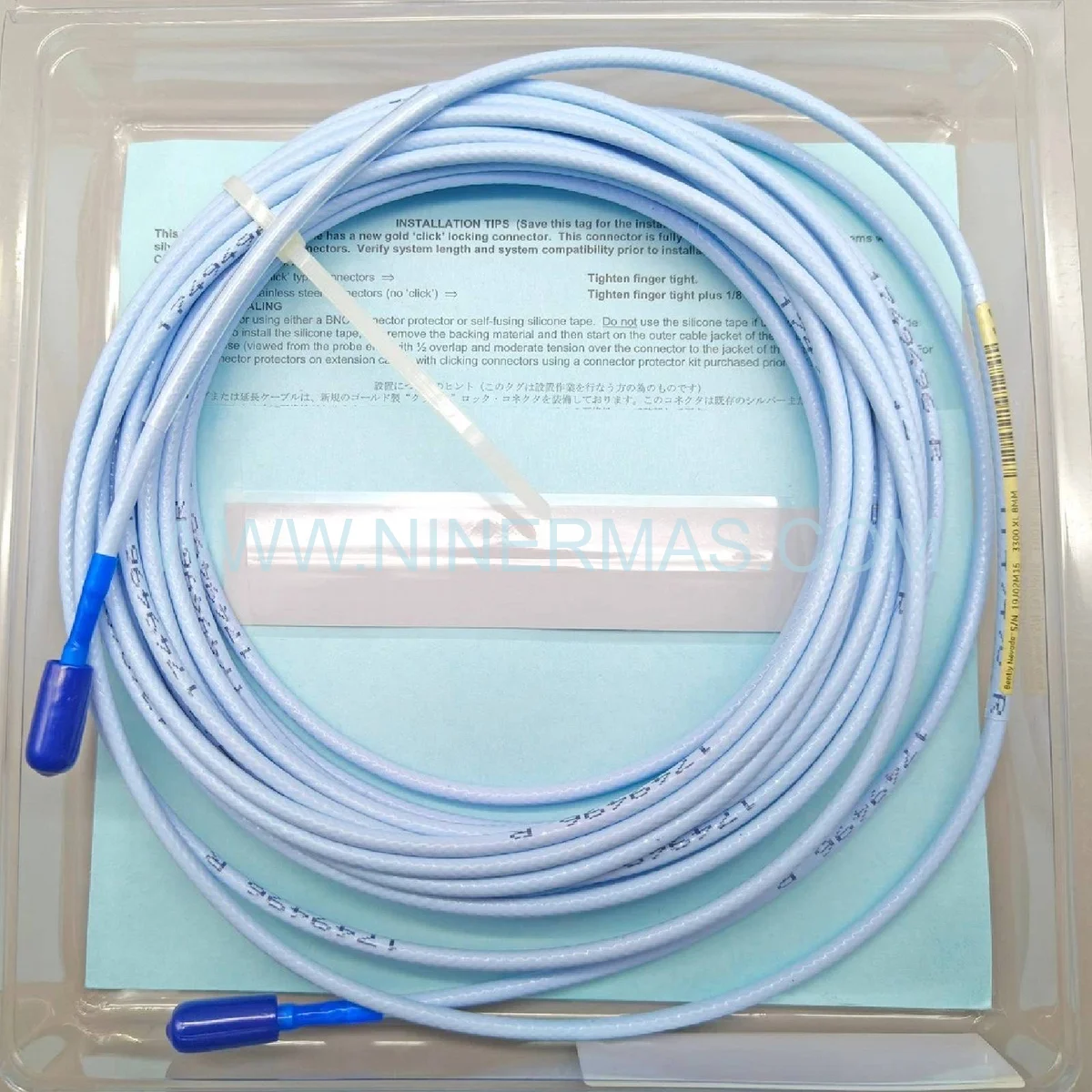

Bently Nevada 330130-085-00-05 8mm Proximity Extension Cable for 3300 XL Monitoring Systems

The Bently Nevada 330130-085-00-05 is an industrial-grade 8mm shielded extension cable engineered for 3300 XL proximity transducer systems. Through precision impedance matching and multi-layer EMI shielding, it enables reliable signal transmission between proximity probes and proximitor sensors across distances up to 8.5 meters, ensuring accurate vibration and position measurements in critical rotating machinery applications.

Designed for power generation, oil & gas, petrochemical, and heavy manufacturing environments, this extension cable addresses challenges such as harsh installation conditions, electromagnetic interference, signal degradation over distance, and the need for flexible sensor placement away from high-temperature or hazardous zones.

Built with OEM-certified construction and industrial-grade materials, the 330130-085-00-05 delivers proven reliability, plug-and-play compatibility, and long-term measurement stability. Ideal for design engineers, instrumentation contractors, plant maintenance teams, and system integrators requiring dependable connectivity for turbine monitoring, compressor protection, and rotating equipment diagnostics. Contact our application engineers for cable routing recommendations and system integration support.

Core Features & Technical Advantages

OEM-Certified Signal Integrity
Manufactured to Bently Nevada's exact electrical and mechanical specifications, maintaining 50-ohm nominal impedance and phase linearity across the operating frequency range. Ensures measurement accuracy equivalent to direct probe-to-proximitor connections, critical for vibration amplitude and phase analysis.

Advanced EMI/RFI Protection
Multi-layer shielding architecture combines braided copper shield with aluminum-mylar foil wrap, providing >90% coverage against electromagnetic and radio-frequency interference. Preserves millivolt-level proximity signals in electrically noisy industrial environments including VFD-rich facilities and high-voltage switchyards.

Extended Environmental Durability
Operates reliably from -40°C to +85°C with industrial-grade polyethylene insulation resistant to mineral oils, hydraulic fluids, moisture ingress, and UV exposure. Flexible jacket construction withstands continuous vibration, cable tray routing, and conduit installation without signal degradation.

Pre-Terminated Industrial Connectors
Factory-installed BNC connectors with gold-plated contacts and strain relief boots eliminate field termination errors and ensure consistent contact resistance. Threaded coupling mechanism provides secure, vibration-proof connections in high-shock environments.

System Compatibility & Scalability
Seamlessly integrates with all 3300 XL proximitor models (3300 XL 5mm, 8mm, 11mm systems) and supports series connection with additional extension cables when total system length remains within manufacturer specifications. Enables modular system design for complex machinery layouts.

Simplified Installation & Maintenance
Color-coded connectors and cable labeling reduce installation time and prevent wiring errors during commissioning or troubleshooting. Flexible bend radius (minimum 10x cable diameter) facilitates routing through tight spaces and cable trays without kinking.

Typical Application Scenarios

This extension cable is essential for condition monitoring and machinery protection systems where sensor placement flexibility and signal reliability are critical:

Steam & Gas Turbine Monitoring
Extends proximity sensors from turbine bearing housings to control room-mounted proximitor racks, enabling radial vibration, thrust position, and differential expansion measurements on high-speed turbines operating at 3,000-10,000 RPM. Supports both online monitoring and protective shutdown systems.

Centrifugal Compressor Protection
Connects proximity probes on compressor journal bearings to monitoring systems located in safe areas away from process gas hazards. Facilitates multi-point vibration monitoring on multi-stage compressors in natural gas processing, air separation, and refrigeration applications.

Large Motor & Generator Surveillance
Links shaft-mounted proximity sensors to permanently installed monitoring equipment on motors >500 HP and generators >1 MW. Enables continuous tracking of shaft vibration, eccentricity, and bearing wear in power plants, water treatment facilities, and industrial drive systems.

Petrochemical Rotating Equipment
Provides reliable connectivity for pumps, blowers, and agitators in refineries and chemical plants where equipment is distributed across process units. Supports both portable diagnostic measurements and permanent online monitoring installations.

Marine Propulsion & Auxiliary Systems
Extends sensor reach in confined engine room spaces on vessels, offshore platforms, and naval applications. Withstands marine environment challenges including salt spray, humidity, and continuous vibration exposure.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, review the following specifications and selection criteria:

Selection Considerations:

When specifying extension cables for your 3300 XL system, consider the following factors: total system cable length (probe cable + extension cable) must not exceed manufacturer's maximum recommended length to maintain signal quality; installation environment temperature extremes and exposure to chemicals or moisture; physical routing constraints including bend radius limitations and cable tray capacity; electromagnetic interference sources such as VFDs, welders, or high-voltage equipment requiring additional shielding or separation; and future expansion requirements that may benefit from modular cable lengths.

For assistance with cable length calculations, system design validation, or custom cable assemblies, our application engineering team can review your machinery layout drawings and provide optimized recommendations. Submit your project details including equipment type, sensor locations, proximitor mounting positions, and environmental conditions for personalized technical support.

System Integration & Compatibility

3300 XL Ecosystem Integration
The 330130-085-00-05 cable functions as a critical link within the complete Bently Nevada 3300 XL proximity transducer system. It connects between the proximity probe's integral cable and the proximitor sensor module, which converts the probe's oscillator signal into a DC voltage proportional to the gap between the probe tip and the observed shaft surface.

Compatible System Components:

• Proximity Probes: 3300 XL 5mm, 8mm, and 11mm proximity probes (330101, 330103, 330104, 330105 series)
• Proximitor Sensors: 3300 XL proximitor modules (330180, 330190, 330195 series) and rack-mounted systems
• Extension Cables: Can be series-connected with other 330130 series cables in 1m, 3m, 5m, and 10m lengths
• Monitoring Systems: Integrates with 3500 rack monitoring systems, ADAPT software, and third-party DCS/SCADA platforms via 4-20mA outputs

Installation Best Practices:

Route cables away from high-current power conductors (maintain minimum 300mm separation from AC power cables); secure cables at regular intervals using appropriate cable ties or clamps to prevent excessive movement; avoid sharp bends or kinks that exceed minimum bend radius specifications; ensure connector threads are hand-tightened with appropriate torque (finger-tight plus 1/4 turn); verify shield continuity and proper grounding at the proximitor end per Bently Nevada installation guidelines; label both cable ends with equipment tag numbers and cable identification for future maintenance; and protect outdoor cable runs with appropriate conduit or cable tray covers to prevent UV degradation and moisture accumulation.

Delivery, Service & Quality Assurance

Stock Availability & Lead Times
Standard catalog items including the 330130-085-00-05 are typically maintained in stock with same-day or next-business-day dispatch for orders received before 3:00 PM local time. Custom cable lengths or special connector configurations require 7-14 business days for manufacturing and quality testing. Expedited production and shipping options are available for critical outage or emergency replacement situations.

Warranty Coverage
All Bently Nevada 330130-085-00-05 extension cables are covered by a comprehensive 12-month warranty against manufacturing defects, material failures, and workmanship issues from the date of shipment. Warranty includes replacement of defective cables and technical support for installation troubleshooting. Extended warranty programs and service agreements are available for critical applications requiring guaranteed uptime.

Technical Support Services
Our application engineering team provides pre-sale consultation for system design, cable routing optimization, and compatibility verification. Post-sale support includes installation guidance, signal troubleshooting assistance via phone or email, and on-site commissioning support (available in select regions). Remote diagnostic support can analyze oscilloscope waveforms and proximitor outputs to identify cable-related signal issues.

Documentation Package
Each cable shipment includes a certificate of conformance verifying electrical specifications, dimensional drawings showing connector details and cable construction, installation guidelines with torque specifications and routing recommendations, and compatibility cross-reference charts for probe and proximitor models. Complete technical datasheets and CAD models are available for download from our technical library.

Quality Certifications
Manufactured in ISO 9001:2015 certified facilities with full traceability of materials and production processes. All cables undergo 100% electrical testing including impedance verification, shield continuity checks, and high-potential (hipot) dielectric strength testing before shipment. Test reports available upon request for critical applications requiring documented quality evidence.

Frequently Asked Questions (FAQ)

Q: Can the 330130-085-00-05 extension cable be used with proximity sensors from other manufacturers?
A: This cable is precision-engineered specifically for Bently Nevada 3300 XL proximity transducer systems with matched impedance and connector specifications. Using it with non-Bently Nevada sensors may result in impedance mismatches, signal reflections, or connector incompatibility that degrades measurement accuracy. For mixed-vendor systems, consult our technical team for compatibility assessment.

Q: What is the maximum total cable length allowed for a 3300 XL proximity system?
A: Total system cable length (proximity probe integral cable + extension cable + proximitor input cable) typically should not exceed 9 meters for 8mm systems to maintain signal quality and linearity. However, specific limits depend on probe model, operating frequency, and environmental factors. Refer to your proximitor sensor datasheet or contact our application engineers with your complete system configuration for verification.

Q: Is this extension cable suitable for outdoor or harsh environment installations?
A: Yes, the 330130-085-00-05 features industrial-grade polyethylene insulation and multi-layer shielding designed for both indoor and outdoor installations. The cable withstands temperature extremes (-40°C to +85°C), moisture, oil exposure, and UV radiation when properly routed in cable trays or conduit. For direct burial or submersion applications, additional protective measures such as armored conduit are recommended.

Q: Does the extension cable require special grounding or shielding connections?
A: The cable shield should be grounded at the proximitor sensor end only (single-point grounding) to prevent ground loops that can introduce noise. Follow Bently Nevada installation guidelines for proper shield termination—typically the proximitor chassis provides the shield ground connection through the BNC connector body. Never ground both ends of the shield or leave the shield floating.

Q: Can multiple extension cables be connected in series to achieve longer distances?
A: Yes, 330130 series extension cables can be series-connected using BNC barrel adapters or couplers, provided the total system cable length remains within specifications. However, each additional connection point introduces potential signal reflection and contact resistance, so minimize the number of connections when possible. For distances exceeding standard cable lengths, consider custom cable assemblies manufactured to your exact length requirement.

Q: How do I verify if a cable is functioning properly or troubleshoot signal issues?
A: Use a digital multimeter to verify shield continuity (should read <1 ohm end-to-end) and insulation resistance (should exceed 100 megohms between center conductor and shield). For dynamic testing, observe the proximitor output with an oscilloscope while moving a metal target near the probe tip—you should see a clean DC voltage change proportional to gap distance. Erratic signals, excessive noise, or non-linear response may indicate cable damage, connector corrosion, or EMI pickup requiring cable replacement or routing changes.

Request Technical Support & Quotation

For detailed application engineering support, custom cable configurations, or project-specific quotations, please provide the following information to our technical sales team:

• Project Overview: Application type (turbine monitoring, compressor protection, etc.) and industry sector
• Equipment Details: Machinery type, operating speed (RPM), bearing configuration, and measurement objectives
• System Configuration: Proximity probe model numbers, proximitor sensor models, and existing cable lengths
• Installation Environment: Temperature range, presence of moisture/chemicals, electromagnetic interference sources, and physical routing constraints
• Quantity Requirements: Number of cables needed and delivery timeline
• Special Requirements: Custom lengths, connector variations, certification needs, or extended warranty requests

Our application engineers will provide cable selection recommendations, system design validation, routing optimization suggestions, and competitive pricing within one business day. For urgent outage support or emergency replacements, contact our 24/7 technical hotline for expedited processing.
