Bently Nevada 330130-080-12-00 | 8m Extension Cable for 3300 XL Proximitor | Industrial Vibration Monitoring

Bently Nevada 330130-080-12-00 Extension Cable (Industrial-Grade 8m Coaxial Cable for 3300 XL Proximitor Systems)

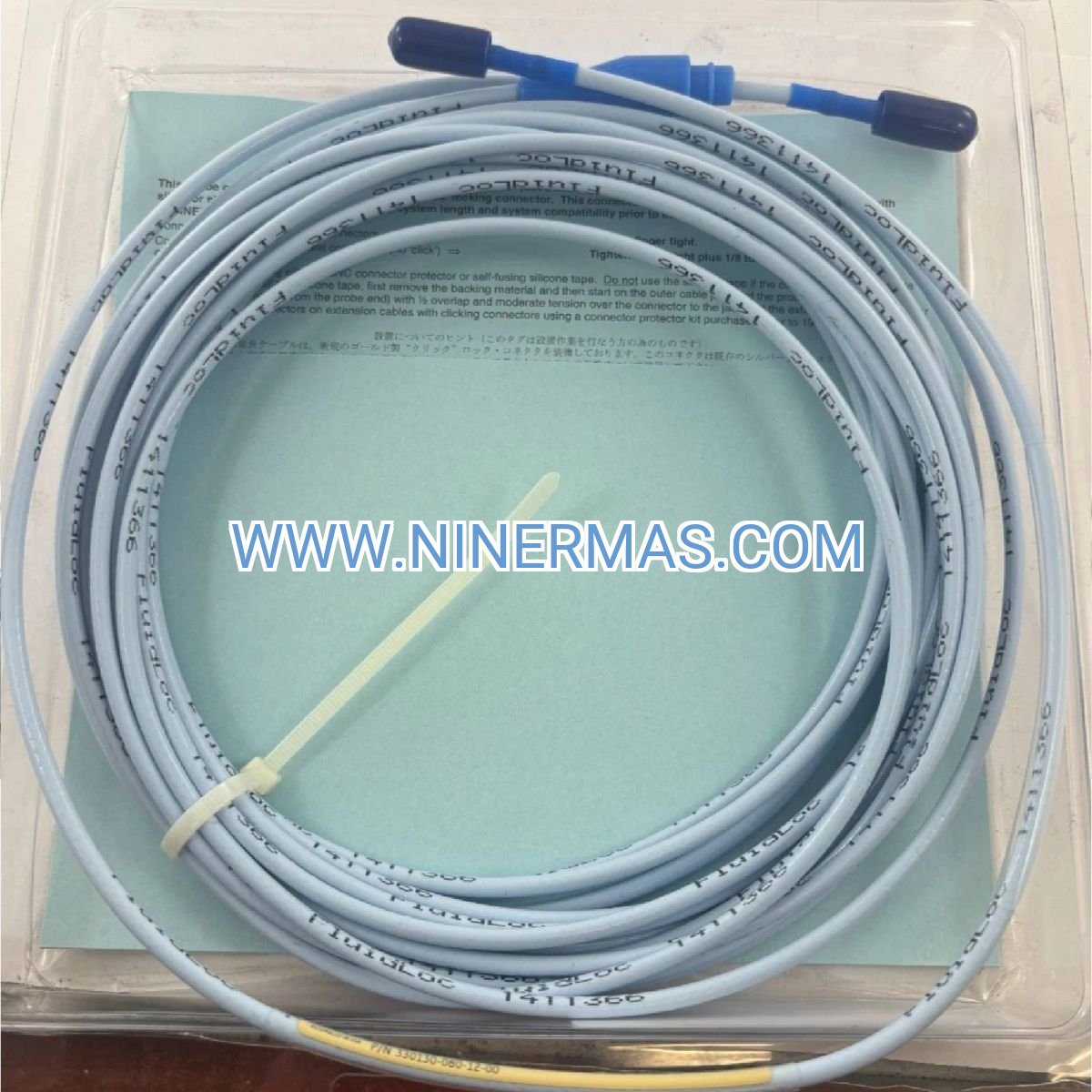

The Bently Nevada 330130-080-12-00 is an 8-meter (26.2 ft) extension cable engineered specifically for 3300 XL proximitor transducer systems. Through precision low-capacitance coaxial construction and factory-calibrated BNC connectors, this cable ensures reliable signal transmission for vibration monitoring, shaft displacement measurement, and rotary machinery protection applications.

Designed for power generation plants, petrochemical facilities, steel mills, and heavy industrial environments, this extension cable addresses challenges such as signal attenuation over distance, electromagnetic interference (EMI), installation flexibility constraints, and harsh environmental exposure. It maintains signal integrity across extended cable runs while meeting stringent industrial reliability standards.

With standardized 50-ohm impedance design and compatibility across the entire 3300 XL ecosystem, the 330130-080-12-00 delivers proven performance for design engineers, instrumentation contractors, maintenance teams, and OEM integrators. Contact our application engineers for cable routing recommendations, system configuration support, and technical specifications tailored to your monitoring architecture.

Core Features & Technical Advantages

• Precision Low-Capacitance Coaxial Design
  Engineered with controlled capacitance per unit length to minimize signal degradation and phase shift, ensuring accurate vibration amplitude and phase measurements across the full 8-meter cable length.
• Factory-Installed BNC Connectors
  Gold-plated BNC connectors are precision-crimped and tested at the factory, eliminating field termination errors and ensuring consistent 50-ohm impedance matching with proximitor sensors and monitor modules.
• Optimized for 3300 XL Ecosystem Compatibility
  Fully compatible with 3300 XL proximitor sensors (5mm, 8mm, 11mm), extension cables, and monitor modules. Supports seamless integration into existing Bently Nevada machinery protection systems without recalibration.
• Industrial-Grade Environmental Protection
  Outer jacket constructed from flame-retardant, oil-resistant, and UV-stabilized polymer compound. Withstands temperature extremes (-40°C to +85°C), chemical exposure, abrasion, and mechanical stress typical in turbine halls and process areas.
• EMI/RFI Shielding Performance
  Multi-layer braided shield provides >90% coverage, rejecting electromagnetic interference from VFDs, motors, switchgear, and RF sources. Maintains signal-to-noise ratio critical for sub-micron displacement resolution.
• Flexible Installation & Routing
  8-meter length accommodates extended sensor-to-monitor distances in large machinery installations, cable tray routing, and panel-mounted monitor configurations. Minimum bend radius: 50mm (2 inches) for damage-free installation.

Typical Application Scenarios

The 330130-080-12-00 extension cable is engineered for industrial environments demanding continuous vibration monitoring and machinery protection, including:

• Steam & Gas Turbine Monitoring
  Extends proximitor sensor signals from turbine bearing housings to control room monitoring panels, enabling real-time shaft vibration, eccentricity, and axial position tracking in power generation units.
• Rotating Compressor & Pump Protection
  Provides reliable signal transmission for centrifugal compressors, reciprocating compressors, and high-speed pumps in petrochemical, refining, and gas processing facilities, supporting API 670 compliance.
• Motor & Generator Condition Monitoring
  Connects proximitor sensors on large AC/DC motors, synchronous generators, and induction machines to vibration monitors, facilitating predictive maintenance programs and reducing unplanned downtime.
• Industrial Fan & Blower Systems
  Suitable for forced draft fans, induced draft fans, and process blowers in cement plants, steel mills, and HVAC systems, where extended cable runs are required due to equipment layout.
• Paper Machine & Rolling Mill Drives
  Supports vibration monitoring on paper machine dryer sections, calenders, and rolling mill drive trains, where sensor-to-monitor distances exceed standard cable lengths and harsh conditions prevail.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the following specifications and selection criteria apply:

Selection Recommendations: When specifying extension cables, consider total cable length (sensor to monitor), environmental conditions (temperature, chemical exposure, mechanical stress), routing constraints (cable tray, conduit, free-air), and system accuracy requirements. For cable runs exceeding 8 meters, consult factory guidelines on maximum permissible length to maintain measurement accuracy. Our application engineers can assist with cable length calculations, impedance matching verification, and system integration planning.

Extended Capabilities & System Integration

• Daisy-Chain Configuration Support
  Multiple extension cables can be interconnected using BNC barrel connectors (not included) to achieve longer total lengths, subject to system capacitance limits and signal integrity validation.
• Retrofit & Upgrade Compatibility
  Direct replacement for legacy 3300 series extension cables in existing installations. Backward compatible with 3300 NSv, 3300 XL, and 3300 RAM proximitor systems.
• Harsh Environment Variants
  For extreme conditions (high temperature, corrosive atmospheres, nuclear environments), consult factory for armored, PTFE-insulated, or radiation-hardened cable options.
• Custom Length Availability
  Standard lengths range from 1m to 15m. Custom lengths and special connector configurations (right-angle BNC, TNC, etc.) available upon request with minimum order quantities.

Delivery, Quality Assurance & Technical Support

Lead Time: Standard catalog items typically ship within 3–5 business days from regional distribution centers. Custom configurations require 2–4 weeks depending on specifications and order volume.

Quality & Warranty: Each cable undergoes 100% factory electrical testing including capacitance, impedance, insulation resistance, and continuity verification. Backed by a 24-month warranty covering materials and workmanship defects. Extended warranty programs available for critical applications.

Documentation & Support: Supplied with product datasheet, electrical test report, and installation guidelines. Complete system integration manuals, cable routing best practices, and troubleshooting guides available upon request. Technical support includes remote consultation and on-site commissioning assistance (subject to location and service agreement).

Certifications & Compliance: Manufactured in ISO 9001-certified facilities. Meets RoHS, REACH, and UL/CSA standards where applicable. Traceability documentation and material certificates available for regulated industries.

Frequently Asked Questions (FAQ)

Q: How do I connect the Bently Nevada 330130-080-12-00 extension cable to my existing 3300 XL proximitor system?
A: The cable features BNC male connectors on both ends. Connect one end to the proximitor sensor's integral cable BNC connector, and the other end to the monitor module's input BNC connector. Ensure connectors are fully seated and locked with a quarter-turn clockwise rotation. Verify system functionality after installation by checking monitor output and alarm thresholds.

Q: What is the maximum total cable length I can use between the proximitor sensor and monitor module?
A: Total cable length (sensor integral cable + extension cables) should not exceed 9 meters (30 feet) for standard 3300 XL systems to maintain specified accuracy. For longer runs, consult Bently Nevada application notes or contact technical support for system-specific guidance, as capacitance loading affects measurement linearity.

Q: Can I use this extension cable with proximitor sensors from other manufacturers?
A: This cable is optimized for Bently Nevada 3300 XL proximitor systems with 50-ohm impedance and specific capacitance characteristics. Using it with non-Bently sensors may result in impedance mismatch, signal distortion, or inaccurate measurements. Always verify compatibility with sensor and monitor specifications before substitution.

Q: What environmental conditions can the 330130-080-12-00 cable withstand?
A: The cable is rated for -40°C to +85°C ambient temperature, with oil-resistant and UV-stabilized jacket suitable for indoor and outdoor industrial environments. It provides protection against moisture, dust, and moderate chemical exposure. For extreme conditions (high temperature >85°C, corrosive atmospheres, submersion), specify armored or PTFE-insulated variants.

Q: Does the cable support remote monitoring and data acquisition systems?
A: Yes, the cable transparently transmits analog proximitor signals to 3300 XL monitor modules, which can interface with DCS, PLC, SCADA, and condition monitoring systems via 4-20mA outputs, Modbus, or proprietary protocols (depending on monitor model). The cable itself is passive and protocol-agnostic.

Q: How do I verify cable integrity after installation or during troubleshooting?
A: Use a digital multimeter to measure DC resistance (should be near 0 ohms end-to-end), insulation resistance (>5000 MΩ between center conductor and shield), and capacitance (approximately 96 pF/m × 8m = 768 pF total). Compare readings against factory test report. Significant deviations indicate damage, moisture ingress, or connector faults.

Request Technical Support & Custom Solutions

For detailed application engineering support, custom cable configurations, or project-specific quotations, please provide the following information: project name and location, machinery type and operating parameters, required cable lengths and quantities, environmental conditions (temperature, chemical exposure, mechanical stress), existing system configuration (sensor models, monitor modules, communication protocols), and installation timeline. Our engineering team will respond with tailored recommendations, compliance documentation, and competitive pricing within 24–48 hours.
