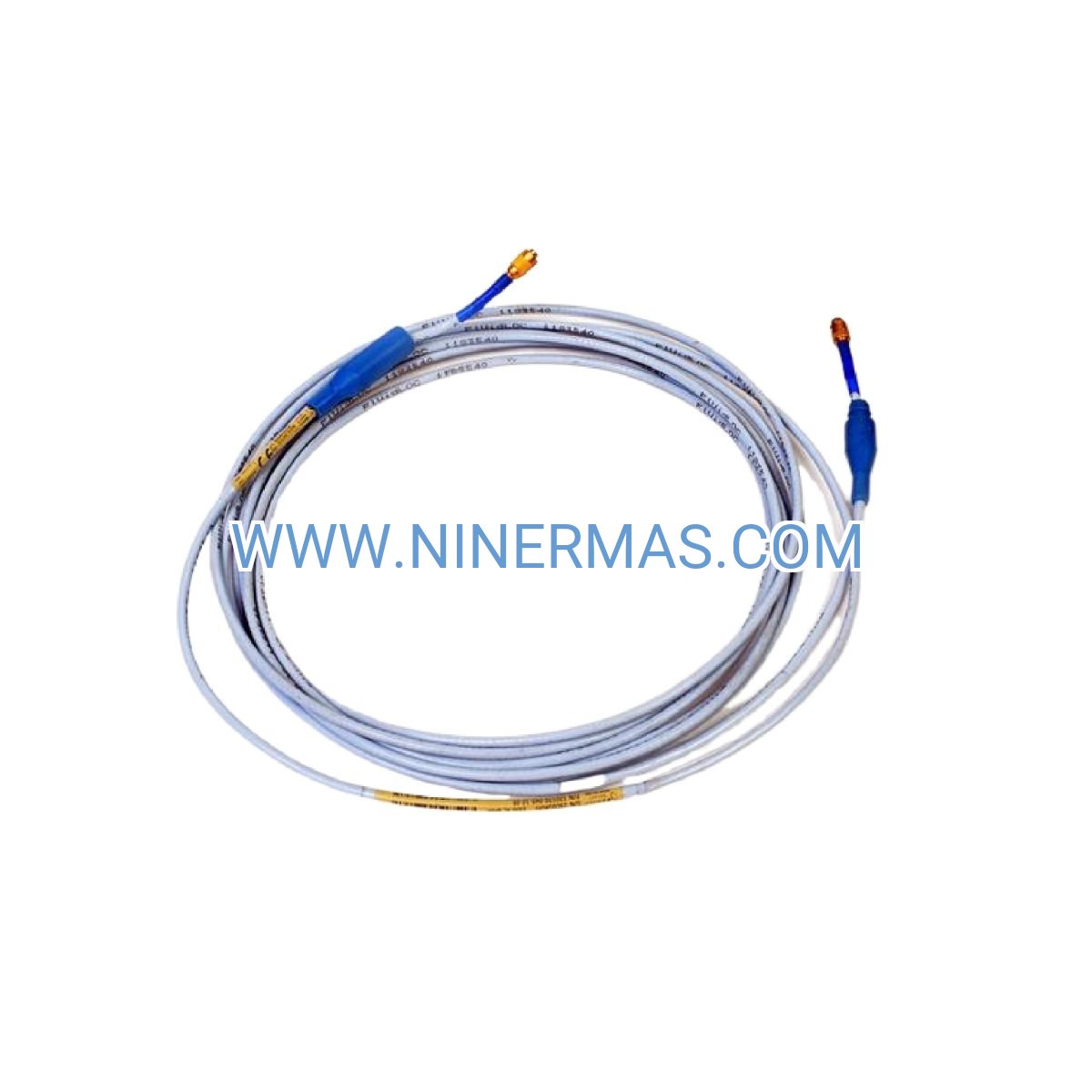

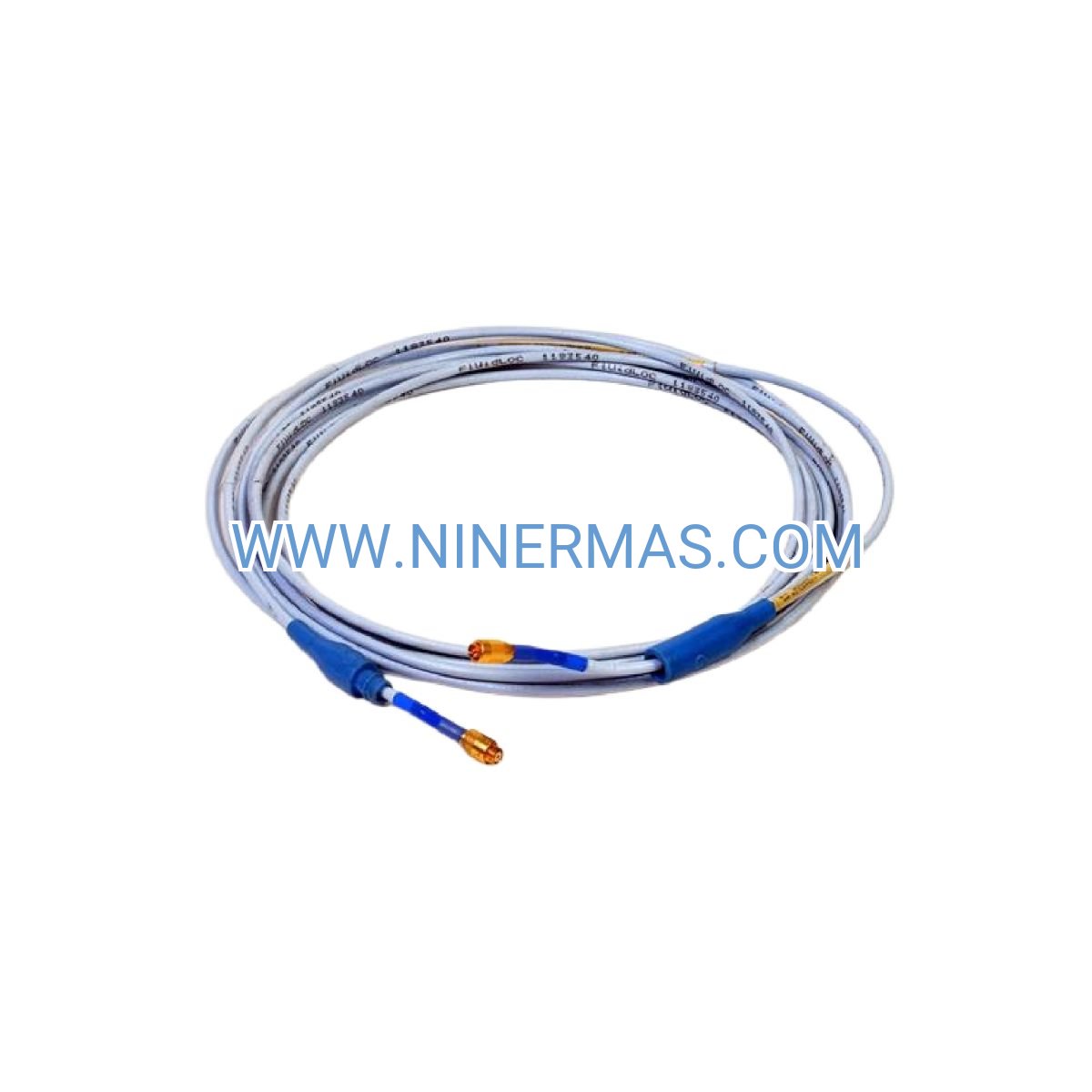

8-Meter Standard Extension Cable for Bently Nevada 3300 XL Proximity Monitoring System

The 330130-080-10-05 is an industrial-grade extension cable engineered for seamless integration with 8mm proximity probes in Bently Nevada 3300 XL vibration monitoring systems. Through precision-manufactured connectors and multi-layer electromagnetic shielding, this cable delivers reliable signal transmission in turbomachinery applications where measurement accuracy directly impacts asset protection and operational continuity.

Designed for power generation plants, petrochemical facilities, oil & gas processing units, and heavy manufacturing environments, this 8-meter cable addresses challenges including space-constrained sensor placement, harsh ambient conditions, and long-distance signal routing requirements. It solves common installation obstacles such as probe-to-monitor separation distances, electromagnetic interference zones, and temperature extremes that compromise standard wiring.

Featuring factory-verified continuity testing, high-temperature polymer insulation, and compatibility with both legacy and current 3300 XL architectures, the 330130-080-10-05 provides design engineers, maintenance teams, and system integrators with a proven solution for critical machinery protection. Contact our application engineers for project-specific cable routing guidance and technical specifications.

Core Capabilities & Performance Advantages

Signal Integrity Preservation
Employs low-capacitance conductor design and triple-layer shielding to maintain probe output fidelity across the full 8-meter span, ensuring vibration amplitude and phase data reach monitoring electronics without distortion or noise contamination.

Environmental Resilience
Operates reliably from -40°C to +85°C (-40°F to +185°F) with chemical-resistant jacketing that withstands exposure to hydraulic fluids, lubricants, and industrial solvents commonly encountered in machinery installations.

Flexible Installation Geometry
Balances mechanical flexibility for routing through cable trays and conduit runs with structural integrity to resist crushing, abrasion, and repeated flexing during equipment maintenance cycles.

Electromagnetic Compatibility
Multi-layer braided shield construction provides >90% coverage against RF interference from variable frequency drives, motor controllers, and high-power electrical distribution systems adjacent to monitoring points.

System-Wide Compatibility
Direct plug-and-play integration with all 3300 XL Proximitor Sensor housings and 8mm probe assemblies, supporting both new construction projects and brownfield system expansions without adapter requirements.

Maintenance Efficiency
Color-coded connectors and cable jacket markings simplify troubleshooting and replacement procedures, reducing mean time to repair during unplanned outages or scheduled turnarounds.

Target Application Environments

This extension cable serves critical monitoring functions across industries where rotating equipment reliability determines production uptime and safety performance:

Steam & Gas Turbine Installations
Enables vibration monitoring on high-speed turbines where bearing housings are located in high-temperature zones or areas with limited access for direct monitor mounting, supporting predictive maintenance programs in combined-cycle power plants and cogeneration facilities.

Centrifugal Compressor Systems
Facilitates multi-point vibration surveillance on process gas compressors in refineries and chemical plants, where probe placement must accommodate piping congestion, thermal insulation, and hazardous area classifications.

Large Motor & Generator Monitoring
Provides the cable length needed to connect bearing proximity probes on motors exceeding 500 HP to centralized monitoring panels in motor control centers, particularly in mining, metals processing, and water treatment applications.

Pump & Blower Condition Monitoring
Supports vibration-based condition monitoring on critical pumps handling corrosive or high-temperature fluids, where sensor-to-monitor separation distances exceed standard cable lengths due to safety clearances or equipment layout constraints.

Industrial Gearbox Surveillance
Enables monitoring of gearbox input and output shaft vibration in cement mills, paper machines, and steel rolling mills where gearbox locations are remote from control room instrumentation racks.

Technical Specifications & Selection Parameters

To ensure optimal system performance and compliance with installation standards, the following specifications define the cable's operational envelope and physical characteristics:

Electrical Characteristics

• Cable Length: 8.0 meters (26.2 feet) ±2%
• Conductor Resistance: <0.5 ohms per 100 meters at 20°C
• Insulation Resistance: >100 megohms at 500 VDC
• Capacitance: <150 pF/meter conductor-to-shield
• Shield Coverage: >90% braided tinned copper

Mechanical & Environmental Ratings

• Operating Temperature: -40°C to +85°C continuous
• Storage Temperature: -55°C to +105°C
• Bend Radius: 10× cable diameter minimum (dynamic)
• Jacket Material: Flame-retardant thermoplastic elastomer
• Connector Type: Industrial bayonet-lock (probe end) / screw-terminal (sensor end)

Compatibility Matrix

• Probe Compatibility: All Bently Nevada 8mm proximity probes (330100, 330101, 330105 series)
• Sensor Compatibility: 3300 XL Proximitor Sensors (330180, 330780 series)
• System Architecture: 3300 XL monitoring systems (all firmware revisions)
• Hazardous Area Rating: Suitable for Division 2 / Zone 2 installations when used with approved probes

Selection Guidance
When specifying this cable, consider total probe-to-monitor distance (probe cable + extension cable + sensor-to-monitor wiring), ambient temperature extremes at installation location, electromagnetic interference sources within 1 meter of cable routing path, and mechanical protection requirements (conduit, cable tray, or direct burial). For installations requiring cable lengths beyond 8 meters or custom connector configurations, consult our engineering team with site layout drawings and environmental data.

Advanced Integration Features

Modular System Architecture
Supports cascaded configurations where multiple extension cables connect in series (subject to total system capacitance limits), enabling monitoring point placement up to 15 meters from Proximitor housings in large machinery installations.

Retrofit Compatibility
Direct replacement for legacy 3300 series extension cables without system recalibration, preserving historical vibration trend data and alarm setpoints during equipment upgrades or cable replacement maintenance.

Documentation Package
Ships with cable certification documents including serial number traceability, factory test reports (continuity, insulation resistance, shield effectiveness), and dimensional verification data for quality assurance records.

Delivery, Quality Assurance & Technical Support

Lead Times & Logistics
Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable lengths or special connector configurations require 10-15 business days for manufacturing and testing. All shipments include protective packaging designed for international freight handling and include full material traceability documentation.

Warranty & Service Coverage
Every cable carries a 24-month warranty covering defects in materials, workmanship, and electrical performance under normal operating conditions. Warranty includes no-cost replacement and technical support for installation troubleshooting. Extended service agreements available for critical spares programs.

Installation Support Resources
Purchase includes access to detailed installation manuals, cable routing best practices guides, electromagnetic compatibility guidelines, and connector torque specifications. Remote technical assistance available via phone and email during installation commissioning phases.

Quality Certifications
Manufactured in ISO 9001:2015 certified facilities with full compliance to RoHS directives. Each production lot undergoes 100% electrical testing including hi-pot verification, continuity validation, and shield effectiveness measurement per IEC 61326 standards.

Frequently Asked Questions

Q: How does the 330130-080-10-05 extension cable integrate with existing 3300 XL monitoring infrastructure?
A: The cable connects directly between any 8mm proximity probe and its corresponding 3300 XL Proximitor Sensor housing using industry-standard bayonet-lock and screw-terminal connectors. No adapters, signal conditioners, or system reconfiguration required. Simply disconnect the probe from the sensor housing, insert the extension cable between them, and verify continuity before powering the system.

Q: What is the maximum number of extension cables that can be connected in series for a single monitoring channel?
A: While the cable supports series connection, total system capacitance must remain below 3300 XL system limits (typically <3000 pF). For an 8-meter cable at ~150 pF/meter, theoretical maximum is two cables in series plus standard probe cable. However, we recommend consulting system documentation or our engineers for installations exceeding 12 meters total length to ensure signal quality and measurement accuracy.

Q: Can this cable withstand continuous exposure to temperatures exceeding 85°C in turbine bearing housing applications?
A: The cable's continuous operating limit is +85°C. For applications with sustained temperatures above this threshold (such as direct mounting on turbine bearing housings), consider heat-shielding methods, cable routing through cooler zones, or high-temperature cable variants. Our technical team can recommend thermal management strategies based on your specific installation geometry.

Q: Is the 330130-080-10-05 compatible with proximity probes from manufacturers other than Bently Nevada?
A: This cable is engineered specifically for Bently Nevada 8mm probe systems with proprietary connector interfaces. While electrical characteristics may be compatible with some third-party probes, mechanical connector compatibility and system certification cannot be guaranteed. For mixed-vendor installations, contact our applications engineering group for compatibility assessment.

Q: What electromagnetic interference protection does the cable provide in environments with high-power VFDs and motor controllers?
A: The cable features >90% coverage braided shield construction that provides effective rejection of common-mode RF interference from variable frequency drives, SCR controllers, and switching power supplies. For optimal performance, maintain minimum 300mm separation from high-current power cables, ensure proper shield grounding at the Proximitor Sensor housing, and route through grounded metallic conduit in severe EMI environments.

Q: Does the cable require special storage conditions or have a shelf life limitation before installation?
A: Store cables in original packaging at temperatures between -20°C and +60°C in low-humidity environments away from direct sunlight and chemical vapors. Properly stored cables have no defined shelf life limitation. Before installation of cables stored longer than 24 months, perform insulation resistance verification (>100 megohms at 500 VDC) to confirm electrical integrity.

Request Technical Consultation & Project Quotation

For detailed application engineering support, custom cable configurations, or project-specific pricing, please provide our technical sales team with the following information:

• Project name and installation location
• Equipment type and operating parameters (speed, temperature, environment classification)
• Number of monitoring points and required cable quantities
• Total probe-to-monitor distances and routing constraints
• Ambient temperature range and electromagnetic interference sources
• Delivery timeline and any special packaging or documentation requirements

Our application engineers will respond within 24 hours with cable selection recommendations, system integration guidance, and formal quotations including volume pricing for multi-unit orders.
