330104-00-10-05-02-05 Proximity Sensor (Industrial-Grade 8mm Eddy Current Probe)

The 330104-00-10-05-02-05 is a precision-engineered 8mm eddy current proximity sensor designed for continuous shaft displacement and vibration monitoring in critical rotating equipment. Manufactured to Bently Nevada's 3300 XL platform specifications, this metric probe delivers reliable non-contact measurement for turbines, compressors, generators, and high-speed rotating machinery where equipment protection and predictive maintenance are essential.

Built for power generation facilities, petrochemical plants, and heavy industrial environments, this sensor addresses the challenge of real-time machinery health assessment without physical contact. Target users include maintenance engineers, reliability teams, and instrumentation specialists responsible for condition monitoring systems in 24/7 operations.

Key advantages include hermetically sealed construction for harsh environment durability, wide frequency response up to 10 kHz for capturing dynamic events, and proven compatibility with existing 3300 XL monitoring infrastructure—enabling cost-effective system expansion or component replacement without platform migration.

Core Features & Benefits

✓ 8mm Metric Design – Optimized probe diameter provides ideal sensitivity-to-size ratio for standard industrial shaft applications, delivering linear output with minimal electromagnetic interference in crowded machinery installations.

✓ Extended Temperature Range – Operates reliably from -40°C to +105°C (-40°F to +221°F), maintaining calibration accuracy in extreme thermal environments typical of steam turbines, exhaust systems, and outdoor installations.

✓ Stainless Steel Construction – Hermetically sealed housing withstands oil mist, moisture ingress, chemical exposure, and mechanical vibration, ensuring long-term stability in corrosive industrial atmospheres.

✓ 0-10 kHz Frequency Response – Captures both slow shaft displacement and high-frequency vibration events, enabling comprehensive machinery diagnostics from startup transients to steady-state operation.

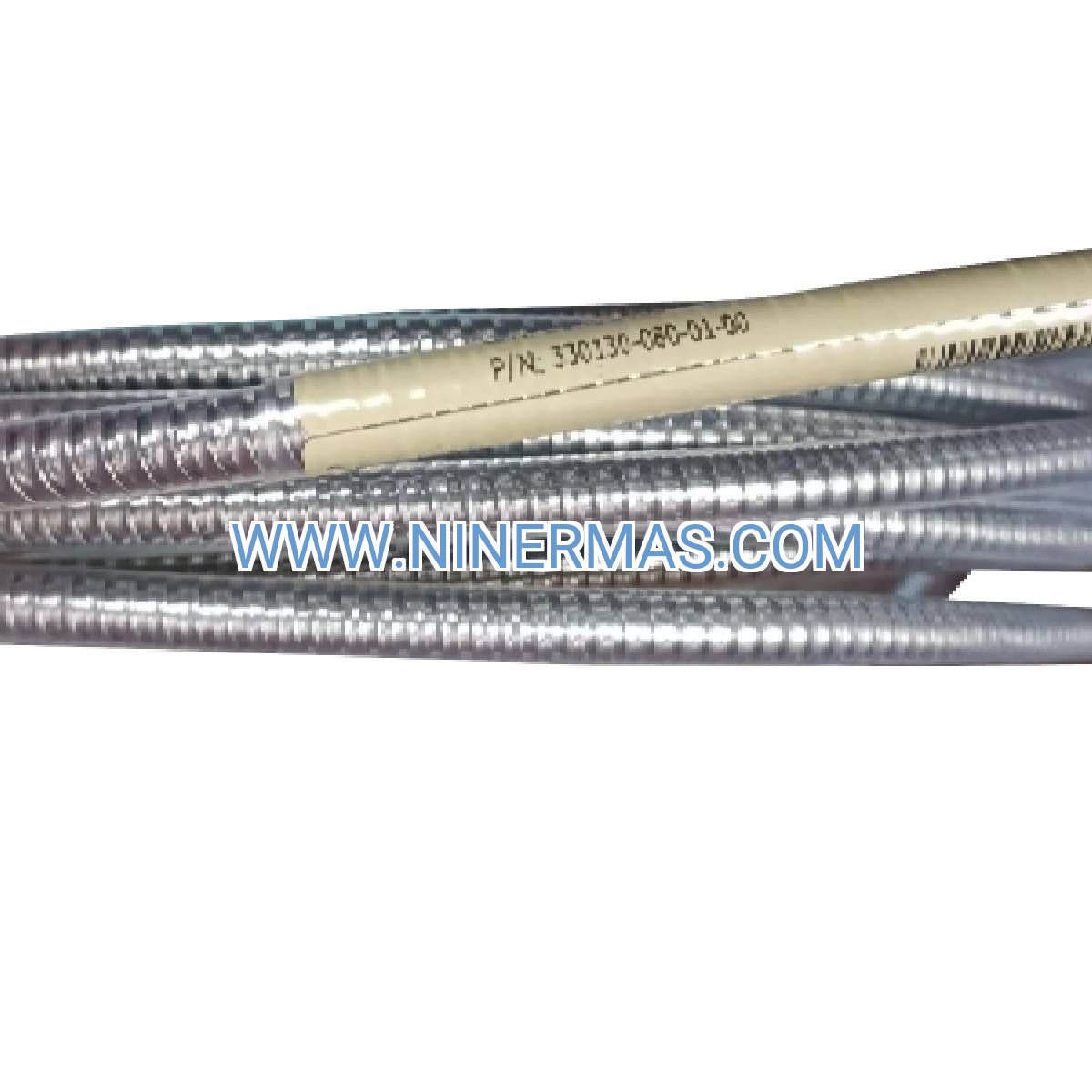

✓ Integral Armored Cable – Factory-terminated cable assembly eliminates field wiring errors, provides mechanical protection, and maintains signal integrity in high-EMI environments.

✓ 3300 XL Platform Compatibility – Direct integration with Bently Nevada proximitors, monitors, and data acquisition systems supports seamless retrofit projects and multi-vendor system architectures.

Application Scenarios

→ Steam & Gas Turbine Protection
Monitors bearing clearances and rotor axial position in power generation turbines. Prevents catastrophic failures by detecting abnormal shaft movement before bearing damage occurs, reducing unplanned outages and repair costs exceeding $500K per event.

→ Centrifugal Compressor Surveillance
Tracks radial vibration and thrust position in multi-stage compressors serving refinery and chemical processes. Early detection of surge conditions, bearing wear, and rotor imbalance enables scheduled maintenance rather than emergency shutdowns.

→ Generator Rotor Monitoring
Measures differential expansion and eccentricity in large synchronous generators. Continuous data supports condition-based maintenance strategies, extending asset life and optimizing inspection intervals.

→ Pump & Motor Bearing Analysis
Provides non-contact measurement of shaft runout and bearing clearance in critical process pumps. Identifies developing faults 30-90 days before failure, allowing planned component replacement during scheduled maintenance windows.

→ Predictive Maintenance Programs
Integrates with CMMS and vibration analysis software to establish baseline signatures and trend deviations. Supports ISO 10816 and API 670 compliance requirements for machinery protection systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose this 8mm probe for shaft diameters 25mm and above where standard industrial mounting configurations apply. For smaller shafts or space-constrained installations, consider 5mm variants. Verify target material conductivity—eddy current sensors require ferrous targets for proper operation. Confirm operating gap requirements fall within 1.0-1.5mm (40-60 mils) for optimal linearity and signal-to-noise ratio.

Extended Functions

IoT Integration Capability: When paired with Bently Nevada 3500 monitoring systems or third-party data acquisition platforms, sensor outputs can be streamed to cloud-based analytics engines for remote diagnostics, fleet-wide benchmarking, and machine learning-based anomaly detection.

Multi-Channel Configurations: Deploy in XY probe pairs for radial vibration mapping or combine with axial position sensors for comprehensive rotor dynamics analysis. Supports both radial and thrust measurement architectures per API 670 standards.

Customization Options: Alternative cable lengths, special thread configurations, and high-temperature variants available for non-standard applications. Consult factory for extended range probes or exotic material compatibility requirements.

Delivery & Service Assurance

Standard Delivery: In-stock items ship within 2-5 business days via express courier with full tracking. International orders include customs documentation and DDP/DDU terms available.

Custom Configurations: Special cable lengths or non-standard specifications typically require 4-6 weeks lead time. Expedited production available for critical outage support.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty includes replacement or repair at our discretion.

Technical Support: Application engineering assistance available for system design, installation troubleshooting, and calibration verification. Remote support via email/phone; on-site commissioning services available regionally.

Documentation Package: Each sensor ships with calibration certificate, installation instructions, dimensional drawings, and compatibility matrix for 3300 XL system components.

Frequently Asked Questions

What is the optimal installation gap for this 8mm proximity probe?
Recommended operating gap is 1.0-1.5mm (40-60 mils) from the shaft surface. This range provides maximum output linearity, best signal quality, and adequate clearance for thermal expansion. Installation outside this range may result in reduced sensitivity or non-linear response.

Can this eddy current sensor measure non-ferrous materials like aluminum or brass?
No—eddy current proximity probes require conductive ferrous targets (steel, iron, magnetic stainless) for proper operation. For non-ferrous shaft materials, consider capacitive displacement sensors or laser-based measurement systems.

How do I determine the correct cable length for my application?
This model includes integral cable with standard termination. Total system cable length (probe cable + extension cable) should not exceed manufacturer specifications to maintain signal integrity. Extension cables are sold separately—consult system documentation for maximum allowable lengths based on proximitor model.

Is this probe compatible with older Bently Nevada 3300 monitoring systems?
Yes—the 3300 XL series maintains backward compatibility with legacy 3300 proximitors and monitors. This enables phased system upgrades without complete infrastructure replacement, protecting existing capital investments.

What maintenance is required for proximity probes in continuous operation?
Proximity probes are passive sensors requiring minimal maintenance. Recommended actions include periodic visual inspection for cable damage, annual calibration verification using gap measurement standards, and target surface cleaning to remove buildup that could affect gap accuracy.

How does this sensor perform in high-vibration environments?
The hermetically sealed construction and armored cable design provide excellent vibration immunity. Proper mounting using lock washers and thread-locking compound prevents loosening under sustained vibration. Sensor itself is unaffected by ambient vibration—it measures only target displacement.

Take the Next Step

Ready to enhance your machinery protection system? Add this proximity sensor to your cart for fast processing, or contact our technical team at sale@ninermas.com or +0086 187 5021 5667 for application-specific guidance, volume pricing, or system integration support. We're here to ensure you select the right sensor configuration for your critical monitoring requirements.
