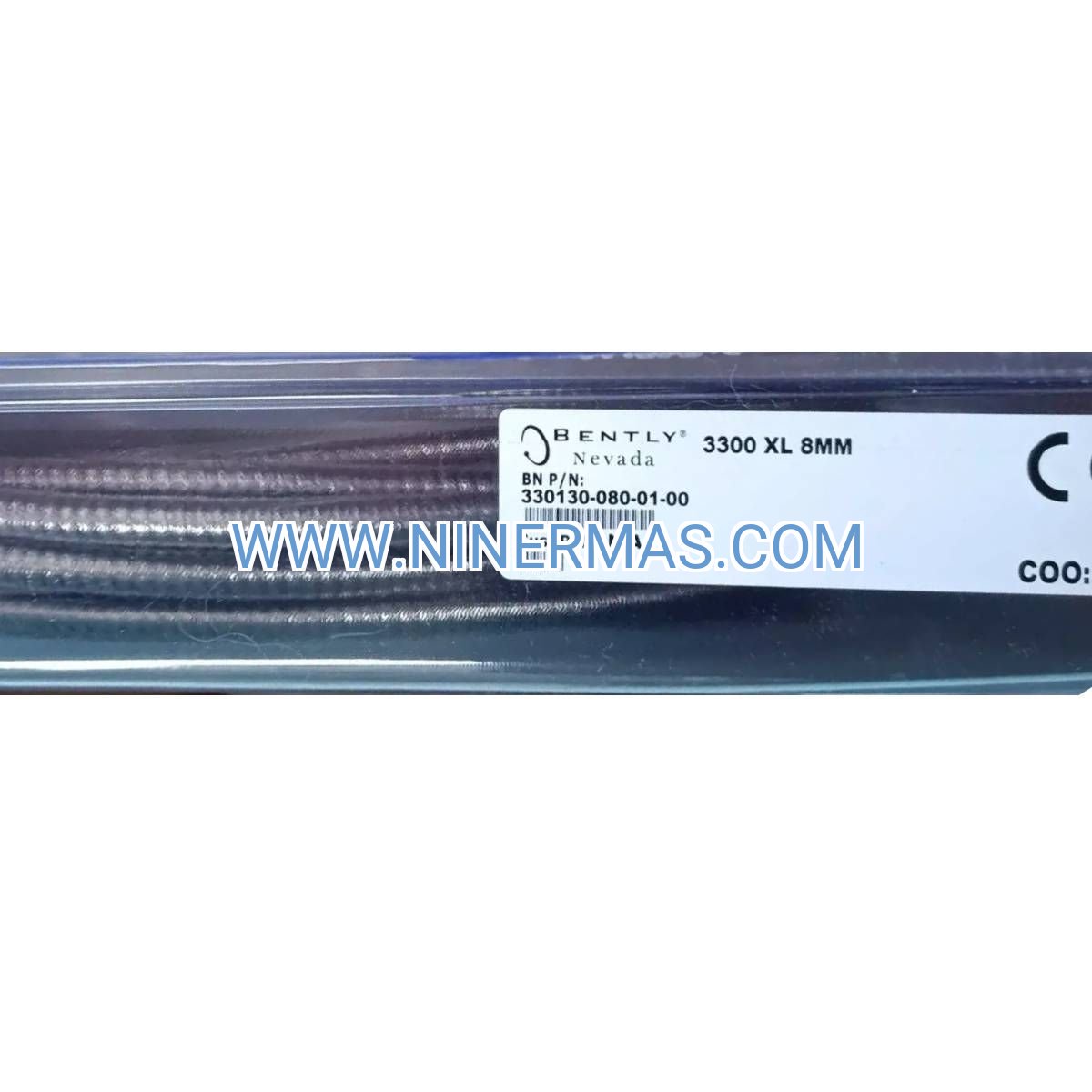

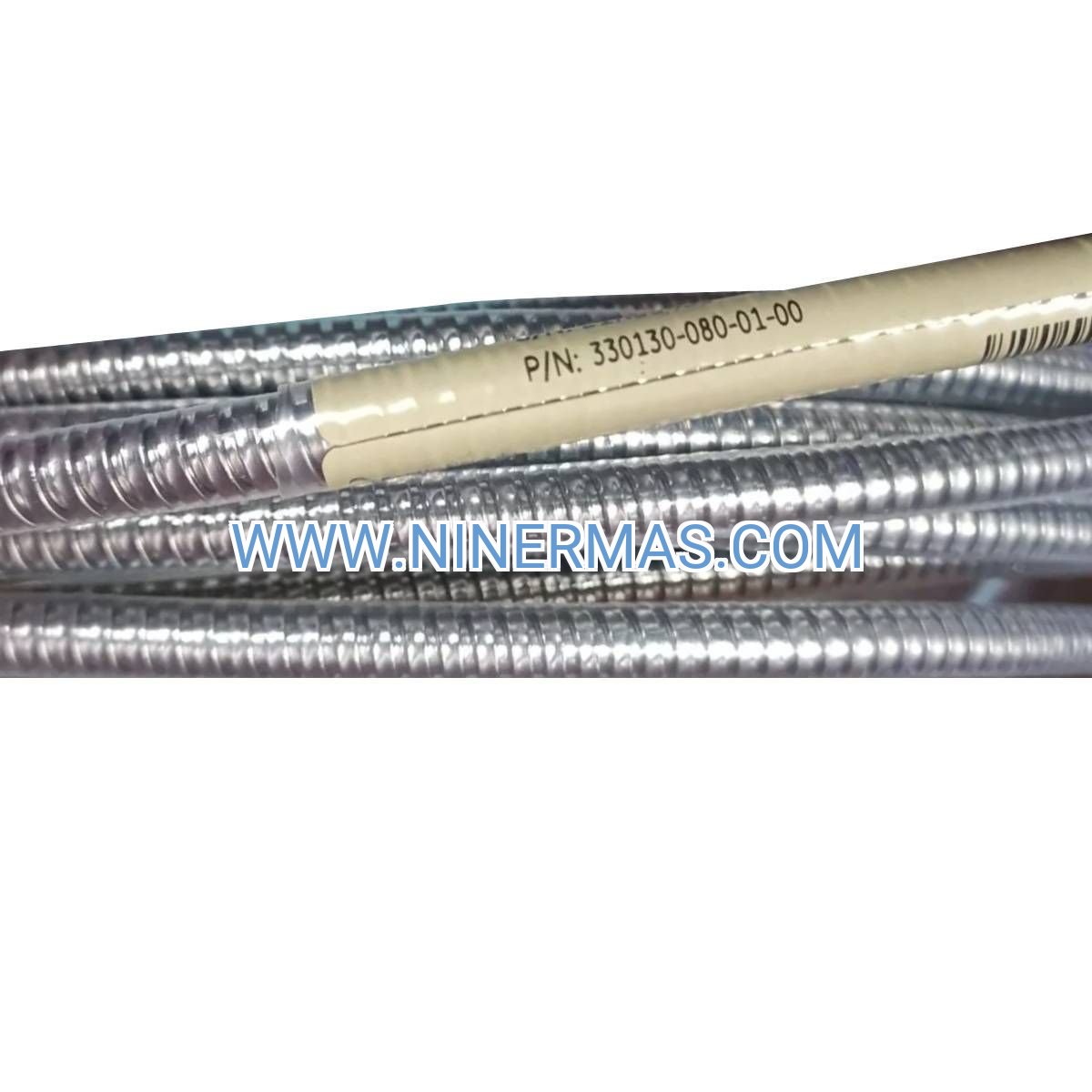

330130-080-01-00 (Industrial-Grade Proximity Extension Cable)

The 330130-080-01-00 represents a precision-engineered 8-meter extension cable solution designed exclusively for Bently Nevada 3300 XL Proximity Transducer Systems. Built to industrial specifications, this coaxial cable delivers uncompromised signal fidelity between proximity probes and proximitor modules in mission-critical rotating machinery environments. Whether monitoring turbine shaft displacement, compressor vibration, or pump bearing health, this extension cable maintains measurement accuracy across demanding industrial installations where equipment uptime depends on reliable condition monitoring data.

Engineered for facilities managing high-value rotating assets—power plants, petrochemical refineries, offshore platforms, and manufacturing operations—the 330130-080-01-00 solves the challenge of physical separation between sensor mounting points and monitoring electronics. Its 8-meter reach accommodates real-world installation constraints while preserving the low-noise, high-bandwidth signal characteristics essential for detecting early-stage machinery faults. Maintenance teams, instrumentation engineers, and reliability professionals trust this cable to bridge the gap between field sensors and control room systems without introducing measurement errors.

What sets the 330130-080-01-00 apart is its triple-layer shielding architecture combined with precision-controlled impedance matching. Unlike generic coaxial cables, this purpose-built extension maintains the 50-ohm characteristic impedance required by 3300 XL systems, prevents electromagnetic interference from corrupting vibration signals, and operates reliably across industrial temperature extremes from -40°C to +85°C. The result: consistent gap voltage measurements that enable predictive maintenance programs to identify bearing wear, shaft misalignment, and rotor imbalance before catastrophic failures occur.

Core Features & Benefits

→ 8-Meter Optimized Length
Provides ideal separation distance for most industrial installations while staying within the 9-meter total system cable length specification. Enables flexible probe placement on equipment while keeping proximitor modules accessible in protected enclosures or control panels.

→ Triple-Shielding EMI Protection
Braided copper outer shield, aluminum foil intermediate layer, and drain wire construction achieves >90% shielding effectiveness. Rejects electrical noise from VFDs, motors, generators, and high-voltage switchgear that would otherwise distort vibration measurements and trigger false alarms.

→ Low-Capacitance Coaxial Design
Engineered dielectric materials minimize cable capacitance to preserve high-frequency signal components critical for accurate gap voltage measurement. Maintains system sensitivity specifications even at maximum recommended cable lengths.

✓ Precision BNC Connectors
Factory-installed connectors ensure consistent 50-ohm impedance throughout the signal path, eliminating reflections and standing waves that degrade measurement accuracy. Gold-plated contacts resist corrosion in humid or chemical-exposure environments.

✓ Industrial-Grade Jacket Material
Flame-retardant thermoplastic elastomer (TPE) or PVC jacket meets safety codes while remaining flexible for routing through cable trays, conduits, and tight spaces. Resists oils, solvents, and UV exposure common in industrial settings.

✓ API 670 & ISO 20816 Compliance
Meets international standards for machinery protection systems, ensuring compatibility with plant-wide vibration monitoring programs and regulatory requirements for critical equipment monitoring.

Typical Application Scenarios

Steam Turbine Monitoring in Power Generation
In combined-cycle power plants, the 330130-080-01-00 connects proximity probes mounted on turbine pedestals to monitoring racks located 8 meters away in climate-controlled control rooms. The cable's shielding prevents 60Hz electrical noise from generators and transformers from interfering with shaft position measurements, enabling operators to detect thrust bearing wear and rotor eccentricity before unplanned outages occur. This configuration protects proximitor electronics from turbine hall heat and vibration while maintaining measurement accuracy within ±0.5 mil specifications.

Centrifugal Compressor Protection in Oil & Gas
Petroleum refineries and gas processing facilities use this extension cable to monitor multi-stage compressor trains where probes must be mounted on equipment foundations but monitoring modules require accessible locations for calibration and maintenance. The 8-meter length accommodates installations where compressors sit on elevated platforms or within hazardous area enclosures while electronics remain in safe-area junction boxes. Signal integrity preservation prevents false trips that would shut down production and cost thousands per hour in lost throughput.

Pump Bearing Surveillance in Water Treatment
Municipal water facilities and industrial cooling systems deploy the 330130-080-01-00 to monitor critical pump bearings where early detection of cavitation, misalignment, or bearing degradation prevents service interruptions. The cable routes from pump pedestals through underground conduits to monitoring panels in operator stations, maintaining signal quality despite electromagnetic interference from motor starters and variable frequency drives controlling pump speed.

Fan & Blower Monitoring in HVAC Systems
Large commercial buildings and industrial ventilation systems use this extension cable to connect proximity sensors on fan bearings to building automation systems. The 8-meter reach allows sensors to remain on rotating equipment while monitoring electronics integrate with centralized control systems, enabling condition-based maintenance that reduces energy costs and extends equipment life.

Generator Rotor Monitoring in Renewable Energy
Wind turbine nacelles and hydroelectric generators employ the 330130-080-01-00 to monitor shaft displacement and bearing clearances in environments with extreme temperature swings and high electromagnetic fields. The cable's wide operating temperature range (-40°C to +85°C) and superior EMI rejection ensure reliable measurements in these challenging applications.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 330130-080-01-00, verify that total system cable length (proximity probe cable + extension cable) does not exceed 9 meters to maintain 3300 XL system accuracy specifications. For installations requiring longer runs, consider relocating proximitor modules or using 3300 XL NSv systems with extended cable capability. Always account for cable routing paths, bend radius requirements, and separation from power cables when determining required length.

Extended Functions

System Integration Capabilities: The 330130-080-01-00 seamlessly integrates with Bently Nevada 3500 rack monitoring systems, enabling vibration data to feed into plant-wide asset management platforms like System 1 or third-party CMMS software. When combined with 3300 XL proximitor modules featuring 4-20mA outputs, the cable supports integration with DCS and PLC systems for automated machinery protection and process control.

Redundant Monitoring Configurations: For critical machinery requiring dual-redundant monitoring, multiple 330130-080-01-00 cables can be deployed in parallel configurations where separate probe sets feed independent monitoring channels. This architecture provides fault-tolerant protection for equipment where unplanned shutdowns carry severe safety or economic consequences.

Customization Options: While the standard 330130-080-01-00 features BNC connectors and 8-meter length, Bently Nevada offers custom cable assemblies with alternative connector types, lengths, and jacket materials for specialized applications. Contact technical support for custom configurations requiring armored jackets, chemical-resistant materials, or non-standard connector interfaces.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom cable configurations require 4-6 weeks for manufacturing and testing. Expedited delivery available for critical outage support—contact our emergency service team for same-day or next-day shipping options.

Warranty Coverage: Each 330130-080-01-00 cable includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and performance. Warranty covers cable continuity, shielding effectiveness, impedance specifications, and connector integrity under normal operating conditions.

Technical Support: Our applications engineering team provides pre-sale consultation for cable selection, installation guidance, and system integration support. Post-sale support includes troubleshooting assistance, replacement part identification, and compatibility verification for system upgrades or expansions.

Documentation Package: Every cable ships with factory test certificates documenting continuity verification, impedance measurements, and shielding effectiveness testing. Installation instructions include routing guidelines, bend radius specifications, grounding recommendations, and system integration procedures.

Frequently Asked Questions

What is the maximum total cable length for 3300 XL proximity systems?
Bently Nevada specifies a 9-meter maximum total cable length (proximity probe cable + extension cable) to maintain system accuracy within ±1% of full scale. For this 8-meter extension, pair with 1-meter probe cables. Exceeding 9 meters increases system capacitance, reducing sensitivity and potentially causing measurement errors or false alarms.

Can I connect multiple extension cables together to achieve longer runs?
No, daisy-chaining extension cables is not recommended and violates system specifications. Each connection point introduces impedance discontinuities and increases total capacitance beyond acceptable limits. For installations requiring more than 8 meters of separation, specify a single longer cable or consider 3300 XL NSv systems designed for extended cable runs up to 18 meters.

How should I route the cable to minimize electromagnetic interference?
Maintain minimum 12-inch (30 cm) separation from AC power cables, motor leads, and VFD output conductors. Route through dedicated instrument cable trays or conduits separate from power wiring. Avoid parallel runs with power cables; where crossings are necessary, cross at 90-degree angles. Ground cable shields at the proximitor end only to prevent ground loops that can introduce noise.

Is the 330130-080-01-00 compatible with older 3300 series systems or 7200 series proximitors?
This cable is engineered specifically for 3300 XL systems and may not meet specifications for legacy 3300 or 7200 series equipment due to differences in impedance requirements and signal characteristics. For older systems, consult original equipment documentation or contact technical support to identify appropriate cable assemblies that maintain system performance.

What installation practices ensure optimal cable performance and longevity?
Secure cables at 3-foot (1-meter) intervals using non-metallic cable ties or clamps to prevent mechanical stress. Maintain minimum bend radius of 10× cable diameter (approximately 5 inches for typical cable diameters). Protect cables from sharp edges, moving machinery, and chemical exposure. Verify connector tightness after installation and periodically during maintenance inspections. Label both ends clearly for future troubleshooting and maintenance.

How do I verify cable integrity after installation or during troubleshooting?
Use a digital multimeter to verify continuity between center conductors and confirm shield continuity to ground. Measure DC resistance (should be <1 ohm for 8-meter length). For advanced diagnostics, use a time-domain reflectometer (TDR) to identify impedance discontinuities, connector issues, or cable damage. Compare gap voltage readings with and without the extension cable to verify signal integrity—readings should remain within system specifications.

Ready to Enhance Your Machinery Protection System?

The 330130-080-01-00 extension cable delivers the signal integrity and reliability your critical rotating equipment deserves. Whether you're upgrading existing vibration monitoring systems, expanding machinery protection coverage, or replacing aging cables, this industrial-grade solution ensures accurate measurements that protect your assets and maximize uptime.

Contact our technical team today to verify compatibility with your specific 3300 XL configuration, discuss installation requirements, or request a quote for your machinery monitoring project. Our applications engineers are ready to help you select the right cable solution for your facility's unique requirements.
