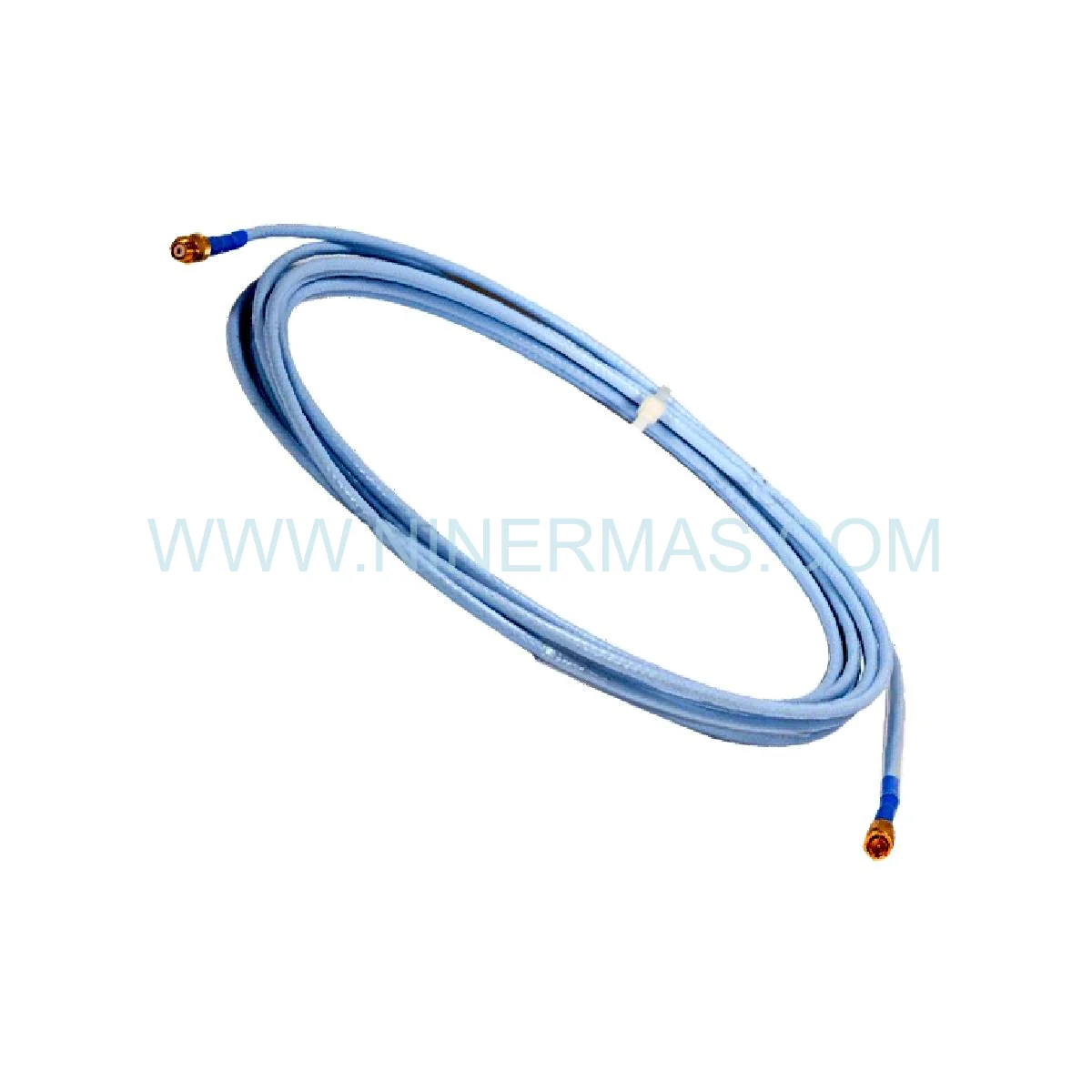

330130-080-00-IN Extension Cable (Industrial-Grade 8-Meter Triaxial Solution)

The 330130-080-00-IN is an 8-meter (26.2 ft) precision extension cable engineered for Bently Nevada 3300 XL proximity transducer systems. Built with triaxial shielded architecture and FEP insulation, this cable delivers uncompromised signal integrity for vibration monitoring, shaft displacement measurement, and machinery protection applications across power generation, petrochemical, and heavy manufacturing sectors.

Designed for environments where sensor-to-monitor distances exceed standard probe cable lengths, the 330130-080-00-IN bridges the gap between bearing-mounted proximity probes and control room proximitor modules. Its 75Ω characteristic impedance and >90 dB shield effectiveness ensure accurate micron-level measurements even in electrically noisy industrial settings with VFDs, welding equipment, and high-power transmission lines.

Whether you're retrofitting legacy turbine monitoring systems, expanding condition-based maintenance programs, or commissioning new rotating equipment installations, this extension cable provides the reliability and performance required for safety-instrumented systems (SIS) and critical machinery protection applications. Request technical specifications or volume pricing today.

Key Features & Technical Advantages

→ 8-Meter Precision Length: Optimized for typical industrial installations where proximity sensors mount on bearing housings 20-30 feet from control cabinets, eliminating the need for custom cable fabrication.

→ Triaxial Shielded Construction: Dual concentric shields provide superior electromagnetic interference (EMI) rejection compared to standard coaxial designs, critical for installations near variable frequency drives and high-current bus bars.

→ FEP Insulation Technology: Fluorinated ethylene propylene maintains dielectric stability from -40°C to +125°C (-40°F to +257°F), resisting chemical attack from hydrocarbon vapors, acids, and caustic process streams in refineries and chemical plants.

→ Controlled 75Ω Impedance: Factory-verified ±3Ω tolerance prevents signal reflections and phase shift errors that compromise measurement accuracy in high-frequency oscillator circuits.

✓ Low Capacitance Design: 30 pF/ft (98 pF/m) specification minimizes signal loading, preserving sensor sensitivity for detecting early-stage bearing faults and rotor imbalance conditions.

✓ Wide Temperature Range: Proven performance in cryogenic LNG facilities, desert oil fields, and arctic mining operations where conventional PVC cables fail due to embrittlement or plasticizer migration.

Industrial Application Scenarios

Steam & Gas Turbine Monitoring: In utility-scale power plants, the 330130-080-00-IN connects proximity sensors measuring turbine shaft radial vibration, thrust position, and differential expansion. The 8-meter length accommodates typical spacing between turbine pedestals and DCS marshalling cabinets, while FEP insulation withstands continuous exposure to 80°C ambient temperatures in turbine halls. Plant engineers report 15-20% reduction in false trip events after replacing aging PVC extension cables with FEP-insulated alternatives.

Centrifugal Compressor Protection: Petrochemical facilities use this cable to extend 3300 XL proximity probe signals from compressor bearing housings to API 670 vibration monitors located in climate-controlled analyzer shelters. The triaxial shield architecture rejects 60 Hz ground loop currents induced by nearby motor control centers, preventing nuisance alarms that previously caused 4-6 unplanned shutdowns annually at a major ethylene cracker.

Paper Machine Dryer Sections: Pulp and paper mills deploy the 330130-080-00-IN to monitor dryer can bearing vibration in high-humidity, high-temperature environments where moisture ingress degrades standard cables within 18-24 months. FEP's hydrophobic properties maintain >1000 MΩ insulation resistance even after 5+ years of continuous operation in 95% relative humidity conditions.

Offshore Platform Machinery: Marine installations leverage this cable's salt spray resistance and UV stability for monitoring gas turbine generators, seawater lift pumps, and crude oil transfer pumps on FPSO vessels and fixed platforms. The cable's flexibility at low temperatures (-40°C rating) ensures reliable operation during North Sea winter conditions where rigid cables develop stress cracks at connector interfaces.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330130-080-00-IN when your proximity probe's standard 5-meter cable cannot reach the proximitor module location. For distances exceeding 13 meters (probe cable + extension cable), consult Bently Nevada application engineering to verify total system capacitance remains within 3300 XL specifications (typically <6000 pF). In hazardous area installations (Class I Div 2), verify cable routing complies with NEC Article 501 seal requirements.

Extended Functionality & System Integration

IoT Connectivity: When paired with Bently Nevada Orbit 60 series vibration monitors, proximity sensor data transmitted through the 330130-080-00-IN integrates with System 1 condition monitoring software for cloud-based analytics, predictive maintenance scheduling, and mobile alert notifications.

Redundant Monitoring Architectures: The cable supports dual-channel proximity sensor configurations required by API 670 machinery protection standards, enabling 2oo2 (two-out-of-two) voting logic for critical turbomachinery shutdown systems.

Retrofit Compatibility: Direct replacement for discontinued 330130-080-00-00 and 330130-080-00-CN variants, maintaining backward compatibility with 3300 XL systems installed since 1995 without requiring proximitor recalibration.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for stock items; 10-15 business days for factory-direct orders during peak demand periods (typically Q4 turnaround season).

Custom Configurations: Non-standard lengths (4m, 12m, 16m) available with 4-6 week lead time; consult engineering for impedance verification on lengths >20 meters.

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship failures; extended 60-month coverage available for critical spares inventory programs.

Technical Support: Pre-sales application engineering assistance, post-installation troubleshooting, and on-site commissioning support available through authorized Bently Nevada service partners.

Documentation Package: Each cable ships with ISO 9001 quality certificate, electrical test report (capacitance, impedance, shield continuity), and installation guide with torque specifications.

Frequently Asked Questions

Can I connect multiple 330130-080-00-IN cables in series to achieve longer distances?
While mechanically possible using BNC barrel connectors, series connections increase total system capacitance and introduce additional impedance discontinuities. Bently Nevada recommends limiting total cable length (probe cable + extensions) to 13 meters to maintain measurement accuracy within ±2% specification. For longer runs, consider relocating the proximitor module closer to the sensor or upgrading to 3300 XL NSv proximity system with extended cable capability.

What installation practices ensure optimal signal integrity in high-EMI environments?
Route the 330130-080-00-IN through dedicated cable trays separated from AC power conductors by minimum 300mm (12 inches). Avoid parallel runs exceeding 3 meters alongside VFD motor cables. Use metal cable glands with EMI gaskets when penetrating enclosures to maintain 360° shield continuity. Ground shields at the proximitor end only to prevent ground loop currents; leave probe end shield floating per Bently Nevada wiring diagrams.

How does FEP insulation improve reliability compared to PVC alternatives?
FEP exhibits near-zero moisture absorption (<0.01% vs. 0.4% for PVC), preventing dielectric constant drift that causes measurement errors in humid environments. FEP maintains flexibility to -200°C versus PVC's -10°C lower limit, critical for cryogenic service. Chemical resistance testing shows FEP withstands 1000-hour immersion in toluene, MEK, and sulfuric acid without degradation, while PVC swells and cracks within 100 hours.

Is the 330130-080-00-IN suitable for SIL-rated safety instrumented systems?
Yes, when installed per IEC 61511 requirements and integrated with SIL 2-certified 3300 XL proximitor modules. The cable's failure mode (open circuit) is inherently safe, triggering detectable alarms rather than hidden faults. Document cable serial numbers and installation dates in safety instrumentation records for proof test interval tracking and regulatory compliance audits.

What diagnostic steps troubleshoot intermittent signal issues after cable installation?
Measure DC resistance between inner conductor and shield (should be >1000 MΩ). Verify shield continuity (<1Ω end-to-end). Check connector torque (0.9-1.1 N⋅m per Bently Nevada specifications). Inspect for cable damage at bend points using visual inspection and capacitance measurement (should match 30 pF/ft ±10%). Swap suspect cable with known-good unit to isolate cable vs. sensor/proximitor faults.

Can this cable operate in hazardous area Zone 1 / Class I Division 1 locations?
The 330130-080-00-IN is suitable for Class I Division 2 / Zone 2 installations when used with intrinsically safe proximitor barriers or installed in purged/pressurized enclosures per NEC Article 501. For Division 1 / Zone 1 applications, specify explosion-proof cable glands and verify total system entity parameters (voltage, current, capacitance, inductance) comply with associated apparatus control drawings.

Request Technical Consultation

Our application engineering team provides complimentary system design reviews for proximity sensor installations, including cable length calculations, EMI mitigation strategies, and hazardous area compliance verification. Contact us today to discuss your machinery protection requirements and receive a detailed quotation within 24 hours.
