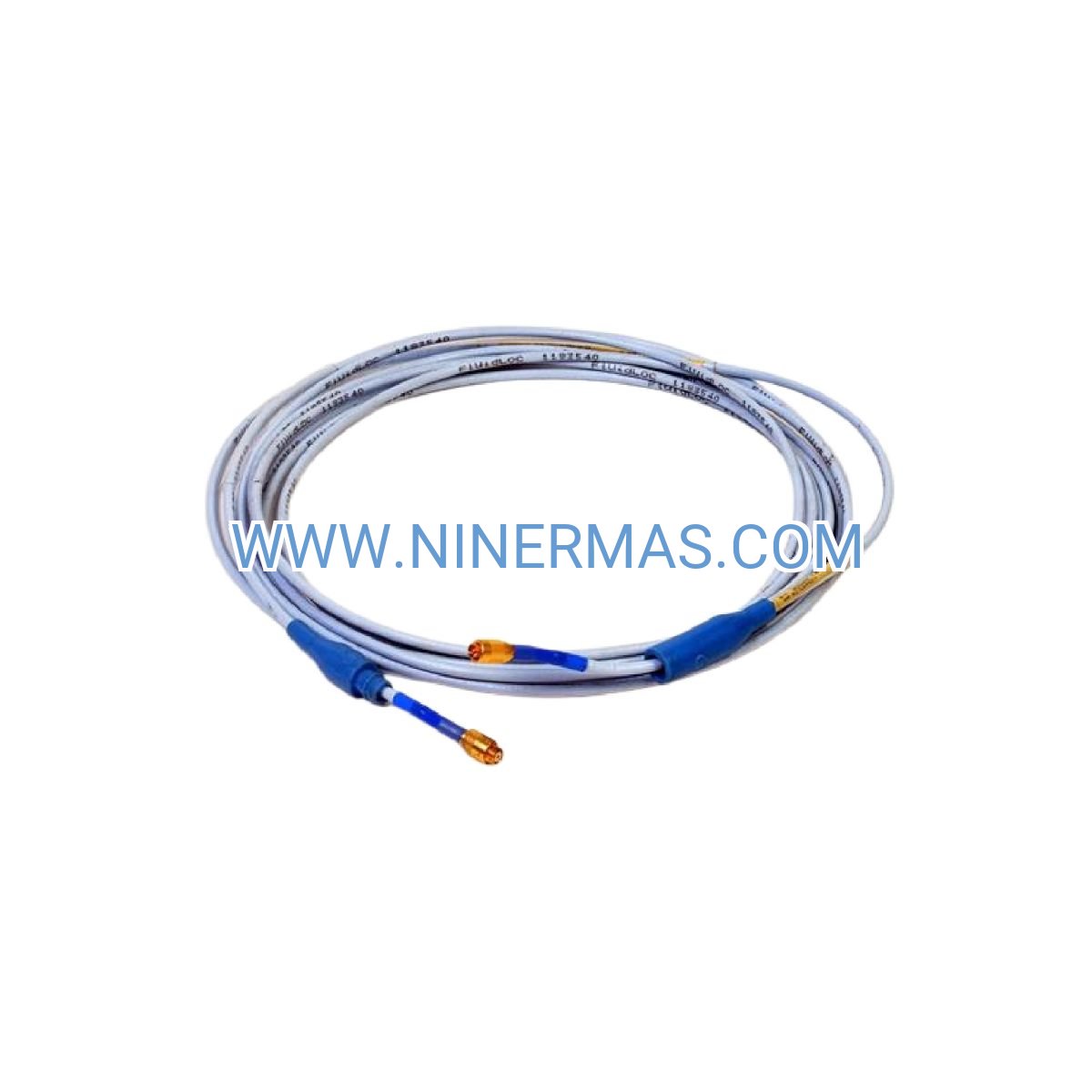

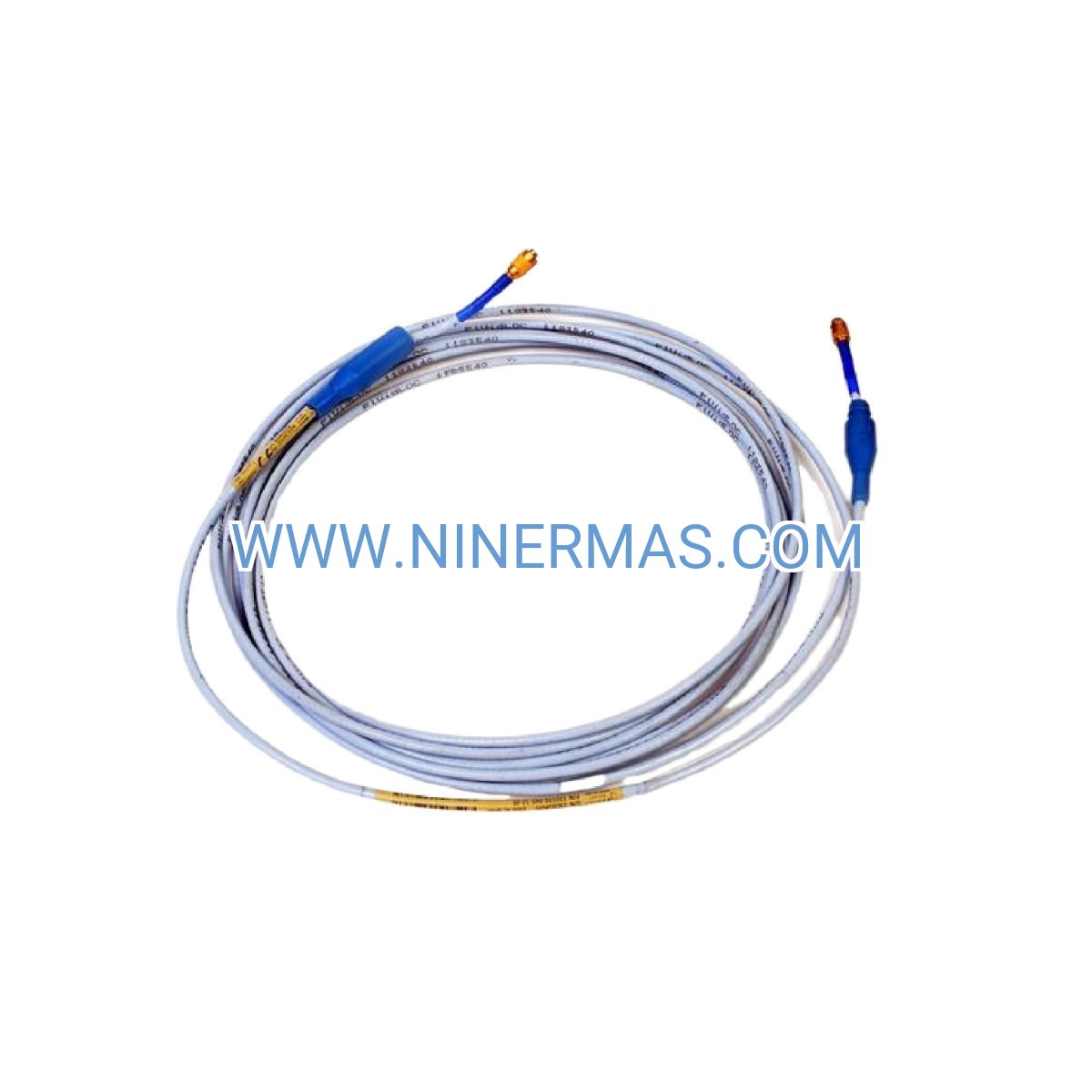

330130-075-02-05 Standard Extension Cable for 3300 XL Proximity Monitoring Systems

The Bently Nevada 330130-075-02-05 is a precision-engineered standard extension cable designed for industrial vibration monitoring and machinery protection applications. Through advanced multi-layer EMI/RFI shielding and bayonet-style locking connectors, this cable achieves reliable signal transmission between 3300 XL 8mm proximity probes and monitoring systems, ensuring accurate gap voltage measurement and shaft displacement tracking in critical rotating equipment.

Suitable for power generation facilities, petrochemical plants, oil & gas processing units, heavy manufacturing operations, and industrial pump stations, this extension cable helps solve challenges including signal degradation over distance, electromagnetic interference in high-voltage environments, installation flexibility constraints, and harsh temperature exposure risks that compromise measurement accuracy.

With standardized design and customizable configuration options, the 330130-075-02-05 delivers exceptional signal integrity, temperature resilience from -40°C to +85°C, installation versatility, and long-term reliability. Ideal for design engineers, instrumentation contractors, maintenance teams, and plant reliability specialists. Contact our application engineers for system integration guidance and technical specifications.

Core Features & Technical Advantages

Superior Signal Integrity Protection
Multi-layer electromagnetic shielding with grounded outer braid maintains -24 VDC buffered output signal quality across the full 7.5-meter length, preventing noise-induced measurement errors in electrically noisy industrial environments and ensuring ±0.5% accuracy throughout the operating range.

Extended Temperature Performance Range
High-temperature resistant polymer jacket and industrial-grade insulation materials enable continuous operation from -40°C to +85°C, accommodating installations near turbine casings, exhaust systems, and outdoor equipment exposed to extreme climate conditions without signal drift or insulation breakdown.

Secure Bayonet Locking Connection
Precision-machined bayonet-style connectors with quarter-turn locking mechanism ensure vibration-resistant connections that maintain contact integrity in high-vibration environments, reducing false alarms and preventing intermittent signal loss during equipment operation.

Optimized Cable Length for Flexible Routing
7.5-meter length provides installation flexibility for routing cables away from high-temperature zones, through cable trays and conduit systems, around obstacles, and to remote monitoring locations while maintaining total system cable length within the 9-meter maximum specification for 3300 XL systems.

Factory-Tested Quality Assurance
Every cable undergoes comprehensive factory testing including continuity verification, insulation resistance measurement exceeding 1000 MΩ, shield integrity validation, and connector torque testing, ensuring out-of-the-box reliability and eliminating field troubleshooting delays.

Seamless 3300 XL System Integration
Direct plug-and-play compatibility with Bently Nevada 3300 XL proximitor transducers, monitor modules, and rack-mounted systems eliminates the need for adapters or custom terminations, reducing installation time and potential connection errors.

Typical Application Scenarios

This extension cable is engineered for installations requiring stable vibration measurement, continuous machinery protection, and reliable proximity sensing, particularly in:

Steam and Gas Turbine Monitoring Systems
Enables precise shaft displacement and differential expansion measurement in turbine bearing housings where probe-to-monitor distances exceed standard proximitor cable lengths. Supports critical trip functions for thrust bearing failure, excessive vibration, and rotor eccentricity protection in power generation units from 50 MW to 1000+ MW capacity.

Centrifugal Compressor Vibration Analysis
Facilitates radial and axial vibration monitoring on multi-stage compressors in natural gas processing, air separation, and refrigeration applications. Maintains measurement accuracy for API 670 compliance and enables early detection of bearing wear, rotor unbalance, and surge conditions before catastrophic failure.

Large Industrial Pump Condition Monitoring
Supports continuous vibration surveillance on boiler feed pumps, cooling water pumps, crude oil transfer pumps, and chemical process pumps. Provides reliable data for predictive maintenance programs targeting bearing degradation, cavitation detection, and mechanical seal monitoring in 24/7 continuous operation environments.

High-Speed Motor and Generator Protection
Enables rotor position tracking and vibration measurement on motors and generators operating above 3600 RPM. Integrates with protection relay systems to provide emergency shutdown signals when vibration exceeds alarm thresholds, preventing secondary damage to windings, bearings, and coupling systems.

Gearbox and Drivetrain Diagnostics
Supports shaft displacement monitoring on industrial gearboxes, speed increasers, and reduction drives in mining, cement, steel, and paper manufacturing. Facilitates gear mesh analysis, bearing condition assessment, and shaft alignment verification through continuous proximity measurement.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the 330130-075-02-05 extension cable is manufactured to the following specifications:

ParameterSpecification
Part Number330130-075-02-05
Cable Length7.5 meters (24.6 feet)
Compatible Probe Diameter8mm proximity sensors
System CompatibilityBently Nevada 3300 XL Series
Operating Temperature-40°C to +85°C (-40°F to +185°F)
Connector TypeBayonet-style quarter-turn locking
ShieldingMulti-layer EMI/RFI with grounded braid
Insulation MaterialHigh-temperature resistant polymer
Signal Output-24 VDC buffered (maintained)
Measurement Accuracy±0.5% across full temperature range
Maximum Total Cable Length9 meters (extension + proximitor cable)
Environmental ProtectionIndustrial-grade sealed connectors

Selection Considerations
When specifying the 330130-075-02-05 extension cable, consider the following application parameters: total required distance from probe to monitor (including existing proximitor cable length), ambient temperature at cable routing locations, electromagnetic interference sources in the installation area (VFDs, transformers, high-voltage switchgear), available cable tray or conduit pathways, and mechanical protection requirements. For installations requiring total cable runs exceeding 9 meters or specialized environmental protection, consult with our application engineers who can recommend alternative configurations or custom solutions.

Advanced Integration Capabilities

Multi-Channel Monitoring System Expansion
Supports integration into multi-point vibration monitoring architectures with up to 16 measurement channels per rack. Compatible with Bently Nevada 3500 series monitor racks when used with appropriate 3300 XL proximitor interfaces, enabling centralized data acquisition and alarm management.

DCS and SCADA System Connectivity
When paired with 3300 XL monitor modules featuring 4-20mA output options, enables seamless integration with distributed control systems (DCS), programmable logic controllers (PLC), and SCADA platforms. Supports Modbus RTU, Modbus TCP, and OPC UA protocols for enterprise-level condition monitoring and predictive maintenance programs.

Redundant Measurement Configuration
Facilitates dual-probe redundant measurement setups for critical machinery protection applications requiring SIL-rated safety functions. Supports voting logic and automatic switchover configurations when combined with appropriate monitor modules and redundancy managers.

Portable Diagnostic Equipment Compatibility
Maintains full compatibility with portable vibration analyzers and diagnostic instruments when temporarily connected for detailed machinery analysis, balancing operations, or commissioning verification without disrupting permanent monitoring system wiring.

Installation Best Practices & Configuration Guidelines

Mechanical Installation Requirements
Route cables through dedicated instrumentation cable trays separated from power cables by minimum 300mm distance. Secure cables at 1-meter intervals using non-metallic cable ties to prevent mechanical stress and vibration-induced fatigue. Maintain minimum bend radius of 10 times cable diameter (approximately 80mm) to prevent shield damage and signal degradation.

Electrical Connection Procedure
Align bayonet connector pins with receptacle slots and push firmly until seated. Rotate connector clockwise 90 degrees (quarter turn) until locking tabs engage with audible click. Apply hand-tight torque plus additional 1/8 turn for secure connection—do not use tools to prevent connector damage. Verify connection security by gentle pull test before system energization.

Grounding and Shielding Optimization
Connect cable shield to system ground at monitor end only (single-point grounding) to prevent ground loop currents. Verify shield continuity using multimeter before commissioning. Maintain shield integrity throughout cable routing—avoid shield breaks or splices that compromise EMI protection effectiveness.

System Verification and Commissioning
After installation, perform gap voltage calibration using precision gap measurement standards at 10 mil, 40 mil, and 80 mil distances. Verify linear voltage response across measurement range. Document baseline readings for future trending and diagnostic comparison. Confirm alarm setpoints and trip functions operate correctly before releasing equipment to production.

Delivery, Service & Quality Commitment

Product Availability & Lead Times
Standard 330130-075-02-05 cables are maintained in regional distribution inventory with typical delivery within 3-5 business days for stock items. Custom cable lengths or specialized termination configurations require 10-15 business days manufacturing lead time. Expedited processing available for emergency replacement and critical outage situations.

Warranty Coverage & Support
All extension cables include comprehensive 12-month manufacturer warranty covering material defects, workmanship issues, and performance failures under normal operating conditions. Warranty includes replacement cable shipment and technical support for troubleshooting and root cause analysis. Extended warranty programs available for critical application environments.

Technical Documentation Package
Each cable shipment includes complete technical documentation: dimensional drawings with connector specifications, electrical schematic showing shield and conductor configuration, installation instructions with torque requirements, system integration guidelines for 3300 XL compatibility, and factory test certificates documenting continuity, insulation resistance, and shield integrity measurements.

Application Engineering Support
Our technical team provides pre-sales consultation for system design, cable length optimization, electromagnetic compatibility assessment, and integration planning. Post-installation support includes remote diagnostic assistance, on-site commissioning services (region-dependent), and ongoing technical guidance for system expansion and upgrade projects.

Calibration and Certification Services
ISO/IEC 17025 accredited calibration services available for complete measurement chains including extension cables, proximitor transducers, and monitor modules. Calibration certificates traceable to national standards provided with documented uncertainty analysis and as-found/as-left data for quality management system compliance.

Frequently Asked Questions

Q: Can the 330130-075-02-05 extension cable be used with 5mm diameter proximity probes?
A: No, this cable is specifically engineered for 8mm probe systems with matching connector pin configurations and impedance characteristics. For 5mm proximity probe applications, the Bently Nevada 330930 series extension cables provide the correct electrical interface and mechanical fit. Using incorrect cable-probe combinations will result in measurement errors and potential system damage.

Q: What is the maximum total cable length allowed in a 3300 XL proximity measurement system?
A: The combined length of extension cable plus proximitor cable must not exceed 9 meters to maintain signal integrity and measurement accuracy within specification. Exceeding this limit introduces excessive capacitance that degrades frequency response and increases susceptibility to electromagnetic interference. For installations requiring greater distances, consider relocating the proximitor or using signal conditioning modules.

Q: Is the 330130-075-02-05 compatible with legacy 3300 (non-XL) monitoring systems?
A: No, this extension cable is designed exclusively for 3300 XL series systems with -24 VDC buffered output architecture. Legacy 3300 systems utilize different signal conditioning and connector specifications. Attempting to use 3300 XL cables with legacy systems will result in incompatible connections and incorrect measurements. Verify your system model before ordering replacement cables.

Q: Does the extension cable require field calibration after installation?
A: The cable itself is a passive component that does not require calibration. However, the complete measurement chain (probe + extension cable + proximitor + monitor) should be verified using gap measurement standards after installation to confirm system accuracy. This verification ensures proper connections, validates signal path integrity, and establishes baseline measurements for future diagnostic comparison.

Q: Can this cable be field-terminated or modified to custom lengths?
A: While field termination is technically possible with appropriate connector kits and crimping tools, we strongly recommend factory-terminated cables to ensure consistent quality, proper shield termination, and reliable connector assembly. Custom cable lengths are available through our manufacturing services with the same quality standards and testing protocols as standard products.

Q: How should I route the extension cable to minimize electromagnetic interference?
A: Route cables through dedicated instrumentation cable trays maintaining minimum 300mm (12 inches) separation from AC power cables, VFD output cables, and high-current conductors. Cross power cables at 90-degree angles when separation cannot be maintained. Avoid routing near transformers, motor starters, and welding equipment. Use metallic conduit for additional shielding in extremely high-EMI environments, ensuring conduit is properly grounded.

Q: What environmental conditions can damage the cable and void warranty coverage?
A: Warranty excludes damage from: operating temperatures exceeding -40°C to +85°C specification, exposure to corrosive chemicals not compatible with polymer jacket materials, mechanical damage from crushing or excessive bending below minimum radius, submersion in liquids (cable is not rated for continuous immersion), and modifications or repairs performed outside authorized service centers.

Related Products & System Components

Part NumberDescriptionApplication
330130-075-02-003300 XL Extension Cable 7.5m StandardAlternative termination configuration
330130-085-00-003300 XL Extension Cable 8.5m for 8mm ProbesExtended reach applications
330130-080-12-003300 XL Extension Cable 8m 12-pinMulti-conductor configurations
330180-91-053300 XL 8mm Proximity Probe 5mComplete probe assembly
330780-91-053300 XL Proximitor SensorSignal conditioning module

Request Technical Consultation & Custom Solutions

For detailed system design assistance, custom cable configurations, or application-specific recommendations, please provide our engineering team with the following project information: equipment type and operating speed, measurement points and required cable routing distances, ambient temperature range and environmental conditions, existing monitoring system model and configuration, electromagnetic interference sources in installation area, and any special requirements for hazardous area classifications or industry certifications. Our application engineers will respond within 24 hours with tailored recommendations, technical drawings, and competitive quotations.
