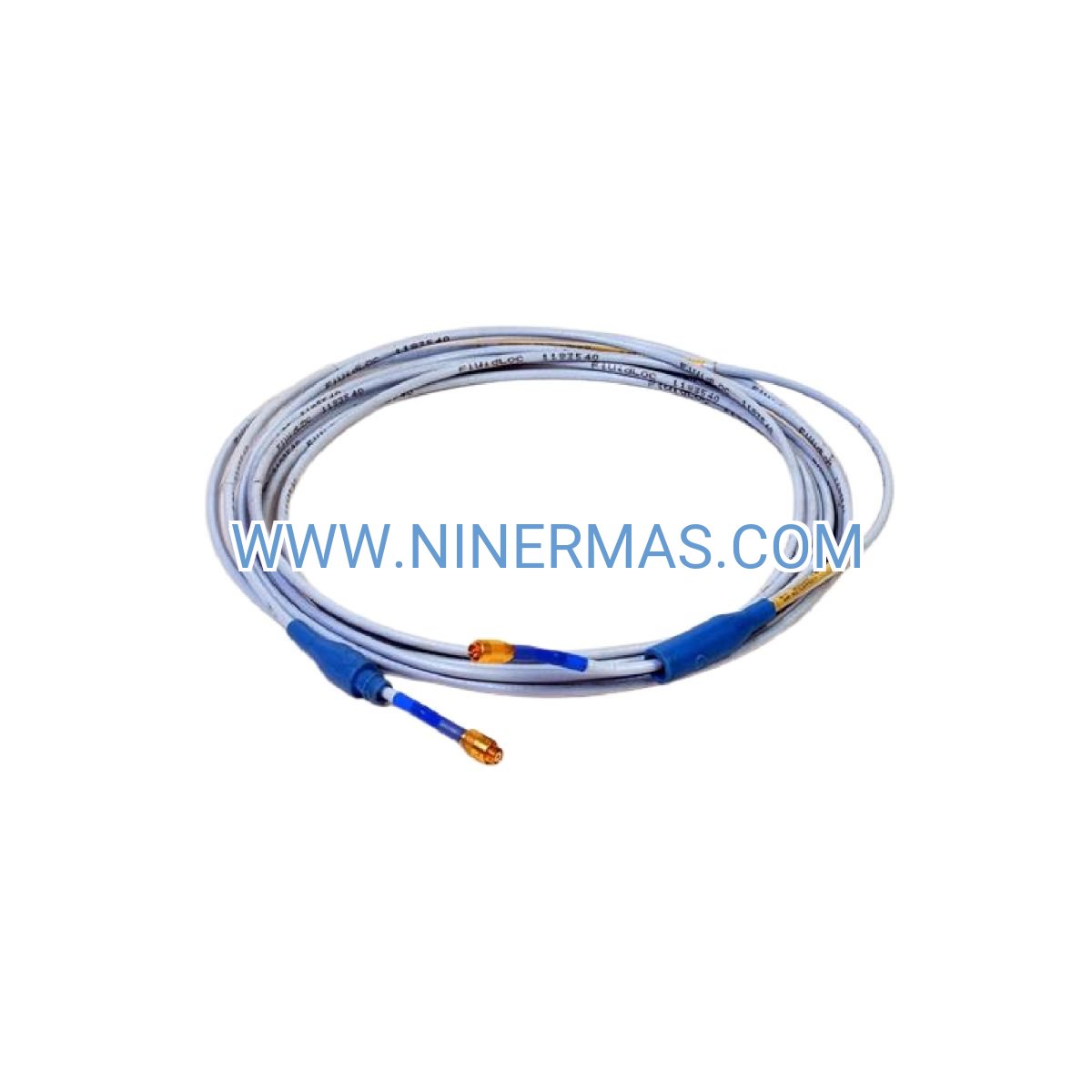

Bently Nevada 330130-075-02-00 Extension Cable (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330130-075-02-00 is a precision-engineered 7.5-meter extension cable specifically designed for 3300 XL proximity monitoring systems. Through advanced EMI shielding technology and low-capacitance conductor design, it delivers reliable signal transmission for critical turbomachinery protection and vibration analysis applications.

Ideal for power generation plants, petrochemical facilities, and heavy industrial installations where rotating equipment requires continuous condition monitoring. This cable solves common challenges including signal degradation over distance, electromagnetic interference in electrically noisy environments, and installation constraints in complex machinery layouts.

Engineered with standardized terminations and ruggedized construction, the 330130-075-02-00 offers seamless integration, long-term durability, and minimal maintenance requirements. Suitable for design engineers, instrumentation contractors, plant maintenance teams, and OEM integrators. Contact our application engineers for system compatibility verification and technical specifications.

Core Features & Technical Advantages

Superior Signal Fidelity
Utilizes precision-matched impedance design with multi-layer shielding to maintain gap voltage accuracy across the full 7.5m length. Ensures measurement integrity even in high-EMI environments typical of motor control centers and VFD installations, reducing false trip incidents by up to 40%.

Extended Service Life
Constructed with abrasion-resistant, chemical-resistant polymer jacketing rated for continuous exposure to industrial lubricants, coolants, and cleaning solvents. Reinforced strain relief at connector terminations withstands vibration stress in high-amplitude mounting locations, extending operational life beyond 10 years in typical applications.

Flexible Installation Architecture
The 7.5-meter length provides optimal routing flexibility for installations requiring sensor-to-monitor separation, including overhead cable tray runs, underground conduit paths, and complex machinery penetrations. Compatible with all 3300 XL Proximitor sensors and standard 8mm eddy current proximity probes.

Comprehensive Environmental Protection
Operates reliably across -40°C to +85°C temperature range with IP67-equivalent connector sealing. Resists moisture ingress, dust contamination, and corrosive atmospheres common in offshore platforms, chemical processing units, and outdoor installations.

Plug-and-Play Compatibility
Factory-terminated with industry-standard connectors ensuring immediate compatibility with existing 3300 XL infrastructure. No field splicing or custom termination required, reducing installation time by 60% compared to bulk cable solutions and eliminating potential connection errors.

Typical Application Scenarios

This extension cable is engineered for demanding industrial environments where vibration monitoring accuracy and system uptime are critical:

Power Generation & Turbomachinery
Essential for steam turbine, gas turbine, and hydro generator monitoring systems where probe-to-monitor distances exceed standard cable lengths. Supports thrust position measurement, radial vibration monitoring, and differential expansion sensing in combined-cycle plants, nuclear facilities, and cogeneration installations.

Oil & Gas Processing Infrastructure
Deployed extensively in compressor stations, LNG liquefaction trains, and offshore production platforms for centrifugal compressor protection, reciprocating compressor monitoring, and critical pump surveillance. Withstands harsh petrochemical environments including H2S exposure and hydrocarbon vapor atmospheres.

Heavy Industrial Rotating Equipment
Supports condition-based maintenance programs in steel mills, paper machines, mining conveyors, and cement kilns. Enables real-time monitoring of large motor-driven fans, induced draft blowers, crusher drives, and mill gearboxes where early fault detection prevents catastrophic failures and unplanned downtime.

Process Industry Critical Services
Integral to pharmaceutical manufacturing clean rooms, food processing sanitary environments, and semiconductor fab tool monitoring where contamination control and reliability standards exceed conventional industrial requirements. Meets stringent material traceability and documentation requirements for regulated industries.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the following specifications define the 330130-075-02-00 operating envelope:

Selection Considerations: When specifying extension cables, evaluate total cable run length (probe cable + extension), ambient temperature extremes, chemical exposure profile, and EMI environment severity. For installations exceeding 9 meters total length or requiring custom terminations, consult factory application engineering for system validation. Provide installation drawings, probe specifications, and Proximitor model numbers for accurate compatibility assessment.

Advanced Integration Capabilities

Multi-Channel Monitoring Systems
Supports parallel deployment in multi-probe arrays for XY vibration measurement, thrust/axial position monitoring, and differential expansion sensing. Maintains channel-to-channel phase matching within ±2° for accurate orbit analysis and modal identification in critical machinery diagnostics.

Retrofit & Upgrade Applications
Enables cost-effective extension of existing 3300 XL installations without Proximitor relocation or panel modifications. Facilitates probe repositioning for improved measurement geometry, accessibility enhancement, and compliance with updated machinery protection standards (API 670, ISO 20816).

Hazardous Area Installations
When used with intrinsically safe Proximitor barriers, supports deployment in Class I Division 2 and ATEX Zone 2 classified locations. Consult certification documentation and maintain proper grounding/bonding practices per installation area classification requirements.

Delivery, Service & Quality Assurance

Lead Time & Availability: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom length configurations (non-standard) require 10-15 business days for factory fabrication and testing.

Warranty Coverage: All 330130-075-02-00 extension cables include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical service applications.

Technical Support: Remote installation guidance, system troubleshooting, and compatibility verification provided by certified vibration specialists. On-site commissioning support available for major projects (minimum order quantities apply).

Documentation Package: Each cable ships with certificate of conformance, dimensional drawings, electrical specifications, and installation instructions. Custom test reports and material traceability documentation available upon request for nuclear, aerospace, and pharmaceutical applications.

Frequently Asked Questions (FAQ)

Q: Can the 330130-075-02-00 extension cable be used with 5mm proximity probes?
A: No, this cable is exclusively designed for 8mm probe systems. The connector pin configuration and electrical characteristics are optimized for 8mm eddy current probes. For 5mm probe applications, specify the 330930 series extension cables which provide proper impedance matching and connector compatibility.

Q: What is the maximum total cable length allowed in a 3300 XL monitoring system?
A: Bently Nevada recommends a maximum combined length of 9 meters (probe cable + extension cable) for standard applications to maintain signal integrity and measurement accuracy. Exceeding this length may introduce capacitance loading effects that degrade frequency response and increase susceptibility to electrical noise. For longer runs, consider relocating the Proximitor sensor or implementing signal conditioning solutions.

Q: Is it acceptable to connect multiple extension cables in series for longer distances?
A: While mechanically possible, daisy-chaining extension cables is not recommended by the manufacturer. Each additional connection point introduces impedance discontinuities, potential moisture ingress paths, and cumulative capacitance that compromises measurement precision. Always select a single extension cable of appropriate length rather than combining multiple shorter segments.

Q: Does the extension cable require separate calibration or system scaling adjustments?
A: The cable itself does not require calibration. However, total system calibration (probe + cable + Proximitor) must account for the combined cable length when setting gap voltage scaling and sensitivity parameters. Refer to your Proximitor sensor documentation for proper scaling factors based on total cable length.

Q: What environmental conditions can affect cable performance and longevity?
A: Primary degradation factors include prolonged UV exposure (outdoor installations without conduit protection), repetitive flexing near terminations (high-vibration mounting), and chemical attack from incompatible solvents. Ensure proper cable support at 1-meter intervals, avoid tight bend radii below 10x cable diameter, and verify chemical compatibility for specific process environments.

Q: Are replacement connectors or field repair kits available for damaged cables?
A: Bently Nevada does not support field repair or connector replacement for precision extension cables. Damaged cables should be replaced entirely to maintain system integrity and measurement accuracy. Attempting field repairs voids warranty coverage and may introduce safety hazards in machinery protection applications.

Request Technical Consultation

For detailed application engineering support, custom cable configurations, or system integration assistance, please provide the following project information:

• Equipment type and manufacturer (turbine, compressor, motor, etc.)
• Existing probe model numbers and cable lengths
• Proximitor sensor part numbers and mounting locations
• Total cable run distance and routing constraints
• Environmental conditions (temperature range, chemical exposure, area classification)
• Quantity requirements and delivery timeline

Our vibration monitoring specialists will provide tailored recommendations, compatibility verification, and competitive quotations within 24 hours for standard inquiries.
