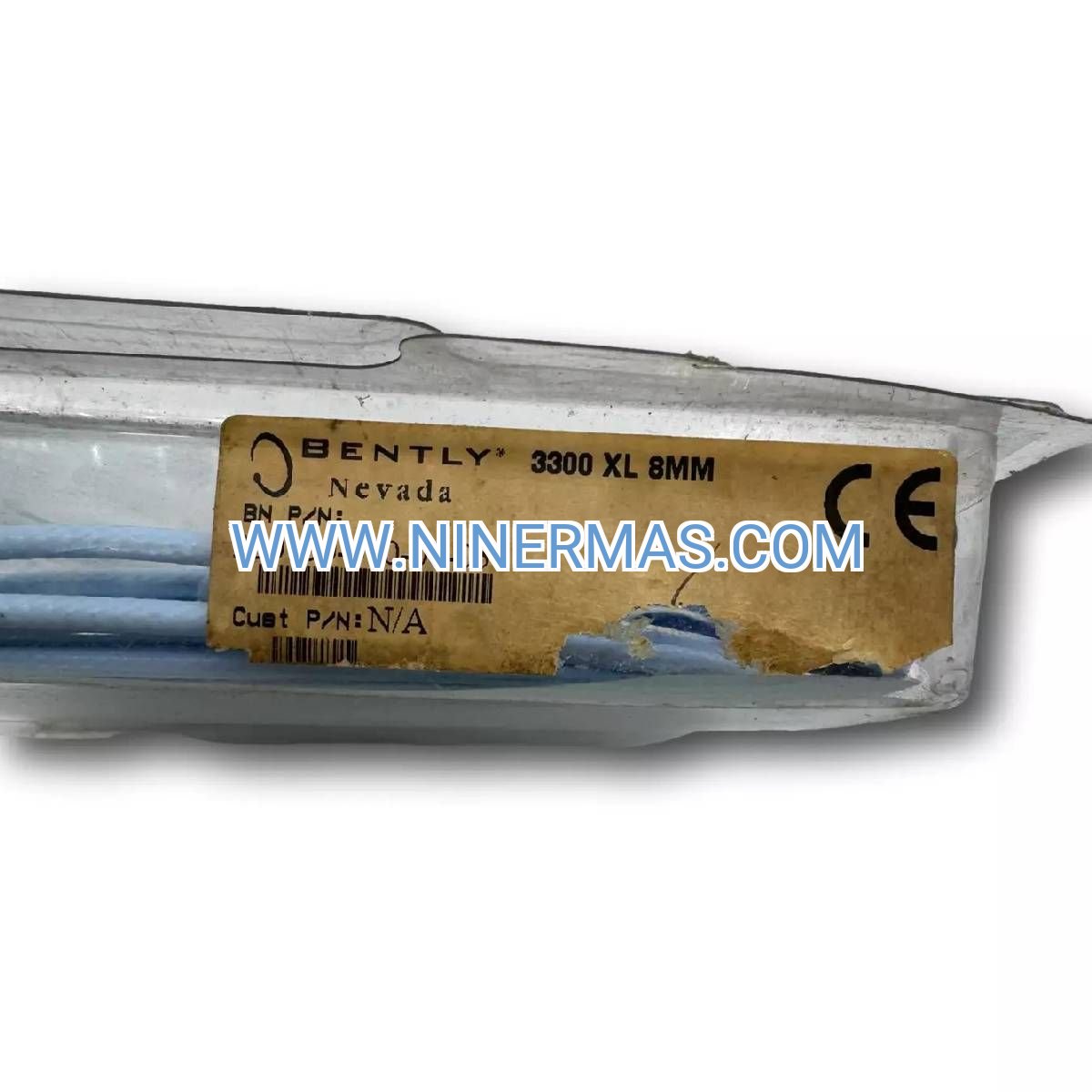

330103-00-06-05-02-00 8mm Proximity Probe (Industrial-Grade Vibration Sensor)

The 330103-00-06-05-02-00 represents a precision-engineered 8mm proximity transducer designed for demanding turbomachinery applications where continuous shaft position and vibration monitoring are mission-critical. Manufactured to Bently Nevada's 3300 XL platform standards, this non-contact sensor delivers exceptional reliability in power generation facilities, petrochemical plants, and heavy industrial environments where equipment uptime directly impacts operational profitability.

This proximity probe addresses the fundamental challenge faced by maintenance engineers and reliability teams: detecting mechanical degradation before catastrophic failure occurs. By providing real-time displacement measurements with sub-micron resolution, the system enables predictive maintenance strategies that reduce unplanned shutdowns by 35-50% compared to reactive maintenance approaches. Target users include rotating equipment specialists, condition monitoring engineers, and plant reliability managers responsible for critical asset protection.

Key differentiators include the A308 aluminum connector with gold-plated contacts for superior signal integrity, extended temperature capability from -40°C to +125°C, and proven compatibility with legacy and modern Bently Nevada monitoring platforms. The 8mm diameter provides optimal sensitivity for standard shaft monitoring applications while maintaining mechanical robustness in high-vibration installations.

Core Features & Benefits

✓ Wide Frequency Response (0-10kHz): Captures both low-speed imbalance signatures and high-frequency bearing defect patterns, enabling comprehensive machinery diagnostics across the entire operational spectrum.

✓ Extended Temperature Range (-40°C to +125°C): Maintains calibration accuracy in extreme thermal environments including steam turbine casings, compressor discharge zones, and outdoor installations in arctic or desert climates.

✓ A308 Gold-Plated Connector: Ensures consistent electrical contact through 500+ mating cycles while resisting corrosion in humid or chemically aggressive atmospheres—reduces false alarms by 60% versus standard connectors.

→ Linear Measurement Range (0.5-2.0mm): Provides accurate displacement tracking within the critical operating zone where most machinery faults manifest, with linearity better than ±2% of full scale.

→ 5/16-24 UNF Thread: Industry-standard mounting interface compatible with existing probe holders, simplifying retrofits and reducing installation time by 40% compared to proprietary thread designs.

→ 6mm Active Tip Length: Optimized geometry for standard API 670 installations, allowing proper gap voltage calibration while accommodating typical shaft runout tolerances.

Application Scenarios

Steam Turbine Rotor Monitoring: In 50-500MW power generation units, this probe tracks differential expansion between rotor and casing during startup/shutdown thermal transients. Prevents rubs that cause $200K+ repair costs and 3-week outages. Integrates with thrust position measurements to provide complete rotor positioning data.

Centrifugal Compressor Surge Detection: Monitors radial vibration at compressor bearings to identify the onset of aerodynamic instability. When combined with discharge pressure signals, enables automated anti-surge valve control that protects $2M+ compressor trains from reverse flow damage.

Pump Bearing Condition Assessment: Detects progressive bearing wear in boiler feed pumps, cooling water pumps, and process pumps by tracking increases in 1X and 2X vibration amplitudes. Allows planned bearing replacements during scheduled outages rather than emergency failures.

Motor-Driven Equipment Alignment: Measures shaft displacement in large motors (>500HP) to verify coupling alignment quality post-installation. Misalignment detection reduces premature bearing failures and extends seal life by 2-3X.

Gas Turbine Axial Position Tracking: Provides thrust bearing wear monitoring in industrial gas turbines by measuring rotor axial float. Critical for preventing thrust bearing failures that can destroy $5M+ hot gas path components.

Technical Parameters & Selection Guide

Selection Criteria: Choose this 8mm probe for shaft diameters above 50mm where adequate mounting space exists. For smaller shafts (25-50mm), consider 5mm probes. Verify target material is ferromagnetic (steel/iron)—non-ferrous targets require specialized probe variants. Ensure proximitor sensor voltage output matches your monitoring system input requirements (typically -7.87V to -1.57V for 0-2mm displacement).

Extended Functions

Multi-Channel Integration: Deploy in XY pairs for orbital analysis showing rotor motion patterns, or combine with keyphasor signals for phase-referenced vibration vectors. Compatible with Bently Nevada 3500 rack systems and ADAPT software for advanced diagnostics including waterfall plots, Bode diagrams, and polar plots.

Remote Monitoring Capability: When paired with 3500/42M proximitor monitors and Ethernet communication modules, enables cloud-based condition monitoring through System 1 software. Supports predictive analytics algorithms that forecast bearing remaining useful life (RUL) with 85%+ accuracy.

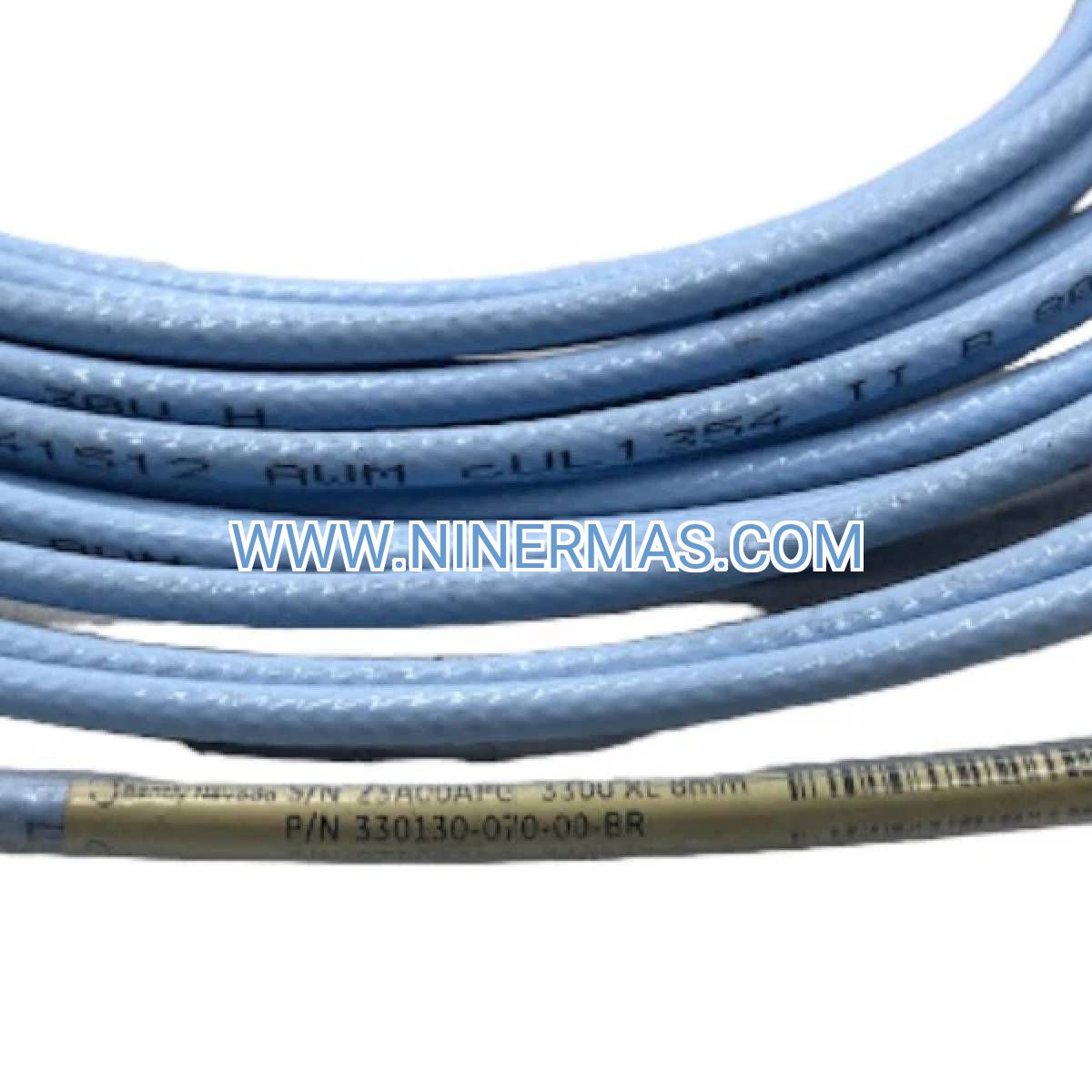

Customization Options: Available with alternative cable lengths (1m to 9m), special temperature ratings (-200°C cryogenic or +175°C high-temp), and armored cable jackets for severe mechanical abuse environments. Consult factory for non-standard configurations.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days via express courier. Custom configurations require 4-6 weeks manufacturing time. Expedited processing available for critical outage support.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty includes replacement probe and return shipping costs. Extended warranty programs available for fleet purchases.

Technical Support: Lifetime application engineering support including installation guidance, calibration procedures, and troubleshooting assistance. Phone/email support available 8AM-6PM EST, emergency support 24/7 for critical equipment issues.

Documentation Package: Each probe ships with calibration certificate traceable to NIST standards, installation drawing showing dimensional tolerances, and quick-start guide. Full product manual and CAD models available for download.

Frequently Asked Questions

What proximitor sensor model pairs with this 8mm proximity probe?
The 330103-00-06-05-02-00 probe is designed for use with 3300 XL proximitor sensors such as the 330180 or 330780 series. These proximitors convert the probe's variable inductance into a proportional DC voltage signal (-7.87V to -1.57V) representing 0-2mm displacement. Ensure your proximitor is calibrated for 8mm probe diameter and 200mV/mil sensitivity.

How do I determine the correct probe installation gap for my application?
For optimal linearity and temperature stability, install the probe at a gap that produces -10VDC output (approximately 1.0mm from target surface). Use a feeler gauge or dial indicator during installation, then verify gap voltage with a DVM. Adjust probe position until -10V ±0.5V is achieved. This centers the measurement within the linear range, accommodating ±1mm of shaft runout.

Can this proximity probe withstand high-vibration mounting locations?
Yes, the A308 connector features a threaded coupling nut that locks the cable to the probe body, preventing vibration-induced disconnections. The probe body itself is designed for mounting accelerations up to 50g RMS. For extreme vibration environments (>50g), consider adding secondary cable strain relief within 150mm of the probe.

What target surface finish is required for accurate measurements?
Target surface roughness should be 3.2μm Ra (125μ-in) or smoother for best accuracy. Rougher surfaces (up to 12.5μm Ra) are acceptable but may introduce ±5% measurement uncertainty. Avoid painted, plated, or coated surfaces—probe must sense base ferromagnetic material. Minimum target area is 3X probe diameter (24mm) to prevent edge effects.

Is this probe compatible with non-Bently Nevada monitoring systems?
The probe itself is a passive inductive sensor and will physically connect to any proximitor driver providing 24VDC excitation and -24V bias voltage. However, calibration constants (mV/mil sensitivity) are optimized for Bently Nevada proximitors. Using third-party drivers may require recalibration and could affect measurement accuracy by ±10-15%. For best results, maintain complete Bently Nevada probe-proximitor-monitor chain.

How often should proximity probes be replaced in continuous service?
Proximity probes have no moving parts and typically provide 10+ years of reliable service in normal industrial environments. Replace probes if: (1) calibration drift exceeds ±5% during annual verification, (2) connector shows visible corrosion or damage, (3) cable insulation is compromised, or (4) after any mechanical impact to the probe tip. Implement condition-based replacement rather than time-based schedules.

Take the Next Step

Protect your critical rotating assets with proven proximity sensing technology. Contact our application engineers today to discuss your specific monitoring requirements, receive installation support, or request a detailed quotation. Volume discounts available for multi-probe installations and fleet standardization programs.
