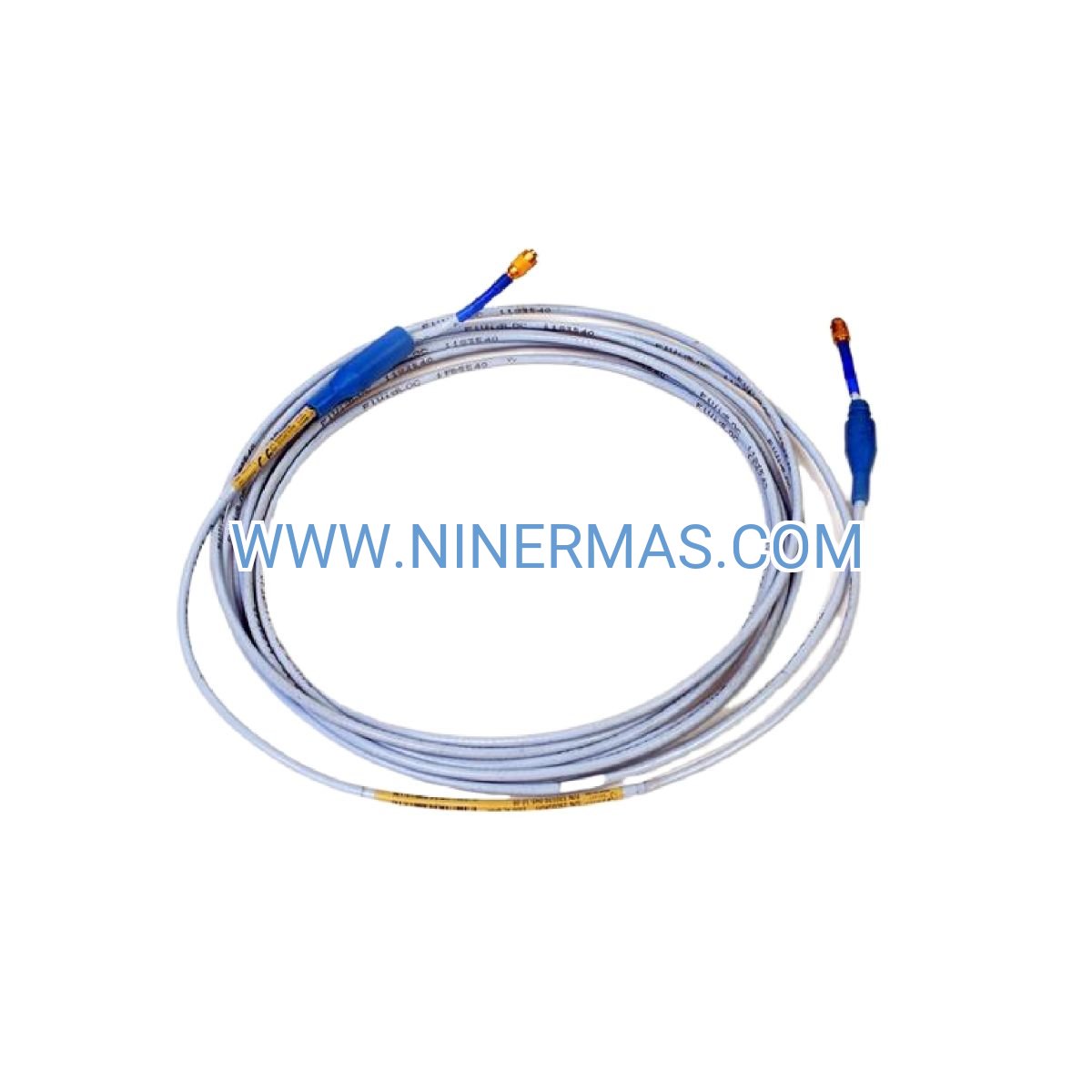

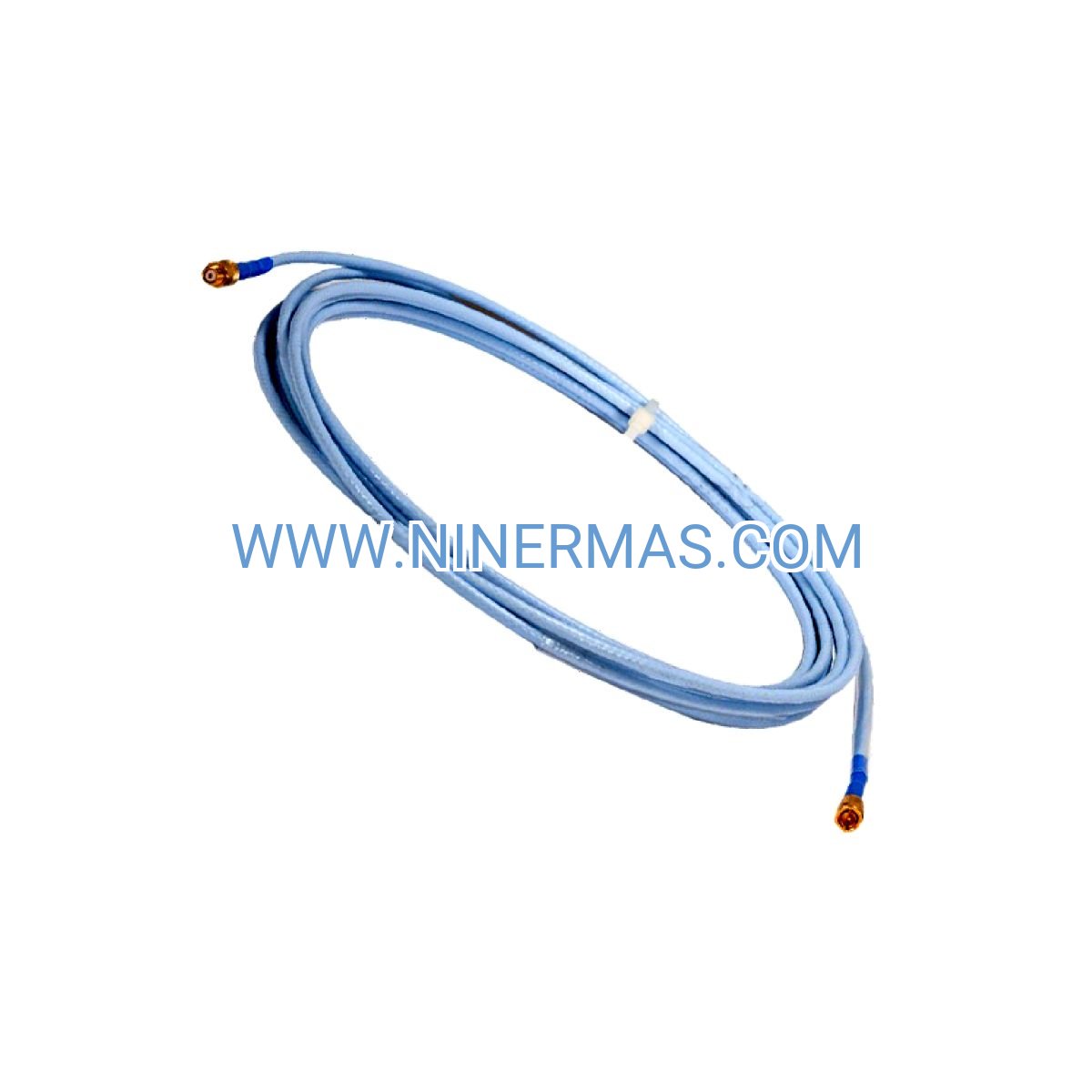

330130-065-00-05 Standard Extension Cable for 3300 XL Proximity Monitoring System

The 330130-065-00-05 is a precision-engineered extension cable designed for seamless integration with 8mm proximity probes and Proximitor Sensors in Bently Nevada 3300 XL monitoring systems. Through advanced low-noise shielded construction and industrial-grade connectors, this cable delivers reliable signal transmission for critical vibration analysis and machinery protection applications in power generation, oil & gas, and heavy industrial environments.

Ideal for turbomachinery monitoring installations where sensor-to-monitor distances exceed standard probe cable lengths, this extension cable addresses challenges including signal degradation, electromagnetic interference, and installation flexibility constraints. Designed for design engineers, maintenance teams, instrumentation contractors, and plant reliability specialists who demand uncompromising performance in harsh operating conditions.

Featuring standardized design with customizable length options, the 330130-065-00-05 offers exceptional EMI rejection, temperature stability from -40°C to +85°C, quick-connect bayonet terminations, and full backward compatibility with legacy 3300 systems. Contact our application engineers for cable length selection, system integration guidance, and project-specific quotations.

Core Features & Technical Advantages

Superior Signal Integrity Protection
Multi-layer shielding architecture with 360-degree coverage effectively rejects electromagnetic and radio frequency interference from VFDs, motors, and high-voltage equipment, maintaining measurement accuracy within ±0.5% across the entire operating range.

Extended Environmental Capability
Military-grade insulation materials withstand continuous exposure to temperatures from -40°C to +85°C, plus resistance to oils, coolants, and industrial solvents, ensuring reliable operation in the harshest process environments including offshore platforms and desert installations.

Rapid Installation & Maintenance
Bayonet-style connectors enable tool-free installation and removal in under 30 seconds per connection, reducing commissioning time and simplifying troubleshooting during planned outages or emergency repairs.

System Compatibility & Scalability
Fully compatible with all 3300 XL Proximitor Sensors and 8mm proximity probes, plus backward-compatible with legacy 3300 systems. Supports series connection of multiple cables following manufacturer specifications for extended reach applications up to maximum recommended system length.

Robust Mechanical Design
Reinforced strain relief boots and industrial-grade jacket construction resist pulling forces, vibration-induced fatigue, and accidental impact damage, minimizing cable failures and unplanned maintenance interventions.

Quality Assurance & Traceability
Every cable undergoes 100% electrical continuity testing, insulation resistance verification, and shield effectiveness validation. Serialized labeling provides full traceability for quality documentation and asset management systems.

Typical Application Scenarios

This extension cable serves critical monitoring functions across industries where machinery reliability directly impacts production continuity and personnel safety:

Steam & Gas Turbine Monitoring
Enables precise shaft vibration, thrust position, and differential expansion measurement in power generation turbines where sensor mounting locations are distant from monitoring racks. Supports both new installations and retrofit projects in combined-cycle plants, cogeneration facilities, and independent power producers.

Rotating Equipment in Oil & Gas Processing
Provides reliable connectivity for compressor trains, pump systems, and expander monitoring in upstream production, midstream processing, and downstream refining operations. Withstands exposure to hydrocarbon vapors, H2S environments, and temperature cycling in both onshore and offshore installations.

Heavy Industrial Machinery Protection
Supports condition monitoring programs for large motors, gearboxes, fans, and process equipment in steel mills, cement plants, mining operations, and chemical manufacturing facilities. Facilitates predictive maintenance strategies that reduce unplanned downtime by up to 40%.

Paper & Pulp Production Equipment
Monitors critical rotating assets including dryer sections, calendar rolls, and pulp refiners where high humidity, chemical exposure, and continuous operation demand exceptional cable durability and measurement stability.

Marine Propulsion & Auxiliary Systems
Enables vibration monitoring of main engines, reduction gears, and shaft line bearings in commercial vessels, naval platforms, and offshore support vessels operating in corrosive saltwater environments with extreme motion and vibration.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, reference the following specifications when planning your monitoring system installation:

Cable Selection Guidelines
When specifying extension cables for your monitoring system, consider these critical factors: total distance from probe tip to Proximitor input (including probe cable + extension cable), electromagnetic noise environment (proximity to VFDs, welders, or RF transmitters), ambient temperature range at installation location, chemical exposure potential (oils, solvents, process fluids), and mechanical stress factors (cable routing, support requirements, vibration exposure).

For optimal performance, maintain total system cable length within manufacturer-specified limits (typically 7.6m/25ft maximum for standard systems). When longer distances are required, consult with our application engineers regarding driver/receiver options or alternative sensor technologies. Provide your specific installation parameters—including cable route description, environmental conditions, and system configuration—to receive customized recommendations and accurate lead time estimates.

Advanced Integration Capabilities

Multi-Point Monitoring Architectures
Supports distributed sensor networks with centralized monitoring, enabling comprehensive machinery protection coverage across large equipment installations. Compatible with multiplexed input modules and networked monitoring platforms for enterprise-wide condition monitoring programs.

Retrofit & Upgrade Applications
Simplifies modernization of legacy monitoring systems by providing plug-compatible connectivity between existing proximity sensors and new 3300 XL electronics. Enables phased system upgrades without complete sensor replacement, reducing project costs and minimizing outage duration.

Temporary Monitoring & Diagnostics
Facilitates quick-connect portable monitoring setups for troubleshooting, acceptance testing, and periodic diagnostic surveys. Bayonet connectors enable rapid deployment and removal without disturbing permanent installation wiring.

Redundant System Configurations
Supports dual-channel monitoring architectures for critical machinery protection applications requiring voting logic or primary/backup measurement redundancy. Maintains signal isolation and shield integrity in parallel cable installations.

Delivery, Service & Quality Assurance

Lead Times & Availability
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom cable lengths or special configurations require 2-4 weeks manufacturing lead time depending on specifications and order quantity. Expedited processing available for emergency shutdowns and critical path projects (additional charges apply).

Warranty Coverage
All extension cables include a comprehensive 12-month warranty covering material defects, workmanship issues, and electrical performance degradation under normal operating conditions. Warranty excludes damage from improper installation, mechanical abuse, chemical attack beyond specified resistance, or operation outside published environmental limits.

Technical Support Services
Complimentary pre-sales application engineering assistance for system design, cable routing optimization, and compatibility verification. Post-installation support includes remote troubleshooting guidance, on-site commissioning assistance (available in select regions), and integration support with third-party monitoring platforms. Annual service contracts available for multi-site installations requiring priority response and dedicated technical resources.

Documentation Package
Each cable ships with complete technical documentation including dimensional drawings with connector pinouts, electrical specifications and test data, installation instructions with torque requirements, system integration guidelines, and material certifications (RoHS, REACH compliance). Digital documentation available via secure download portal for asset management system integration.

Quality Certifications
Manufactured under ISO 9001:2015 quality management system with full material traceability and batch testing records. Electrical performance verified through automated test equipment measuring continuity, insulation resistance, shield effectiveness, and capacitance. Certificate of Conformance provided with each shipment upon request.

Frequently Asked Questions

Q: Can the 330130-065-00-05 extension cable be used with older 3300 series monitoring systems?
A: Yes, this cable maintains full backward compatibility with legacy 3300 (non-XL) Proximitor Sensors and monitoring systems. The connector interface and electrical characteristics are standardized across the 3300 product family. However, for optimal performance in new installations, we recommend pairing with 3300 XL electronics which offer enhanced noise immunity and diagnostic capabilities.

Q: What is the maximum total cable length when using extension cables with proximity probes?
A: Standard 3300 XL systems support total cable lengths (probe cable + extension cable) up to 7.6 meters (25 feet) while maintaining specified accuracy. Longer distances up to 15 meters may be achievable with low-capacitance cable options and system recalibration. For applications requiring greater separation, consider Proximitor Sensors with extended-range drivers or fiber-optic signal transmission solutions. Our application engineers can evaluate your specific installation and recommend the optimal configuration.

Q: Are special tools required for installing the bayonet connectors?
A: No specialized tools are needed. The bayonet-style connectors feature a quarter-turn locking mechanism that can be hand-tightened to the specified torque range. Simply align the connector pins, insert fully, and rotate clockwise until the locking tabs engage (typically 90 degrees). A satisfying click indicates proper seating. For high-vibration environments, optional safety wire provisions are available on select connector variants.

Q: How does this cable perform in electrically noisy environments with variable frequency drives?
A: The 330130-065-00-05 incorporates multi-layer shielding with >90 dB EMI/RFI rejection, specifically engineered to maintain signal integrity in industrial environments with VFDs, SCR controllers, welding equipment, and radio transmitters. Proper installation practices—including continuous shield grounding, separation from power cables (minimum 300mm/12 inches), and use of dedicated cable trays—further enhance noise immunity. In extreme cases, additional filtering or isolated signal conditioning may be recommended.

Q: Can multiple extension cables be connected in series to achieve longer distances?
A: Series connection of extension cables is permissible within the total system length limitations specified in the 3300 XL documentation. Each additional connection introduces minor signal degradation and potential failure points, so minimize the number of intermediate connections when possible. Ensure all connectors are properly seated and torqued, and verify system calibration after installation. For distances exceeding standard limits, consult factory engineering for alternative solutions including active signal conditioning or different sensor technologies.

Q: Is this cable suitable for hazardous area installations requiring intrinsic safety or explosion-proof ratings?
A: The standard 330130-065-00-05 cable is designed for general industrial use. For installations in classified hazardous locations (Class I Division 1/2, ATEX Zone 1/2, IECEx), the cable must be used as part of a certified intrinsically safe monitoring system with appropriate barriers or isolators. Contact our hazardous area specialists to review your specific area classification, applicable standards (NEC, ATEX, IECEx), and system certification requirements. We can provide documentation supporting integration into certified monitoring systems.

Q: What maintenance or periodic testing is recommended for installed extension cables?
A: Extension cables are passive components requiring minimal maintenance under normal conditions. During scheduled machinery outages, perform visual inspection for jacket damage, connector corrosion, or strain relief degradation. Annual electrical testing should include insulation resistance measurement (>1000 MΩ expected), continuity verification, and shield integrity check. Any cable showing physical damage, insulation resistance below 100 MΩ, or intermittent connectivity should be replaced immediately. Maintain spare cables for critical monitoring points to minimize downtime during emergency repairs.

Request Technical Support & Quotation

Our application engineering team is ready to assist with cable selection, system design, and project-specific requirements. For detailed technical consultation, custom cable configurations, or volume pricing, please provide the following information:

• Project name and application description (equipment type, monitoring objectives)
• Quantity required and desired delivery schedule
• Installation environment details (temperature range, chemical exposure, hazardous area classification)
• Total cable length requirements and routing constraints
• Existing monitoring system configuration (3300 XL, legacy 3300, or new installation)
• Proximity probe specifications (model numbers, cable lengths)
• Special requirements (certifications, testing, documentation)

Submit your inquiry via email with complete specifications, and our engineers will respond within one business day with recommendations, technical drawings, and competitive quotations. For urgent requirements or complex integration challenges, schedule a consultation call with our technical specialists.
