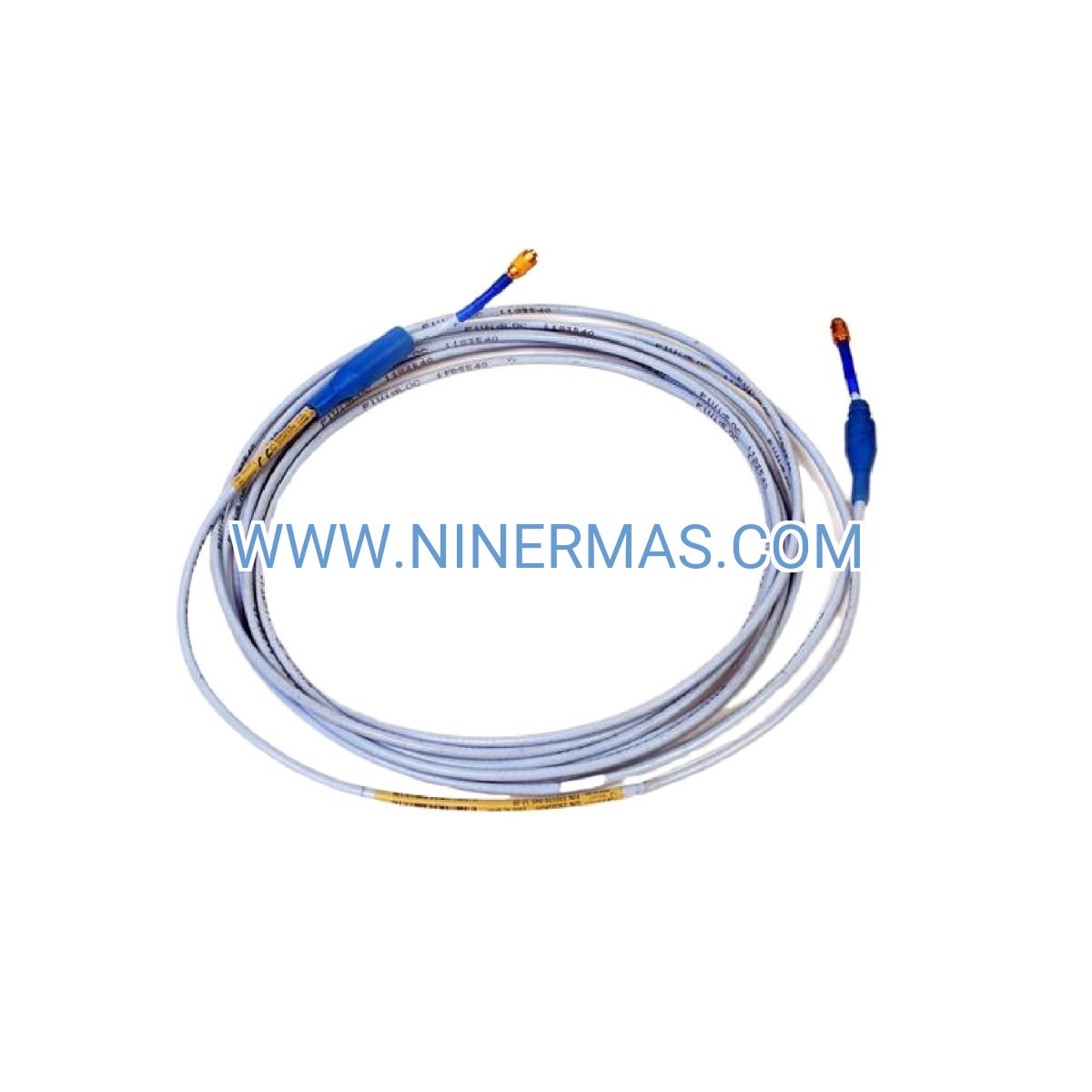

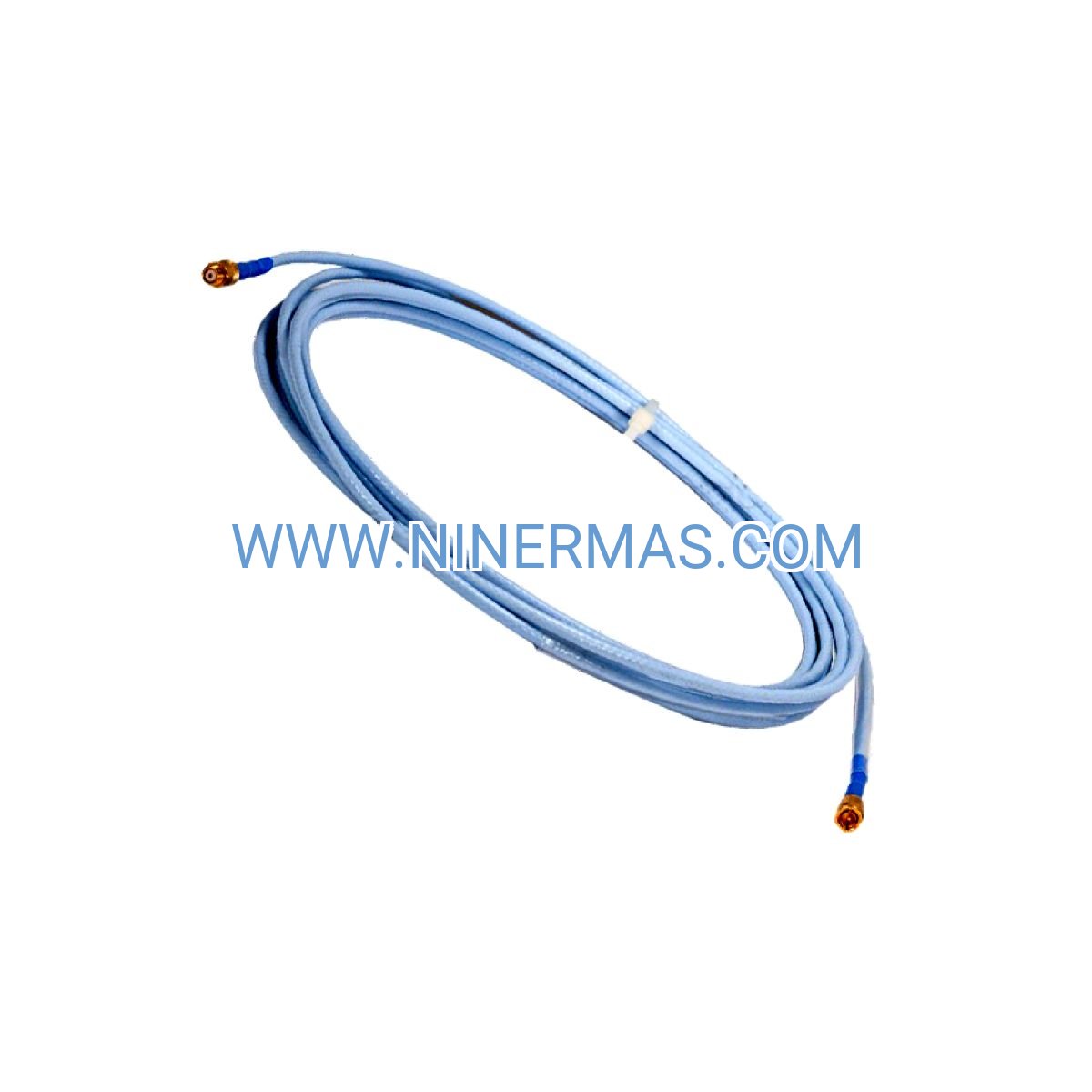

Bently Nevada 330130-045-12-05 Extension Cable for 8mm Proximity Probes (3300 XL Industrial Monitoring System)

The Bently Nevada 330130-045-12-05 is a precision-grade extension cable engineered for 3300 XL 8mm proximity probe systems, delivering reliable signal transmission in critical vibration monitoring and machinery protection applications. Through advanced EMI-shielded construction and industrial-grade connectors, this cable ensures accurate data acquisition in electrically noisy environments while maintaining measurement integrity across extended cable runs.

Designed for turbomachinery monitoring in power generation, oil & gas processing, and heavy industrial facilities, the 330130-045-12-05 addresses common challenges including probe positioning constraints, electromagnetic interference, and harsh operating conditions. It enables flexible sensor placement in hard-to-reach locations while preserving the signal fidelity required for predictive maintenance and machinery protection systems.

Built with multi-layer shielding, high-temperature resistant insulation, and secure locking connectors, this extension cable delivers proven reliability in continuous-duty applications ranging from -40°C to +85°C. Suitable for design engineers, instrumentation contractors, maintenance teams, and OEM integrators requiring certified connectivity solutions for Bently Nevada 3300 XL Proximitor systems. Contact our application engineers for cable length selection, routing recommendations, and system integration support.

Core Features & Technical Advantages

EMI-Shielded Signal Integrity
Multi-layer electromagnetic shielding protects low-level proximity probe signals from interference caused by VFDs, motors, and high-voltage equipment, ensuring accurate vibration measurements in electrically dense industrial environments.

Extended Temperature Performance
Operates reliably across -40°C to +85°C (-40°F to +185°F), accommodating outdoor installations, steam turbine environments, and extreme climate conditions without signal degradation or insulation failure.

Industrial-Grade Connector System
Features secure locking connectors with positive retention mechanisms, preventing accidental disconnection during equipment vibration, maintenance activities, or cable routing stress.

Flexible Installation Routing
Enables probe positioning in confined spaces, elevated platforms, and complex machinery layouts where direct probe-to-monitor connections are impractical, reducing installation time and labor costs.

System Compatibility Assurance
Factory-tested for seamless integration with Bently Nevada 3300 XL Proximitor sensors, extension cables, and monitoring modules, eliminating compatibility concerns and ensuring plug-and-play deployment.

Robust Environmental Protection
High-temperature polymer insulation resists chemical exposure, oil contamination, and mechanical abrasion common in petrochemical, pulp & paper, and mining applications, extending service life and reducing replacement frequency.

Typical Application Scenarios

This extension cable is engineered for industrial environments demanding continuous vibration monitoring, machinery protection, and predictive maintenance capabilities, particularly in:

Power Generation & Turbomachinery
Connects proximity probes on steam turbines, gas turbines, and generator sets where cable routing must navigate high-temperature zones, electrical cabinets, and structural obstacles while maintaining measurement accuracy for thrust position, radial vibration, and differential expansion monitoring.

Oil & Gas Processing Facilities
Supports compressor monitoring, pump surveillance, and rotating equipment protection in upstream production, midstream processing, and downstream refining operations where hazardous area classifications and extreme temperatures require certified connectivity solutions.

Heavy Industrial Rotating Equipment
Enables vibration monitoring on large motors, blowers, fans, and gearboxes in steel mills, cement plants, mining operations, and chemical processing facilities where equipment criticality demands reliable condition monitoring and early fault detection.

Marine & Offshore Installations
Provides corrosion-resistant connectivity for propulsion systems, auxiliary machinery, and power generation equipment on vessels, offshore platforms, and floating production facilities exposed to saltwater, humidity, and temperature cycling.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the 330130-045-12-05 extension cable is designed with the following specifications:

Selection Considerations: When specifying extension cables for your vibration monitoring system, consider total cable run length (probe cable + extension cables should not exceed system maximum), routing path complexity, ambient temperature extremes, and electromagnetic noise sources. For installations requiring multiple extension cables in series, verify total capacitance remains within Proximitor system specifications. Our application engineers can review your installation drawings and recommend optimal cable configurations to ensure measurement accuracy and system reliability.

Advanced Integration Capabilities

Multi-Point Monitoring Configurations
Supports radial vibration, thrust position, and differential expansion measurements on single machines by enabling independent cable routing for each measurement point while maintaining signal isolation and reducing crosstalk.

Retrofit & Upgrade Applications
Facilitates addition of monitoring points to existing machinery without major system modifications, allowing incremental expansion of condition monitoring coverage as budgets and priorities evolve.

Temporary Monitoring Deployments
Enables quick-connect portable monitoring setups for troubleshooting, commissioning verification, and periodic machinery health assessments using handheld analyzers or temporary data acquisition systems.

Cable Management Optimization
Allows organized routing through cable trays, conduit systems, and junction boxes, improving installation aesthetics, simplifying future maintenance access, and reducing cable damage risk from foot traffic or equipment movement.

Delivery, Service & Quality Assurance

Stock Availability & Lead Time: Standard 330130-045-12-05 cables are typically available from stock with same-day or next-day shipment for urgent requirements. Custom cable lengths or special configurations may require 7-14 days for factory production and testing.

Warranty Coverage: All extension cables include a comprehensive 12-month warranty covering manufacturing defects, material failures, and workmanship issues. Warranty support includes replacement cable shipment and technical consultation for installation or compatibility concerns.

Technical Support Services: Our instrumentation specialists provide remote installation guidance, cable routing recommendations, system integration assistance, and troubleshooting support via phone, email, or video consultation. On-site commissioning support and training services are available for major projects (subject to location and scope).

Documentation Package: Each cable ships with product certification, dimensional drawings, connector pinout diagrams, and installation guidelines. Complete 3300 XL system documentation including wiring diagrams, grounding requirements, and cable length calculation worksheets are available upon request.

Quality Testing: Every 330130-045-12-05 cable undergoes factory electrical testing including continuity verification, insulation resistance measurement, and shield integrity validation to ensure compliance with Bently Nevada quality standards before shipment.

Frequently Asked Questions (FAQ)

Q: Can the 330130-045-12-05 extension cable be used with 5mm proximity probes?
A: No, this cable is specifically engineered for 8mm proximity probe systems. The connector configuration and electrical characteristics are optimized for 8mm probes. For 5mm probe applications, please specify the appropriate 3300 XL extension cable model designed for 5mm systems to ensure proper fit and signal performance.

Q: What is the maximum total cable length when using extension cables with proximity probes?
A: Total cable length (probe integral cable + extension cables) should not exceed the maximum specified in your Proximitor system documentation, typically 7.6 meters (25 feet) for standard systems. Exceeding this limit increases cable capacitance, which can affect measurement linearity and frequency response. For longer runs, consult factory recommendations or consider Proximitor relocation.

Q: Is the 330130-045-12-05 suitable for hazardous area installations (Class I Div 1/2, ATEX, IECEx)?
A: The cable construction is suitable for industrial environments and can be used as part of certified hazardous area monitoring systems when installed according to applicable standards (NEC 500/505, ATEX, IECEx). However, the complete system certification depends on the Proximitor, barriers, and installation methods used. Verify that your complete system design meets local hazardous area requirements and consult certified drawings before deployment.

Q: Can multiple extension cables be connected in series to achieve longer cable runs?
A: Yes, extension cables can be connected in series, but total cable length must remain within system specifications to maintain signal integrity. Each connection point introduces additional capacitance and potential signal loss. For critical applications or maximum-length installations, verify total system capacitance and consider factory consultation to ensure measurement accuracy is not compromised.

Q: Does the cable require special installation tools or termination procedures?
A: No special tools are required. The 330130-045-12-05 features pre-terminated connectors that simply thread onto mating connectors on proximity probes and Proximitor sensors. Ensure connectors are hand-tightened securely (do not use wrenches or pliers, which can damage connector threads), verify proper seating, and follow cable routing best practices to avoid sharp bends or tension on connectors.

Q: How does cable shielding affect measurement accuracy in electrically noisy environments?
A: The multi-layer EMI shielding is critical for maintaining signal integrity near VFDs, motors, welders, and high-voltage equipment. Proper shield grounding (typically at the Proximitor end only) provides a low-impedance path for interference currents, preventing them from coupling into the measurement signal. Always follow Bently Nevada grounding guidelines and avoid ground loops by grounding shields at only one point in the cable chain.

Request Technical Support & Quotation

For detailed application assistance, cable length verification, system integration guidance, or project quotations, please provide the following information to our engineering team:

• Project name and application type (turbine monitoring, compressor protection, etc.)
• Machinery type and operating conditions (temperature range, vibration levels, hazardous area classification)
• Number of monitoring points and probe types (8mm proximity probes, model numbers if known)
• Required cable routing distances and environmental conditions (cable tray, conduit, outdoor exposure)
• Existing Bently Nevada system components (Proximitor models, rack systems, monitoring software)
• Delivery timeline and installation schedule

Our instrumentation specialists will provide one-on-one application review, cable configuration recommendations, and detailed technical quotations tailored to your specific monitoring requirements.
