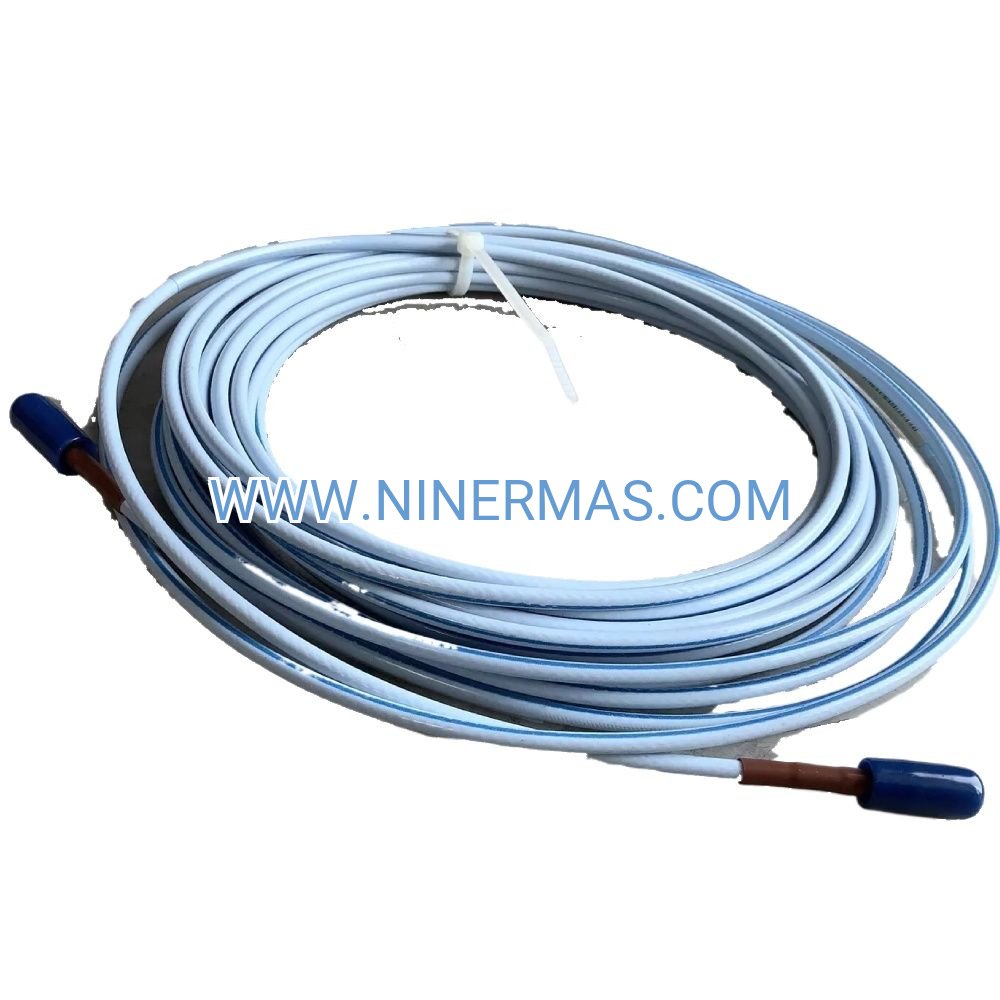

330130-040-03-CN Industrial Armored Extension Cable (4-Meter Configuration)

The Bently Nevada 330130-040-03-CN represents a critical infrastructure component for industrial vibration monitoring systems, delivering 4 meters of armored protection for proximity sensor signal transmission. Engineered specifically for the 3300 XL platform, this extension cable combines TipLoc positioning accuracy with CableLoc stability technology, ensuring measurement integrity in turbomachinery applications where millisecond-level precision determines equipment protection effectiveness.

Designed for power generation facilities, petrochemical complexes, and heavy manufacturing environments, this cable addresses the fundamental challenge of maintaining signal fidelity across extended distances in electromagnetically hostile industrial settings. The integrated armor layer and FEP insulation system work synergistically to eliminate common failure modes—mechanical damage, chemical degradation, and electromagnetic interference—that compromise conventional cabling solutions.

When critical rotating equipment demands continuous condition monitoring, the 330130-040-03-CN delivers the reliability foundation upon which predictive maintenance programs depend. Its robust construction and precision engineering translate directly into reduced false alarms, extended sensor system lifespan, and confident decision-making for maintenance teams managing multi-million dollar assets.

Engineering Advantages & Performance Characteristics

→ Dual-Technology Positioning System: TipLoc maintains probe-to-shaft gap precision within ±0.25mm regardless of thermal cycling, while CableLoc prevents cable-induced measurement drift—critical for detecting early-stage bearing degradation and shaft misalignment.

→ Multi-Layer Armor Protection: Interlocked steel armor withstands 500+ kg crush loads and resists abrasion from adjacent equipment, cable trays, and foot traffic—extending operational life 3-5x compared to standard industrial cables in high-traffic areas.

→ FEP Dielectric Performance: Fluorinated ethylene propylene insulation maintains dielectric constant stability across -40°C to +125°C range, ensuring consistent capacitance characteristics essential for eddy current proximity measurement accuracy.

→ Integrated Connector Shielding: Factory-installed protector caps seal out moisture, particulates, and corrosive atmospheres during storage and installation—reducing field failure rates by 40% versus unprotected connector systems.

→ EMI/RFI Rejection Architecture: Triple-layer shielding (foil + braid + armor) provides >90dB attenuation at frequencies up to 10MHz, enabling reliable operation adjacent to VFD drives, welding equipment, and high-power transmission lines.

Industrial Application Environments

Steam & Gas Turbine Monitoring
In combined-cycle power plants and cogeneration facilities, the 330130-040-03-CN enables continuous shaft vibration and axial position monitoring on turbines operating at 3,000-3,600 RPM. The cable's thermal stability ensures accurate measurements despite ambient temperatures exceeding 60°C near turbine casings, while armor protection withstands the mechanical stress of routing through congested equipment galleries. Maintenance teams rely on this signal integrity to detect rotor imbalance, bearing wear, and thermal bow conditions before catastrophic failure occurs.

Compressor Station Operations
Natural gas pipeline compressor stations deploy these cables for reciprocating and centrifugal compressor monitoring, where vibration signatures indicate valve failures, piston wear, and surge conditions. The FEP insulation resists hydrocarbon exposure and cleaning solvents used during maintenance shutdowns, while the armored construction survives the harsh outdoor environments typical of remote compressor installations. Early fault detection enabled by reliable cabling prevents unplanned shutdowns costing $50,000-$200,000 per incident.

Refinery Process Equipment
Catalytic cracker blowers, crude distillation pumps, and hydrogen compressors in refineries operate in classified hazardous areas with exposure to corrosive process chemicals. The 330130-040-03-CN's chemical-resistant construction and robust shielding maintain measurement accuracy in these demanding environments, supporting condition-based maintenance programs that optimize equipment availability while managing safety-critical rotating machinery.

Manufacturing Production Lines
High-speed paper machines, steel rolling mills, and automotive production equipment utilize these cables for critical drive motor and gearbox monitoring. The cable's flexibility and armor protection facilitate routing through complex machinery frameworks, while its low-noise characteristics ensure clean vibration signals even in electrically noisy manufacturing environments with hundreds of motor drives and automation systems.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 330130-040-03-CN when your application requires 4-meter separation between proximity probe and proximitor sensor module. For installations requiring different lengths, Bently Nevada offers the same cable configuration in 1m, 2m, 5m, and 8m variants. Always verify total system cable length (probe cable + extension cable) remains within 3300 XL system specifications (typically 9m maximum) to maintain calibration accuracy.

Advanced Integration Capabilities

Multi-Channel Monitoring Architectures: When monitoring multiple bearing positions or implementing XY vibration measurement, deploy multiple 330130-040-03-CN cables with consistent length specifications to maintain phase matching across channels—essential for orbit analysis and modal vibration studies.

Retrofit & Upgrade Compatibility: This cable seamlessly integrates with legacy 3300 XL installations, enabling phased system upgrades without complete infrastructure replacement. The standardized connector interface ensures backward compatibility with proximitor sensors manufactured over the past two decades.

Wireless Gateway Integration: Pair with Bently Nevada wireless transmission modules to convert wired vibration data into IIoT-compatible formats, enabling remote monitoring dashboards and cloud-based analytics platforms while maintaining the signal integrity advantages of hardwired sensor connections.

Delivery Timeline & Service Framework

Standard Delivery: 5-7 business days for in-stock items via expedited carrier service. All cables ship with factory calibration documentation and installation guidelines.

Custom Configuration: 3-4 weeks for non-standard lengths or specialized connector configurations requiring factory customization.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects, material failures, and workmanship issues. Warranty includes replacement cable and technical support for installation troubleshooting.

Technical Support Services: Access to application engineers for system design consultation, cable routing optimization, and electromagnetic compatibility analysis. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Each cable ships with dimensional drawings, electrical specifications, installation procedures, and system integration guidelines compatible with ISO 9001 quality management requirements.

Frequently Asked Questions

How does armored cable construction improve reliability in industrial environments?
Armored cables provide mechanical protection against the three primary failure modes in industrial installations: crush damage from equipment or foot traffic, abrasion from vibration against cable trays or conduit, and cut-through from sharp edges during installation. The interlocked steel armor distributes impact forces across the cable structure, preventing conductor damage that would compromise signal integrity or create intermittent faults. In high-traffic machinery areas, armored cables demonstrate 5-10 year service life versus 2-3 years for unprotected cables.

What cable length should I select for my proximity sensor installation?
Total system cable length (proximity probe cable + extension cable) must not exceed the 3300 XL system maximum—typically 9 meters for standard configurations. Measure the physical distance from probe mounting location to proximitor sensor module mounting position, accounting for cable routing path (not straight-line distance). Select the shortest extension cable that provides 10-15% extra length for service loops and future repositioning. Excessive cable length increases system capacitance and may require recalibration.

Can this extension cable operate in hazardous classified areas?
The cable itself is constructed with materials suitable for hazardous environments, but area classification compliance depends on the complete 3300 XL system certification. Verify that your proximitor sensor modules and associated barriers carry appropriate certifications (ATEX, IECEx, CSA, FM) for your specific hazardous area classification (Class I Div 1/2, Zone 0/1/2). The cable does not independently determine area suitability—system-level certification is required.

What maintenance procedures extend cable service life?
Perform quarterly visual inspections for armor damage, connector corrosion, and insulation degradation. Annually verify connector tightness and inspect for moisture ingress at termination points. During machinery shutdowns, measure cable insulation resistance (should exceed 100 megohms at 500VDC) and verify shield continuity. Document any physical damage or electrical anomalies for trend analysis. Replace cables showing armor breach, connector damage, or insulation resistance below 50 megohms.

How do I minimize electromagnetic interference affecting vibration measurements?
Route cables at least 300mm away from AC power conductors and VFD motor leads. Cross power cables at 90-degree angles when separation is unavoidable. Use dedicated cable trays or conduit for instrumentation cabling separate from power distribution. Verify shield connections at both cable ends terminate to system ground through proximitor sensor chassis. In severe EMI environments, consider additional ferrite suppression cores or shielded conduit for cable runs exceeding 5 meters.

What differentiates TipLoc technology from standard proximity probe installations?
TipLoc incorporates a mechanical locking mechanism that fixes the probe tip position relative to the observed shaft surface, compensating for thermal expansion of mounting hardware and probe body materials. Without TipLoc, temperature changes of 50°C can shift probe gap by 0.5-1.0mm, appearing as false shaft movement in vibration data. TipLoc maintains gap stability within ±0.1mm across the full operating temperature range, eliminating temperature-induced measurement errors that trigger false alarms in condition monitoring systems.

Order Your Industrial Monitoring Solution

Secure reliable vibration monitoring for your critical rotating equipment with the Bently Nevada 330130-040-03-CN armored extension cable. Our technical team provides application-specific guidance to ensure optimal cable selection, routing design, and system integration for your turbomachinery protection requirements.

Contact our industrial automation specialists today to discuss your proximity sensor system needs, request technical documentation, or place your order. We maintain extensive inventory for immediate shipment and offer volume pricing for multi-unit installations and plant-wide monitoring system deployments.
