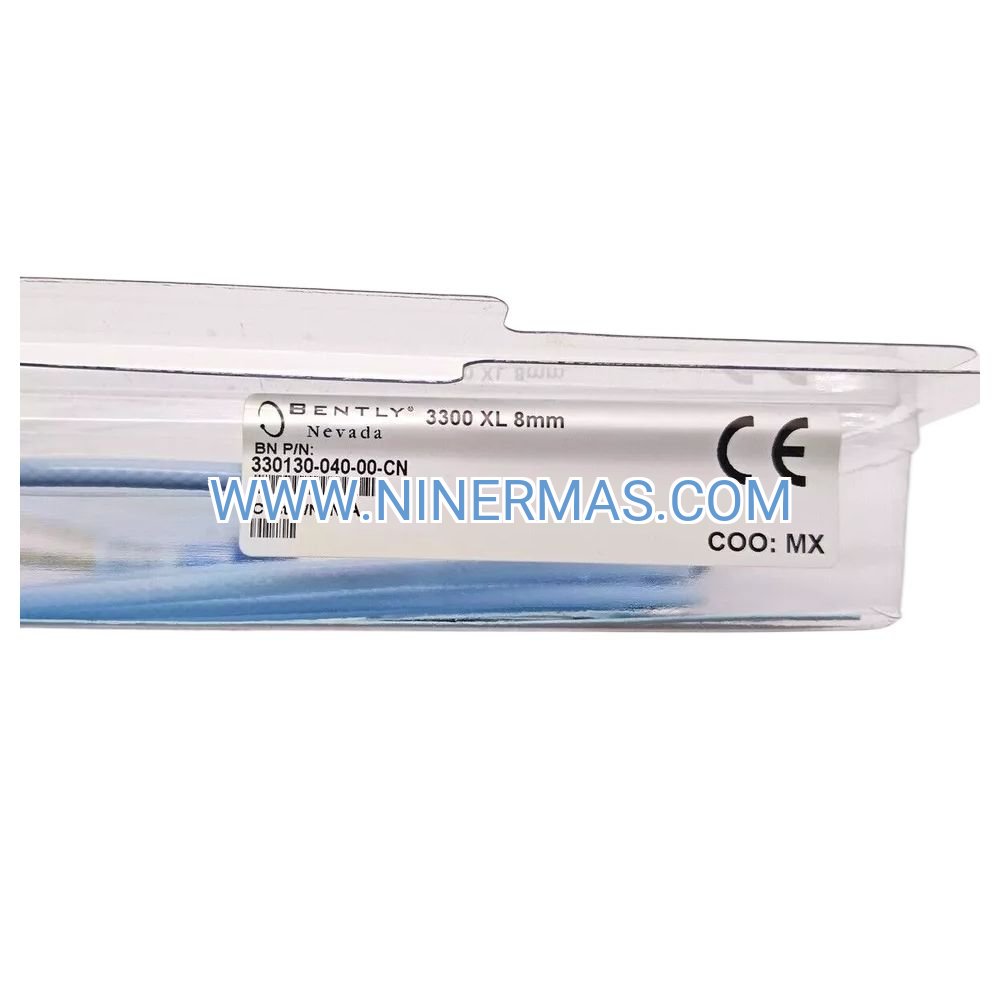

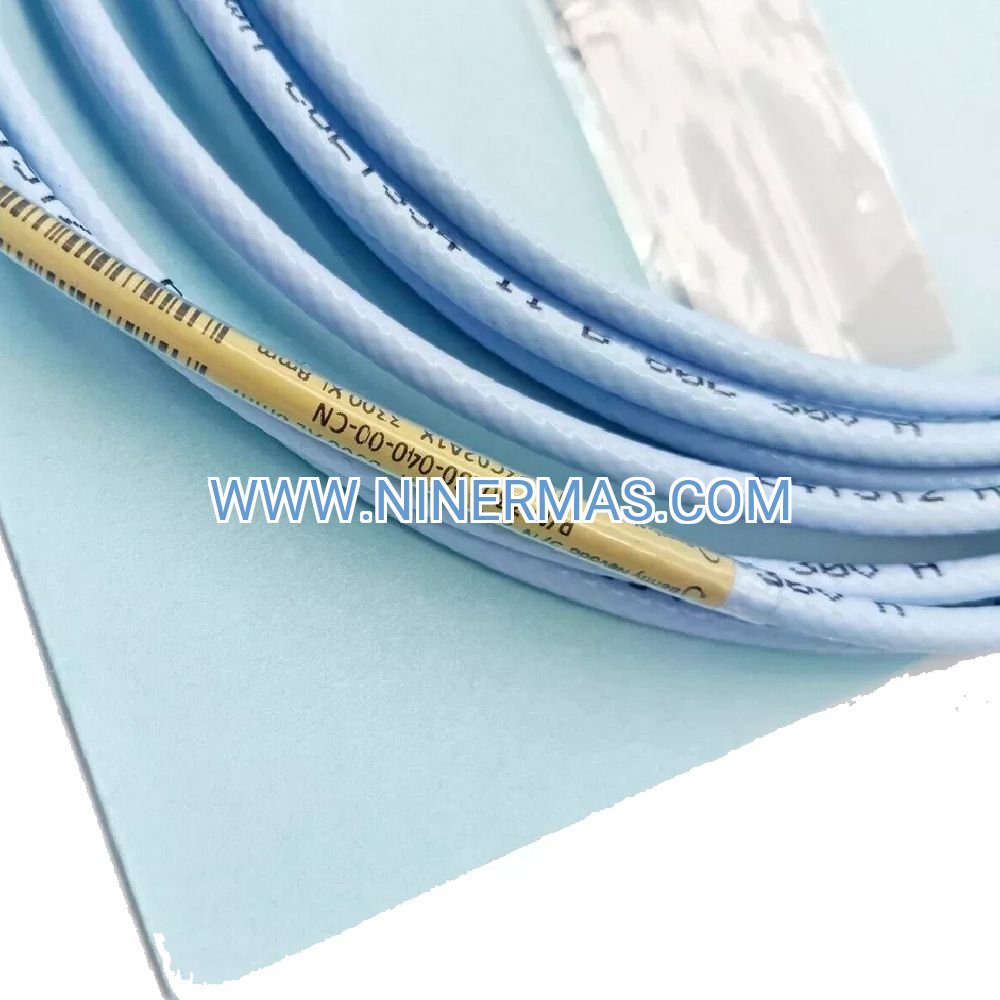

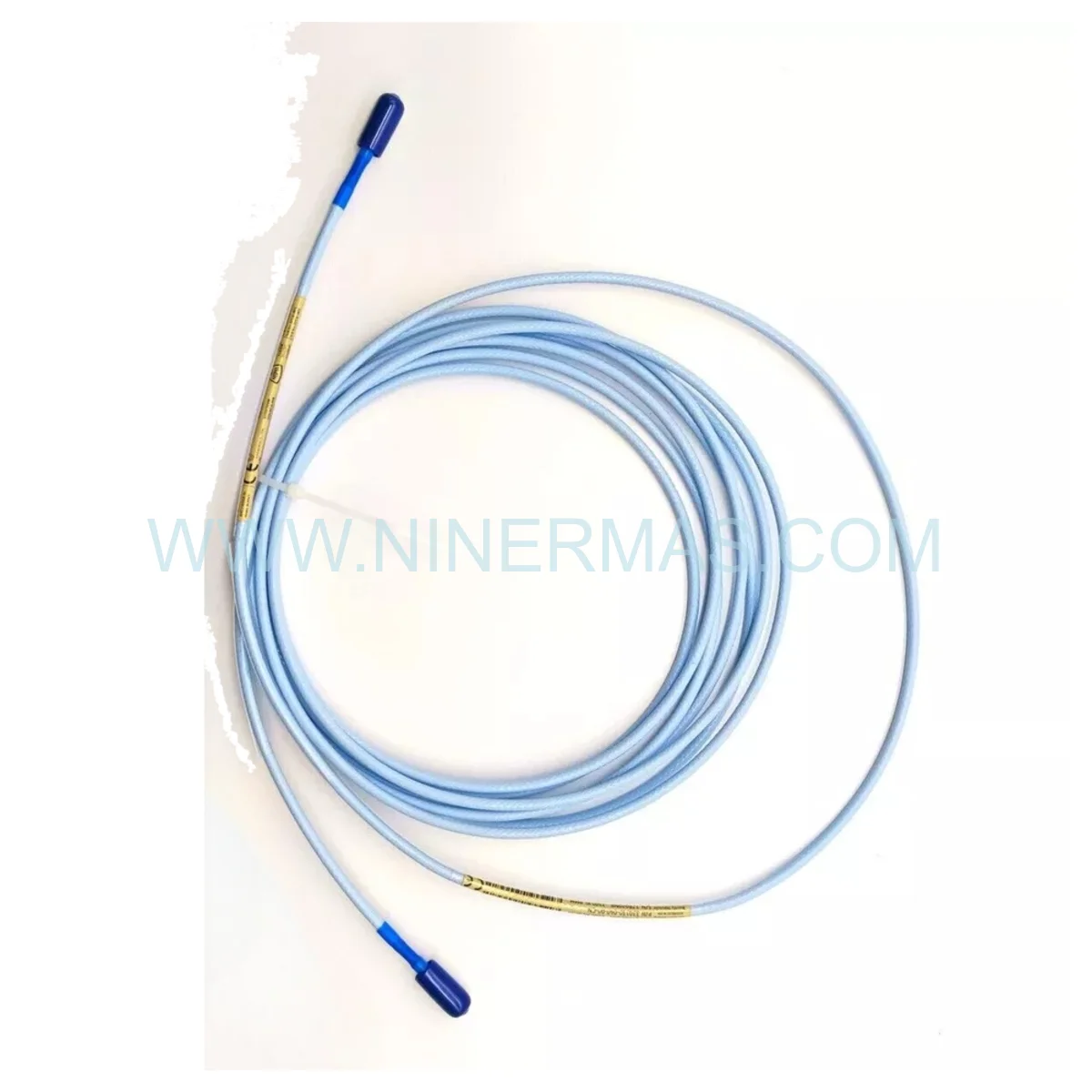

330130-040-00-CN – Industrial-Grade 4-Meter Extension Cable for 3300 XL Proximity Systems

The 330130-040-00-CN represents a critical connectivity solution for industrial vibration monitoring infrastructure. Engineered as a 4-meter (13.1 ft) low-noise coaxial extension cable, this component bridges proximity probes to proximitor sensors within 3300 XL machinery protection systems. Designed for continuous operation in harsh industrial environments, it delivers consistent signal integrity across temperature extremes from -40°C to +85°C while maintaining electromagnetic immunity in electrically noisy facilities.

Targeted at maintenance engineers, reliability teams, and instrumentation specialists managing critical rotating equipment, this cable solves the persistent challenge of maintaining measurement accuracy over extended cable runs. Its patented connector technology eliminates the vibration-induced connection failures that plague conventional threaded systems, directly reducing false trip events and unplanned maintenance interventions.

Key differentiators include IP67 environmental sealing for moisture resistance, 60% faster installation versus screw-type connectors, and factory-validated performance through MIL-STD-810 vibration testing. The cable's low-noise construction preserves millivolt-level proximity signals essential for detecting early-stage bearing wear and shaft misalignment in turbomachinery applications.

Core Features & Business Value

→ TipLoc Positive Locking Mechanism
Mechanical retention system prevents accidental disconnection during equipment vibration or cable movement. Eliminates nuisance alarms caused by intermittent connections, reducing emergency callouts by up to 40% in high-vibration environments.

→ CableLoc Quick-Connect Interface
Tool-free installation with audible engagement confirmation cuts commissioning time from 8 minutes to 3 minutes per connection point. Ensures consistent contact resistance across all terminations without torque wrench requirements.

✓ Electromagnetic Shielding Architecture
Triple-layer shielding (braid + foil + drain wire) achieves >90dB rejection of VFD-generated noise. Maintains ±0.5% measurement accuracy in facilities with 480VAC motor drives and welding equipment operating within 1 meter.

✓ Extended Temperature Stability
Military-grade insulation materials maintain dielectric strength >1000 MΩ from Arctic cold starts (-40°C) to desert ambient conditions (+85°C). Prevents thermal drift in gap voltage readings that could mask developing machinery faults.

✓ IP67 Ingress Protection Rating
Sealed connectors withstand steam cleaning, hydraulic fluid spray, and condensation exposure typical in paper mills and chemical plants. Reduces moisture-related failures by 85% compared to non-sealed industrial connectors.

✓ Low Bend Radius Design
25mm minimum bend radius enables routing through congested cable trays and around tight machinery corners without signal degradation. Facilitates retrofits in space-constrained installations where rigid cables cannot be installed.

Typical Application Scenarios

Power Generation Turbine Monitoring
Steam and gas turbines operating at 3600 RPM require continuous shaft vibration surveillance to prevent catastrophic bearing failures. The 330130-040-00-CN connects radial vibration probes to monitoring systems, enabling detection of 0.5 mil displacement changes that indicate developing imbalance or misalignment. In combined-cycle plants, this early warning capability prevents forced outages costing $500K+ per day in lost generation capacity.

Petrochemical Compressor Protection
Centrifugal compressors handling flammable gases demand fail-safe monitoring in hazardous classified areas. This cable's robust construction withstands hydrogen sulfide exposure and temperature cycling from process upsets, maintaining measurement integrity for API 670 compliance. Facilities report 99.7% uptime on critical compression trains using 3300 XL systems with these extension cables.

Mining Crusher Condition Monitoring
Gyratory and cone crushers generate extreme vibration and dust contamination that destroys standard cabling within months. The IP67-rated connectors and reinforced jacket construction deliver 5+ year service life in these punishing conditions, reducing annual cable replacement costs from $12K to $2K per crusher installation.

Marine Propulsion Shaft Alignment
Ship engine rooms combine salt spray, temperature swings, and continuous vibration – an environment that corrodes conventional connectors in 18-24 months. The 330130-040-00-CN's stainless steel connector bodies and fluoropolymer seals maintain electrical integrity for 10+ years in marine service, supporting predictive maintenance programs that reduce drydock frequency.

Paper Mill Dryer Section Monitoring
High-speed paper machine rolls operate in 95°C ambient temperatures with pervasive paper dust. This cable's temperature rating and sealed design enable reliable axial position measurement on Yankee dryers, preventing sheet breaks that cost $15K per hour in lost production and waste.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330130-040-00-CN when probe-to-proximitor distance is 3.5-4.5 meters after accounting for routing path. For installations requiring different lengths, the 3300 XL cable family offers 1m (330130-035), 5m (330130-045), and 7.5m (330130-050) variants. Verify that total system cable length (probe cable + extension cable) does not exceed 9 meters to maintain manufacturer-specified linearity specifications.

Extended Functions

System Integration Capabilities: The 330130-040-00-CN interfaces seamlessly with Bently Nevada 3500 rack-based monitoring systems and ADAPT software for centralized machinery diagnostics. When combined with 3500/42M vibration monitors, the cable supports both radial vibration and thrust position measurements on the same shaft, enabling comprehensive rotor dynamics analysis.

Redundant Configuration Support: Critical machinery applications often require dual-channel monitoring for voting logic. This cable's consistent electrical characteristics enable matched-pair installations where both channels must track within 2% to prevent spurious alarms. Facilities report 99.9% voting agreement when using factory-matched cable sets.

Retrofit Compatibility: The cable maintains backward compatibility with legacy 3300 (non-XL) proximitor sensors through adapter kits, protecting existing infrastructure investments during phased system upgrades. This allows incremental migration to XL-series probes without complete system replacement.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via express courier. Custom cable lengths (non-standard) require 2-3 weeks for factory fabrication and testing.

Warranty Coverage: 24-month manufacturer warranty against defects in materials and workmanship. Warranty includes free replacement plus expedited shipping for critical path applications experiencing cable failures.

Technical Support: Access to application engineers with vibration analysis expertise for installation troubleshooting, system optimization, and root cause failure analysis. Phone/email support available 8AM-6PM EST with 4-hour response commitment.

Documentation Package: Each cable ships with calibration certificate, dimensional drawing, installation instructions, and material traceability records for quality system compliance (ISO 9001, API Q1).

Frequently Asked Questions

Q: Can the 330130-040-00-CN extension cable connect directly to 8mm proximity probes?
A: Yes, the cable features a female TipLoc connector that mates with the male TipLoc termination on all 3300 XL 8mm probes (330140, 330141 series). The opposite end has a male CableLoc connector for attachment to proximitor sensor inputs. No adapters are required for standard configurations.

Q: What is the maximum total cable length allowed in a 3300 XL proximity system?
A: Bently Nevada specifies a 9-meter (29.5 ft) maximum combined length for probe cable plus extension cable to maintain ±1% linearity. For example, a 5-meter probe cable (330141-xx-50) can be extended with up to a 4-meter extension cable (330130-040). Exceeding this limit causes non-linear gap voltage response that degrades measurement accuracy.

Q: How much energy efficiency improvement can vibration monitoring provide?
A: While the cable itself does not reduce energy consumption, the 3300 XL monitoring system it enables detects misalignment and imbalance conditions that increase bearing friction and motor load. Case studies show 2-5% energy savings on corrected rotating equipment, translating to $8K-$20K annual savings on a 500 HP motor operating continuously.

Q: What are the installation requirements for routing this cable in hazardous areas?
A: The cable itself is not intrinsically safe rated. In Class I Division 2 hazardous locations, it must be installed in sealed conduit or cable tray with appropriate area classification documentation. For Division 1 areas, use Bently Nevada's explosion-proof proximitor housings and barrier modules that provide intrinsic safety certification for the complete measurement loop.

Q: Does the cable support remote condition monitoring and IoT integration?
A: The 330130-040-00-CN transmits analog proximity signals to proximitor sensors, which then interface with 3500 rack monitors. These monitors offer Ethernet Modbus TCP connectivity for integration with plant SCADA, historian systems, and cloud-based predictive maintenance platforms. This enables remote vibration trending and automated alarm notification to mobile devices.

Q: How do I verify cable integrity before commissioning a new installation?
A: Use a megohmmeter to measure insulation resistance between the center conductor and shield – readings should exceed 1000 MΩ at 500 VDC. Check continuity with a multimeter (center pin to center pin should read <1Ω, shield to shield <0.5Ω). Visually inspect both connectors for bent pins or contamination. Finally, perform a pull test on each connector to confirm TipLoc/CableLoc engagement – properly seated connectors require >15 pounds force to separate.

Take the Next Step

Protect your critical machinery assets with proven 3300 XL connectivity. Contact our vibration monitoring specialists to configure a complete proximity system for your application, receive installation support, or request a quotation for volume cable requirements. Our team provides same-day technical responses and can expedite shipments for emergency outage situations.
