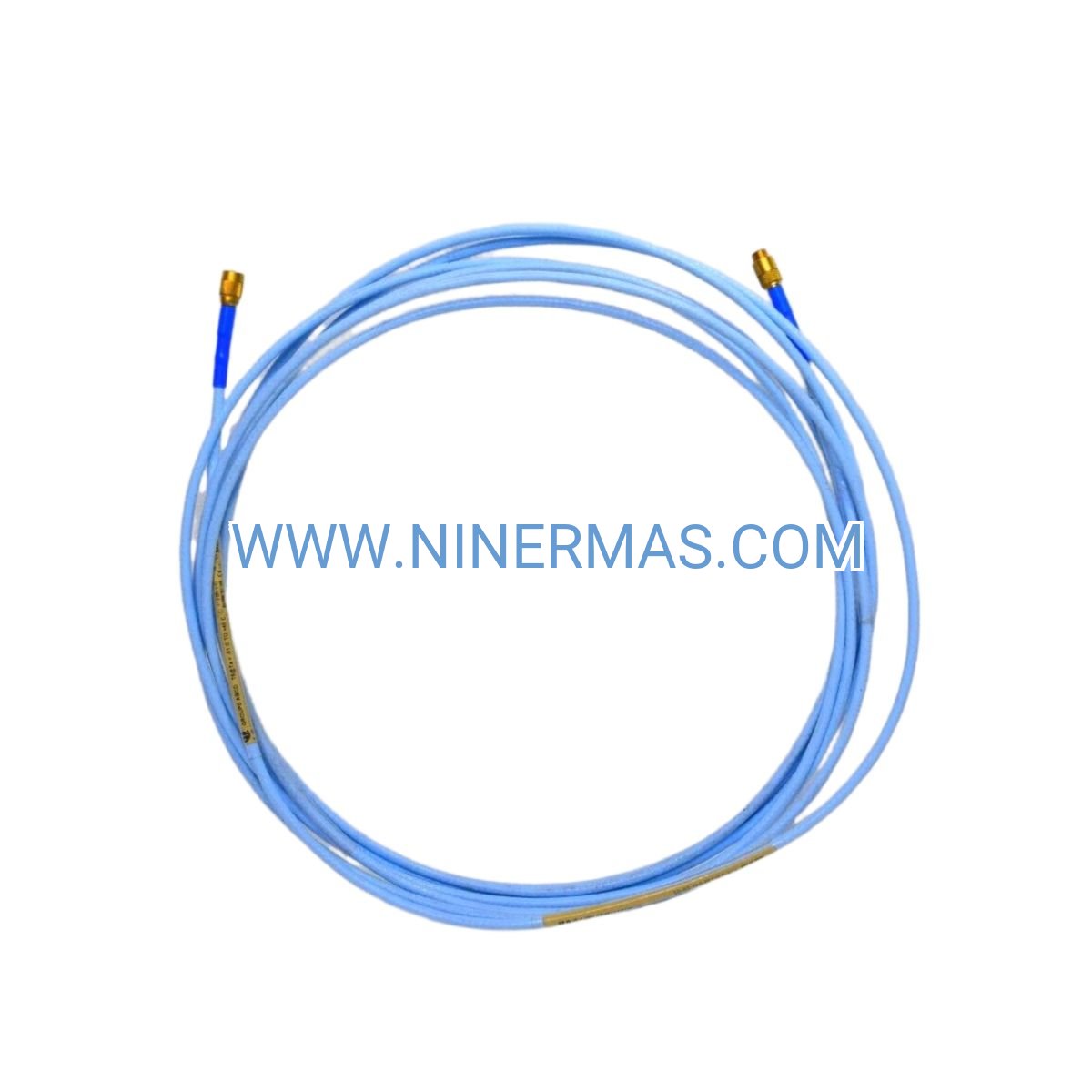

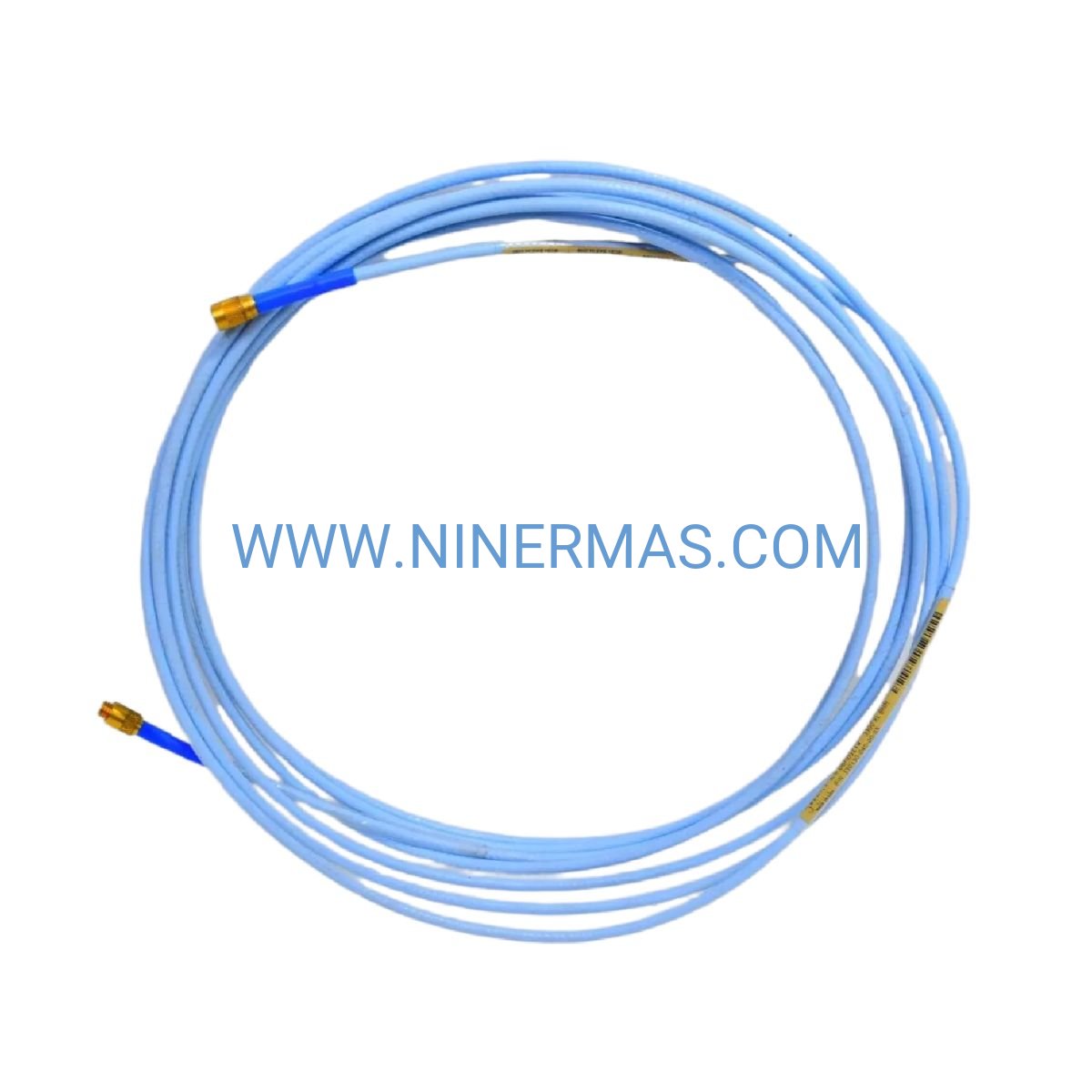

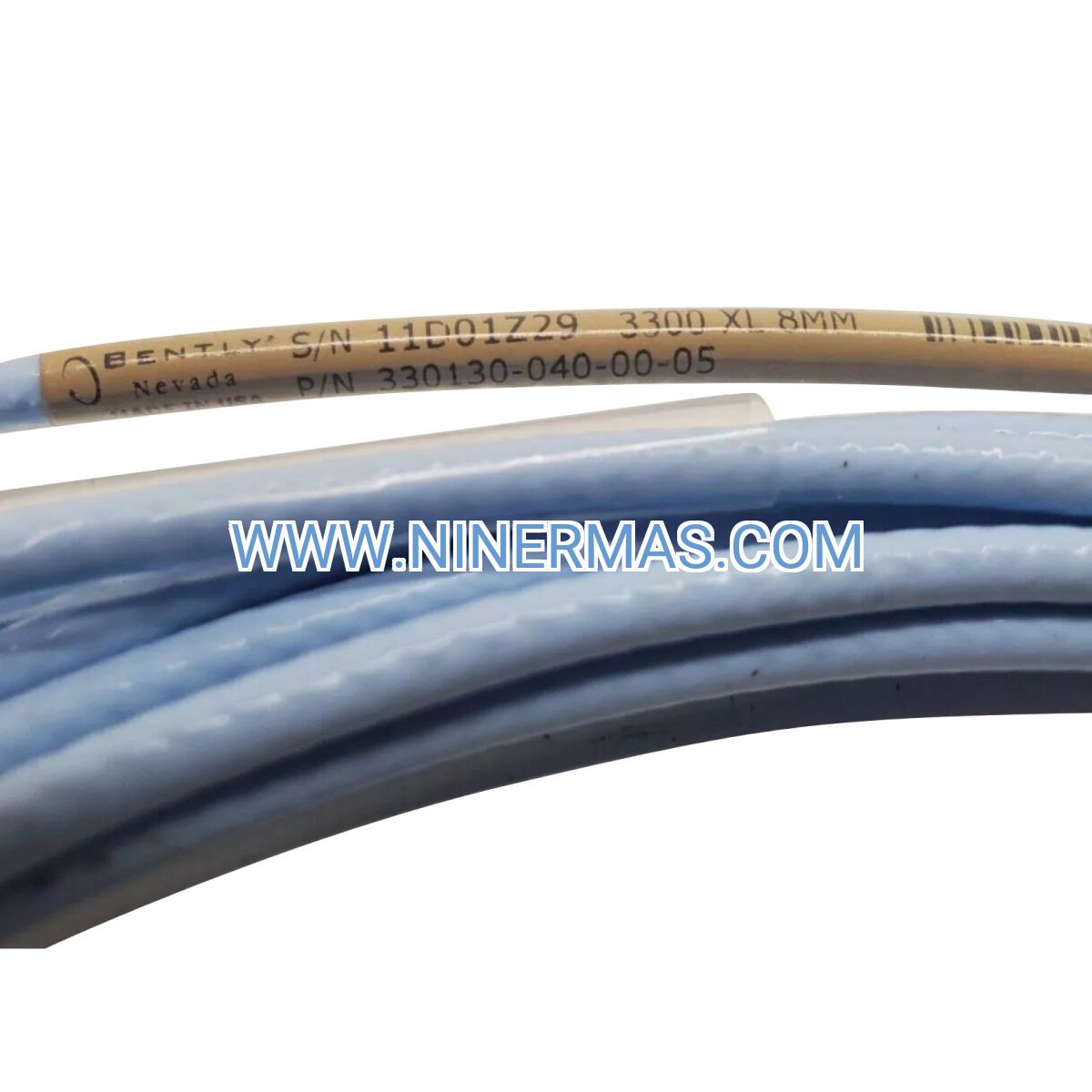

330130-040-00-05 Extension Cable (Industrial-Grade 3300 XL Component)

The 330130-040-00-05 represents a critical connectivity solution within Bently Nevada's 3300 XL proximity transducer ecosystem. Engineered as a 4.0-meter extension cable, this component bridges the gap between 8mm proximity probes and Proximitor sensors in demanding industrial environments where machinery protection cannot be compromised.

Designed for rotating equipment engineers and maintenance teams managing critical assets in oil refineries, power plants, and chemical processing facilities, this cable addresses the persistent challenge of maintaining signal integrity across extended sensing distances while meeting stringent hazardous area certifications. When standard probe lengths fall short of installation requirements, the 330130-040-00-05 provides the certified extension path without sacrificing measurement accuracy.

What sets this cable apart is its triple-agency certification (CSA, ATEX, IECEx) combined with the patented ClickLoc connector system—delivering tool-free installation with 330N pull strength in environments where vibration, temperature extremes, and explosive atmospheres converge. Whether you're retrofitting legacy 3300 systems or deploying new XL configurations, this extension cable ensures your vibration monitoring infrastructure remains compliant and reliable.

Core Features & Benefits

→ Multi-Agency Hazardous Area Certification
CSA, ATEX, and IECEx approvals (Option 05) enable deployment in Zone 0/1 and Division 1 classified locations, eliminating the need for separate cable variants across global facilities. Reduces procurement complexity while ensuring regulatory compliance in petrochemical and offshore installations.

→ Patented ClickLoc Connector Technology
Finger-tight installation with positive locking mechanism prevents accidental disconnection in high-vibration environments. Gold-plated miniature coaxial contacts resist corrosion while maintaining 330N (75 lbf) pull strength—no crimping tools or specialized training required for field technicians.

→ Precision-Matched Electrical Characteristics
Triaxial FEP-insulated construction maintains 69.9 pF/m capacitance and 0.88Ω core resistance within ±15% tolerance. Ensures linear system response across the full -10V to -2V operating range when properly length-matched with Proximitor sensors.

→ Extended Temperature Performance
0°C to +177°C operating range accommodates turbine bearing housings, compressor casings, and steam system applications where ambient temperatures fluctuate dramatically. FEP insulation resists chemical exposure and maintains dielectric properties across thermal cycles.

→ Backward Compatibility Architecture
Interchangeable with legacy 3300 series 5mm and 8mm non-XL components, protecting existing infrastructure investments during phased upgrades. System automatically defaults to appropriate performance specifications based on component mix.

✓ EMC Compliance Without Additional Shielding
Satisfies European CE mark electromagnetic compatibility requirements in standard installations—no metallic conduit or supplementary shielding needed for most industrial environments, reducing installation costs and complexity.

Typical Application Scenarios

Steam Turbine Bearing Monitoring in Power Generation
When turbine pedestals require probe mounting 4 meters from the nearest Proximitor location due to space constraints or thermal zones, the 330130-040-00-05 extends sensing reach while maintaining the ±0.5% linearity required for early fault detection. Pairs with 1.0m probes to create 5.0m total system length for standard Proximitor configurations.

Offshore Platform Gas Compressor Protection
ATEX Zone 1 certification enables direct installation in compressor enclosures where explosive atmospheres may occur during normal operations. The cable's pull strength withstands platform vibration and thermal expansion cycles across 20+ year service intervals without connector degradation.

Refinery Pump Retrofit Projects
When upgrading non-XL 3300 systems to XL specifications on critical process pumps, this cable integrates seamlessly with existing 5mm or 8mm probes during transition periods. Allows incremental migration to XL performance without complete system replacement, minimizing downtime and capital expenditure.

Cement Kiln Drive System Expansion
Extends vibration monitoring coverage to auxiliary drive motors and gearboxes located beyond standard probe cable reach. The 4.0m length bridges typical 2-3 meter gaps between rotating equipment and control panel mounting locations in dusty, high-temperature kiln environments.

Multi-Stage Compressor Train Configuration
Enables distributed Proximitor placement across compressor stages while centralizing monitoring equipment in climate-controlled analyzer houses. Reduces field wiring complexity by positioning Proximitors closer to measurement points, then using standard triad cable for the remaining distance to monitors.

Technical Parameters & Selection Guide

Selection Criteria for System Configuration:

Total system length (probe + extension cable) must match your Proximitor Sensor rating. Common configurations include: 1.0m probe + 4.0m extension = 5.0m Proximitor | 5.0m probe + 4.0m extension = 9.0m Proximitor. Verify Proximitor model number suffix (-50, -90, etc.) before ordering to ensure length compatibility.

For hazardous area installations, confirm that Option 05 (CSA/ATEX/IECEx) meets your specific zone classification requirements. Non-certified Option 00 is available for general industrial use where agency approvals are not mandated.

When mixing XL and non-XL components, system performance defaults to non-XL specifications (±2% linearity vs. ±0.5% for pure XL systems). For critical machinery requiring maximum accuracy, maintain component consistency within the XL family.

Extended Functions

Field Wiring Integration: The Proximitor Sensor output supports 0.2–1.5 mm² (16–24 AWG) 3-conductor shielded triad cable runs up to 305 meters (1,000 feet) to monitoring systems. This two-stage architecture (coaxial probe-to-Proximitor, then triad Proximitor-to-monitor) optimizes signal integrity while minimizing expensive coaxial cable usage.

Connector Protection Options: While standard Option 00 does not include connector protectors, harsh environments benefit from separately-ordered 40180-02 protector pairs (10 per package) or silicone tape 03200006 for temporary installations. Note that silicone tape is incompatible with turbine oil exposure.

System Diagnostics Compatibility: When paired with 3300 XL monitors featuring ADAPT (Automated Diagnostics and Prognostics Technology), the cable's electrical signature enables automated health monitoring—detecting connector degradation, insulation breakdown, or moisture ingress before measurement errors occur.

Modular Expansion Capability: Multiple extension cables can be daisy-chained using 330153-01 connector kits for custom lengths, though each additional connection point introduces minor capacitance and resistance. Consult factory application engineering for configurations exceeding two extension segments.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-5 business days. Custom configurations with non-standard options require 4-6 weeks factory lead time. Expedited processing available for critical outage support—contact our technical sales team for emergency procurement.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship from date of shipment. Warranty excludes damage from improper installation, chemical exposure beyond rated specifications, or mechanical abuse exceeding pull strength limits.

Technical Support: Our application engineers provide pre-sale system configuration assistance, including length matching calculations, certification verification, and compatibility assessments for mixed-component installations. Post-sale support includes troubleshooting guidance and RMA processing.

Documentation Package: Each cable ships with installation instructions, electrical specifications, and certification declarations. Complete 3300 XL system manuals (including probe, cable, and Proximitor integration) available for download from our technical library or upon request.

Frequently Asked Questions

Can this extension cable be used with 5mm proximity probes from the legacy 3300 series?
Yes, the 330130-040-00-05 maintains backward compatibility with both 5mm and 8mm non-XL probes. However, when mixing XL cables with non-XL probes, the overall system performance will conform to non-XL specifications (±2% linearity instead of ±0.5%). For maximum accuracy in critical applications, we recommend maintaining component consistency within either the XL or non-XL family.

What is the maximum total system length I can achieve by combining multiple extension cables?
While the 3300 XL architecture technically supports daisy-chaining extension cables, each additional connector introduces cumulative capacitance and resistance that can affect linearity. Bently Nevada recommends limiting total coaxial cable length (probe + extensions) to 9.0 meters for optimal performance. For longer distances, position the Proximitor Sensor closer to the probe and use standard triad cable (up to 305m) for the Proximitor-to-monitor connection.

Do I need special tools to install the ClickLoc connectors in the field?
No specialized tools are required for standard cable-to-cable or cable-to-Proximitor connections—the ClickLoc design enables finger-tight installation with positive tactile and audible feedback when properly seated. However, if you need to terminate custom field wiring to ClickLoc connectors, the 163356 crimp tool kit is necessary for proper contact installation.

How do I verify that my Proximitor Sensor is rated for the total system length after adding this extension cable?
Check the Proximitor model number suffix: -50 indicates 5.0m total system length, -90 indicates 9.0m, etc. Add your probe length plus extension cable length to determine total system length, then confirm it matches your Proximitor rating. For example, a 330180-50-05 Proximitor (5.0m rating) requires a combined probe + extension length of 5.0m—such as a 1.0m probe with this 4.0m extension cable.

Is this cable suitable for continuous operation in steam turbine bearing housing environments at 150°C?
Yes, the 330130-040-00-05 is rated for continuous operation from 0°C to +177°C, making it appropriate for most turbine bearing applications. The FEP insulation maintains its dielectric properties and mechanical integrity across this temperature range. However, ensure that connector areas remain within specification—if connector exposure exceeds +177°C, consider relocating the connection point or using thermal barriers.

What is the difference between Option 00 and Option 05 in the part number?
Option 05 includes CSA, ATEX, and IECEx hazardous area certifications, enabling installation in Zone 0/1 (ATEX) and Division 1 (CSA) classified locations where explosive atmospheres may be present. Option 00 is the standard industrial version without agency certifications, suitable for general-purpose applications. Both options share identical electrical and mechanical specifications—the difference is purely in certification documentation and markings.
