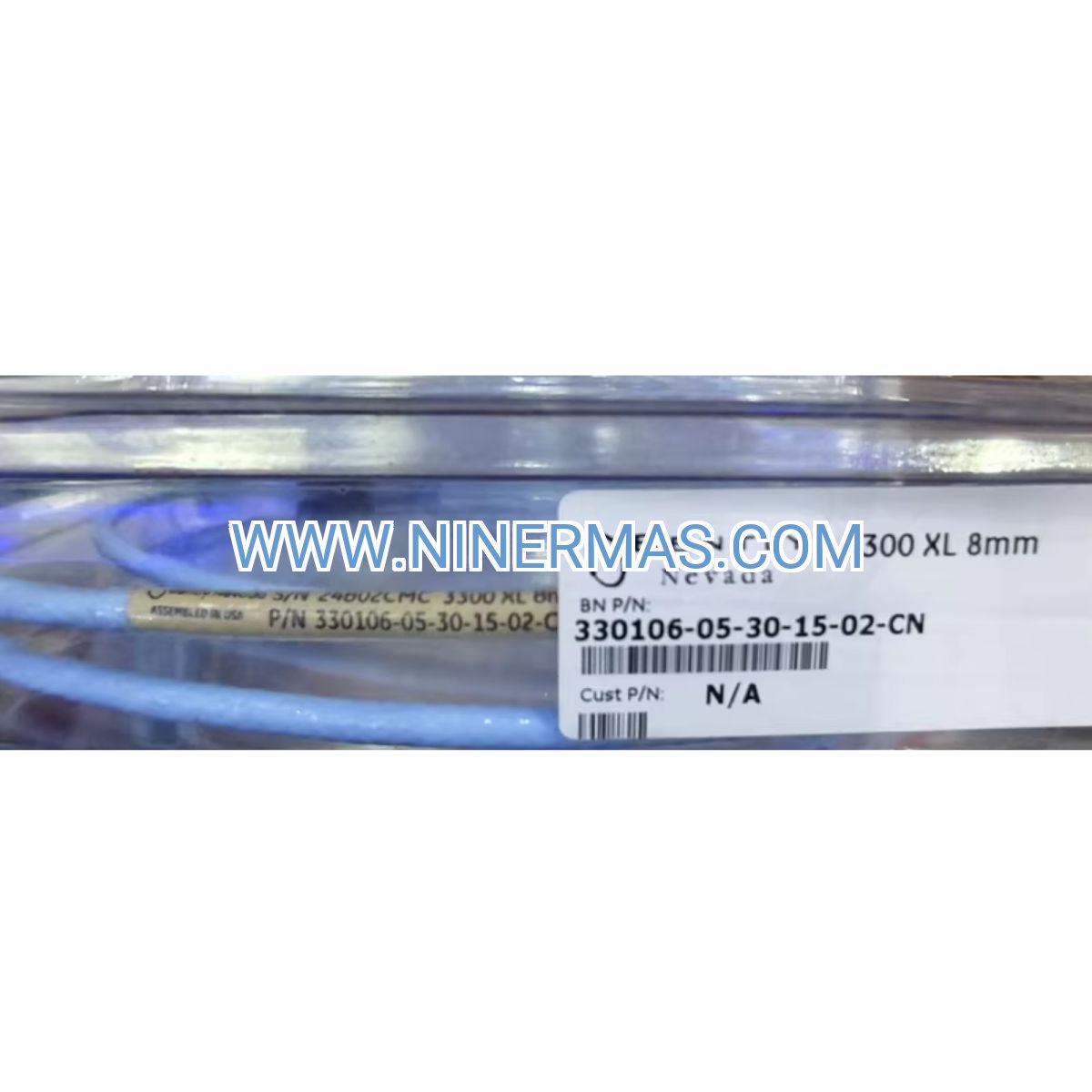

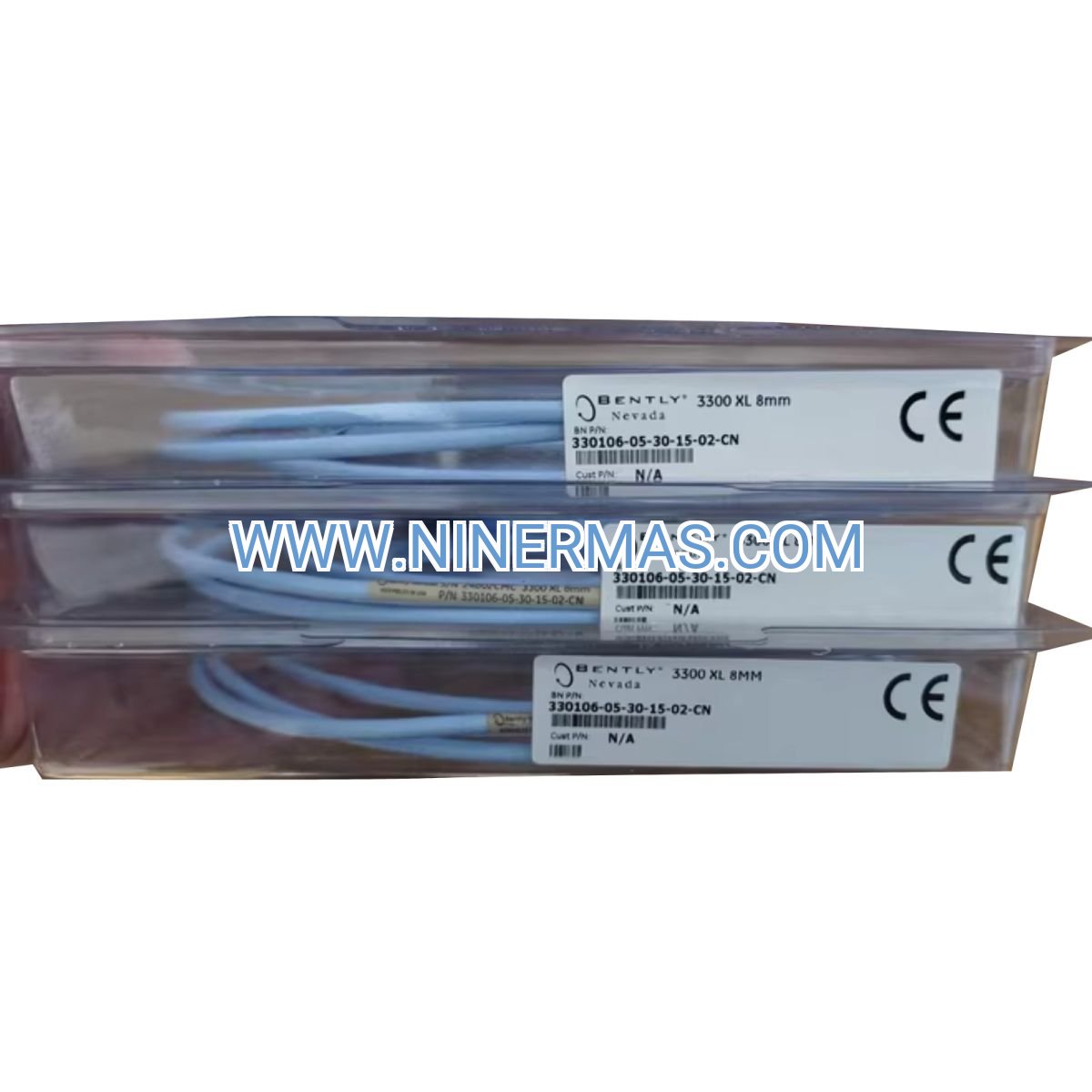

Bently Nevada 330106-05-30-15-02-05 Reverse Mount Proximity Probe (Industrial Vibration Monitoring Solution)

The Bently Nevada 330106-05-30-15-02-05 is a precision-engineered reverse mount proximity transducer designed for non-contact displacement and vibration measurement in critical rotating machinery. Through eddy current sensing technology and reverse mounting configuration, this probe enables real-time shaft position tracking, radial vibration analysis, and axial displacement monitoring in space-constrained installations.

Ideal for turbomachinery condition monitoring applications including steam turbines, gas compressors, centrifugal pumps, and high-speed generators, this sensor addresses challenges such as bearing wear detection, rotor eccentricity measurement, thrust position monitoring, and early fault diagnosis in continuous-operation equipment. Suitable for power generation plants, petrochemical facilities, oil & gas processing units, and heavy industrial manufacturing environments.

Leveraging field-proven 3300 series architecture with reverse connector orientation, the 330106-05-30-15-02-05 delivers exceptional electromagnetic immunity, thermal stability from -40°C to +85°C, and seamless integration with existing Bently Nevada monitoring infrastructure. Designed for OEMs, system integrators, maintenance engineers, and plant reliability teams requiring certified vibration sensing solutions. Contact our application engineers for system configuration, cable length selection, and installation guidance.

Core Features & Technical Advantages

Reverse Mount Design for Confined Spaces
Unique connector-reversed architecture allows probe installation in tight clearance areas, retrofit applications, and machinery housings where standard probe orientation is physically impossible, reducing installation complexity and enabling monitoring coverage in previously inaccessible measurement points.

Wide Operating Temperature Range
Certified performance across -40°C to +85°C ambient conditions ensures reliable operation in extreme environments including arctic installations, desert climates, and high-temperature process areas without signal degradation or calibration drift.

High-Frequency Response Capability
DC to 10 kHz bandwidth captures both slow-roll shaft position and high-frequency vibration events, enabling comprehensive machinery diagnostics from startup transients through full-speed operation, including blade pass frequencies and gear mesh harmonics.

Factory-Calibrated Output Signal
Linearized -2 to -18 Vdc output voltage proportional to target distance provides direct compatibility with 3300 series proximitor sensors, eliminating field calibration requirements and ensuring measurement consistency across multi-probe installations.

Robust Environmental Protection
Sealed construction with industrial-grade materials resists moisture ingress, chemical exposure, and mechanical shock, maintaining measurement integrity in harsh process environments with oil mist, steam leakage, and vibration transmission from adjacent equipment.

Plug-and-Play System Integration
Standardized electrical interface and mechanical dimensions ensure drop-in compatibility with existing Bently Nevada 3300 monitoring systems, extension cables, and proximitor housings, minimizing commissioning time and spare parts inventory complexity.

Typical Application Scenarios

This reverse mount proximity probe is engineered for demanding condition monitoring applications where measurement accuracy, installation flexibility, and long-term reliability are critical:

Steam & Gas Turbine Monitoring
Measures journal bearing clearance, thrust collar position, and rotor axial expansion in power generation turbines, providing early warning of bearing wear, thrust failure, and thermal growth anomalies that could lead to catastrophic blade rubs or shaft seizure.

Centrifugal Compressor Surveillance
Tracks radial shaft vibration and axial position in multi-stage compressors used in natural gas processing, air separation, and refrigeration systems, detecting surge conditions, impeller imbalance, and magnetic bearing instability before performance degradation occurs.

High-Speed Motor & Generator Protection
Monitors rotor eccentricity and bearing clearance in electric motors above 3,600 RPM and synchronous generators, identifying rotor bow, coupling misalignment, and foundation settling issues that compromise operational efficiency and equipment lifespan.

Industrial Pump Condition Monitoring
Provides continuous shaft displacement measurement in critical process pumps handling corrosive fluids, high-temperature liquids, and abrasive slurries, enabling predictive maintenance scheduling and preventing unplanned shutdowns in continuous production environments.

Paper Mill & Steel Rolling Equipment
Supports vibration analysis in high-load rotating machinery including dryer cylinders, calendar rolls, and rolling mill drive systems, where reverse mounting accommodates limited radial access and harsh operating conditions with temperature extremes and contamination exposure.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide comprehensive technical data for the 330106-05-30-15-02-05 reverse mount proximity probe. Custom configurations available for non-standard target materials, extended temperature ranges, and hazardous area certifications.

Selection Considerations: When specifying the 330106-05-30-15-02-05 probe, engineers should evaluate: target shaft material and surface finish, required measurement gap and linear range, ambient temperature and contamination levels, available mounting space and cable routing constraints, proximitor sensor compatibility and system voltage requirements. For applications involving non-ferrous targets (aluminum, titanium), high-temperature environments exceeding 85°C, or hazardous area installations requiring ATEX/IECEx certification, consult our application engineering team with detailed operating parameters including shaft diameter, rotational speed, expected vibration amplitude, and environmental classification.

System Integration & Compatibility

The 330106-05-30-15-02-05 reverse mount probe functions as part of a complete proximity measurement system requiring compatible components:

Required Proximitor Sensor: Bently Nevada 3300 XL 8mm or 5mm proximitor (such as 330180 or 330780 series) to provide excitation voltage, signal conditioning, and buffered output for monitoring systems or protection relays.

Extension Cable Options: When probe-to-proximitor distance exceeds integral cable length, use factory-matched extension cables (330130 series) maintaining total system length within 7.5 meters to preserve calibration accuracy and frequency response.

Monitoring System Interface: Output signals connect to Bently Nevada 3500 rack monitoring systems, ADAPT software platforms, or third-party DCS/SCADA systems via 4-20mA converters for continuous trending, alarm management, and predictive analytics.

Hazardous Area Barriers: For installations in Class I Division 1 or Zone 0 explosive atmospheres, install approved intrinsic safety barriers (such as Bently Nevada 330950 galvanic isolators) between proximitor and monitoring equipment per area classification requirements.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from regional distribution centers; custom configurations including non-standard cable lengths, special thread sizes, or extended temperature ratings require 2-3 weeks manufacturing lead time. All proximity probes include factory calibration certificates traceable to NIST standards, installation drawings with torque specifications, and comprehensive technical documentation covering electrical connections, gap voltage settings, and troubleshooting procedures.

Every 330106-05-30-15-02-05 probe is backed by a 12-month warranty covering material defects and workmanship failures under normal operating conditions. Technical support services include remote installation guidance, system commissioning assistance via video consultation, and on-site startup support available in major industrial regions (subject to location and project scope). Complete documentation package includes probe dimensional drawings, electrical schematics, proximitor wiring diagrams, and calibration data sheets for maintenance records and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: How does a reverse mount proximity probe differ from standard mounting configuration?
A: Reverse mount probes feature the electrical connector positioned on the opposite end from the sensing tip (180° rotation from standard orientation), allowing installation in machinery housings with limited radial clearance or obstructed cable routing paths. Electrically and mechanically, performance specifications remain identical to standard mount versions with the same model suffix.

Q: What is the maximum number of probes that can be monitored with a single proximitor sensor?
A: Each Bently Nevada 3300 proximitor conditions one proximity probe. Multi-channel monitoring requires individual proximitors for each measurement point, typically housed in junction boxes or rack-mounted monitor frames. For XY vibration measurement, two probes positioned 90° apart require two proximitors feeding a single monitor channel.

Q: What level of vibration reduction can be achieved through proximity probe monitoring?
A: Proximity probes enable condition-based maintenance strategies that reduce unplanned downtime by 30-50% and extend bearing life by 20-40% through early fault detection. Actual performance improvement depends on baseline equipment condition, maintenance response protocols, and integration with comprehensive vibration analysis programs including trending, alarm setpoints, and diagnostic expertise.

Q: What are the environmental installation requirements and protection class?
A: The probe body achieves IP65 ingress protection when properly installed with thread sealant and cable gland sealing. Ambient operating range spans -40°C to +85°C; target surface temperature may reach 120°C with appropriate gap adjustment. Avoid direct water spray, submersion, or corrosive chemical contact. For marine, offshore, or severe corrosive environments, specify stainless steel housing options.

Q: Does this probe support remote monitoring and digital communication protocols?
A: The 330106-05-30-15-02-05 provides analog voltage output through the proximitor sensor. Digital connectivity requires integration with Bently Nevada 3500 rack systems offering Modbus TCP/IP, OPC-UA, or proprietary protocols, or connection to third-party vibration monitors with Ethernet, Profibus, or Foundation Fieldbus interfaces. Cloud-based remote monitoring achievable through compatible edge gateways and IIoT platforms.

Q: Can this proximity probe be used for absolute shaft position measurement or only vibration?
A: Yes, the DC-coupled output enables both dynamic vibration measurement (AC component) and static position measurement (DC component). Applications include turbine thrust position monitoring, compressor rotor float measurement, and slow-roll runout compensation. Measurement accuracy depends on target material consistency, surface finish quality, and thermal stability of the installation.

Request Technical Support & Custom Configuration

For detailed application engineering, system design assistance, or custom probe specifications, please provide the following project information: equipment type and manufacturer, shaft material and diameter, operating speed range (RPM), expected vibration levels, ambient temperature and environmental conditions, required measurement points and probe quantity, existing monitoring system details (if retrofit application). Our vibration specialists will deliver tailored recommendations including probe selection, proximitor pairing, cable routing strategies, and installation best practices within 24-48 hours.
