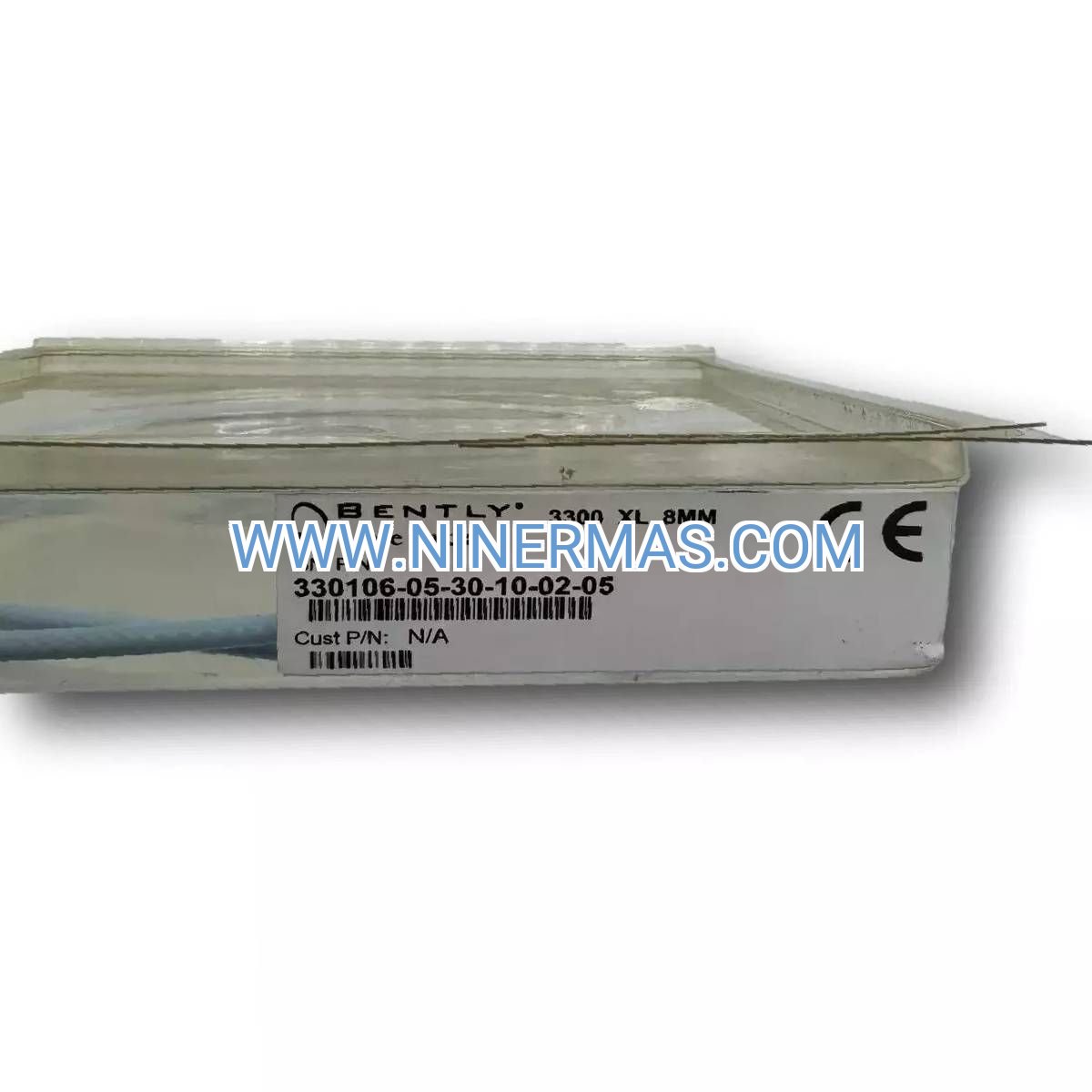

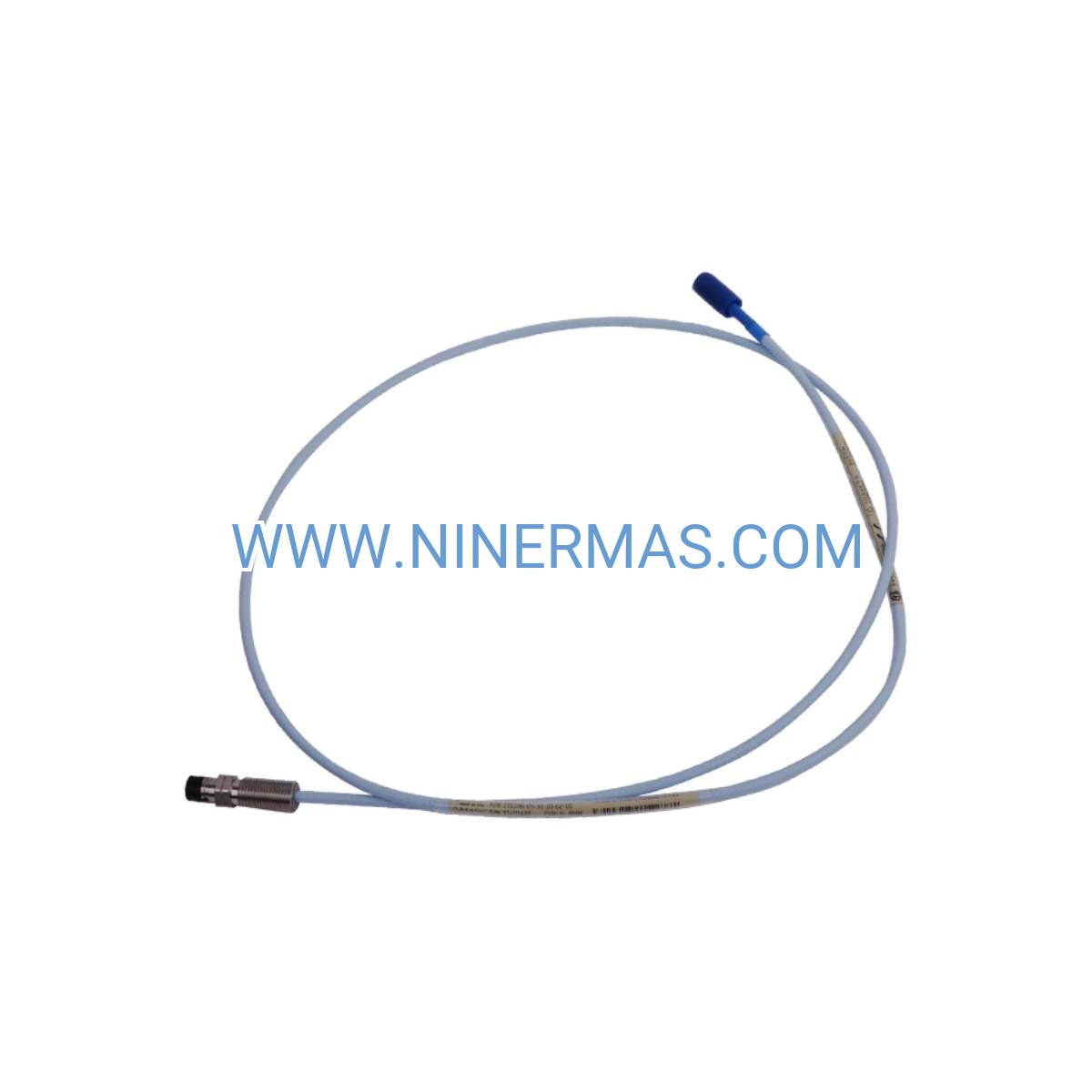

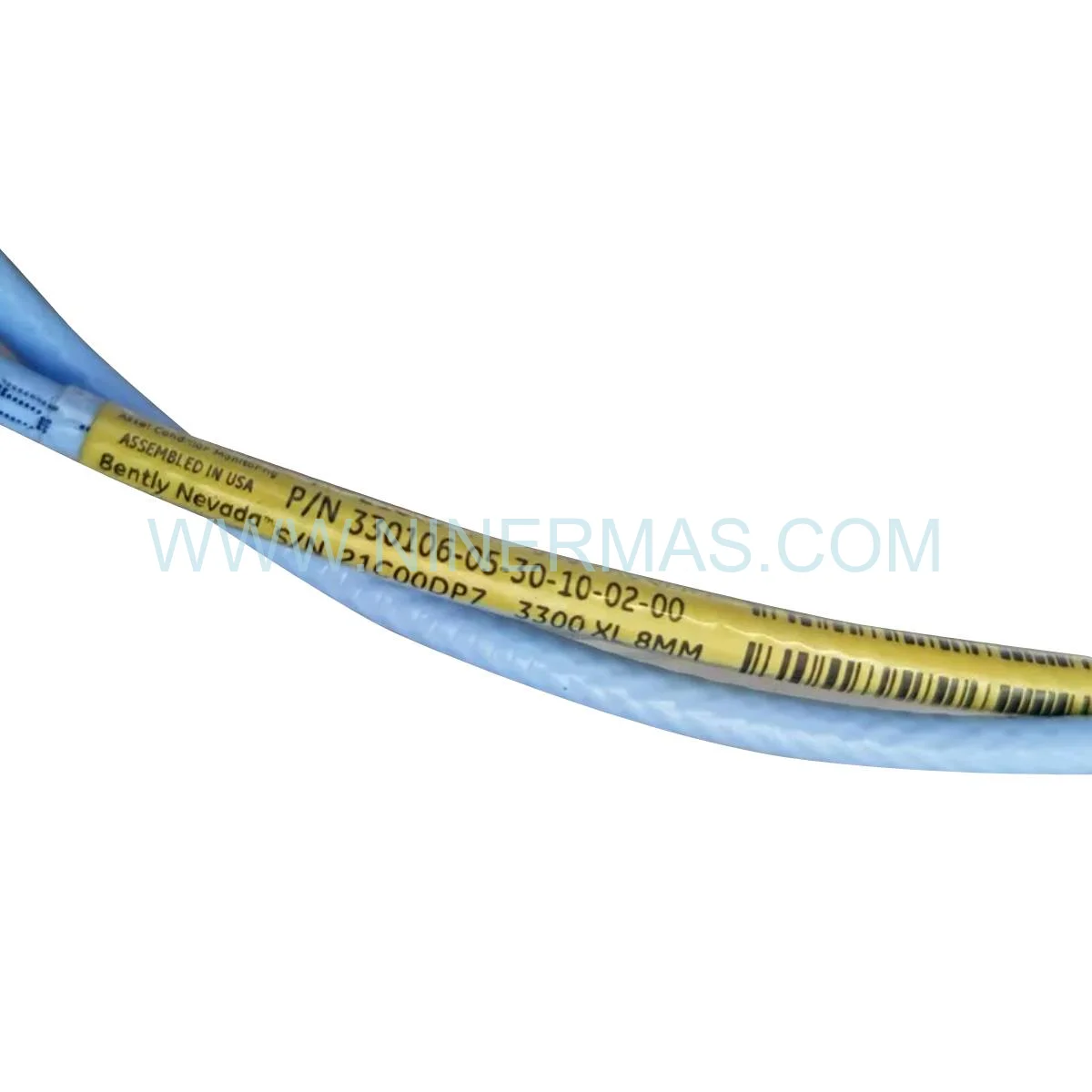

330106-05-30-10-02 Reverse Mount Proximity Sensor (Industrial-Grade 8mm Probe)

The 330106-05-30-10-02 represents a precision-engineered eddy-current proximity sensor designed for continuous shaft displacement monitoring in mission-critical rotating equipment. This 8mm reverse mount probe integrates seamlessly with Bently Nevada 3300 XL monitoring architectures, delivering sub-micron accuracy across extreme temperature ranges from -40°C to +85°C.

Engineered for power generation, petrochemical processing, and heavy industrial applications, this sensor addresses the fundamental challenge of real-time machinery health assessment. Plant engineers and reliability teams deploy this probe to detect bearing wear, shaft misalignment, and catastrophic failure precursors before unplanned downtime occurs. The reverse mount configuration solves installation constraints in retrofit scenarios and space-limited machinery housings where conventional forward-mount sensors cannot physically fit.

With M10 x 1 metric threading and armored cable compatibility, the 330106-05-30-10-02 delivers field-proven reliability in environments subject to vibration, electromagnetic interference, and thermal cycling. When integrated with compatible proximitor signal conditioners, this probe enables predictive maintenance strategies that reduce maintenance costs by 25-40% while extending equipment service life.

Core Features & Benefits

✓ Reverse Mount Architecture
Threads from the rear mounting surface, enabling installation in confined spaces and retrofit applications where front-side access is restricted. Reduces installation time by 30-50% compared to alternative mounting methods.

✓ Extended Temperature Performance
Operates continuously from -40°C to +85°C without calibration drift, making it suitable for arctic compressor stations, desert power plants, and high-temperature turbine applications. Maintains ±1% linearity across the full thermal range.

✓ 10 kHz Frequency Response
Captures high-speed transient events and harmonic vibration components up to 10,000 Hz, essential for detecting blade pass frequencies, gear mesh issues, and bearing defect signatures in machinery operating above 10,000 RPM.

→ 2.0mm Linear Measurement Range
Provides 0.079-inch displacement tracking with linear voltage output, sufficient for monitoring journal bearing clearances, thrust position changes, and rotor eccentricity in standard industrial machinery configurations.

→ ISO Metric Threading Standard
M10 x 1 threads ensure compatibility with global mounting hardware specifications, simplifying procurement and reducing installation errors across multi-site deployments.

→ Eddy-Current Sensing Technology
Non-contact measurement eliminates mechanical wear and friction-induced failures, delivering 10+ year service life in continuous-duty applications with zero consumable parts replacement.

Typical Application Scenarios

Steam Turbine Vibration Monitoring
In combined-cycle power plants, this probe monitors journal bearing displacement on 50-300 MW turbine-generator sets. By detecting 0.025mm shaft position changes, operators receive early warning of bearing degradation 4-6 weeks before critical failure thresholds, preventing catastrophic rotor-to-stator contact events that cost $2-5 million in emergency repairs.

Centrifugal Compressor Protection
Petrochemical facilities deploy these sensors on multi-stage compressors handling corrosive gases at 15,000+ RPM. The reverse mount design accommodates tight radial clearances around impeller housings, while the 10 kHz bandwidth captures surge-induced vibration spikes that standard 1 kHz sensors miss, reducing unplanned shutdowns by 60%.

Hydroelectric Generator Thrust Monitoring
Vertical shaft hydro units use this probe to track axial float and magnetic center position. The extended temperature range handles seasonal ambient variations in outdoor powerhouses, while the 2.0mm range accommodates normal thermal expansion without false alarms, improving system availability from 94% to 98.5%.

Gas Pipeline Compressor Stations
Remote unmanned stations rely on this probe for autonomous machinery protection. The sensor's immunity to electromagnetic interference from VFD drives and high-voltage switchgear ensures reliable operation in electrically noisy environments, enabling remote condition monitoring that reduces site visits by 70%.

Industrial Fan and Blower Systems
Cement plants, steel mills, and mining operations install these probes on induced draft fans and primary air blowers. The rugged construction withstands particulate-laden atmospheres and thermal shock from process upsets, maintaining calibration accuracy within ±2% over 5-year intervals between recertification.

Technical Parameters & Selection Guide

Selection Criteria: Choose this 8mm reverse mount probe when machinery access requires rear-side installation, operating speeds exceed 3,000 RPM, or ambient temperatures fall outside standard -20°C to +60°C ranges. For forward-mount applications with standard access, consider conventional probe configurations. For non-ferrous shafts (aluminum, titanium), apply manufacturer-specified sensitivity correction factors or select capacitance-based proximity sensors.

Extended Functions

IoT Integration Capability: When paired with Bently Nevada Orbit 60 or System 1 software platforms, this probe enables cloud-based vibration analytics, machine learning anomaly detection, and fleet-wide asset performance benchmarking. Digital twin integration supports predictive failure modeling with 85-92% accuracy.

Multi-Channel Synchronization: Supports phase-locked measurements across 4-8 probe arrays for modal analysis, orbit plotting, and rotor dynamic characterization. Time-stamped data acquisition enables cross-channel correlation for complex diagnostic workflows.

Customization Options: Available with extended cable lengths (up to 15 meters), high-temperature cable jackets (to 200°C), and explosion-proof certifications (ATEX, IECEx) for hazardous area installations. Custom calibration certificates traceable to NIST standards available upon request.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Expedited same-day shipping available for critical outage support at additional cost.

Custom Configuration Lead Time: 10-15 business days for non-standard cable lengths, special certifications, or factory witness testing requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, material failures, and calibration drift beyond published specifications. Extended 36-month warranty programs available for high-reliability applications.

Technical Support: Unlimited phone and email consultation with certified vibration analysts and instrumentation engineers. On-site commissioning assistance and training available in major industrial regions.

Documentation Package: Each probe ships with calibration certificate, installation manual, dimensional drawings (DXF/PDF), and material certifications (MTR). 3D CAD models (STEP/IGES) available for download.

Frequently Asked Questions

What installation torque specification should be applied to the M10x1 threads?
Apply 15-20 N⋅m (11-15 lb-ft) torque using a calibrated wrench. Over-torquing beyond 25 N⋅m may deform the probe body and affect calibration. Use anti-seize compound on threads for installations subject to thermal cycling.

How does reverse mount configuration affect measurement accuracy compared to standard probes?
Measurement accuracy remains identical (±1% of full scale) regardless of mounting orientation. The reverse mount design only changes mechanical installation approach, not the eddy-current sensing principle or electrical performance characteristics.

Can this proximity sensor operate with non-Bently Nevada proximitor modules?
While physically compatible with some third-party -24V proximitors, optimal performance requires Bently Nevada 3300 XL series signal conditioners. Using non-approved proximitors may void warranty and introduce calibration errors up to ±5%.

What minimum shaft diameter is required for accurate displacement measurement?
Target shaft diameter should be at least 25mm (1 inch) to minimize edge effects and curvature-induced errors. For smaller shafts (15-25mm), apply manufacturer-supplied correction factors or consider 5mm probe alternatives.

Does the probe require periodic recalibration in continuous service?
Factory calibration remains stable for 5+ years in typical industrial environments. Annual verification against known gap standards is recommended for critical safety applications. Recalibration is mandatory after physical damage, cable replacement, or exposure to temperatures exceeding +100°C.

How is electromagnetic interference immunity achieved in electrically noisy environments?
Armored cable construction provides 360° shielding against radiated EMI. Proper grounding of the proximitor chassis and maintaining cable separation (minimum 150mm) from high-voltage conductors ensures <2% measurement error in fields up to 10 V/m.

Take the Next Step

Protect your critical rotating assets with proven proximity sensing technology. Contact our technical sales team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific machinery monitoring requirements, request dimensional drawings, or place an order. Volume discounts available for multi-unit installations and OEM integrations.
