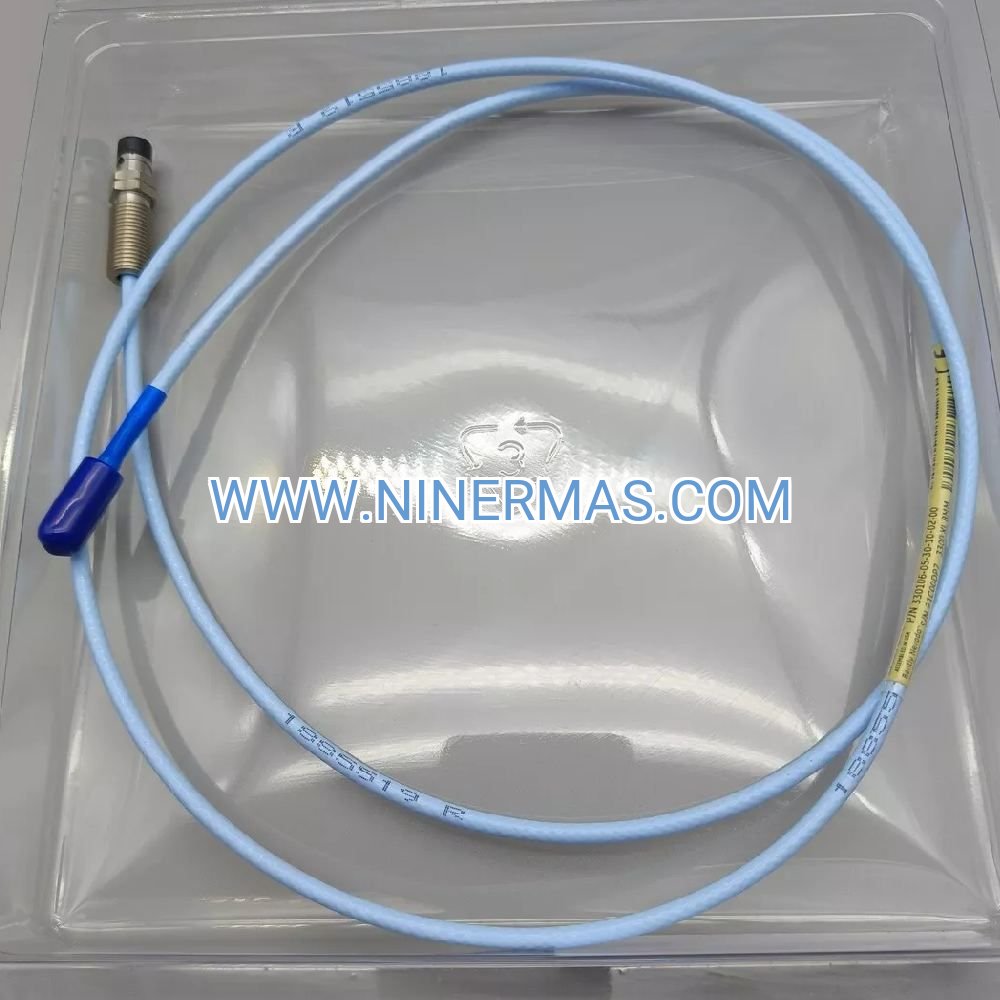

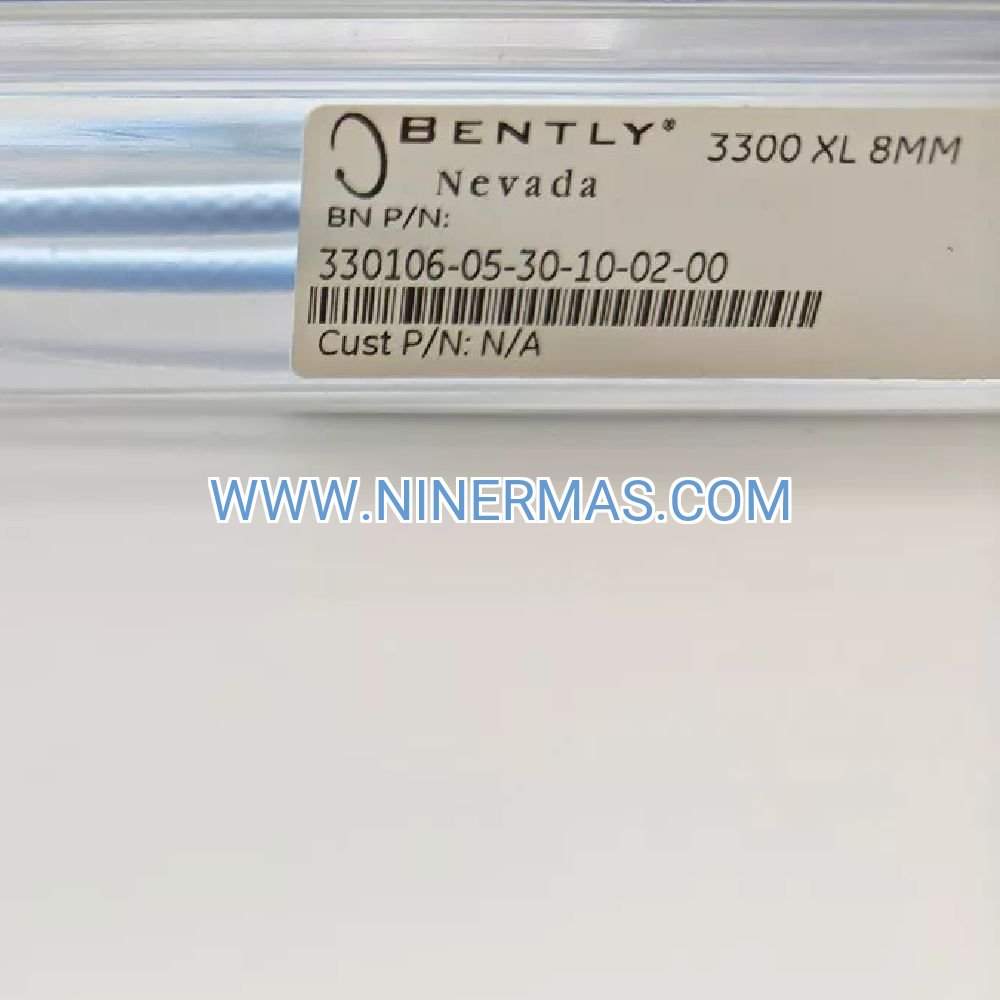

330106-05-30-10-02-00 Reverse Proximity Sensor (Industrial-Grade 8mm Eddy Current Probe)

The 330106-05-30-10-02-00 represents a specialized reverse-mount eddy current proximity sensor engineered for demanding turbomachinery applications. This 8mm diameter probe delivers precise shaft displacement and radial vibration measurements in rotating equipment where conventional forward-mount sensors cannot be installed due to mechanical constraints or accessibility limitations.

Designed for power generation facilities, petrochemical plants, and heavy industrial operations, this sensor addresses critical machinery protection challenges by enabling vibration monitoring from the non-observed side of bearing housings. Plant engineers and maintenance teams rely on this reverse-mount configuration to implement comprehensive condition monitoring systems without costly equipment modifications or extended downtime.

With API 670 certification and proven reliability across thousands of installations worldwide, the 330106-05-30-10-02-00 ensures continuous protection for steam turbines, gas compressors, centrifugal pumps, and high-speed generators operating in mission-critical processes.

Core Features & Benefits

→ Reverse-Mount Design Flexibility
Unique installation capability from the back side of measurement targets eliminates mechanical redesign costs and enables sensor placement in space-constrained environments where traditional probes cannot reach.

→ Extended Temperature Performance
Operates reliably from -40°C to +105°C (-40°F to +221°F), maintaining measurement accuracy in extreme ambient conditions including arctic installations and high-temperature process areas.

→ Wide Frequency Response Range
Captures vibration events from DC to 10 kHz with flat frequency response, detecting both slow-roll shaft position and high-frequency bearing defects within a single measurement channel.

→ Factory-Calibrated System Integration
Pre-calibrated for 4140 steel targets with documented linearity specifications, reducing commissioning time and ensuring measurement consistency across multi-probe installations.

→ Robust Stainless Steel Construction
316 stainless steel housing withstands corrosive atmospheres, high-pressure washdown environments, and mechanical shock loads typical in industrial turbomachinery installations.

✓ 5-Meter Integral Cable
Factory-terminated low-noise cable assembly eliminates field termination errors and provides sufficient length for most bearing housing to junction box routing requirements.

Typical Application Scenarios

Steam Turbine Generator Sets
Monitor journal bearing vibration and thrust position in multi-stage steam turbines where reverse-mount installation accommodates existing bearing housing designs without machining modifications. Prevents catastrophic bearing failures by detecting abnormal shaft motion patterns before damage occurs, protecting assets valued at millions of dollars.

Centrifugal Compressor Trains
Measure radial shaft displacement at each bearing location in back-to-back compressor configurations where space limitations prevent standard probe mounting. Early detection of surge conditions, bearing wear, and rotor unbalance reduces unplanned shutdowns by 40-60% compared to periodic inspection programs.

Gas Turbine Power Generation
Implement continuous shaft vibration monitoring on industrial gas turbines operating in peaking power and combined-cycle applications. Real-time vibration trending identifies combustion instability, blade fouling, and coupling misalignment before performance degradation impacts grid reliability.

Petrochemical Process Pumps
Protect high-energy pipeline pumps handling volatile hydrocarbons by monitoring shaft position and detecting cavitation-induced vibration. Reverse-mount configuration enables sensor installation on existing pump designs without pressure boundary modifications or hot work permits.

Paper Mill Roll Monitoring
Track roll eccentricity and bearing condition in high-speed paper machine dryer sections where forward-mount sensors interfere with web path geometry. Predictive maintenance based on vibration trends extends bearing life by 25-35% and reduces web breaks.

Technical Parameters & Selection Guide

Selection Criteria: Choose reverse-mount probes when mechanical design prevents forward installation, when retrofitting existing equipment without housing modifications, or when probe accessibility from the observed side creates safety concerns. Verify target surface finish meets 1.6 μm Ra maximum for optimal linearity. For cable runs exceeding 5 meters, specify extension cables maintaining total system length within 100 meters.

Extended Functions

Multi-Channel System Integration: Deploy multiple 330106-05-30-10-02-00 probes in XY probe pairs for complete radial vibration vector analysis. Integrate with keyphasor modules for phase-resolved vibration measurements enabling precise balancing and alignment diagnostics.

Remote Monitoring Connectivity: Connect to modern condition monitoring platforms supporting IIoT protocols for cloud-based vibration trending, automated alarm notification, and predictive analytics using machine learning algorithms trained on historical failure patterns.

Hazardous Area Deployment: Combine with intrinsically safe barriers and certified proximitor modules for Class I Division 1 and ATEX Zone 1 installations in explosive atmospheres. Complete system certification documentation available for regulatory compliance verification.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock items shipped from regional distribution centers. Expedited same-day shipping available for emergency breakdown situations requiring immediate sensor replacement.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, material failures, and workmanship issues. Extended warranty programs available for critical machinery applications requiring long-term protection.

Technical Support: Access to application engineers with turbomachinery expertise for installation guidance, troubleshooting assistance, and system optimization recommendations. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Complete technical manual including installation procedures, calibration data sheets, dimensional drawings, and material certifications. Compliance documentation for API 670, ISO 20816, and relevant industry standards included with each shipment.

Frequently Asked Questions

How does reverse-mount installation differ from standard proximity probe mounting?
Reverse-mount probes thread into the bearing housing from the back side, with the sensing tip extending toward the shaft from the non-observed direction. This configuration solves accessibility problems in tight spaces while delivering identical measurement performance to forward-mount designs when properly installed with correct gap settings.

What proximitor modules are compatible with this proximity sensor?
The 330106-05-30-10-02-00 works with all 3300 XL and 3500 series proximitor modules including single-channel, dual-channel, and quad-channel configurations. System compatibility extends across the complete Bently Nevada machinery protection portfolio for flexible monitoring architecture design.

Can I extend the cable length beyond the factory-supplied 5 meters?
Yes, use genuine 3300 XL extension cables maintaining total system length within 100 meters maximum. Extension cables feature impedance-matched construction and proper shielding to preserve signal integrity. Avoid field-fabricated extensions which introduce measurement errors and noise susceptibility.

What target surface finish is required for accurate vibration measurements?
Target surface finish should be 1.6 μm Ra (63 microinches) or better for optimal linearity and minimal electrical runout. Rougher surfaces increase measurement uncertainty and reduce usable linear range. Shaft areas used for proximity measurements typically require grinding or polishing during manufacturing.

Does this sensor require periodic recalibration during service life?
No, eddy current proximity sensors maintain factory calibration throughout their operational life under normal conditions. Recalibration becomes necessary only if the probe is damaged, if target material changes, or if system verification testing indicates measurement drift beyond acceptable tolerances.

What installation gap should I set for optimal measurement range?
Install with 1.0 to 1.5mm (40 to 60 mils) gap for center-of-linear-range operation. This provides maximum dynamic measurement capability while maintaining adequate margin from electrical runout limits. Use proximitor module gap voltage readings to verify correct installation gap during commissioning.

Request Technical Consultation

Our turbomachinery specialists help you design complete vibration monitoring systems tailored to your specific equipment configuration and protection requirements. Contact us for application-specific recommendations, system architecture design, and integration support.
