8mm Reverse Mount Proximity Probe (Industrial-Grade Vibration Sensor)

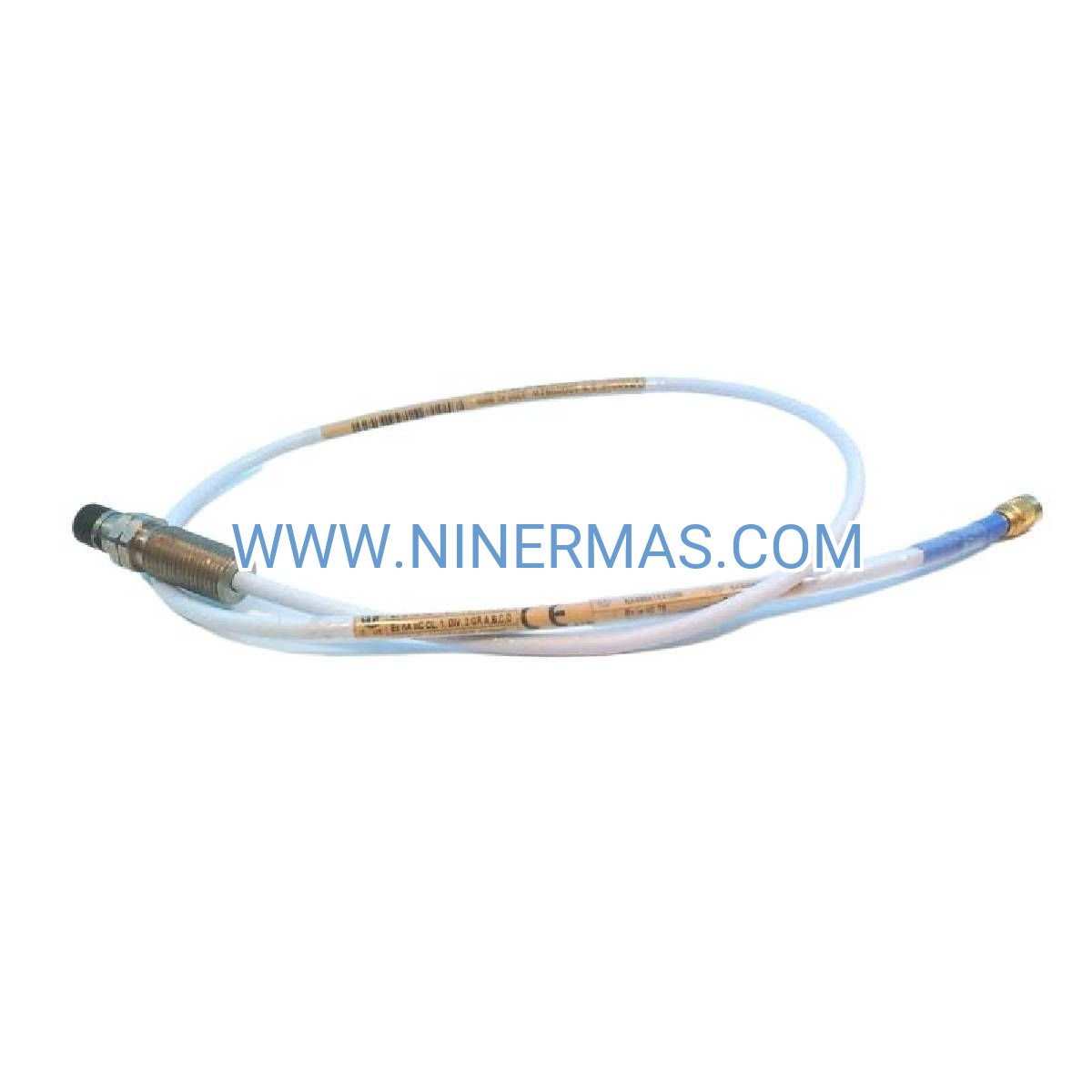

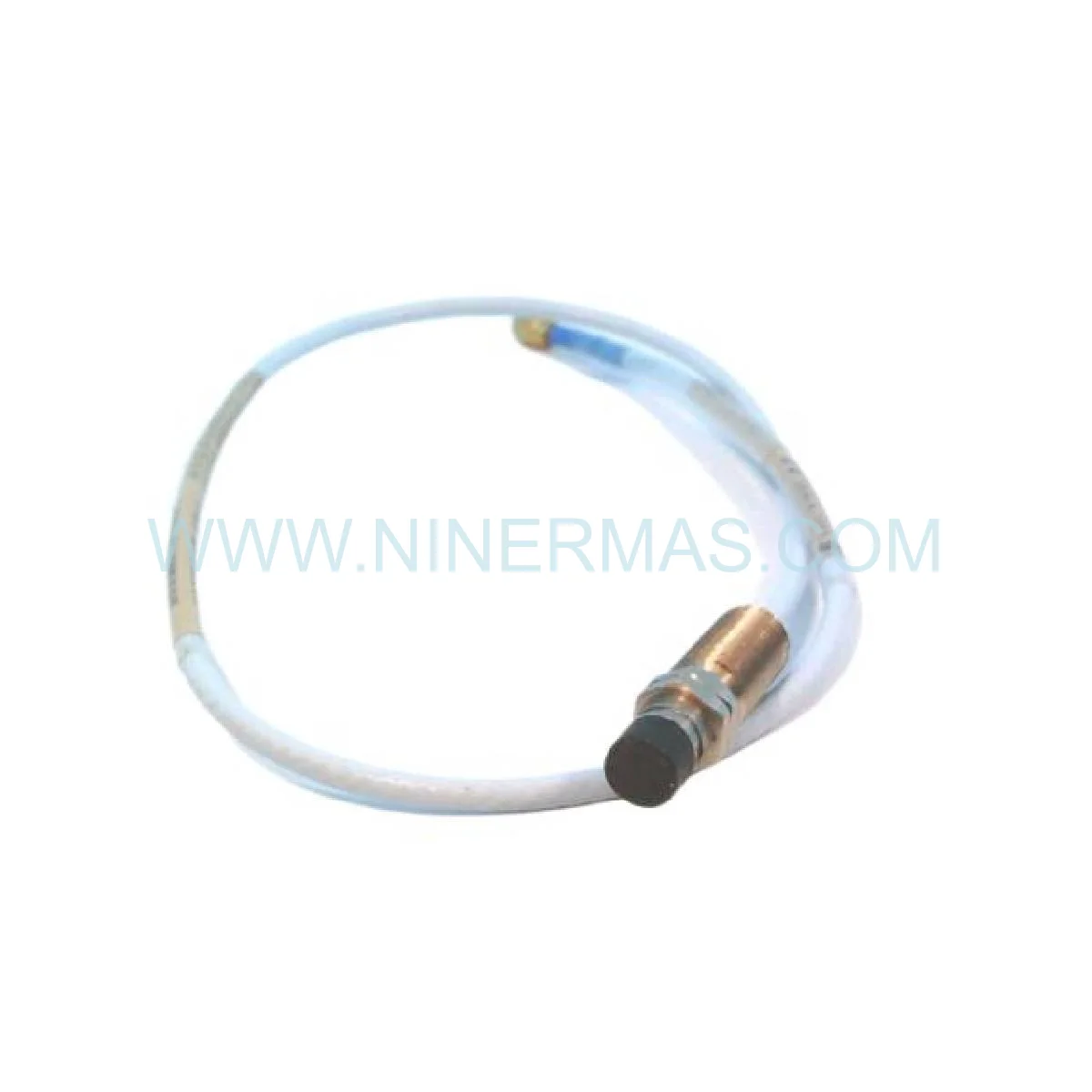

The 330106-05-30-05-02-05 is a precision-engineered 8mm reverse mount proximity probe designed for continuous vibration monitoring in mission-critical rotating equipment. Built for installations where conventional front-mount sensors are impractical, this industrial sensor delivers reliable shaft displacement data in turbines, compressors, pumps, and high-speed motors. Engineered with TipLoc and CableLoc retention systems, it maintains calibration accuracy under extreme vibration and temperature cycling, making it the preferred choice for predictive maintenance programs in power generation, oil & gas, and process industries.

Targeting maintenance engineers, reliability teams, and OEM integrators, this probe solves the challenge of monitoring bearing health and rotor dynamics in confined spaces. Whether you're retrofitting legacy machinery or designing new installations, the reverse mount configuration enables access to critical measurement points previously deemed inaccessible. With a proven track record in harsh industrial environments, this sensor reduces unplanned downtime by detecting early-stage faults—unbalance, misalignment, bearing wear, and shaft rubs—before catastrophic failure occurs.

Key advantages include wide operating temperature range (-40°C to +125°C), high-frequency response (0-10 kHz), and seamless compatibility with Bently Nevada 3300 XL and 3500 monitoring platforms. The M12 x 1.5 threaded design ensures secure mounting, while armored cable compatibility protects signal integrity in electrically noisy environments. Invest in proven technology that delivers measurable ROI through extended asset life and optimized maintenance scheduling.

Core Features & Business Value

→ Reverse Mount Design
Enables sensor installation in space-constrained locations where traditional probes cannot reach, expanding monitoring coverage across your asset base without costly equipment modifications.

✓ TipLoc & CableLoc Retention
Mechanical locking systems prevent probe migration and cable movement during operation, eliminating false alarms and reducing recalibration frequency by up to 60% compared to standard designs.

• Extended Temperature Range (-40°C to +125°C)
Operates reliably in extreme thermal environments—from Arctic outdoor installations to high-temperature turbine casings—without performance degradation or sensor drift.

1. Wide Frequency Response (0-10 kHz)
Captures both low-speed imbalance signatures and high-frequency bearing defect patterns in a single sensor, reducing hardware costs and simplifying system architecture.

2. 1.0mm Linear Range
Provides accurate displacement measurements across the full operating clearance of most industrial bearings, ensuring early detection of wear progression and rotor eccentricity.

3. Armored Cable Compatibility
Supports ruggedized extension cables for installations exposed to mechanical abuse, chemical exposure, or electromagnetic interference, protecting signal quality in the harshest conditions.

Typical Application Scenarios

Steam Turbine Bearing Monitoring
In power generation facilities, this probe monitors journal bearing clearances and thrust position in steam turbines operating at 3,600 RPM. The reverse mount configuration allows installation through existing inspection ports without turbine disassembly. Early detection of bearing wear has enabled operators to schedule maintenance during planned outages, avoiding forced shutdowns that cost $500K+ per day in lost generation capacity.

Centrifugal Compressor Vibration Analysis
Oil & gas processing plants deploy these sensors on multi-stage centrifugal compressors handling corrosive gases. The probe's high-frequency response captures impeller rubs and seal degradation signatures, while the extended temperature rating accommodates process temperatures up to 120°C. Predictive alerts have reduced compressor failures by 40% and extended mean time between overhauls (MTBO) from 24 to 36 months.

Gearbox Axial Position Tracking
Wind turbine gearboxes utilize reverse mount probes to monitor thrust bearing condition and detect gear tooth wear patterns. The TipLoc retention system maintains sensor position despite continuous vibration and thermal cycling, providing reliable data for condition-based maintenance strategies that have cut gearbox replacement costs by 25%.

Pump Shaft Displacement Measurement
Chemical processing facilities install these probes on high-pressure pumps handling abrasive slurries. The sensor's 1.0mm linear range tracks shaft runout and bearing clearance growth, triggering maintenance interventions before seal failure and product contamination occur. This proactive approach has reduced pump-related process interruptions by 55%.

Motor Rotor Eccentricity Detection
Large induction motors (>500 HP) in mining and metals applications use reverse mount probes to monitor air gap uniformity and detect rotor bar cracking. Integration with DCS systems enables automated shutdown sequences when vibration thresholds are exceeded, preventing catastrophic motor failures that require 8-12 week lead times for replacement.

Technical Parameters & Selection Guide

Selection Recommendations: For installations with bearing clearances exceeding 1.2mm, consider extended-range probe variants. In applications with process temperatures above 100°C, specify high-temperature cable assemblies rated to 200°C. When monitoring machinery with running speeds below 600 RPM, verify that your monitoring system supports the low-frequency content (sub-10 Hz) critical for detecting slow-roll imbalance. For explosive atmospheres (ATEX/IECEx zones), consult factory for intrinsically safe barrier requirements.

Extended Functionality

IoT Integration Capabilities
When paired with Bently Nevada Orbit 60 series gateways, probe data streams to cloud-based analytics platforms for machine learning-driven anomaly detection. Remote diagnostics enable expert analysis without site visits, reducing troubleshooting time by 70%.

Dual-Channel Monitoring
Install two probes at 90° orientation (X-Y configuration) to generate orbit plots that visualize rotor motion patterns. This advanced diagnostic technique identifies misalignment, looseness, and fluid-induced instability that single-point measurements cannot detect.

Customization Options
Available with alternative cable lengths (1m to 9m), special coatings for corrosive environments, and modified thread sizes for non-standard mounting bosses. Consult engineering team for application-specific configurations requiring <4-week lead times.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for stock items shipped from regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day shipping available for critical breakdown situations.

Custom Configurations: 3-4 weeks for modified cable lengths, special coatings, or non-standard thread adaptations. Engineering review completed within 48 hours of specification submission.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for installations in severe-duty applications (continuous operation >8,000 hours/year).

Technical Support: Lifetime access to application engineering team for installation guidance, troubleshooting assistance, and system optimization recommendations. Average response time: <4 hours for critical issues, <24 hours for routine inquiries.

Documentation Package: Each sensor ships with calibration certificate, installation manual, dimensional drawings, and wiring diagrams. Digital resources include 3D CAD models (STEP/IGES formats) and integration guides for common DCS platforms (Honeywell, Emerson, Siemens).

Frequently Asked Questions

What proximitor signal conditioner is required for this reverse mount proximity probe?
This sensor requires a Bently Nevada 3300 XL or 3500 series proximitor (such as 330180 or 330780 models) to convert the probe's variable inductance signal into a calibrated 4-20mA or -10V to +10V output. The proximitor must be matched to the probe's 8mm diameter and reverse mount configuration for accurate measurements.

Can this 8mm probe monitor machinery operating above 10,000 RPM?
Yes, the 0-10 kHz frequency response supports machinery speeds up to 60,000 RPM (1,000 Hz fundamental frequency). For ultra-high-speed applications (>30,000 RPM), verify that your monitoring system's sampling rate exceeds 25 kHz to capture harmonic content without aliasing.

How much energy savings can predictive maintenance with this vibration sensor deliver?
Industry studies show that condition-based maintenance enabled by continuous vibration monitoring reduces energy consumption by 8-12% through early detection of misalignment and bearing wear—conditions that increase friction losses and motor current draw. Typical ROI period: 14-18 months for critical assets.

What are the installation clearance requirements for reverse mount configuration?
The reverse mount design requires 45mm of axial clearance behind the mounting surface for the probe body and cable connection. Radial clearance to the shaft surface should be set to achieve the desired gap (typically 0.5-1.0mm) using precision shims or adjustable mounting brackets.

Does this proximity probe support remote condition monitoring and diagnostics?
When integrated with Bently Nevada System 1 or Orbit 60 platforms, probe data is accessible via secure web interfaces and mobile apps. Remote experts can analyze vibration trends, generate diagnostic reports, and recommend corrective actions without on-site presence—critical for offshore platforms and remote mining operations.

Is this sensor suitable for hazardous area installations requiring ATEX certification?
The probe itself is passive (non-energy-storing) but requires intrinsically safe barriers between the proximitor and the sensor when installed in Zone 0/1 explosive atmospheres. Consult factory for barrier selection and certification documentation (ATEX, IECEx, FM, CSA) specific to your hazardous area classification.

Take the Next Step

Ready to enhance your machinery reliability program? Contact our application engineering team for a free consultation on integrating this reverse mount proximity probe into your vibration monitoring system. We'll review your equipment specifications, recommend optimal sensor placement, and provide a detailed quotation within 24 hours. For immediate technical assistance or to request calibration certificates and compliance documentation, reach out via the contact information below.
