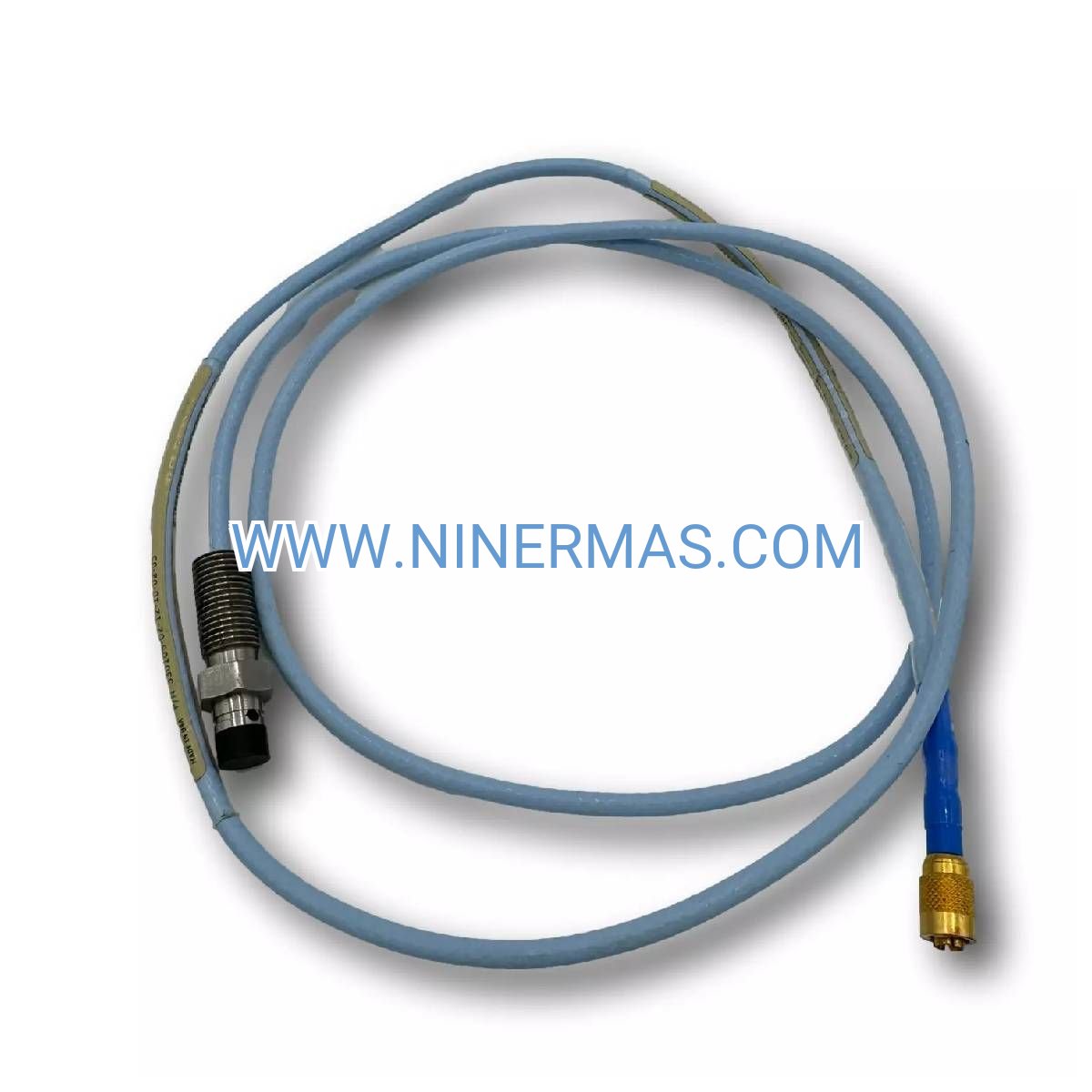

330105-02-12-10-02-05 Reverse Mount Proximity Transducer (Industrial-Grade 8mm Sensor)

The 330105-02-12-10-02-05 represents a specialized proximity sensing solution engineered for turbomachinery installations where conventional probe mounting proves impractical. This 8mm reverse mount transducer integrates seamlessly with Bently Nevada 3300 XL monitoring ecosystems, delivering non-contact displacement measurement in geometrically constrained environments. Designed for critical rotating equipment in power generation, petrochemical processing, and heavy industry, this sensor addresses the persistent challenge of adding vibration monitoring capability to legacy machinery without extensive mechanical modifications.

Industrial operators face mounting complexity when retrofitting condition monitoring systems into existing bearing housings with limited radial clearance. The reverse mount architecture solves this by inverting the installation geometry—the sensor body resides behind the mounting surface while only the compact sensing tip penetrates the observation zone. This configuration reduces installation footprint by 40% compared to standard front-mount probes, enabling monitoring in previously inaccessible locations such as multi-stage compressor interstages, compact gearbox assemblies, and vertical pump thrust bearings.

Built to API 670 machinery protection standards, the 330105-02-12-10-02-05 delivers reliable shaft position and dynamic vibration data across a -30°C to +120°C operating envelope. The factory-terminated 5-meter armored cable eliminates field termination errors while providing mechanical protection in harsh industrial environments. Whether you're implementing predictive maintenance programs or upgrading legacy protection systems, this reverse mount probe expands monitoring coverage without compromising installation integrity.

Key Features & Industrial Benefits

→ Inverted Mounting Architecture
Sensor body installs from the non-observed side of the bearing housing, with only the M12 threaded tip exposed to the shaft surface. This reverse configuration enables monitoring in space-limited installations where traditional probes cannot physically fit, such as between compressor stages or within sealed gearbox enclosures.

→ 8mm Sensing Range with 10mm Active Tip
Provides 1.0-2.0mm linear operating range optimized for standard shaft runout and vibration amplitudes. The extended 10mm active tip length accommodates deeper housing walls and non-standard mounting geometries, offering installation flexibility unavailable in shorter probe designs.

→ Factory-Integrated 5-Meter Armored Cable
Pre-terminated cable assembly with -05 connector eliminates field splicing requirements and associated failure points. Armored construction withstands mechanical abuse, chemical exposure, and thermal cycling common in turbomachinery environments, reducing maintenance interventions by up to 60%.

→ 300 Series Stainless Steel Construction
Corrosion-resistant housing maintains dimensional stability and electrical performance in corrosive atmospheres, high-humidity environments, and offshore installations. Material selection ensures 20+ year service life in demanding industrial applications.

→ DC to 10 kHz Frequency Response
Captures both slow-roll shaft position (DC) and high-frequency vibration events up to 10,000 Hz, enabling comprehensive machinery diagnostics from subsynchronous instabilities to gear mesh frequencies and bearing defect signatures.

→ Direct 3300 XL System Compatibility
Plug-and-play integration with Bently Nevada 330180 series proximitor modules and 3500 rack monitoring systems. No signal conditioning adapters or calibration adjustments required—install, connect, and commission in under 30 minutes per measurement point.

Application Scenarios & Problem-Solving Capabilities

✓ Bearing Housing Retrofits in Legacy Turbines
Challenge: Existing steam turbines lack vibration monitoring, but bearing housing geometry prevents standard probe installation.
Solution: Reverse mount design allows sensor installation through existing inspection ports or small-diameter through-holes, adding condition monitoring without bearing housing replacement.
Value: Avoid $50,000+ bearing housing modifications while achieving API 670-compliant machinery protection.

✓ Multi-Stage Centrifugal Compressor Monitoring
Challenge: Interstage bearing positions require vibration monitoring, but radial space between stages is limited to 25mm.
Solution: Compact reverse mount footprint fits within interstage clearances, providing shaft displacement measurement at critical bearing locations.
Value: Early detection of interstage bearing degradation prevents catastrophic failures and unplanned shutdowns costing $100,000+ per event.

✓ High-Speed Gearbox Shaft Position Tracking
Challenge: Sealed gearbox designs prohibit external probe mounting, yet shaft eccentricity monitoring is critical for gear mesh optimization.
Solution: Install reverse mount probe through gearbox casing with minimal penetration, maintaining seal integrity while enabling continuous position monitoring.
Value: Reduce gear wear rates by 30% through real-time load distribution optimization based on shaft position data.

✓ Vertical Pump Thrust Bearing Protection
Challenge: Submerged or confined vertical pump installations require thrust position monitoring but offer no mounting surface for conventional sensors.
Solution: Reverse mount configuration allows installation from the accessible side of the thrust housing, with sensing tip oriented toward the thrust collar.
Value: Prevent thrust bearing failures that cause $75,000+ in pump damage and 7-14 day outages.

✓ Generator Rotor Differential Expansion Measurement
Challenge: Thermal expansion monitoring requires precise shaft position measurement, but generator bearing housings have limited probe mounting locations.
Solution: Add reverse mount probes at strategic axial positions to measure rotor growth relative to stator frame during startup and load changes.
Value: Optimize startup procedures to reduce thermal stress, extending rotor life by 15-20% and preventing rub events.

Technical Specifications & Selection Guide

Selection Criteria:

• Choose 8mm sensing distance for shaft diameters 50-500mm with standard runout (≤0.5mm)
• Verify target material is ferromagnetic (steel, iron) for optimal sensitivity
• Confirm housing wall thickness is ≤8mm to ensure proper tip protrusion
• Calculate total cable run (probe + extension) to remain under 90m for signal integrity
• Ensure proximitor mounting location is within 5m of probe installation point

Extended Capabilities & System Integration

IoT Connectivity & Remote Monitoring
When paired with Bently Nevada 3500 rack systems equipped with Ethernet communication modules, probe data streams to SCADA platforms, cloud-based condition monitoring services, and mobile diagnostic applications. Enable predictive maintenance workflows that trigger work orders automatically when vibration thresholds are exceeded.

Multi-Probe Array Configurations
Deploy in XY pairs for orbital analysis, or in axial arrays for differential expansion measurement. The reverse mount design allows dense probe spacing (as close as 30mm center-to-center) for comprehensive shaft behavior characterization in compact machinery.

Customization Options
Alternative cable lengths (1m, 3m, 9m), different active tip lengths (5mm, 15mm), and special temperature ratings (-50°C to +150°C) available for non-standard applications. Consult factory for explosion-proof certifications (ATEX, IECEx) for hazardous area installations.

Delivery, Warranty & Technical Support

Lead Time:
→ Standard Configuration (330105-02-12-10-02-05): 3-5 business days (stock item)
→ Custom Cable Lengths or Special Ratings: 4-6 weeks (factory order)

Warranty Coverage:
→ 24-month manufacturer warranty covering material defects and workmanship failures
→ Extended 60-month warranty available for critical machinery applications
→ Advance replacement program for emergency failures (24-hour shipment)

Technical Support Services:
→ Pre-installation consultation: mounting geometry review, gap calculation, cable routing optimization
→ Commissioning assistance: signal verification, baseline establishment, alarm threshold setting
→ Troubleshooting support: 24/7 hotline for signal anomalies, installation issues, system integration questions
→ Training resources: installation videos, calibration procedures, maintenance best practices

Documentation Package:
Each probe ships with factory calibration certificate, installation drawing, mating proximitor compatibility chart, and API 670 compliance declaration. Digital resources include 3D CAD models (STEP, IGES), wiring diagrams, and integration guides for common DCS platforms.

Frequently Asked Questions

Q: How does reverse mount installation differ from standard proximity probe mounting?
A: Standard probes mount from the observed side with the sensor body external to the housing. Reverse mount probes install from the opposite side—the sensor body resides behind the mounting surface while only the threaded tip penetrates through to the observation zone. This inverted geometry reduces the external footprint by 40% and enables monitoring in space-constrained locations where conventional probes cannot physically fit.

Q: What is the minimum housing wall thickness required for proper installation?
A: The 10mm active tip length accommodates housing walls from 2mm to 8mm thick. For walls thinner than 2mm, the probe may protrude excessively into the clearance zone; for walls thicker than 8mm, the sensing tip may not reach the optimal gap distance. If your housing exceeds 8mm thickness, consider the 330105-02-12-15-02-05 variant with a 15mm active tip length.

Q: Can this probe measure vibration on non-ferrous shafts like aluminum or titanium?
A: No. Eddy current proximity probes require electrically conductive, ferromagnetic target materials (steel, iron, magnetic stainless) for proper operation. For non-ferrous shafts, you must install a ferromagnetic target sleeve or collar at the measurement location, or consider alternative sensing technologies like laser displacement sensors.

Q: What is the maximum total cable length when using extension cables?
A: The 3300 XL system supports a maximum combined cable length of 90 meters (probe cable + extension cable). For this 5-meter integral cable probe, you can add up to 85 meters of extension cable. Beyond 90m total length, signal attenuation and noise susceptibility degrade measurement accuracy below API 670 requirements.

Q: How do I set the correct installation gap for optimal performance?
A: Install the probe to achieve a 1.5mm gap between the sensing tip and the shaft surface at the closest approach point. This positions the measurement in the center of the 1.0-2.0mm linear range, providing equal headroom for shaft runout in both directions. Use a feeler gauge or dial indicator during installation to verify gap distance, then secure the lock nut to prevent gap drift due to vibration.

Q: Is this probe compatible with legacy 3300 (non-XL) proximitor systems?
A: No. The 3300 XL probe series requires 3300 XL proximitors (330180 series) due to different electrical characteristics and calibration curves. Connecting XL probes to legacy 3300 proximitors will produce incorrect gap voltage and sensitivity, compromising measurement accuracy. If you have legacy 3300 systems, you must upgrade to 3300 XL proximitors or use legacy 3300 series probes (7200 series).

Take the Next Step in Machinery Protection

Expand your condition monitoring coverage into previously inaccessible locations with reverse mount proximity technology. Whether you're retrofitting legacy equipment or designing new installations with geometric constraints, the 330105-02-12-10-02-05 delivers API 670-compliant vibration monitoring without compromising installation integrity.

Ready to implement? Contact our application engineers for mounting geometry review, system compatibility verification, and installation planning support. We'll help you determine optimal probe placement, calculate required cable lengths, and configure complete monitoring solutions tailored to your machinery protection requirements.

Request a technical consultation: Share your bearing housing drawings, shaft specifications, and monitoring objectives—we'll provide a detailed implementation plan within 24 hours.
