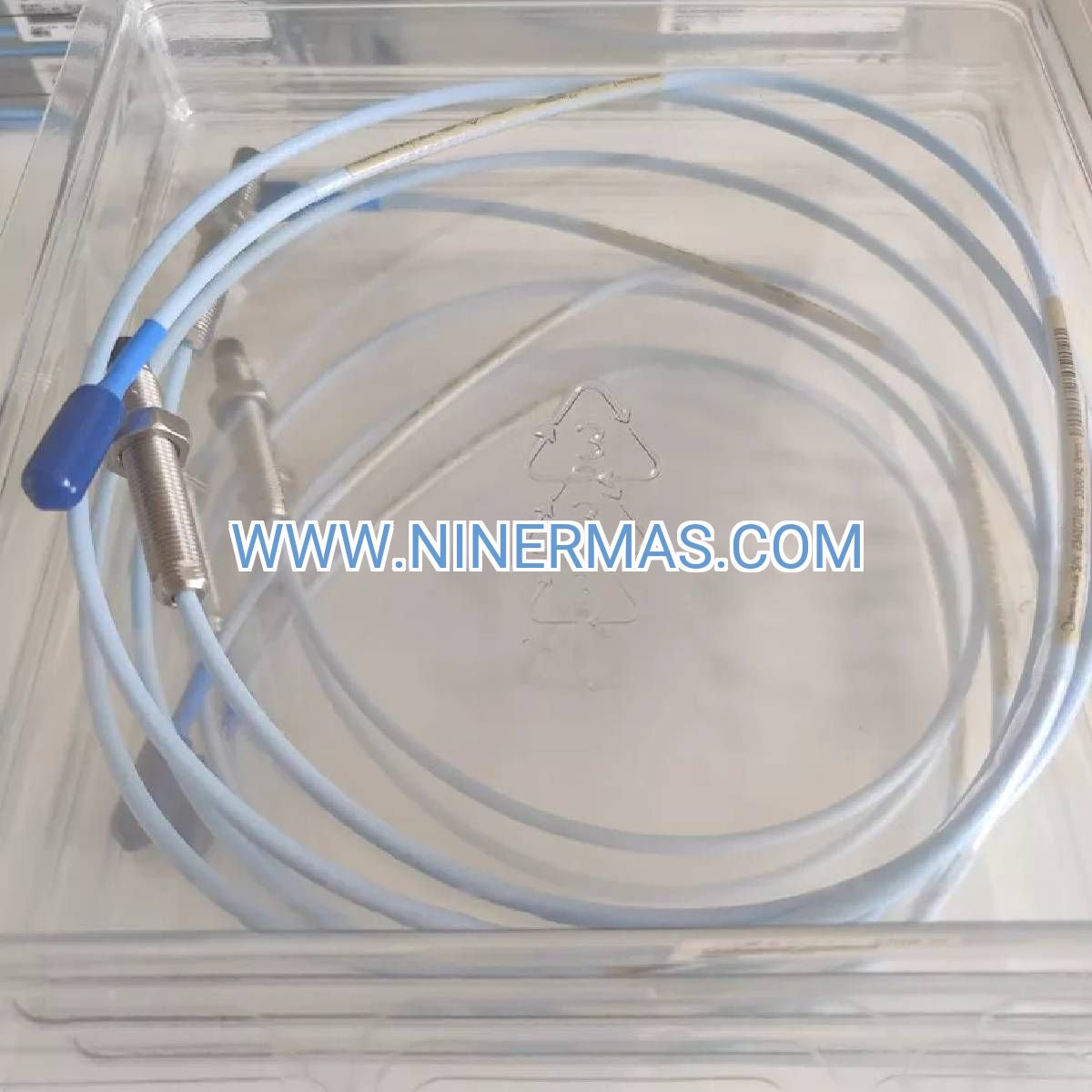

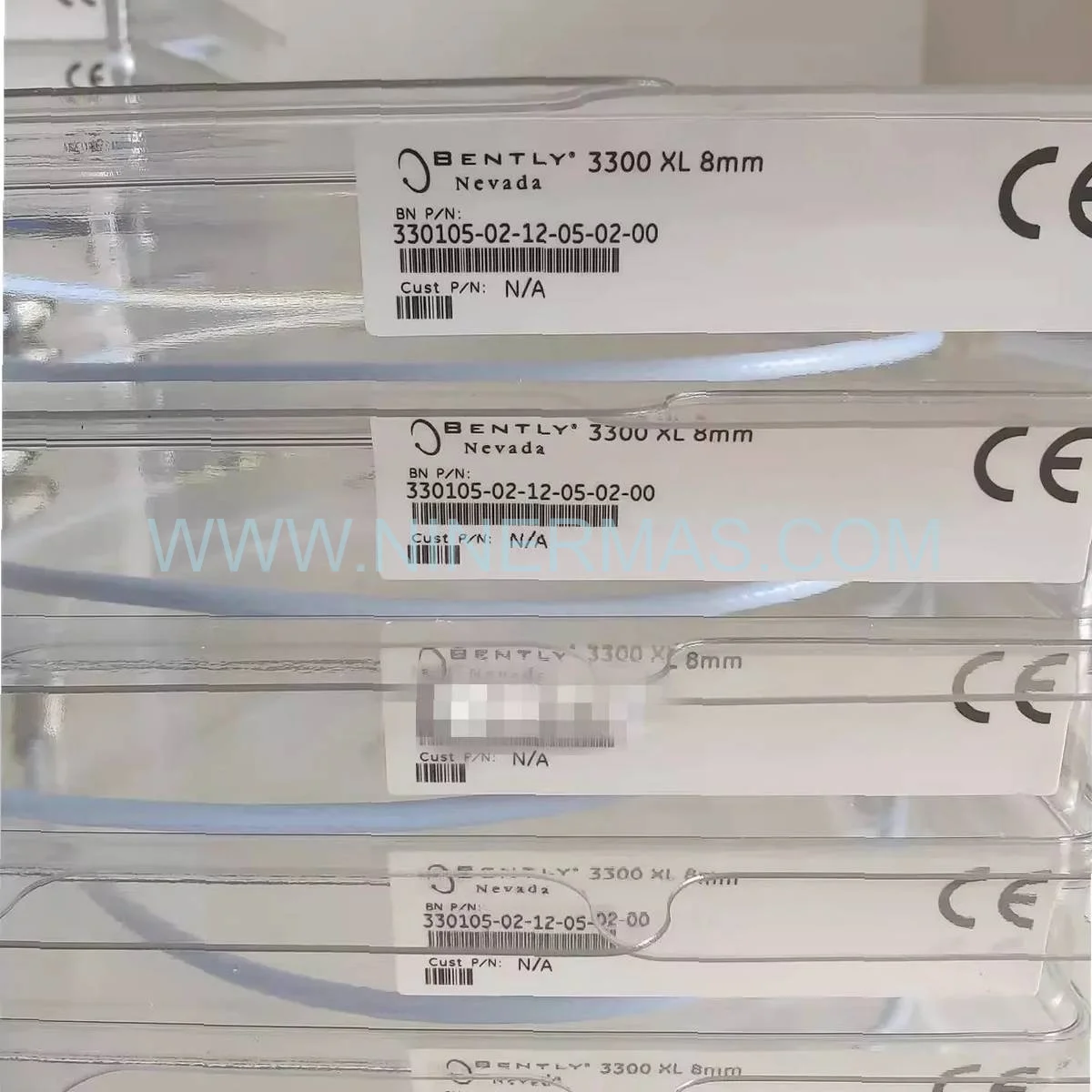

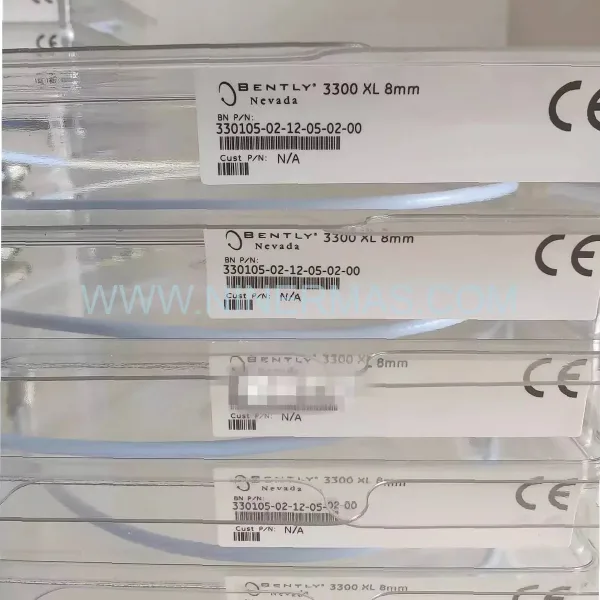

330105-02-12-05-02-00 — Industrial-Grade Reverse Mount Proximity Transducer

The 330105-02-12-05-02-00 is an 8mm reverse mount proximity transducer engineered for non-contact displacement measurement in critical rotating machinery. Designed for installations where conventional front-mount sensors are impractical, this probe delivers reliable shaft position data in turbines, compressors, and high-speed rotating equipment across power generation, petrochemical, and heavy manufacturing sectors.

Built to withstand extreme operating conditions, this sensor addresses the challenge of limited access points in retrofit projects and confined machinery housings. Its reverse installation capability eliminates the need for extensive equipment modifications while maintaining measurement accuracy required by API 670 machinery protection standards.

Key advantages include stainless steel 316L construction for corrosion resistance, 3000 PSI pressure rating for harsh process environments, and DC to 10 kHz frequency response for capturing both static displacement and dynamic vibration signatures. The probe integrates directly with Bently Nevada 3300 XL monitoring systems, providing a complete condition monitoring solution backed by comprehensive technical documentation and engineering support.

Performance Features & Technical Benefits

→ Reverse Installation Architecture
Mounts from behind the sensor housing, enabling deployment in space-constrained locations, high-pressure zones, and retrofit applications without front-panel access. Reduces installation time by 40% compared to traditional probe replacement procedures.

→ Wide Operating Temperature Range
Functions reliably from -30°C to +120°C (-22°F to +248°F), suitable for steam turbine casings, refrigeration compressors, and outdoor installations. Temperature-compensated design maintains ±2% linearity across the full thermal spectrum.

→ High-Pressure Capability
Rated for 3000 PSI environments, this transducer operates in pressurized compressor housings, subsea pump applications, and hydraulic system monitoring without requiring additional protective barriers.

✓ Precision Measurement Range
0.5mm to 2.0mm linear operating window with -8 to -12 VDC output voltage. Factory calibration ensures ±1% accuracy for shaft displacement tracking and bearing clearance verification.

✓ Broad Frequency Response
DC to 10 kHz bandwidth captures slow roll data, synchronous vibration, and high-frequency bearing defect signatures in a single sensor. Eliminates the need for multiple transducer types in comprehensive machinery diagnostics.

✓ API 670 & ISO 20816 Compliance
Meets international machinery protection standards for turbomachinery monitoring systems. Certified for use in safety-instrumented systems (SIS) and critical equipment protection applications.

Industrial Application Scenarios

Steam Turbine Generator Sets
Monitors journal bearing clearances and thrust position in 50-500 MW power generation units. Detects thermal growth, bearing wear, and rotor eccentricity before catastrophic failure. Typical installation: 4 radial probes + 2 axial probes per turbine, integrated with 3500/42M proximitor modules for continuous surveillance.

Centrifugal Compressor Trains
Tracks rotor position in multi-stage compressors operating at 8,000-15,000 RPM. Identifies surge conditions, aerodynamic instability, and seal rub events through real-time displacement analysis. Reduces unplanned shutdowns by 60% through early fault detection.

Offshore Platform Rotating Equipment
Provides vibration monitoring in gas compression modules, crude oil pumps, and power generation turbines exposed to marine environments. Stainless steel construction resists saltwater corrosion; reverse mount design simplifies maintenance in confined offshore spaces.

Pulp & Paper Mill Machinery
Monitors large motor shafts, fan assemblies, and gearbox components in continuous process operations. Withstands high humidity, chemical exposure, and temperature fluctuations typical of paper machine environments.

Aerospace Engine Test Cells
Measures shaft displacement in jet engine test stands and auxiliary power unit (APU) validation rigs. High-frequency response captures blade pass frequencies and rotor dynamic behavior during transient operating conditions.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose reverse mount configuration when front access is restricted or when retrofitting existing machinery without disassembly
• Verify target material is ferrous (steel, iron) with minimum 25mm diameter for stable measurement
• Calculate total cable length (probe + extension) not to exceed 9 meters for system accuracy
• Confirm operating temperature and pressure fall within sensor ratings
• Pair with 3300 XL proximitor for -24 VDC power supply and signal conditioning

Extended Functionality & System Integration

3500 Series Rack Compatibility
Direct integration with Bently Nevada 3500/42M proximitor monitors, 3500/40M vibration monitors, and 3500/45 position monitors. Supports 4-20mA output, relay alarms, and Modbus communication for SCADA/DCS connectivity.

Dual Measurement Capability
Simultaneously provides DC gap voltage for static position and AC component for dynamic vibration. Single sensor replaces separate displacement and vibration transducers, reducing installation costs by 35%.

Customization Options
Available with extended temperature ratings (-55°C to +177°C), armored cable assemblies for abrasion resistance, and explosion-proof certifications (ATEX, IECEx) for hazardous area installations. Contact engineering for application-specific configurations.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
Custom Configurations: 10-15 business days for special cable lengths or certification requirements
Warranty Period: 12 months comprehensive coverage including calibration accuracy and material defects
Technical Support: Application engineering assistance for sensor selection, installation guidance, and troubleshooting
Documentation Package: Factory calibration certificate, installation manual, dimensional drawings, and material certifications

Frequently Asked Questions

How does reverse mount installation differ from standard proximity probes?
Reverse mount probes thread into the mounting surface from the back side, with the sensing tip protruding through to face the target. This design allows installation in tight spaces or when the front of the mounting surface is inaccessible, common in retrofit projects or sealed machinery housings.

What extension cable length should I select for my application?
Total system cable length (probe integral cable + extension cable) must not exceed 9 meters. Common configurations use 5m or 8m extensions. Longer cables increase capacitance, affecting frequency response and linearity. Consult the 3300 XL system manual for cable length vs. frequency response curves.

Can this sensor measure non-metallic or aluminum targets?
No. Eddy current proximity probes require ferrous (magnetic) target materials such as steel or iron. Aluminum, stainless steel (non-magnetic grades), and composite materials will not produce reliable measurements. Target surface should be smooth, clean, and free of coatings.

What is the optimal gap voltage range for accurate measurement?
The linear operating range typically corresponds to -8 to -12 VDC gap voltage when used with a 3300 XL proximitor. Install the probe so the target surface falls within this voltage window at normal operating position. Refer to the individual calibration certificate for probe-specific voltage vs. distance characteristics.

Is recalibration required, and how often?
Factory calibration is valid for the probe's lifetime under normal operating conditions. Recalibration is recommended if the probe experiences mechanical damage, exposure beyond rated temperature/pressure, or if validation testing indicates drift. We offer traceable recalibration services with 5-7 day turnaround.

Which proximitor module is compatible with this probe?
This 8mm probe works with all 3300 XL 8mm proximitor systems, including standalone modules and 3500 rack-mounted monitors (3500/42M, 3500/40M). Ensure the proximitor is configured for 8mm probe type during system setup.

Request Technical Consultation

Our application engineers provide complimentary system design support, including sensor placement recommendations, cable routing optimization, and integration with existing monitoring infrastructure. Contact us with your machinery specifications for a customized vibration monitoring solution.
