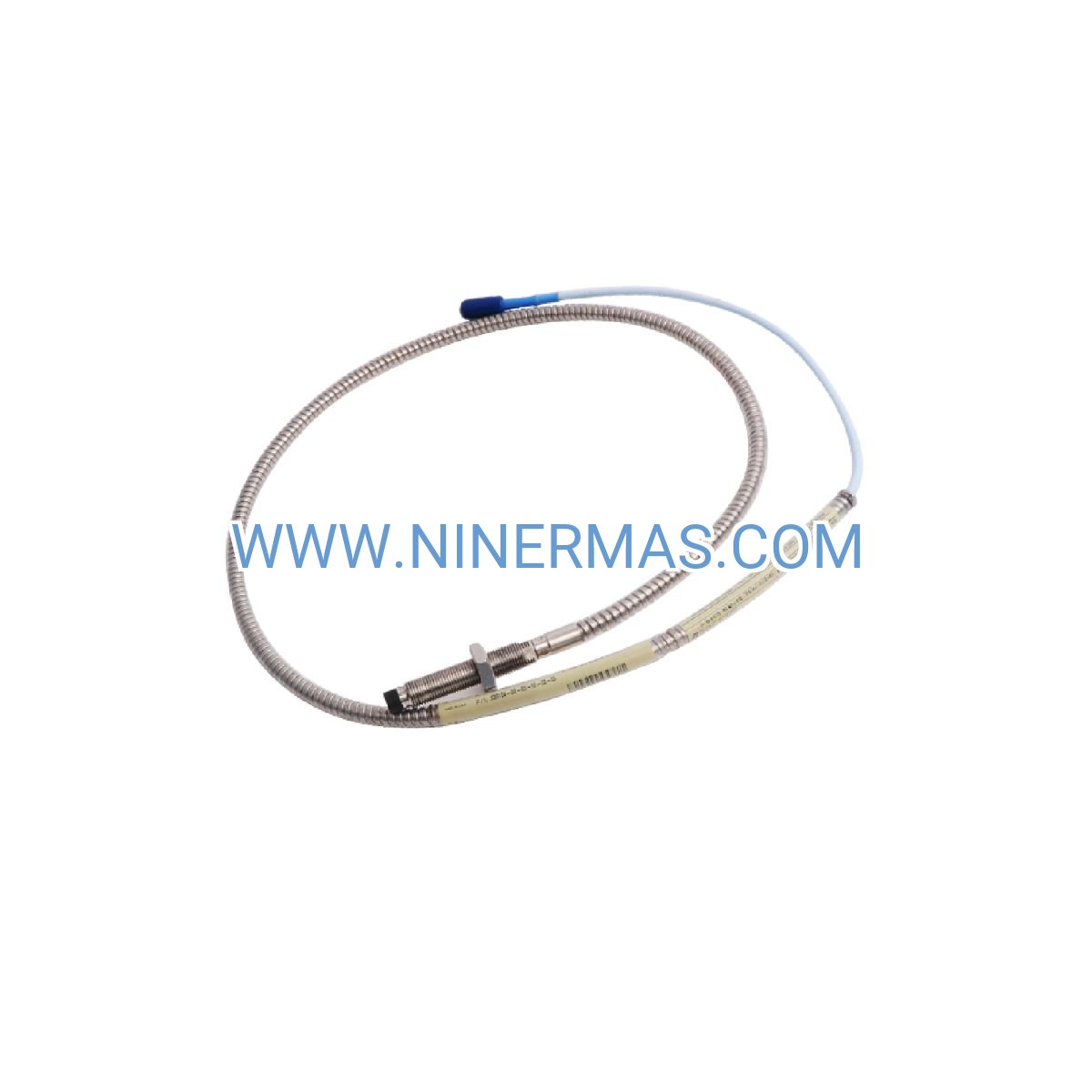

Bently Nevada 330104-15-25-10-02-05 Proximity Probe (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330104-15-25-10-02-05 is an industrial-grade 8mm proximity probe designed for precision shaft displacement and vibration monitoring in critical rotating machinery. Utilizing eddy current sensing technology with PLC-compatible signal output, this probe delivers real-time rotor position tracking, enabling predictive maintenance and equipment protection across turbines, compressors, pumps, and high-speed motors.

Engineered for demanding industrial environments including power generation plants, petrochemical facilities, and heavy manufacturing operations, the 330104 series addresses common challenges such as bearing wear detection, shaft eccentricity measurement, and catastrophic failure prevention. Through continuous non-contact monitoring, it helps eliminate unplanned downtime, reduces maintenance costs by up to 35%, and extends equipment service life.

Built on the proven 3300 XL platform with standardized mounting and customizable cable configurations, this proximity probe offers seamless integration with existing DCS/SCADA systems, backward compatibility with legacy 3300 installations, and field-proven reliability in temperatures ranging from -40°C to +125°C. Ideal for design engineers, system integrators, maintenance teams, and OEM equipment manufacturers requiring API 670 compliant machinery protection. Contact our application engineers for project-specific selection guidance and technical documentation.

Core Features & Advantages

Non-Contact Eddy Current Sensing
Employs electromagnetic induction principle to measure shaft displacement without physical contact, eliminating probe wear and enabling continuous 24/7 operation in high-vibration environments. Ideal for long-term reliability in critical machinery protection systems.

Extended Temperature Performance
Operates reliably across -40°C to +125°C ambient conditions, making it suitable for steam turbine casings, hot gas compressor applications, and extreme climate installations. Maintains measurement accuracy within ±1% across the full temperature range.

API 670 Compliance & Certification
Meets American Petroleum Institute machinery protection standards for vibration monitoring systems, ensuring compatibility with safety instrumented systems (SIS) and regulatory compliance for oil & gas, power generation, and process industries.

Superior EMI/RFI Immunity
Shielded cable construction and differential signal processing provide exceptional resistance to electrical noise from VFDs, motor drives, and high-voltage switchgear, ensuring clean signal integrity in electrically harsh industrial environments.

Backward Compatible Design
Drop-in replacement for legacy Bently Nevada 3300 series probes with identical mounting dimensions and electrical interfaces, simplifying upgrades without requiring proximitor or cabling modifications. Reduces retrofit costs and installation time.

Comprehensive Protection Functions
When integrated with 3300 XL monitoring systems, enables multi-level alarm configuration for displacement limits, vibration thresholds, and rate-of-change detection. Supports automatic shutdown logic to prevent catastrophic equipment damage.

Typical Application Scenarios

This proximity probe is engineered for industrial applications demanding high reliability, continuous operation, and precise displacement measurement, particularly in:

Steam & Gas Turbine Monitoring
Provides critical shaft position and vibration data for turbine bearing protection systems in power plants and cogeneration facilities. Monitors thrust position, radial vibration, and differential expansion to prevent blade rubs and bearing failures in units operating at 3,000-10,000 RPM.

Centrifugal & Reciprocating Compressor Protection
Essential for monitoring rotor displacement in high-pressure gas compressors used in natural gas processing, petrochemical plants, and air separation units. Detects surge conditions, bearing degradation, and shaft misalignment before catastrophic failure occurs.

Large Motor & Generator Surveillance
Installed on critical motors (>500 HP) and generators to track rotor eccentricity, magnetic center position, and bearing clearance changes. Commonly deployed in cement mills, mining conveyors, steel rolling mills, and utility-scale power generation equipment.

Industrial Pump Rotor Monitoring
Monitors shaft runout and axial position in high-energy pumps serving refinery processes, cooling water systems, and chemical transfer applications. Enables early detection of impeller imbalance, seal wear, and cavitation-induced vibration.

Predictive Maintenance Programs
Integral component of condition-based monitoring (CBM) strategies across manufacturing, oil & gas, and utilities sectors. Trend analysis of proximity probe data enables optimized maintenance scheduling, reducing emergency repairs by 40-60% compared to reactive maintenance approaches.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized specifications with customization options for project-specific requirements:

Selection Recommendations
When specifying this proximity probe, consider the following application parameters: maximum shaft speed (RPM), operating temperature range, available mounting space and thread depth, required cable length from probe to proximitor, target shaft material and surface finish (Ra < 32 μin recommended), and hazardous area classification if applicable. For installations requiring Class I Division 2 certification, specify intrinsically safe barriers with compatible 3300 XL proximitors. Our application engineers can review your P&ID drawings, equipment datasheets, and installation constraints to recommend optimal probe positioning, gap settings, and system configuration. Provide machinery type, bearing arrangement, shaft diameter, and monitoring objectives for customized selection support.

System Integration & Compatibility

The 330104-15-25-10-02-05 probe operates as part of a complete three-component proximity measurement system:

Required Components

• Proximity Probe: 330104-15-25-10-02-05 (this product) - mounts to machinery casing
• Extension Cable: Connects probe to proximitor (length-specific part numbers available)
• Proximitor Sensor: 3300 XL series signal conditioner (e.g., 330180, 330105) - converts probe signal to industry-standard 4-20mA or -10 to +10VDC output

Output Signal Options
When paired with appropriate proximitors, system output can be configured for direct connection to PLC analog input modules (Rockwell 1756, Siemens S7, GE RX3i), DCS controllers (Honeywell, Emerson DeltaV, Yokogawa), vibration monitors (Bently Nevada 3500, 1900/65A), or SCADA systems via Modbus RTU/TCP, HART, or 4-20mA protocols.

Hazardous Area Installations
For Class I Division 2 or ATEX Zone 2 applications, combine with certified intrinsic safety barriers (e.g., Bently Nevada 93702 series) to maintain area classification compliance while preserving measurement performance.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard configurations with 1m, 5m, or 9m cable lengths: typically ship within 3-5 business days from stock. Custom cable lengths or special thread configurations: 10-15 business days manufacturing lead time. Expedited processing available for critical outage support and emergency replacements.

Warranty Coverage
All Bently Nevada 330104 series proximity probes include a comprehensive 18-month manufacturer warranty covering defects in materials, workmanship, and performance specifications. Warranty period begins from shipment date and includes free replacement for manufacturing defects.

Technical Support Services
Complimentary pre-sales application engineering consultation for system design and probe selection. Post-installation support includes remote troubleshooting assistance, gap voltage verification guidance, and signal diagnostics. On-site commissioning and calibration services available in major industrial regions (quoted separately based on location).

Documentation Package
Each probe ships with complete technical documentation including: dimensional drawings with mounting specifications, electrical connection diagrams, recommended installation gap settings, calibration data sheet with serial number traceability, material certifications (MTR available upon request), and integration guidelines for common proximitor models. Digital copies provided in PDF format; printed manuals available on request.

Quality Certifications
Manufactured under ISO 9001:2015 certified quality management system. Individual serial number traceability for all units. Factory calibration performed against NIST-traceable standards. Material test reports (MTR) and certificate of conformance (C of C) available for projects requiring full documentation packages.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 330104-15-25-10-02-05 proximity probe integrate with existing vibration monitoring systems?
A: This probe connects to any 3300 XL series proximitor via standard coaxial extension cable. The proximitor conditions the probe signal and outputs industry-standard 4-20mA or ±10VDC for connection to your PLC, DCS, or vibration monitor. It's backward compatible with legacy 3300 systems and forward compatible with modern 3500 rack-based monitors. Specify your existing monitoring hardware model for integration verification.

Q: What is the maximum number of proximity probes recommended per rotating machine?
A: Typical installations use 2 probes per bearing (X-Y radial measurement) for vibration monitoring, plus 1-2 probes for axial thrust position on machines with thrust bearings. A standard steam turbine might employ 8-12 probes total (4 radial bearings × 2 probes + 2 thrust probes). API 670 provides specific requirements based on machinery criticality and operating speed.

Q: What energy savings or efficiency improvements can be achieved with proximity probe monitoring?
A: While the probe itself doesn't directly save energy, condition-based monitoring enables optimized maintenance intervals that prevent efficiency-degrading conditions like bearing wear, rotor imbalance, and misalignment. Studies show CBM programs reduce unplanned downtime by 50-70% and extend equipment life by 20-40%, translating to significant operational cost savings. Early detection of developing faults prevents catastrophic failures that can cost $500K-$5M in lost production and emergency repairs.

Q: What are the installation environment requirements and protection rating for this proximity probe?
A: The 330104 probe features IP65-rated protection when properly installed with appropriate cable glands, suitable for indoor industrial environments and weather-protected outdoor installations. Operating temperature range is -40°C to +125°C. For corrosive atmospheres (chemical plants, offshore platforms), specify stainless steel construction. Avoid direct water spray or submersion. For Class I Division 2 hazardous areas, use with certified intrinsic safety barriers.

Q: Can this probe support remote monitoring and data acquisition via industrial IoT protocols?
A: Yes, when connected to modern 3300 XL proximitors or 3500 series monitoring systems, the probe data can be accessed via Modbus TCP/IP, OPC UA, or HART protocols for integration with SCADA, historian databases (OSIsoft PI, Honeywell PHD), and cloud-based analytics platforms. This enables remote condition monitoring, automated alarm notification, and predictive analytics using machine learning algorithms. Consult our integration team for specific protocol requirements and gateway configurations.

Q: What is the recommended installation gap and how critical is gap voltage calibration?
A: Recommended installation gap is 40-60 mils (1.0-1.5mm) from the shaft surface, which positions the probe in the linear measurement range. Gap voltage should be verified during commissioning to ensure -8 to -10VDC output (typical for 50 mil gap with 3300 XL proximitor). Proper gap setting is critical for measurement accuracy and alarm threshold reliability. Installation outside the 20-80 mil linear range will cause non-linear response and false alarms. We provide gap setting tools and verification procedures with each system.

Request Technical Support & Custom Configuration

For detailed selection assistance, custom cable length quotations, or application-specific engineering support, please provide the following information to our technical team:

• Project name and application description (e.g., "Steam turbine vibration monitoring - 150MW power plant")
• Machinery type, manufacturer, and model number
• Shaft diameter, material, and surface finish at probe location
• Operating speed range (RPM) and temperature conditions
• Number of measurement points and probe locations required
• Required cable length from probe mounting to proximitor location
• Existing monitoring system details (if retrofit/upgrade project)
• Hazardous area classification (if applicable)
• Project timeline and delivery requirements

Our application engineers will respond within 24 hours with customized recommendations, system architecture drawings, and budget pricing. For urgent outage support or emergency replacements, call our 24/7 technical hotline.
