Bently Nevada 330104 Proximity Probe – Industrial-Grade Vibration Monitoring Sensor

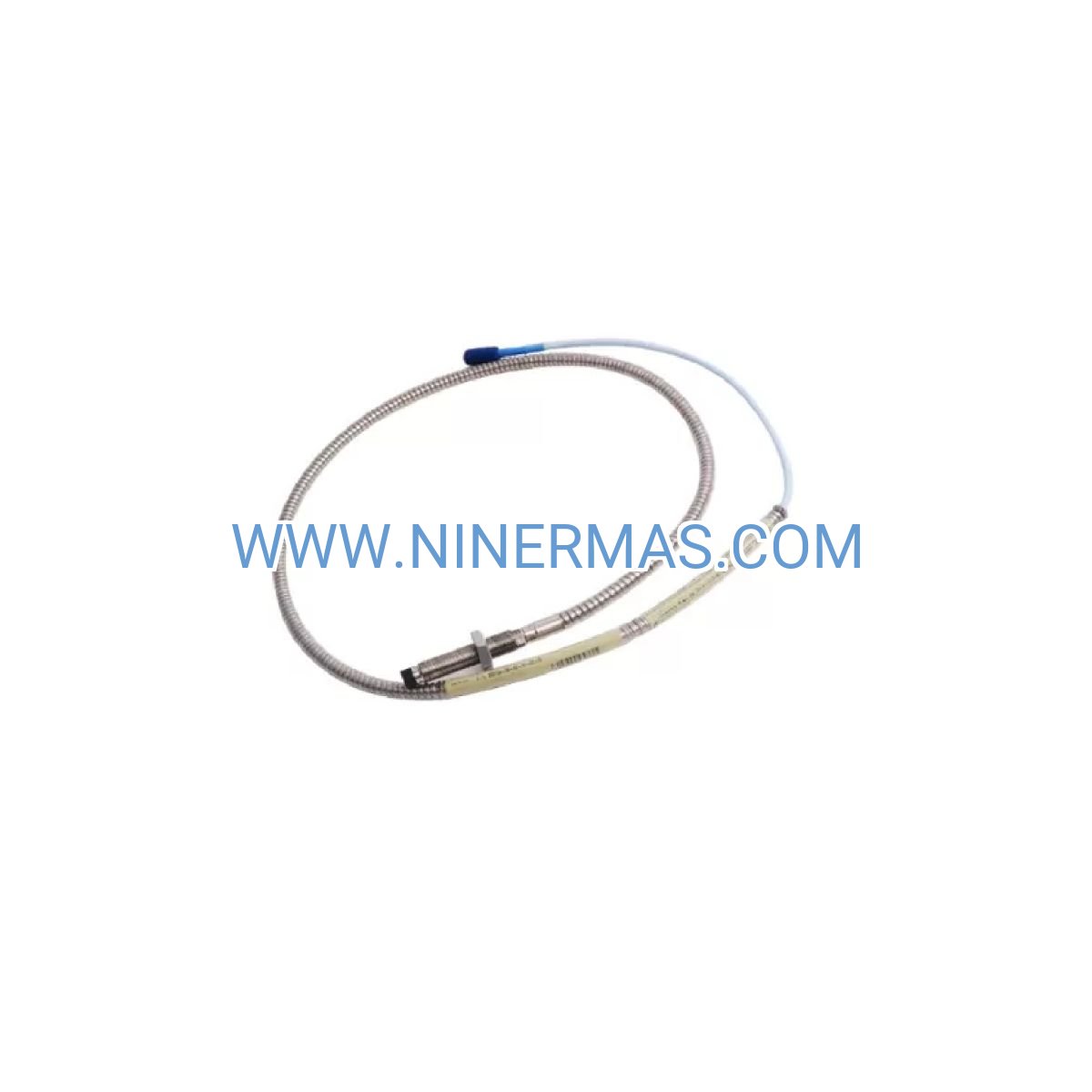

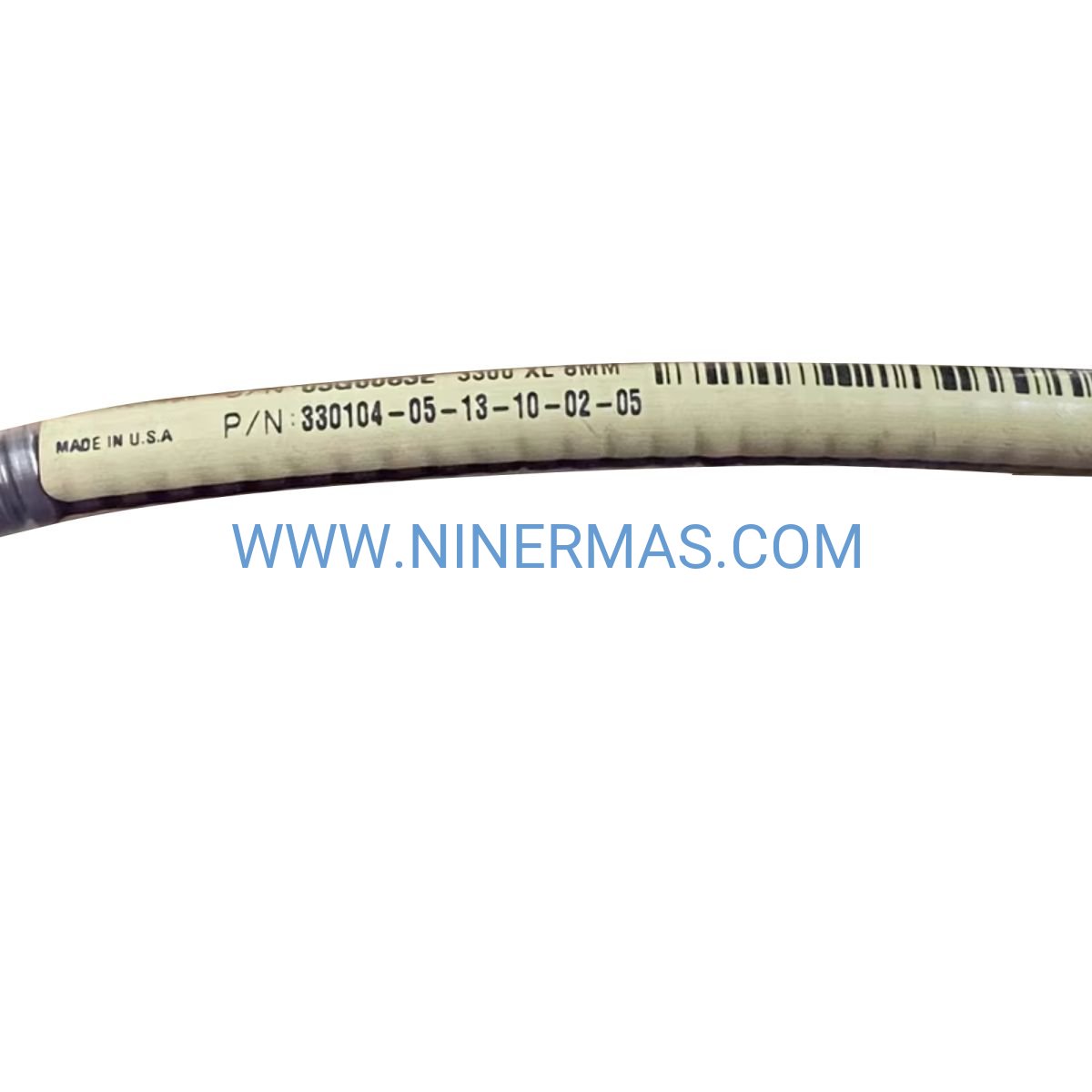

The Bently Nevada 330104-05-13-10-02-05 is an industrial proximity probe designed for continuous vibration monitoring, shaft displacement measurement, and rotational speed detection in critical rotating machinery. Utilizing eddy current sensing technology, this probe delivers real-time machinery health data through non-contact measurement, enabling predictive maintenance strategies that reduce unplanned downtime and extend equipment lifespan.

Ideal for steam turbines, gas compressors, centrifugal pumps, and large motors in power generation, petrochemical, and heavy manufacturing facilities, this sensor addresses common challenges including bearing degradation, shaft misalignment, rotor imbalance, and thermal growth. By providing early fault detection capabilities, it helps maintenance teams transition from reactive repairs to proactive condition-based interventions.

Built on the proven 3300 series platform with standardized mounting configurations and customizable cable lengths, the 330104 probe offers seamless integration with existing Bently Nevada monitoring systems. Suitable for design engineers, plant maintenance managers, system integrators, and OEM equipment manufacturers seeking reliable vibration sensing solutions. Contact our application engineers for system compatibility verification, installation guidance, and technical specifications tailored to your machinery configuration.

Core Features & Technical Advantages

Non-Contact Eddy Current Sensing
Employs electromagnetic induction principles to measure gap distance between probe tip and conductive shaft surface without physical contact, eliminating wear-related sensor degradation and enabling maintenance-free operation over extended service intervals.

Wide Operating Temperature Range
Functions reliably across -40°C to +125°C (-40°F to +257°F) ambient conditions, accommodating installations near high-temperature turbine casings, cryogenic process equipment, and outdoor exposed machinery in extreme climates.

High-Frequency Response Capability
Captures vibration events from DC (static position) up to 10 kHz frequency range, detecting slow-roll eccentricity, synchronous imbalance, subsynchronous instabilities, and high-frequency bearing defect signatures within a single sensor.

Linear Output Signal Architecture
Provides -2 to -18 Vdc linear voltage output proportional to target distance, simplifying signal conditioning requirements and ensuring accurate conversion to engineering units (mils or microns) for trending and alarm threshold configuration.

Corrosion-Resistant Construction
Features stainless steel housing with hermetically sealed electronics, protecting internal components from moisture ingress, chemical exposure, and mechanical impact in harsh industrial environments including offshore platforms and chemical processing units.

Standardized Mounting Interface
Utilizes industry-standard threaded body (5mm or 8mm configurations) compatible with API 670 machinery protection system requirements, facilitating retrofit installations and spare parts interchangeability across multi-vendor monitoring platforms.

Typical Application Scenarios

This proximity probe serves critical monitoring functions in applications demanding continuous machinery health visibility and safety-instrumented protection:

Steam & Gas Turbine Monitoring
Measures radial shaft vibration and axial thrust position in power generation turbines, providing early warning of rub conditions, blade loss events, and bearing failures that could lead to catastrophic rotor damage or forced outages.

Centrifugal Compressor Protection
Tracks shaft displacement and differential expansion in multi-stage compressors handling natural gas, air separation, and refrigeration duties, preventing surge-induced failures and optimizing anti-surge control system performance.

Large Motor Bearing Condition Assessment
Monitors journal bearing clearance changes and rotor eccentricity in electric motors above 500 HP, detecting lubrication degradation, thermal distortion, and foundation settling before secondary damage occurs to stator windings or coupling assemblies.

Industrial Pump Reliability Programs
Enables condition-based maintenance on boiler feed pumps, pipeline transfer pumps, and process circulation pumps by quantifying shaft runout, cavitation-induced vibration, and impeller wear progression through continuous gap measurement.

Generator Thrust Bearing Surveillance
Provides axial position monitoring for hydro generators and large synchronous machines, ensuring magnetic center alignment and preventing stator-rotor contact during load transients or grid disturbances.

Technical Specifications & Selection Guide

To facilitate accurate system design and procurement, the following parameters define the 330104-05-13-10-02-05 configuration:

Selection Considerations
When specifying proximity probes for your application, consider the following factors: shaft material and surface finish (target conductivity affects sensitivity), maximum shaft speed and vibration amplitude (determines required frequency response), installation space constraints (probe length and mounting thread size), ambient temperature extremes (sensor and cable temperature ratings), and monitoring system architecture (proximitor model compatibility and cable impedance matching). For assistance with probe selection, gap calibration procedures, or system integration planning, provide your machinery specifications including shaft diameter, bearing type, operating speed range, and existing monitoring infrastructure. Our application engineers will recommend the optimal sensor configuration and mounting accessories.

System Integration & Compatibility

Proximitor Signal Conditioning
Requires pairing with Bently Nevada 3300 series proximitor modules (such as 3300 XL 8mm or 3300 XL 5mm variants) to convert probe impedance changes into calibrated voltage signals. Proximitor selection must match probe thread size and cable system impedance for accurate gap measurement.

Extension Cable Requirements
Utilizes low-capacitance coaxial extension cables to connect probe to proximitor without signal degradation. Total system cable length (probe integral cable plus extension cable) must not exceed manufacturer-specified limits to maintain calibration accuracy and frequency response characteristics.

Monitoring System Architecture
Integrates with Bently Nevada 3500 rack-based monitoring systems, 1900/65A general purpose equipment monitors, and ADAPT software platforms for vibration trending, alarm management, and diagnostic analysis. Supports Modbus, 4-20mA, and relay output protocols for DCS/SCADA integration.

Hazardous Area Installations
When deployed in classified locations (ATEX Zone 0/1, IECEx, or NEC Class I Division 1), must be installed with certified intrinsically safe barriers (such as Bently Nevada 93702 galvanic isolators) to limit energy transfer and prevent ignition sources. Consult area classification drawings and barrier specifications for compliance verification.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog configurations typically ship within 3-5 business days from regional distribution centers. Custom cable lengths or special thread configurations require 10-15 business days manufacturing lead time. Expedited processing available for critical outage support and emergency replacement scenarios.

Warranty Coverage
All proximity probes include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy under normal operating conditions. Warranty excludes damage from improper installation, mechanical impact, or operation beyond published environmental limits.

Technical Support Services
Complimentary application engineering assistance includes probe selection guidance, gap setting calculations, installation troubleshooting, and signal validation procedures. Remote diagnostic support available via phone and email during business hours. On-site commissioning and training services offered on a project basis for multi-probe installations.

Documentation Package
Each sensor ships with complete technical documentation including dimensional drawings, electrical connection diagrams, calibration certificates (gap voltage curves), installation instructions, and recommended spare parts lists. Digital copies available in PDF format for integration into plant maintenance management systems.

Frequently Asked Questions

Q: How does the Bently Nevada 330104 proximity probe integrate with existing 3300 series monitoring systems?
A: The 330104 probe connects directly to compatible 3300 XL or 3300 NSv proximitor modules via coaxial extension cables. Verify your proximitor model number (8mm or 5mm sensor system) matches the probe thread configuration. Total cable system length must remain within calibrated limits (typically 5-9 meters depending on proximitor model) to maintain measurement accuracy. Consult factory calibration data sheets for specific cable length recommendations.

Q: What is the maximum number of proximity probes recommended per monitored bearing?
A: Standard practice per API 670 machinery protection guidelines specifies two radial vibration probes installed 90 degrees apart (X-Y configuration) for each monitored bearing, plus one keyphasor probe per shaft for phase reference. Critical machines may require additional probes for axial position (thrust bearing) and differential expansion measurement. Consult your machinery OEM documentation for specific probe quantity and orientation requirements.

Q: Can this proximity probe achieve the vibration monitoring accuracy required for API 670 compliance?
A: Yes, when properly installed and calibrated with matched proximitor modules, the 330104 system meets API 670 5th Edition requirements for machinery protection systems including linearity specifications (±5% of full scale), frequency response (DC to 1 kHz minimum), and environmental qualification. Maintain proper gap settings (typically 40-80 mils), ensure shaft surface finish meets conductivity requirements (≤63 microinch Ra), and perform periodic calibration verification per API recommendations.

Q: What installation environment conditions could affect probe performance or lifespan?
A: While the stainless steel housing provides excellent corrosion resistance, avoid direct exposure to: continuous condensation or water spray (use environmental boots or purge air systems), corrosive chemical vapors exceeding material compatibility limits, mechanical vibration transmitted through mounting structure (isolate probe bracket from high-vibration surfaces), and ambient temperatures exceeding -40°C to +125°C operating range. For subsea or extreme chemical exposure applications, consult factory for specialized coating options.

Q: How do I verify correct probe installation and gap setting before commissioning?
A: Use a calibrated feeler gauge or dial indicator to set initial probe-to-shaft gap within the linear range (verify specific value from proximitor calibration curve, typically 50-60 mils for 8mm systems). Rotate shaft slowly and observe output voltage variation – total indicated runout (TIR) should remain within acceptable limits for your shaft quality. Verify output voltage falls within -7 to -11 Vdc range at operating gap. Perform dynamic runout measurement during slow roll to establish baseline before bringing machine to operating speed.

Q: What preventive maintenance is required for proximity probe systems?
A: Proximity probes require minimal maintenance due to non-contact operation. Recommended practices include: quarterly visual inspection of cable connections and probe mounting security, annual gap verification (compare current gap voltage to baseline readings), periodic cleaning of probe tip and shaft surface to remove debris or oxidation buildup, and cable insulation resistance testing every 2-3 years. Replace probes showing calibration drift, physical damage, or insulation degradation. Maintain spare probe inventory for critical machinery to minimize outage duration during failures.

Request Technical Consultation & Quotation

To receive detailed application engineering support, system compatibility verification, or project-specific pricing, please provide the following information to our technical sales team:

• Machinery type and model (turbine, compressor, motor, pump manufacturer and nameplate data)
• Shaft diameter, material, and surface finish at probe installation location
• Operating speed range (minimum, normal, maximum RPM)
• Bearing type and quantity requiring vibration monitoring
• Existing monitoring system infrastructure (proximitor models, rack system, software platform)
• Installation environment (temperature range, hazardous area classification, exposure conditions)
• Required cable lengths from probe mounting location to proximitor installation point
• Project timeline and delivery requirements

Our application engineers will respond within 24 business hours with sensor recommendations, mounting accessory specifications, calibration data, and comprehensive quotations including technical support services.
