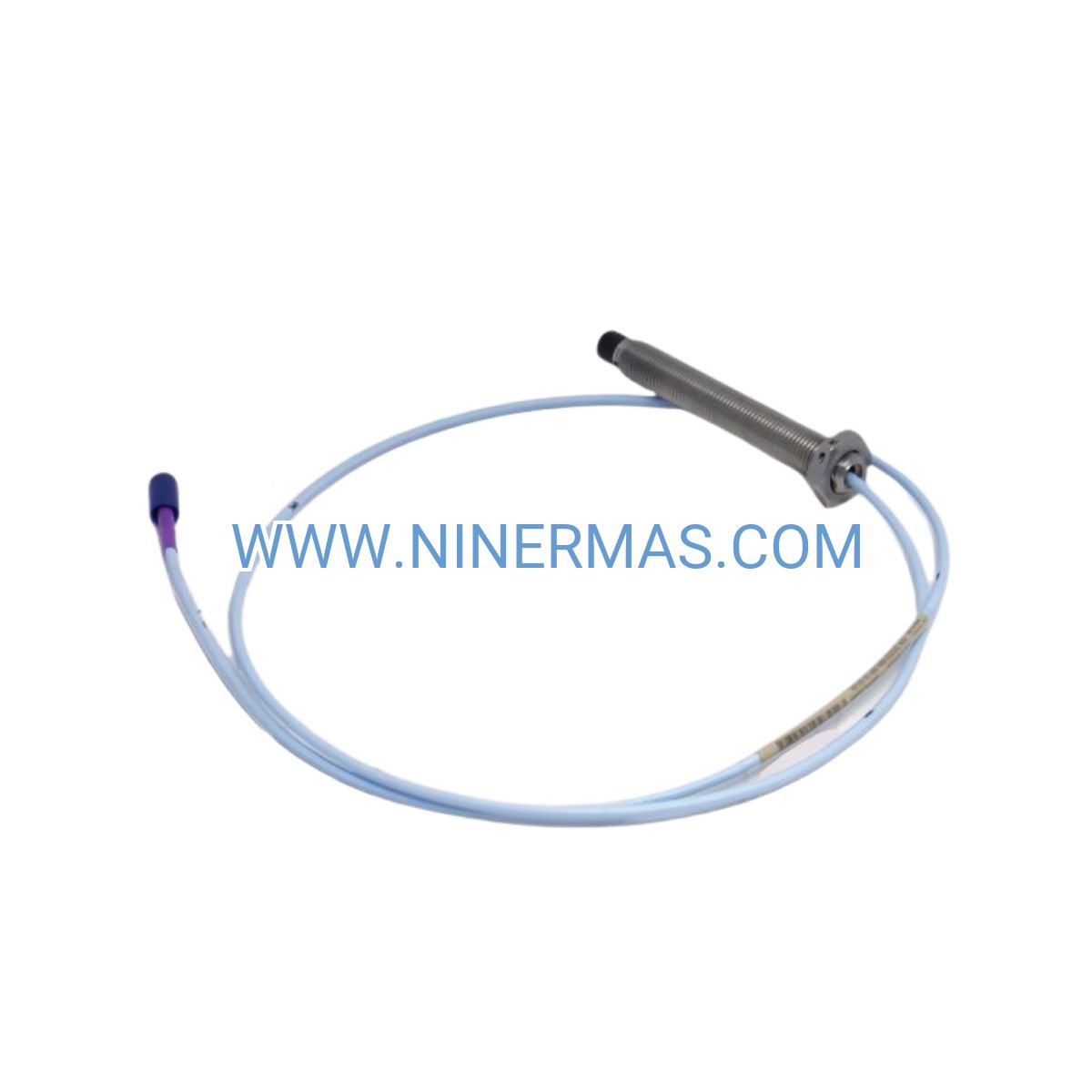

330104-00-16-05-02-05 Proximity Transducer (Industrial-Grade Vibration Sensor)

The 330104-00-16-05-02-05 represents a field-proven solution for non-contact displacement measurement in critical rotating equipment. Engineered within the 3300 XL platform architecture, this 8mm metric proximity transducer combines robust mechanical design with high-frequency response capabilities, making it the preferred choice for turbomachinery health monitoring across power generation facilities, upstream oil & gas operations, and process manufacturing plants worldwide.

Built to withstand extreme operating conditions while maintaining measurement accuracy, this sensor addresses the fundamental challenge faced by reliability engineers: detecting shaft position anomalies before they escalate into catastrophic failures. Whether you're monitoring steam turbine thrust bearings, tracking compressor rotor eccentricity, or establishing baseline vibration signatures for predictive maintenance programs, the 330104 delivers consistent performance in environments where downtime costs exceed thousands of dollars per hour.

Designed for seamless integration with existing Bently Nevada monitoring infrastructure, this proximity probe eliminates the complexity of mixed-vendor systems while providing the measurement precision required for compliance with international machinery protection standards including API 670 and ISO 20816.

Core Features & Benefits

✓ Extended Temperature Capability
Operates reliably from -40°C to +105°C (-40°F to +221°F), enabling deployment in both arctic pipeline stations and high-temperature turbine applications without performance degradation or recalibration requirements.

✓ Wide-Bandwidth Frequency Response
Captures vibration events from DC to 10 kHz with flat amplitude response, ensuring you detect both slow-roll imbalance conditions and high-frequency bearing defects within a single measurement channel.

✓ Corrosion-Resistant Construction
Stainless steel housing withstands exposure to process chemicals, saltwater environments, and industrial cleaning agents, reducing replacement frequency in harsh chemical processing and offshore platform installations.

→ Standards-Compliant Design
Meets API 670 machinery protection system requirements and ISO 20816 vibration severity criteria, simplifying regulatory compliance documentation for new plant commissioning and equipment certification audits.

→ Proven Interoperability
Maintains full compatibility with legacy 3300 XL proximitor modules and modern 3500 monitoring frameworks, protecting your capital investment in existing infrastructure while enabling phased system upgrades.

→ Optimized Signal Integrity
Integral cable design minimizes electromagnetic interference and eliminates field termination errors, delivering clean measurement signals that improve diagnostic accuracy and reduce false alarm rates.

Application Scenarios

1. Steam Turbine Thrust Monitoring
Challenge: Axial thrust bearing failures in steam turbines cause rotor-to-stator contact, resulting in multi-million dollar repair costs and extended outages.
Solution: Dual 330104 probes mounted 90° apart continuously track thrust collar position, triggering automated shutdown sequences when axial displacement exceeds safe operating limits, preventing catastrophic damage.

2. Centrifugal Compressor Radial Vibration Analysis
Challenge: Process gas compressors experience bearing wear and rotor imbalance that progressively worsen until mechanical failure occurs.
Solution: XY probe pairs measure shaft centerline position and orbital motion patterns, enabling condition-based maintenance scheduling that extends bearing life by 40% while eliminating unplanned shutdowns.

3. Hydroelectric Generator Eccentricity Detection
Challenge: Magnetic center shifts in large generators create unbalanced magnetic pull forces that accelerate bearing deterioration.
Solution: Strategic probe placement at multiple axial locations quantifies rotor sag and thermal growth characteristics, supporting alignment optimization that reduces bearing replacement frequency.

4. Reciprocating Compressor Crosshead Monitoring
Challenge: Excessive crosshead clearance in reciprocating compressors indicates wear conditions that lead to piston rod failures and cylinder damage.
Solution: Proximity sensors track crosshead position throughout each stroke cycle, providing early warning of guide wear that enables proactive component replacement during planned maintenance windows.

5. Keyphasor Reference Signal Generation
Challenge: Phase-resolved vibration analysis requires precise once-per-revolution timing references synchronized with shaft rotation.
Solution: Dedicated 330104 probe observing a shaft keyway notch generates the timing pulse that enables order tracking analysis, waterfall plots, and phase-based balancing procedures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330104 when your application requires metric threading compatibility, moderate temperature exposure, and standard 2mm measurement range. For extended temperature applications exceeding 105°C, consider high-temperature probe variants. Ensure target shaft material is ferromagnetic with surface finish better than 3.2 μm Ra for optimal linearity. Verify adequate radial clearance exists for 8mm probe body installation without interference with adjacent components.

Extended Functions

Multi-Channel Synchronization: When deployed in XY probe pair configurations, the 330104 enables advanced orbit analysis and shaft centerline plotting capabilities. Time-synchronized measurements from orthogonal probe positions reveal rotor dynamic behavior patterns including precession direction, orbit shape distortion, and 1X/2X vibration component relationships that guide root cause analysis.

Remote Monitoring Integration: Compatible with Bently Nevada System 1 condition monitoring software and third-party SCADA platforms via Modbus TCP and OPC UA protocols. Real-time displacement data streams to centralized monitoring stations, enabling remote diagnostics and fleet-wide asset health trending across geographically distributed facilities.

Customization Options: Available with alternative cable lengths, special temperature ratings, and application-specific mounting hardware. Consult factory engineering for custom configurations addressing unique installation constraints or extreme environmental conditions.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier services. Custom configurations require 4-6 weeks manufacturing lead time with expedited options available for critical outage support.

Warranty Coverage: Comprehensive 12-month manufacturer warranty protects against defects in materials and workmanship. Warranty includes no-cost replacement for failed units and technical support for installation troubleshooting.

Technical Support: Access to application engineers with turbomachinery expertise for mounting guidance, gap voltage calibration procedures, and system integration assistance. Phone and email support available during business hours with emergency after-hours contact for critical plant situations.

Documentation Package: Each shipment includes product datasheet, calibration certificate, installation instructions, and dimensional drawings. Digital copies of user manuals and 3D CAD models available for download from manufacturer support portal.

Frequently Asked Questions

Q: What proximitor module is required to complete the measurement system?
A: The 330104 probe requires a compatible 3300 XL proximitor such as the 330180 or 330780 series to provide excitation voltage and signal conditioning. The proximitor converts probe impedance changes into industry-standard -10V to -2V output signals proportional to gap distance.

Q: Can this sensor measure non-ferrous target materials like aluminum or titanium?
A: No, eddy current proximity probes require electrically conductive ferromagnetic targets. For non-ferrous materials, consider capacitance-based displacement sensors or laser triangulation systems designed for non-magnetic target measurement.

Q: How do I determine the correct installation gap setting?
A: Set initial gap to achieve -10V output at maximum expected shaft runout position and -2V at minimum clearance. Typical installations use 1.0mm nominal gap (50% of linear range) to accommodate ±0.5mm shaft motion while maintaining linearity. Consult machinery vendor drawings for specific clearance requirements.

Q: Is this probe suitable for hazardous area installations?
A: When paired with intrinsically safe proximitor barriers certified for Class I Division 1 or ATEX Zone 1 applications, the complete measurement system achieves hazardous area compliance. Verify barrier compatibility and installation practices meet local electrical code requirements.

Q: What maintenance procedures are required?
A: Proximity probes are maintenance-free solid-state devices. Periodic verification involves comparing gap voltage readings against known feeler gauge measurements to confirm calibration accuracy. Inspect cable integrity and connector tightness during scheduled machinery outages.

Q: How does probe diameter affect measurement performance?
A: Larger diameter probes provide extended linear range and improved signal-to-noise ratio but require greater radial installation clearance. The 8mm diameter balances measurement performance with compact packaging suitable for most industrial turbomachinery applications.
