8mm Proximity Probe for Industrial Vibration Monitoring (Bently Nevada 3300 XL Series)

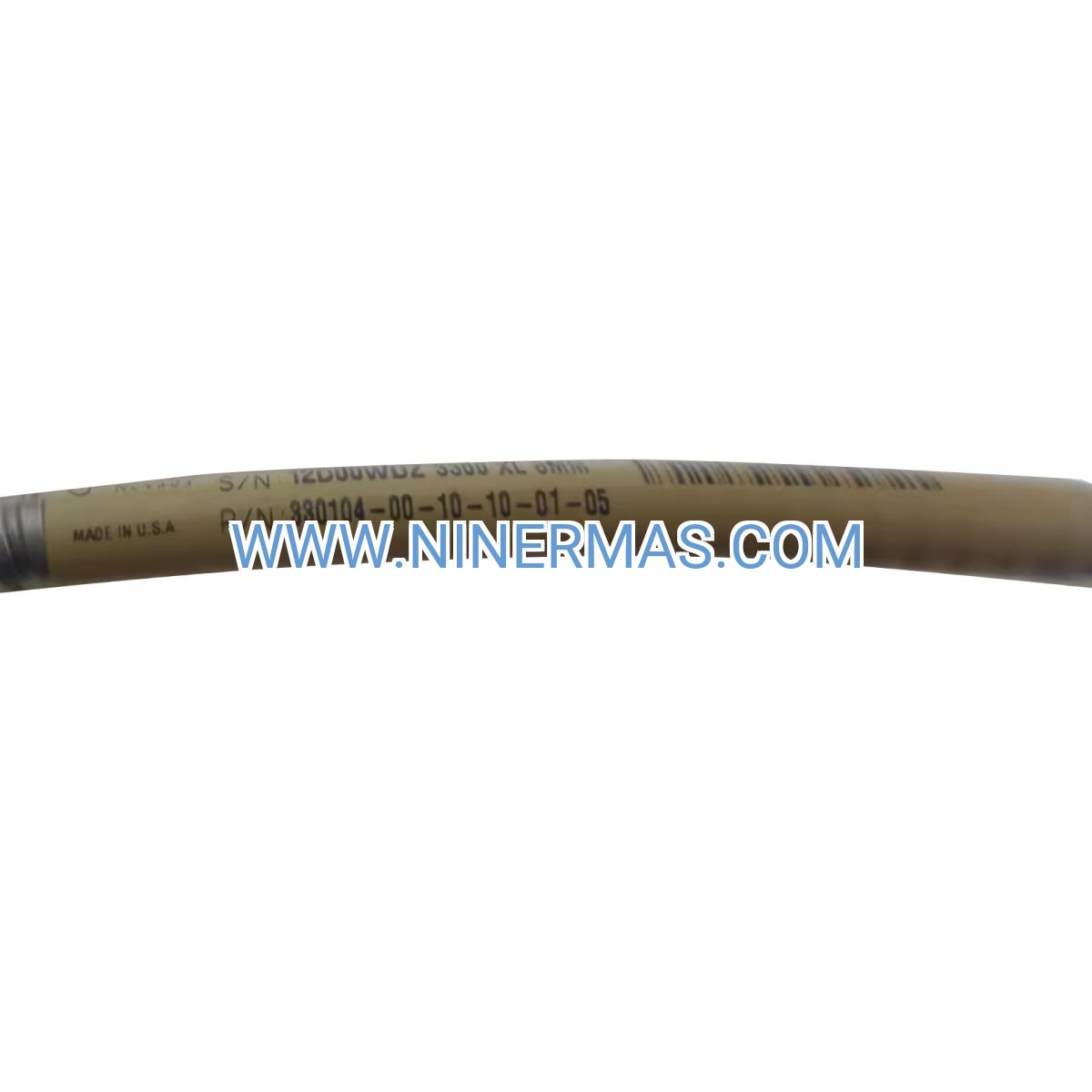

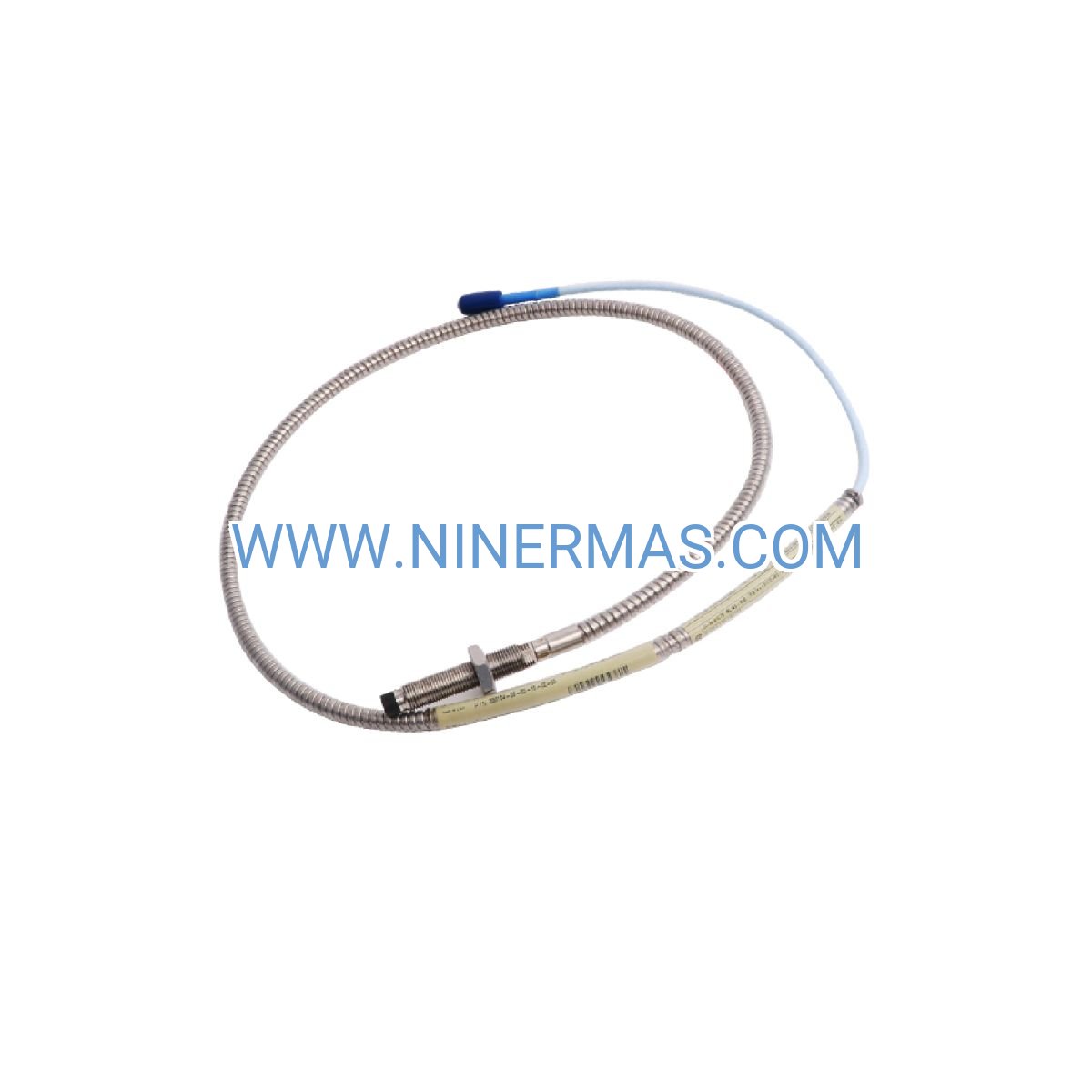

The Bently Nevada 330104-00-10-10-01-05 is an industrial-grade 8mm proximity probe engineered for continuous shaft displacement and vibration monitoring in critical rotating equipment. Through eddy current sensing technology and precision signal conditioning, this sensor delivers real-time gap measurement for turbines, compressors, pumps, and motors, enabling predictive maintenance strategies that minimize unplanned downtime.

Designed for high-stakes industrial environments including power generation, petrochemical processing, and heavy manufacturing, this probe addresses common challenges such as bearing failure detection, rotor eccentricity tracking, thrust position monitoring, and axial float measurement. The 8mm diameter balances installation flexibility with measurement accuracy, making it suitable for both new installations and retrofit projects.

Built on the proven 3300 XL platform with standardized mounting interfaces and customizable cable configurations, the 330104-00-10-10-01-05 offers exceptional reliability, electromagnetic immunity, and thermal stability. Ideal for design engineers, maintenance teams, OEM integrators, and plant reliability managers seeking certified condition monitoring solutions. Contact our application engineers for system configuration, calibration guidance, and project-specific recommendations.

Core Features & Technical Advantages

Non-Contact Eddy Current Measurement
Utilizes high-frequency electromagnetic field to detect ferrous target proximity without physical contact, eliminating wear and enabling continuous operation in harsh environments with temperatures from -40°C to +177°C.

Wide Frequency Response for Dynamic Events
Captures vibration signals from 0 Hz (static displacement) to 10 kHz bandwidth, ensuring accurate detection of both slow thermal growth and high-frequency bearing defects, blade pass frequencies, and resonance conditions.

Precision Linear Range & Sensitivity
Delivers 200 mV/mil (7.87 V/mm) nominal output across 1.0-2.0mm linear operating range, providing high-resolution data for trending analysis, alarm setpoint configuration, and diagnostic troubleshooting.

Ruggedized Construction for Industrial Duty
300-series stainless steel housing with integral armored cable resists vibration, chemical exposure, moisture ingress, and electromagnetic interference, ensuring long-term stability in demanding installations.

Standardized Mounting & Connectivity
5/8-18 UNF-2A thread compatible with existing Bently Nevada hardware, factory-terminated BNC connector for secure signal transmission, and modular design supporting field replacement without system recalibration.

Integrated System Architecture
Seamlessly interfaces with 3300 XL Proximitor sensors, extension cables, and rack-mounted monitors to create complete condition monitoring ecosystems with centralized data acquisition, alarm management, and SCADA integration capabilities.

Typical Application Scenarios

This proximity probe is engineered for installations requiring continuous shaft position tracking, vibration amplitude measurement, and early fault detection, particularly in:

Steam & Gas Turbine Monitoring
Tracks rotor axial position, differential expansion, and casing vibration in power generation units, providing critical data for thrust bearing health assessment and turbine trip protection systems.

Centrifugal Compressor Protection
Monitors radial shaft vibration and axial float in multi-stage compressors serving refinery, LNG, and chemical processes, enabling surge detection and anti-friction bearing condition analysis.

Critical Pump Surveillance
Measures shaft displacement in boiler feed pumps, pipeline transfer pumps, and cooling water circulation systems, supporting predictive maintenance programs that reduce catastrophic failure risk.

Motor & Generator Bearing Analysis
Provides non-intrusive bearing clearance monitoring in large induction motors and synchronous generators, facilitating oil film thickness evaluation and alignment verification during commissioning.

Industrial Fan & Blower Systems
Detects imbalance, misalignment, and looseness in high-capacity ventilation equipment, enabling condition-based maintenance scheduling that optimizes equipment availability and energy efficiency.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the following parameters define the 330104-00-10-10-01-05 probe characteristics:

Selection Considerations
When specifying proximity probes for your application, evaluate: target shaft material and surface finish, available installation space and mounting access, required measurement range and resolution, ambient temperature and environmental conditions, cable routing distance to signal conditioner, and integration requirements with existing monitoring infrastructure. Our engineering team can review your machinery drawings, operating parameters, and protection philosophy to recommend the optimal probe configuration, extension cable length, and Proximitor sensor pairing.

System Integration & Configuration Options

Complete Monitoring Chain
The proximity probe functions as the sensing element within a three-component system: probe (target detection) → extension cable (signal transmission) → Proximitor sensor (signal conditioning and buffering). This modular architecture enables flexible installation geometries while maintaining signal integrity.

Extension Cable Selection
Available in lengths from 1 meter to 9 meters to accommodate various probe-to-Proximitor distances. Total system cable length (integral + extension) affects calibration and must be specified during system configuration.

Proximitor Sensor Pairing
Requires compatible 3300 XL Proximitor sensor (such as 3300/47 series) to convert probe impedance changes into industry-standard 4-20mA or -10 to +10 VDC output signals for PLC, DCS, or vibration monitor input.

Hazardous Area Certification
When combined with approved intrinsic safety barriers and Proximitor sensors, the complete system achieves Class I Division 2 / ATEX Zone 2 compliance for installation in potentially explosive atmospheres.

Multi-Channel Rack Systems
Integrates with Bently Nevada 3500 and ADAPT monitoring platforms for centralized data logging, trending, alarm management, and remote diagnostics across entire machinery trains.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom cable lengths or special configurations require 2-3 weeks manufacturing lead time. Expedited processing available for critical outage support.

Warranty Coverage
All genuine Bently Nevada proximity probes include a comprehensive 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended warranty programs available for long-term service agreements.

Installation & Commissioning Support
Technical assistance includes pre-installation consultation, on-site calibration verification, gap voltage measurement, system checkout procedures, and operator training. Remote support available via phone and video conferencing.

Documentation Package
Each probe ships with complete technical documentation including dimensional drawings, electrical specifications, installation instructions, calibration data sheets, and material certifications. CAD models and 3D STEP files available upon request for design integration.

Certification & Compliance
Manufactured to ISO 9001 quality standards with full material traceability. Meets API 670 machinery protection system requirements and complies with relevant IEC vibration monitoring standards.

Frequently Asked Questions (FAQ)

Q: How does the 8mm proximity probe interface with non-ferrous shaft materials?
A: This probe is optimized for ferrous targets (steel, iron alloys) which provide maximum sensitivity and linear range. Non-ferrous materials (aluminum, titanium, stainless steel) exhibit reduced sensitivity and require system recalibration with target-specific scaling factors. For non-ferrous applications, consult factory engineering for alternative probe recommendations or custom calibration services.

Q: Can I upgrade from legacy 7200 series probes to this 3300 XL model?
A: Yes, the 3300 XL series offers backward compatibility with proper component matching. Migration requires verification of Proximitor sensor compatibility, extension cable impedance matching, and system recalibration. Detailed retrofit procedures and component cross-reference guides are available from technical support to ensure seamless transition without machinery downtime.

Q: What is the maximum probe-to-Proximitor cable distance for this system?
A: Total system cable length (integral probe cable plus extension cable) typically ranges from 1 to 9 meters depending on application requirements. Longer distances may introduce signal attenuation and require impedance compensation. Factory calibration data specifies the exact cable configuration for your system to maintain measurement accuracy within ±5% of full scale.

Q: How do I verify proper probe installation and gap voltage?
A: After mechanical installation, use a Bently Nevada TK-3 test kit or equivalent digital voltmeter to measure the DC gap voltage at the Proximitor output. For this probe with ferrous targets, the voltage should fall within the linear range corresponding to 1.0-2.0mm physical gap. Consult the probe/Proximitor calibration curve to correlate voltage readings with actual displacement values.

Q: Is this proximity probe suitable for hazardous area installations in oil & gas facilities?
A: When integrated with certified intrinsic safety barriers (such as Bently Nevada 93696 series) and approved Proximitor sensors, the complete monitoring system meets Class I Division 2 / ATEX Zone 2 requirements for installation in potentially explosive atmospheres. Verify that all system components carry appropriate hazardous location certifications and follow installation practices per local electrical codes.

Q: What maintenance is required for proximity probe systems?
A: Proximity probes are passive sensors requiring minimal maintenance. Recommended practices include periodic visual inspection for cable damage or connector corrosion, annual gap voltage verification to detect target surface degradation, and documentation of baseline vibration signatures for trending analysis. Probe replacement is typically driven by mechanical damage rather than sensor drift, as eddy current technology exhibits excellent long-term stability.

Contact & Technical Support

For detailed system configuration, application-specific recommendations, or project quotations, please provide the following information to our engineering team: machinery type and operating speed, shaft material and diameter, available mounting locations and access constraints, environmental conditions (temperature, humidity, chemical exposure), required measurement parameters (radial vibration, axial position, eccentricity), and integration requirements with existing monitoring infrastructure.

Our application engineers will deliver customized solutions including probe selection, Proximitor pairing, cable routing recommendations, calibration procedures, and complete bill of materials with pricing. Technical consultation available via email, phone, or video conference to support your machinery protection and reliability objectives.
