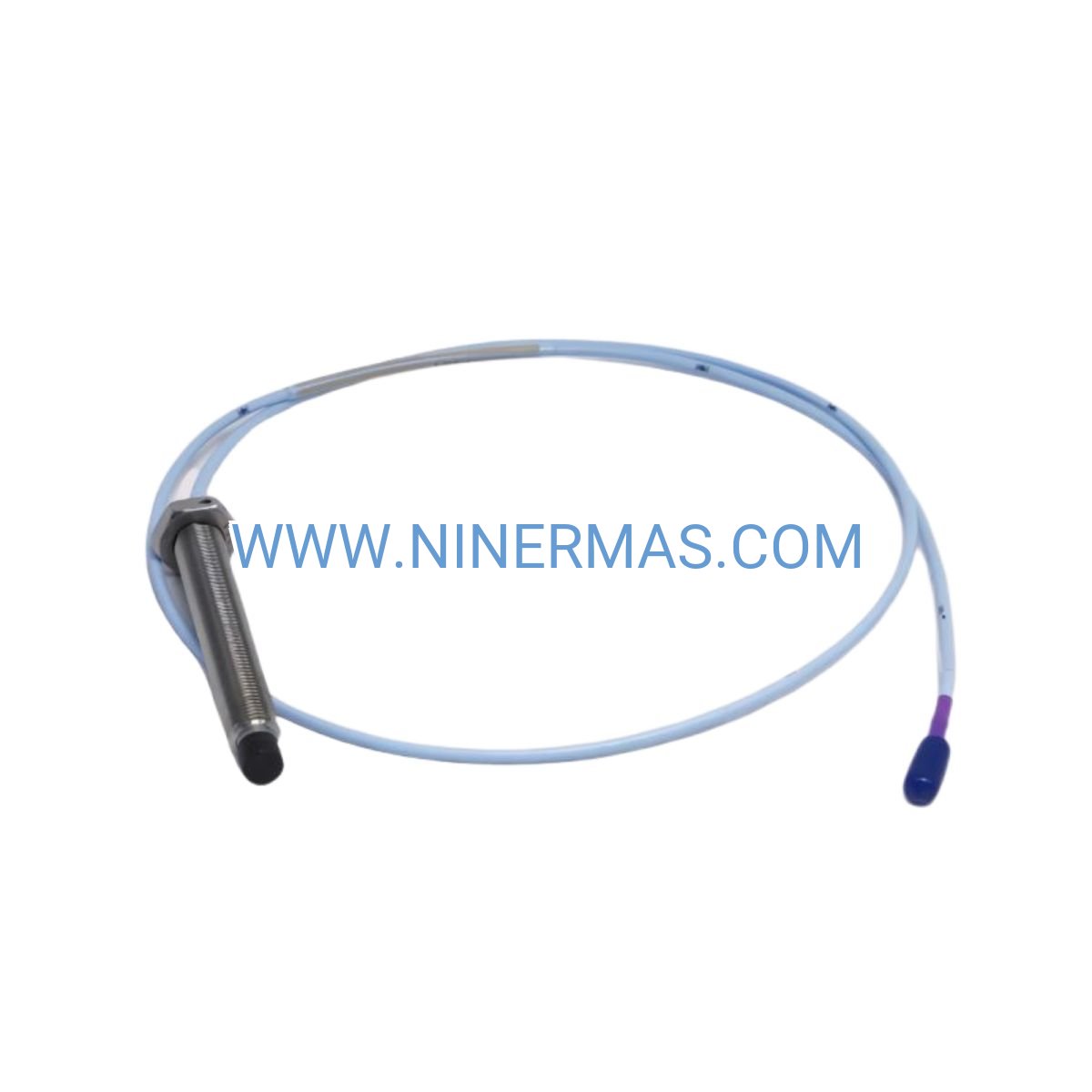

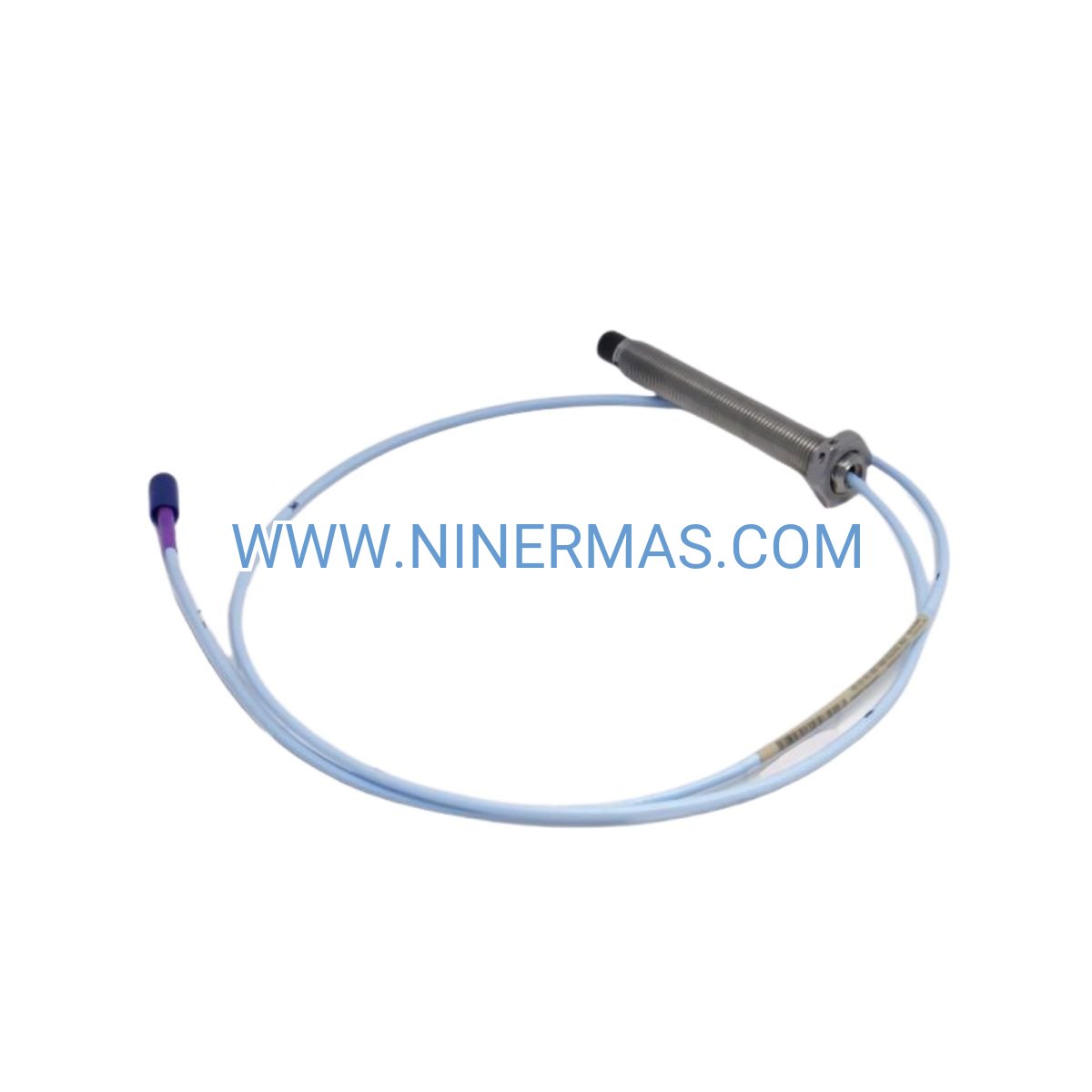

8mm Metric Proximity Transducer (Industrial-Grade Vibration Sensor)

The 330104-00-08-50-01-05 represents a field-proven solution for non-contact displacement measurement in turbomachinery and rotating equipment. Engineered with metric M12×1.5 threading and 8mm sensing diameter, this eddy current transducer delivers micron-level accuracy for shaft position tracking, radial vibration analysis, and axial thrust monitoring across power generation, oil & gas, and heavy industrial sectors.

Designed for integration with 3300 XL proximitor electronics, this probe addresses the critical challenge of early fault detection in high-value assets—preventing catastrophic failures that cost operations $50K–$500K per incident. Target users include reliability engineers, maintenance planners, and OEMs requiring IEC-compliant condition monitoring systems for API 670 machinery protection applications.

Key differentiators include extended -40°C to +125°C operating range, PTFE-insulated stainless steel construction for chemical resistance, and field-replaceable cable terminations that reduce lifecycle costs by 30% compared to molded-cable alternatives.

Core Features & Benefits

✓ Metric Threading Compatibility: M12×1.5 thread pitch eliminates adapter requirements in European and Asian machinery installations, reducing installation time by 40% versus imperial conversions
→ Precision Eddy Current Technology: Non-contact sensing with 200 mV/mil sensitivity ensures zero wear on observed surfaces, extending probe service life beyond 15 years in continuous operation
✓ Wide Temperature Tolerance: -40°C to +125°C operational envelope covers 98% of industrial applications from cryogenic pumps to steam turbine bearings
→ Stainless Steel Housing: 316L construction withstands corrosive atmospheres in offshore platforms, chemical plants, and marine propulsion systems
✓ Field-Serviceable Design: Replaceable cable terminations and modular construction enable on-site repairs, minimizing mean-time-to-repair (MTTR) to under 2 hours
→ System Integration Ready: Direct compatibility with 3300 XL proximitor sensors and DCS/SCADA platforms via 4-20mA or -10V to +10V outputs

Application Scenarios

1. Steam Turbine Thrust Monitoring
Power plants deploy this probe to detect axial shaft movement in 50–500 MW turbines. Early detection of thrust bearing degradation prevents rotor-to-stator contact events that cause $2M+ in damage and 30-day forced outages.

2. Centrifugal Compressor Vibration Analysis
Petrochemical facilities use paired probes (X-Y configuration) to monitor radial shaft displacement in multi-stage compressors. Real-time orbit analysis identifies imbalance, misalignment, and bearing wear 6–8 weeks before failure thresholds.

3. Hydroelectric Generator Monitoring
Utility operators install these sensors on guide bearing housings to track shaft eccentricity in 100+ MW generators. Continuous monitoring reduces unplanned downtime by 60% through predictive maintenance scheduling.

4. Paper Mill Dryer Section Surveillance
Pulp & paper operations employ this probe on high-speed dryer rolls (1,200+ RPM) to detect bearing clearance changes. Vibration trending prevents web breaks that cost $15K/hour in lost production.

5. Marine Propulsion Shaft Alignment
Shipbuilders integrate these transducers into propeller shaft monitoring systems. Continuous alignment verification during sea trials ensures compliance with classification society requirements (ABS, DNV-GL).

Technical Parameters & Selection Guide

Selection Criteria: Choose 8mm probes for machinery with shaft diameters 50–300mm where space constraints limit larger probe installations. For shafts >300mm or applications requiring extended range (>2mm), consider 11mm or 14mm alternatives. Verify target material conductivity—aluminum and non-magnetic stainless require calibration adjustments. Consult factory for hazardous area certifications (ATEX, IECEx, CSA) if operating in Zone 1/Division 1 environments.

Extended Functions

IoT Integration: When paired with 3500 series rack monitoring systems, probe data streams to cloud-based analytics platforms via OPC-UA or Modbus TCP protocols. Machine learning algorithms detect anomaly patterns 3–4 weeks earlier than traditional threshold alarms.

Dual-Channel Redundancy: Critical machinery applications employ redundant probe pairs with 2oo3 voting logic in safety-instrumented systems (SIL 2/3 certified). Automatic switchover ensures continuous protection during sensor maintenance.

Customization Options: Factory modifications include extended temperature ratings to 175°C, exotic alloy housings (Hastelloy, Monel), and hermetically sealed connectors for subsea applications to 3,000 PSI.

Delivery & Service Assurance

Lead Time: Stock items ship within 2–3 business days via DHL/FedEx. Custom cable lengths or special materials require 3–4 weeks manufacturing time. Expedited processing available for emergency shutdowns.

Warranty Coverage: 12-month warranty against material defects and workmanship failures. Extended 36-month coverage available for volume orders (10+ units).

Technical Support: Application engineers provide installation guidance, calibration procedures, and troubleshooting assistance via phone/email. On-site commissioning services available in major industrial regions (North America, EU, Middle East, Asia-Pacific).

Documentation Package: Each shipment includes calibration certificate (traceable to NIST/PTB standards), installation manual, dimensional drawings (DWG/PDF), and material certifications (EN 10204 3.1).

Frequently Asked Questions

Q: What cable length is optimal for minimizing electrical noise in high-EMI environments?
A: Standard practice limits extension cable to 5 meters in electrically noisy areas. Beyond 5m, use shielded twisted-pair cable with grounded armor. For runs >9m, install proximitor electronics closer to the probe or specify low-impedance driver options.

Q: Can this 8mm probe replace an existing 5mm or 11mm sensor without recalibration?
A: No—probe diameter directly affects sensitivity and linear range. Changing probe size requires system recalibration with the specific probe/extension cable/proximitor combination. Always maintain matched system components per factory recommendations.

Q: How does operating temperature affect measurement accuracy in steam turbine applications?
A: Temperature-induced drift is <1% over the full -40°C to +125°C range when using temperature-compensated proximitor electronics. For ±0.5% accuracy in 100°C+ environments, implement periodic zero-gap calibration checks during scheduled outages.

Q: What installation torque prevents thread galling on stainless machinery housings?
A: Apply 15–20 Nm (11–15 ft-lb) torque using anti-seize compound on threads. Over-torquing (>25 Nm) risks thread damage; under-torquing (<10 Nm) allows vibration-induced loosening. Use calibrated torque wrench and lock with jam nut or thread-locking compound.

Q: Is remote condition monitoring possible without dedicated vibration monitoring systems?
A: Yes—connect proximitor output to PLC analog input modules or standalone data loggers. Configure 4-20mA output scaling (e.g., 4mA = 0 mils, 20mA = 100 mils) and set alarm thresholds in SCADA. Cloud gateways enable smartphone alerts for threshold violations.

Q: What surface finish is required on the observed shaft for accurate measurements?
A: Target surface should be 63 Ra (2.5 μm) or smoother with <0.025mm runout. Rough surfaces (>125 Ra) or excessive runout introduce measurement errors. Machined or ground surfaces are ideal; avoid as-cast or heavily corroded areas.

Take the Next Step

Protect your critical assets with proven vibration monitoring technology. Contact our application specialists at sale@ninermas.com or +0086 187 5021 5667 to discuss your specific machinery requirements, receive sizing recommendations, and obtain project quotations. Volume discounts available for multi-unit installations.
