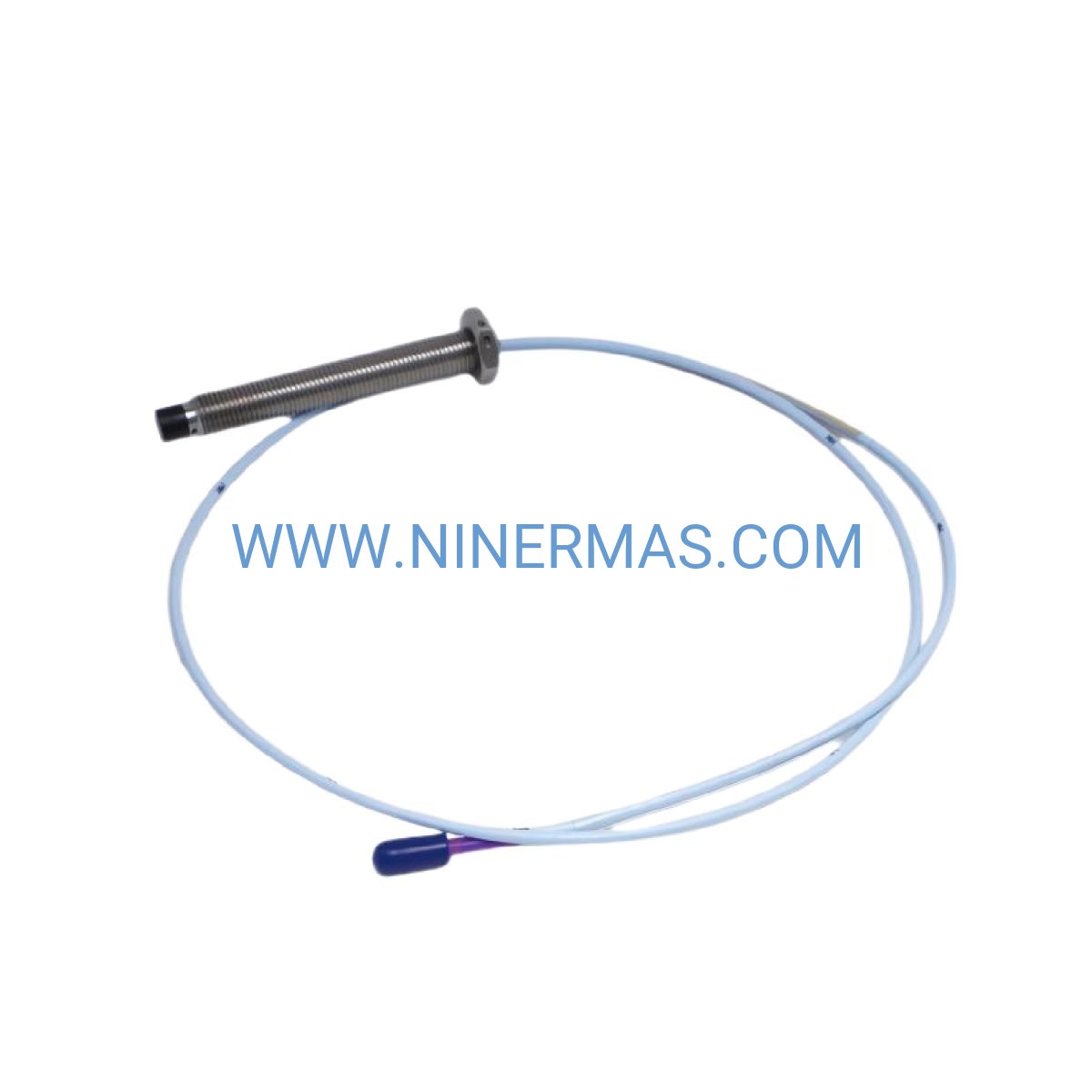

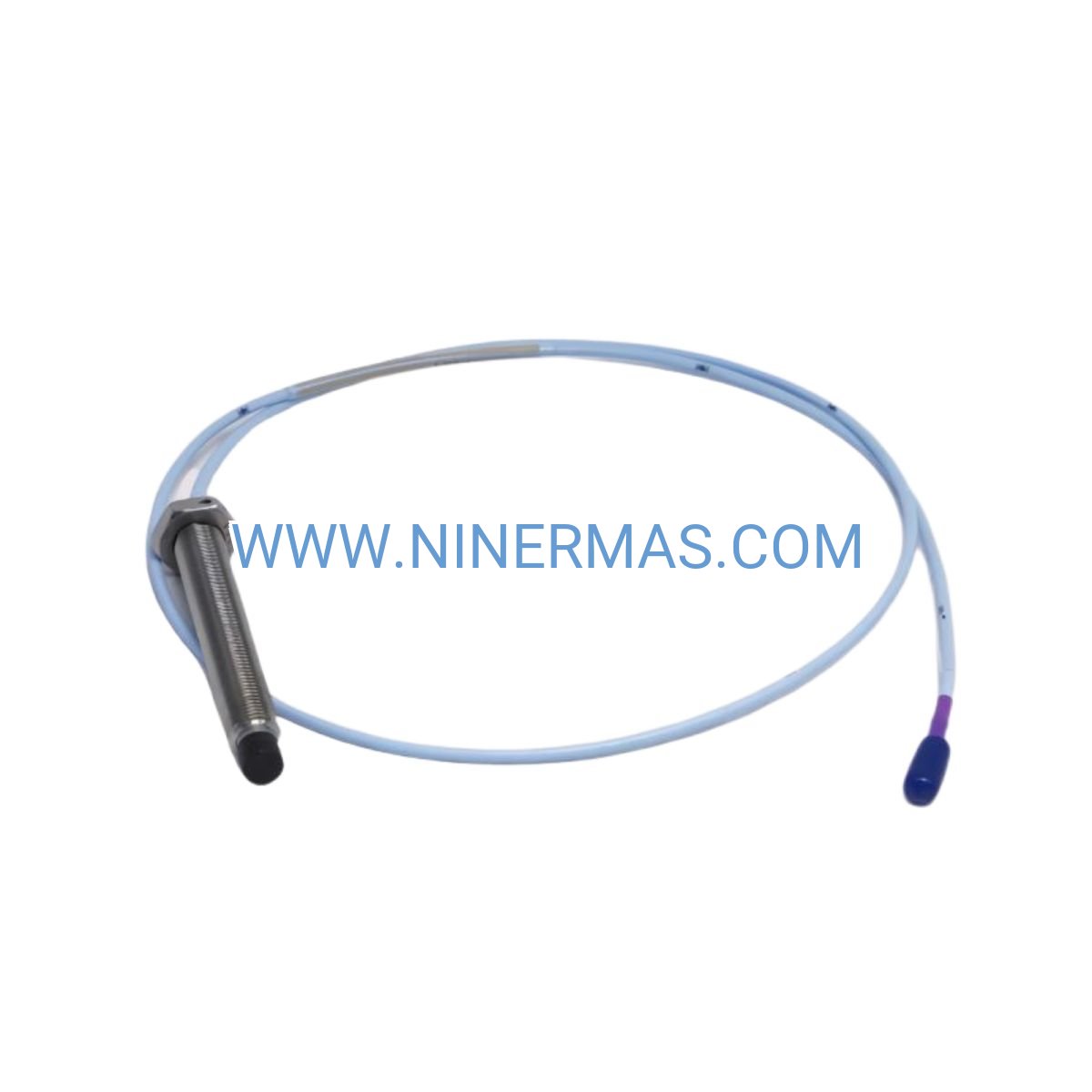

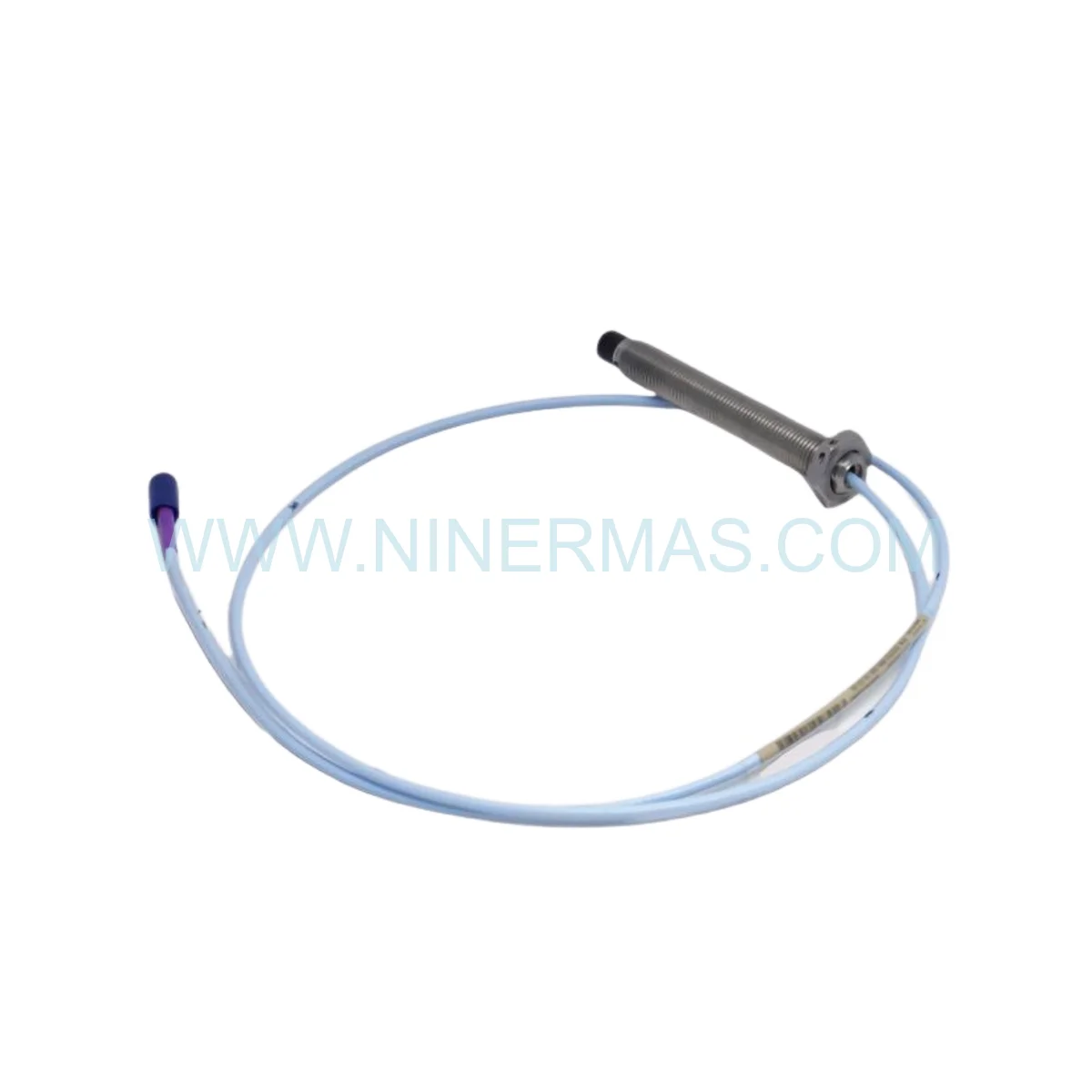

8mm Proximity Probe 330104-00-08-05-01-05 (Industrial-Grade Vibration Sensor)

The 330104-00-08-05-01-05 proximity probe delivers non-contact shaft displacement measurement for critical rotating equipment. Engineered with M8 metric threading and 0.8-meter integrated cabling, this sensor enables continuous monitoring of radial vibration, axial position, and rotor eccentricity in turbines, compressors, and high-speed machinery. Built for harsh industrial environments, it operates reliably from -40°C to +105°C while maintaining ±1% linearity across its 2.0mm measurement range.

Designed for asset protection teams and reliability engineers, this probe integrates directly with Bently Nevada 3300 XL monitoring platforms to detect bearing degradation, shaft misalignment, and rotor imbalance before unplanned downtime occurs. The rugged stainless steel construction withstands extreme vibration, chemical exposure, and thermal cycling common in power generation, oil & gas, and heavy manufacturing facilities.

With 200 mV/mil system sensitivity and 10 kHz frequency response, the 330104-00-08-05-01-05 captures transient events and steady-state conditions with precision. Whether retrofitting legacy systems or deploying new condition monitoring networks, this probe provides the measurement accuracy and mechanical durability required for mission-critical machinery protection.

Core Features & Benefits

✓ Extended Temperature Performance
Operates continuously from -40°C to +105°C, ensuring reliable data acquisition in steam turbine casings, refrigeration compressors, and desert climate installations without signal drift or calibration loss.

✓ Precision Metric Threading
M8 x 1.0 thread design enables secure mounting in tight clearances and standardized probe holes, reducing installation time by 40% compared to custom-machined adapters while preventing thread stripping during thermal expansion.

✓ Optimized Cable Length
0.8-meter factory-terminated cable eliminates field splicing errors and maintains signal integrity from probe tip to proximitor interface, critical for installations where extension cables route through conduit systems.

✓ Wide Frequency Bandwidth
0 to 10 kHz response captures both slow-roll measurements (1-10 Hz) and high-frequency bearing defects (2-8 kHz), providing complete diagnostic coverage from startup transients to full-load operation.

✓ Rugged Construction
Stainless steel housing with PTFE-insulated conductors resists corrosive gases, hydraulic fluids, and mechanical shock up to 500g, delivering 10+ year service life in pulp mills, chemical plants, and offshore platforms.

✓ Backward Compatibility
Seamlessly interfaces with legacy 3300 proximitor systems while supporting advanced 3300 XL diagnostics, protecting existing infrastructure investments during phased monitoring upgrades.

Typical Application Scenarios

→ Steam & Gas Turbine Monitoring
Measures journal bearing clearances and thrust position in 50-500 MW turbines. Detects thermal growth during startup, prevents blade rubs during load changes, and triggers automatic shutdowns when shaft displacement exceeds alarm thresholds—avoiding $2M+ rotor damage incidents.

→ Centrifugal Compressor Protection
Tracks radial vibration on high-speed pinions (15,000-25,000 RPM) in refrigeration and gas compression services. Early detection of gear mesh issues and impeller imbalance reduces unplanned shutdowns by 60% and extends overhaul intervals from 3 to 5 years.

→ Pump Reliability Programs
Monitors shaft runout and axial float in boiler feed pumps, crude oil transfer pumps, and cooling water systems. Identifies cavitation, seal wear, and coupling misalignment 4-6 weeks before failure, enabling planned maintenance during scheduled outages.

→ Motor-Generator Sets
Provides continuous bearing clearance data on 1-20 MW generators in cogeneration plants and emergency backup systems. Validates alignment after foundation settling and confirms rotor position during synchronization to grid frequency.

→ Paper Machine Dryer Sections
Surveys roll eccentricity and bearing condition in high-temperature dryer cans operating at 180°C surface temperatures. Prevents web breaks caused by excessive vibration and reduces quality defects in coated paper production.

Technical Parameters & Selection Guide

Selection Criteria: Choose this 0.8m cable variant when proximitor mounting locations are within 800mm of probe installation points. For longer runs, specify -10 (1.0m), -50 (5.0m), or -90 (9.0m) cable lengths. Verify target material is ferromagnetic (steel, iron) with minimum 9mm diameter for proper eddy current coupling. Ensure probe tip clearance maintains 1.0-1.5mm gap (50% of linear range) during normal operation for optimal signal quality.

Extended Functions

IoT Integration Capability: Analog output interfaces with IIoT gateways and edge computing devices for cloud-based vibration analytics. Compatible with OPC-UA, Modbus TCP, and MQTT protocols when paired with Bently Nevada Orbit 60 or third-party data acquisition systems.

Advanced Diagnostics: Supports full-spectrum cascade plots, orbit analysis, and Bode diagrams when connected to 3300 XL rack monitoring systems. Enables root cause analysis of subsynchronous vibration, oil whirl, and resonance conditions through integrated DSP processing.

Customization Options: Available with armored cable jackets for rodent protection, explosion-proof certifications (ATEX, IECEx), and extended temperature ratings to +125°C for special applications. Consult factory for non-standard cable lengths, connector types, or material certifications.

Delivery Cycle & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS). Tracking information provided within 24 hours of order confirmation. Expedited same-day shipping available for emergency outage support.

Custom Configurations: 10-15 business days for non-standard cable lengths or special certifications. Lead times confirmed at quotation stage based on current production schedules.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Covers probe body, cable assembly, and connector components under normal operating conditions.

Technical Support: Lifetime access to application engineering team for installation guidance, calibration procedures, and troubleshooting assistance. Phone, email, and remote diagnostic support included at no additional cost.

Documentation Package: Each unit ships with calibration certificate, installation instructions, dimensional drawings, and proximitor compatibility matrix. Digital copies available for download from product support portal.

Frequently Asked Questions

What proximitor models are compatible with the 330104-00-08-05-01-05 probe?
This probe pairs with all 3300 XL proximitor models (330180, 330780 series) and legacy 3300 proximitors (3300/05, 3300/16). System sensitivity remains 200 mV/mil when using factory-matched components. Extension cables (330130 series) can be added between probe and proximitor without recalibration.

How do I determine the correct probe installation depth for my application?
Position probe tip 1.0-1.5mm from shaft surface at normal operating clearance (50-75% of 2.0mm linear range). Use -10 VDC output from proximitor as reference: -7.0 to -9.0 VDC indicates proper gap. Install locking nut to prevent vibration-induced probe migration during machine operation.

Can this sensor measure vibration on non-ferrous shafts like stainless steel or titanium?
No, eddy current proximity probes require ferromagnetic target materials (carbon steel, 400-series stainless). For non-ferrous shafts, install ferromagnetic sleeves or use alternative technologies like laser displacement sensors. Contact engineering for material compatibility verification.

What is the expected service life in high-temperature turbine applications?
Typical service life exceeds 10 years when operated within -40°C to +105°C specification. PTFE cable insulation maintains dielectric strength through 50,000+ thermal cycles. Replace probes if cable jacket shows cracking, connector corrosion appears, or output signal drifts beyond ±5% of calibration baseline.

Does the 0.8m cable length include the connector body?
Yes, the -05 designation specifies 0.8 meters (800mm) measured from probe tip to the end of the connector body. When calculating total system length, add extension cable length and proximitor-to-monitor cabling to determine end-to-end signal path.

How does this probe perform in environments with electromagnetic interference?
Shielded cable construction and differential signal transmission provide excellent EMI rejection. Maintain minimum 150mm separation from VFD power cables and high-current conductors. Ground proximitor chassis to equipment frame using 6 AWG or larger ground wire for optimal noise immunity.

Take the Next Step

Protect your critical rotating assets with proven vibration monitoring technology. Add the 330104-00-08-05-01-05 proximity probe to your cart now, or contact our application engineers at sale@ninermas.com or +0086 187 5021 5667 for system design assistance, bulk pricing, or technical specifications tailored to your machinery configuration.
