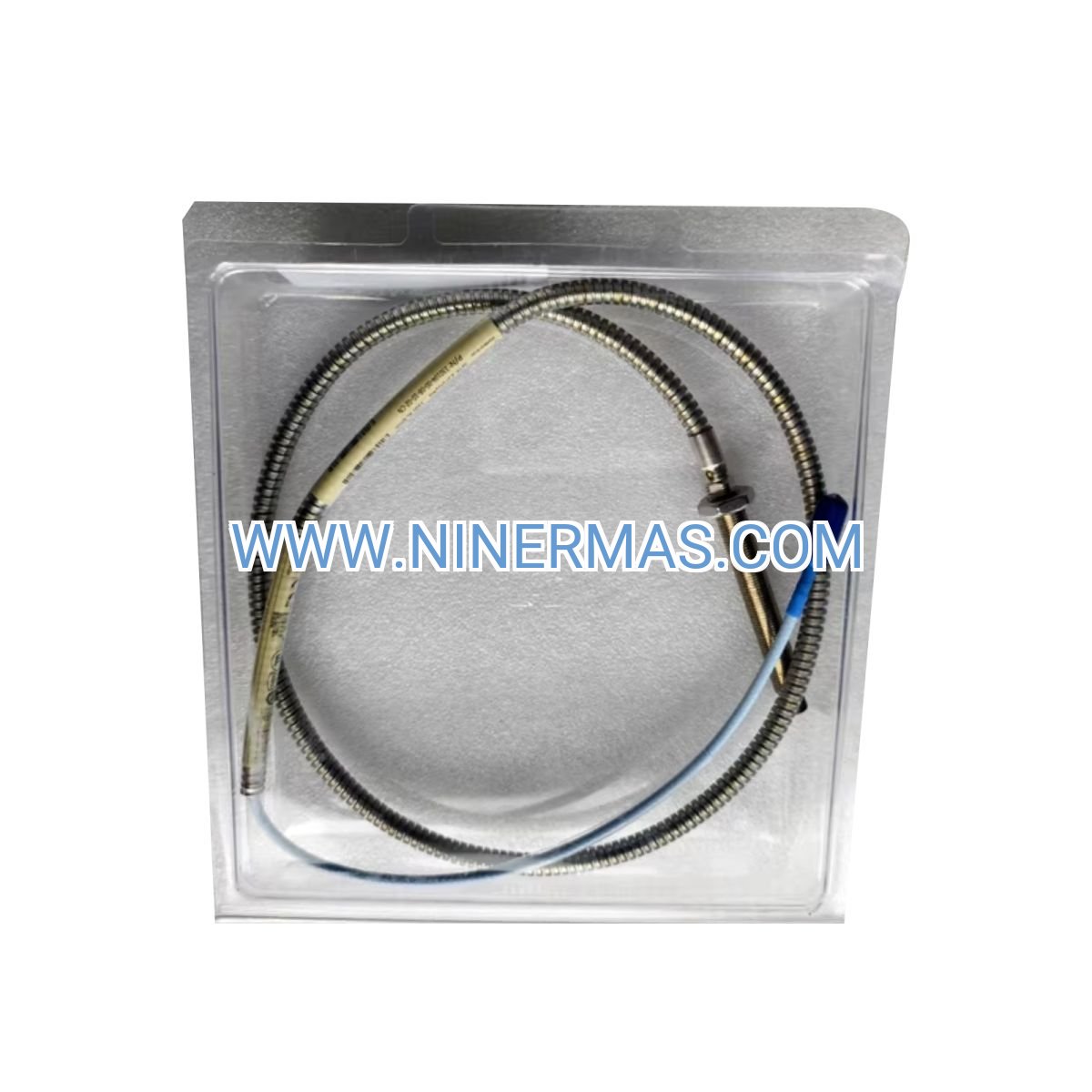

Bently Nevada 330104-00-07-90-12-EN Eddy Current Proximity Sensor (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330104-00-07-90-12-EN is an industrial-grade eddy current proximity sensor designed for continuous vibration monitoring, radial shaft displacement measurement, and rotational speed detection in critical rotating machinery. Through non-contact electromagnetic induction technology and high-frequency signal processing, it delivers real-time shaft position data with exceptional accuracy and reliability.

Engineered for turbomachinery applications in power generation, oil & gas processing, petrochemical plants, and heavy industrial facilities, this probe addresses common challenges including bearing wear detection, shaft eccentricity monitoring, rotor imbalance diagnosis, and catastrophic failure prevention. It integrates seamlessly with Bently Nevada 3300 XL and 3500 rack-based monitoring systems to enable condition-based maintenance strategies.

Built with rugged construction and proven field reliability, the 330104-00-07-90-12-EN offers wide operating temperature range (-40°C to +85°C), high-frequency response (0-10 kHz), and long-term stability in harsh environments. Ideal for design engineers, maintenance teams, system integrators, and plant operators seeking to reduce unplanned downtime and extend asset lifespan. Contact our application engineers for customized probe selection, cable length configuration, and system integration guidance.

Core Features & Technical Advantages

Non-Contact Measurement Technology
Utilizes eddy current principle to measure gap voltage without physical contact with rotating shaft, eliminating mechanical wear, reducing maintenance frequency, and enabling continuous operation in high-speed applications up to 100,000 RPM.

Wide Frequency Response Range
Captures dynamic events from 0 Hz (static displacement) to 10 kHz, detecting both slow thermal growth and high-frequency bearing defects, blade pass frequencies, and gear mesh vibrations that traditional sensors miss.

Extreme Environment Durability
Operates reliably across -40°C to +85°C ambient temperature range with hermetically sealed construction, resistant to moisture, oil mist, chemical exposure, and electromagnetic interference common in industrial settings.

Seamless System Integration
Factory-calibrated for direct compatibility with Bently Nevada 3300 XL Proximitor systems and 3500 rack monitoring platforms, supporting standard -2V to -18V DC output signal format with minimal configuration requirements.

Precision Gap Voltage Measurement
Delivers linear output voltage proportional to target distance with typical sensitivity of 200 mV/mil (7.87 mV/μm), enabling accurate shaft displacement analysis, thrust position monitoring, and differential expansion measurement.

Flexible Installation Options
Features standard 8mm (5/16-24 UNF) threaded mounting with multiple cable length configurations, compatible with existing probe holders and mounting brackets, simplifying retrofit installations and reducing commissioning time.

Typical Application Scenarios

This proximity sensor is specifically engineered for applications demanding continuous shaft position monitoring, vibration surveillance, and rotational speed measurement:

Steam & Gas Turbine Monitoring
Measures radial vibration, axial position, and differential expansion in power generation turbines, preventing blade rubs, bearing failures, and rotor bow conditions that lead to forced outages and catastrophic damage.

Centrifugal Compressor Protection
Monitors shaft displacement and vibration amplitude in API 617/API 672 compressor trains for oil & gas processing, petrochemical plants, and air separation units, triggering automatic shutdown before surge or mechanical failure occurs.

Industrial Pump Condition Monitoring
Tracks bearing wear, shaft runout, and cavitation-induced vibration in critical process pumps, boiler feed pumps, and cooling water circulation systems, optimizing maintenance intervals and reducing spare parts inventory.

Motor & Generator Surveillance
Detects rotor eccentricity, magnetic center shift, and bearing degradation in large induction motors, synchronous generators, and variable frequency drive applications across manufacturing, mining, and marine propulsion sectors.

Gearbox & Drivetrain Diagnostics
Identifies gear tooth wear, shaft misalignment, and coupling deterioration in high-speed gearboxes, wind turbine drivetrains, and industrial transmission systems through advanced vibration signature analysis.

Technical Specifications & Selection Guide

To facilitate accurate probe selection and system design, we provide comprehensive technical parameters based on factory specifications and field-proven configurations:

Selection Recommendations:
When specifying proximity probes, consider the following critical factors: shaft material composition and surface finish (affects sensitivity), maximum shaft speed and vibration amplitude (determines frequency response requirements), ambient temperature and environmental conditions (chemical exposure, moisture levels), mounting space constraints and accessibility (probe length and cable routing), and system compatibility with existing Bently Nevada proximitor modules. For complex installations involving multiple measurement planes, thrust position monitoring, or hazardous area classifications, consult our application engineering team with detailed machine drawings, operating parameters, and site-specific requirements.

Advanced Integration Capabilities

Multi-Channel Monitoring Systems
Supports XY probe pair configurations for radial vibration vector analysis, enabling orbit plots, shaft centerline position tracking, and rotor dynamic behavior characterization across multiple bearing locations.

Digital Communication Protocols
When paired with 3500 rack systems, provides Modbus TCP/IP, OPC DA/UA, and 4-20mA analog outputs for integration with distributed control systems (DCS), supervisory control and data acquisition (SCADA) platforms, and enterprise asset management software.

Predictive Analytics Compatibility
Generates high-resolution time-domain and frequency-domain data suitable for machine learning algorithms, trend analysis, and ISO 20816 / API 670 compliance reporting in condition-based maintenance programs.

Delivery, Service & Quality Assurance

Lead Time & Availability: Factory-sealed units typically ship within 3-5 business days from regional distribution centers. Custom cable lengths and special configurations require 10-15 business days manufacturing lead time.

Warranty Coverage: All proximity probes include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy. Extended warranty programs available for critical applications.

Technical Documentation: Each shipment includes factory calibration certificate, dimensional drawings, installation instructions, wiring diagrams, and compatibility matrix for Bently Nevada monitoring systems. Digital copies provided via secure download portal.

Installation & Commissioning Support: Remote technical assistance available during installation phase, including gap voltage verification, signal quality assessment, and system integration troubleshooting. On-site commissioning services offered for multi-probe installations (regional availability applies).

Compliance & Certifications: Manufactured in accordance with ISO 9001 quality management standards. Hazardous area certifications (ATEX, IECEx, CSA) available for specific model variants—contact technical sales for zone classification requirements.

Frequently Asked Questions (FAQ)

Q: Is the Bently Nevada 330104-00-07-90-12-EN compatible with my existing 3300 XL monitoring system?
A: Yes, this probe is factory-calibrated for direct integration with all Bently Nevada 3300 XL Proximitor modules and 3500 rack-based monitoring systems. It uses the standard -2V to -18V output signal format and requires no additional signal conditioning. Verify your proximitor module part number to confirm cable length compatibility.

Q: What is the optimal installation gap for accurate vibration measurement?
A: The recommended air gap is 40-60 mils (1.0-1.5mm) from the target shaft surface, which positions the probe in the linear operating range of the voltage-to-distance curve. Gaps below 20 mils risk probe contact during shaft excursions, while gaps exceeding 80 mils reduce sensitivity and signal-to-noise ratio. Always verify gap voltage during commissioning using a digital voltmeter.

Q: Can this proximity probe be used in explosive or hazardous atmospheres?
A: The standard 330104-00-07-90-12-EN model is designed for general industrial environments (non-hazardous areas). For installations in Zone 1, Zone 2, Division 1, or Division 2 classified locations, specify hazardous area certified variants with appropriate ATEX, IECEx, or FM approvals. Contact our technical team with your area classification details for compliant product selection.

Q: How many proximity probes are required for comprehensive turbine vibration monitoring?
A: A typical turbine monitoring configuration uses two probes per bearing (XY pair at 90° orientation) for radial vibration measurement, plus one axial probe for thrust position monitoring. For a two-bearing turbine, this totals five probes minimum. High-value assets may include additional probes for differential expansion, eccentricity, and backup measurements per API 670 standards.

Q: What maintenance is required for eddy current proximity sensors?
A: Proximity probes are maintenance-free devices with no moving parts or consumable elements. Recommended practices include annual gap voltage verification, visual inspection of cable integrity, and periodic cleaning of the probe tip to remove oil residue or debris accumulation. Cable replacement may be necessary after 10-15 years in high-vibration environments.

Q: Does the probe require recalibration after installation?
A: No field recalibration is necessary. Each probe ships with a factory calibration certificate traceable to NIST standards. The probe and cable assembly form a matched system—replacing either component requires using a factory-calibrated probe-cable pair to maintain measurement accuracy.

Request Technical Support & Custom Configuration

For detailed application engineering assistance, custom cable length specifications, or multi-probe system design, please provide the following information to our technical sales team:

• Equipment type and manufacturer (turbine, compressor, pump model)
• Shaft diameter, material, and surface finish specifications
• Operating speed range (RPM) and maximum vibration amplitude
• Number of measurement planes and probe mounting locations
• Ambient temperature range and environmental conditions
• Existing monitoring system model (3300 XL, 3500 rack, or standalone)
• Cable length requirements and routing constraints
• Hazardous area classification (if applicable)

Our application engineers will provide probe selection recommendations, system architecture drawings, and detailed quotations within 24-48 hours.
