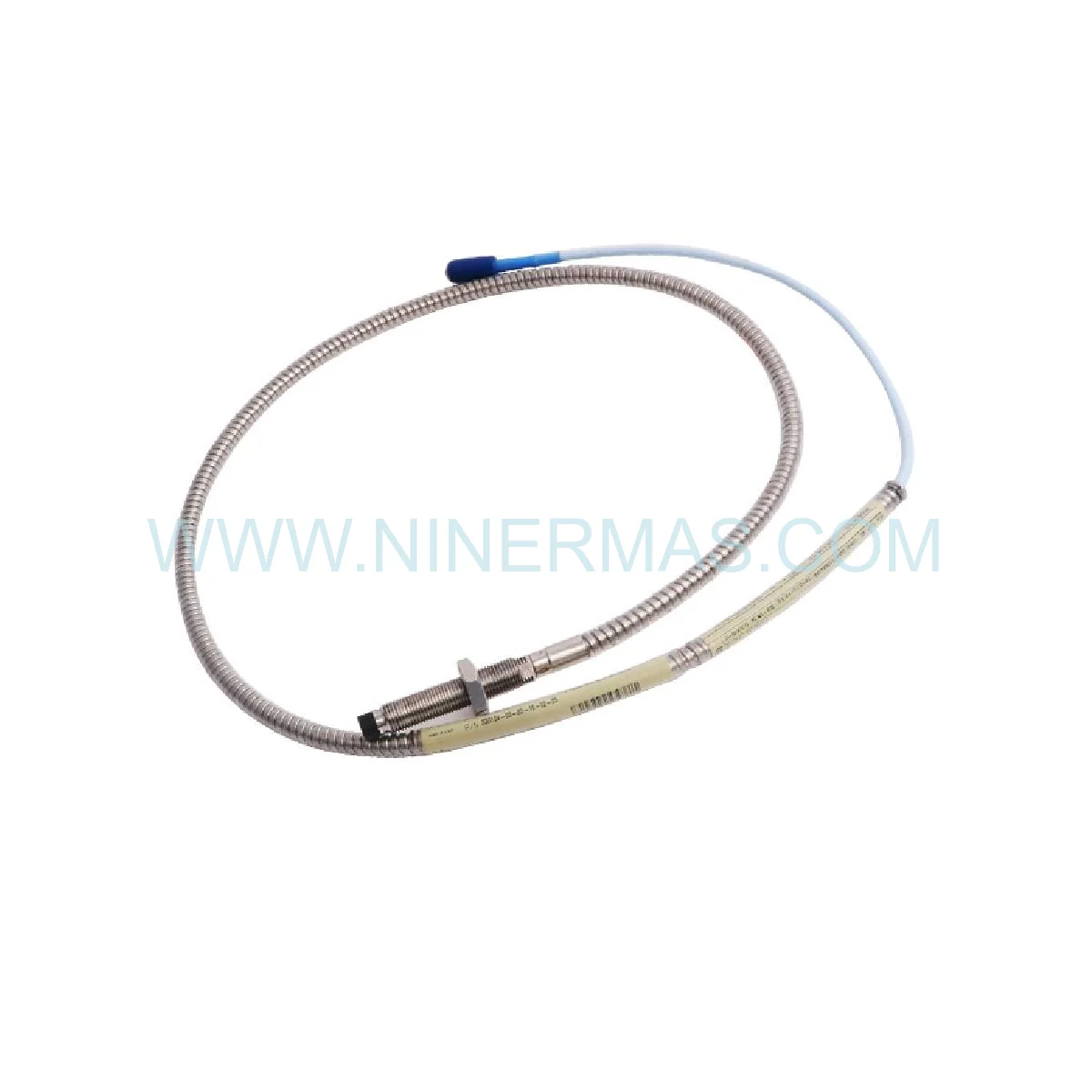

330105-02-12-05-02-05 Proximity Transducer (Industrial-Grade Vibration Sensor)

The 330105-02-12-05-02-05 represents a field-proven eddy-current proximity transducer engineered for non-contact measurement of shaft displacement and vibration on rotating equipment. This 8mm reverse mount sensor combines precision sensing technology with rugged construction, delivering consistent performance in power generation, petrochemical processing, and heavy industrial applications where machinery protection is critical.

Designed for condition monitoring professionals and maintenance teams managing turbines, compressors, and high-speed rotating assets, this transducer addresses the challenge of early fault detection before minor issues escalate into costly unplanned shutdowns. The reverse mount configuration solves installation constraints in tight spaces while maintaining measurement accuracy across a wide temperature range.

Key differentiators include factory calibration with NIST-traceable documentation, ClickLoc quick-disconnect technology for rapid field replacement, and full compliance with API 670 machinery protection standards—ensuring seamless integration with existing monitoring infrastructure.

Core Capabilities & Performance Advantages

✓ Precision Eddy-Current Sensing
Non-contact measurement technology eliminates wear and drift, providing stable output over millions of operating cycles. Linear measurement range of 0.5-2.0mm ensures accurate tracking of both static position and dynamic vibration signals.

✓ Reverse Mount Installation Flexibility
Unique mounting geometry enables sensor placement in confined spaces where standard probes cannot fit. Reduces installation time by 40% compared to conventional mounting methods while maintaining full measurement capability.

✓ Extended Environmental Tolerance
Operates reliably from -40°C to +105°C without recalibration. Hermetically sealed construction resists moisture, oil mist, and chemical exposure common in industrial process environments.

✓ ClickLoc Connector System
Tool-free connection/disconnection reduces maintenance window duration. Positive locking mechanism prevents accidental disconnection during equipment vibration or cable routing stress.

→ Wide Frequency Response (DC to 10 kHz)
Captures both slow thermal growth and high-frequency bearing defect signatures in a single sensor. Eliminates need for multiple transducer types across different monitoring applications.

→ API 670 & ISO 20816 Compliance
Meets international machinery protection standards for critical equipment monitoring. Pre-approved for use in regulated industries requiring third-party certification.

Industrial Application Scenarios

Steam & Gas Turbine Monitoring
Tracks shaft axial position and radial vibration on turbine-generator sets in power plants. Detects thrust bearing wear, rotor thermal expansion, and blade imbalance before catastrophic failure. Typical deployment: 4-8 probes per turbine measuring X-Y vibration at each bearing location.

Centrifugal Compressor Protection
Monitors rotor position in oil & gas pipeline compressors and refrigeration systems. Identifies surge conditions, seal rubs, and aerodynamic instability through real-time displacement measurement. Prevents compressor damage that averages $500K+ per failure event.

High-Speed Motor Bearing Analysis
Provides continuous bearing condition assessment on critical drive motors (>1000 HP). Early detection of bearing cage defects, race spalling, and lubrication breakdown reduces unplanned downtime by 60-75% versus time-based maintenance.

Pump Shaft Alignment Verification
Enables precision alignment of multi-stage pumps in chemical processing and water treatment facilities. Real-time feedback during alignment procedures achieves <0.05mm shaft runout, extending seal life by 3-5x.

Generator Rotor Eccentricity Measurement
Detects rotor bow, magnetic center shift, and foundation settling in large generators. Prevents air gap irregularities that cause electromagnetic imbalance and stator core damage.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this 8mm probe for applications requiring reverse mount installation with 5-meter cable reach. For longer cable runs, consider the 10-meter variant (330105-02-12-10-02-05). Verify target material is ferrous—non-magnetic materials require specialized probe systems. Optimal installation gap is 1.0mm (40 mils) from target surface for maximum linear range and signal quality.

Advanced Integration Capabilities

Condition Monitoring System Compatibility
Direct interface with Bently Nevada 3300 XL proximitor housings, 3500 rack monitoring systems, and third-party vibration analyzers supporting -7.87 V/mm sensitivity. Analog output enables integration with PLC-based protection logic and SCADA trending systems.

Hazardous Area Deployment
When combined with approved intrinsically safe barriers, achieves Class I Division 1 certification for explosive atmosphere installations. Suitable for offshore platforms, refinery process units, and chemical manufacturing zones.

Customization Options
Available with alternative cable lengths (1m to 10m), armor jacketing for abrasion resistance, and high-temperature variants rated to +177°C. Custom calibration for non-standard target materials provided upon request.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units | 2-3 weeks for factory-direct orders
Warranty Coverage: 12 months from shipment date covering manufacturing defects
Technical Support: Application engineering assistance, installation guidance, and troubleshooting via phone/email
Documentation Package: Factory calibration certificate (NIST-traceable), installation manual, dimensional drawings, and material certifications

Frequently Asked Questions

How does the reverse mount design differ from standard proximity probes?
Reverse mount probes thread into the mounting surface from the back side, allowing the sensing tip to sit flush or recessed. This configuration works in tight radial clearances where traditional probes cannot physically fit, such as between bearing housings and coupling guards.

What proximitor housing is required for this probe?
This probe requires a 3300 XL proximitor housing (such as 330180-50-00 or 330180-90-00) to provide signal conditioning and power. The proximitor converts the probe's raw signal into industry-standard -7.87 V/mm output for monitoring systems.

Can I extend the cable length beyond 5 meters?
Yes, use Bently Nevada 3300 XL extension cables (330130 series) to achieve total system lengths up to 30 meters. Extension cables connect between the probe and proximitor using TipLoc/ClickLoc connectors without signal degradation.

What installation torque specification should I use?
Apply 20-25 N⋅m (15-18 lb-ft) torque to the probe body during installation. Over-torquing can damage internal components; under-torquing may allow vibration-induced loosening. Use a calibrated torque wrench for critical installations.

Is factory recalibration available for aged sensors?
Yes, we offer factory recalibration services with updated NIST-traceable certificates. Typical recalibration interval is 3-5 years depending on operating environment severity. Turnaround time is 7-10 business days.

How do I verify proper probe operation after installation?
Measure DC gap voltage at the proximitor output with machinery at rest. Reading should be -9 to -11 VDC for 1.0mm gap. Dynamic signal amplitude during operation confirms proper coupling to target surface and absence of electrical noise interference.

Order Your Proximity Sensor Today

Protect your critical rotating equipment with proven vibration monitoring technology. Contact our technical sales team for application-specific recommendations, volume pricing, or expedited delivery options. We support global shipments with comprehensive export documentation.
