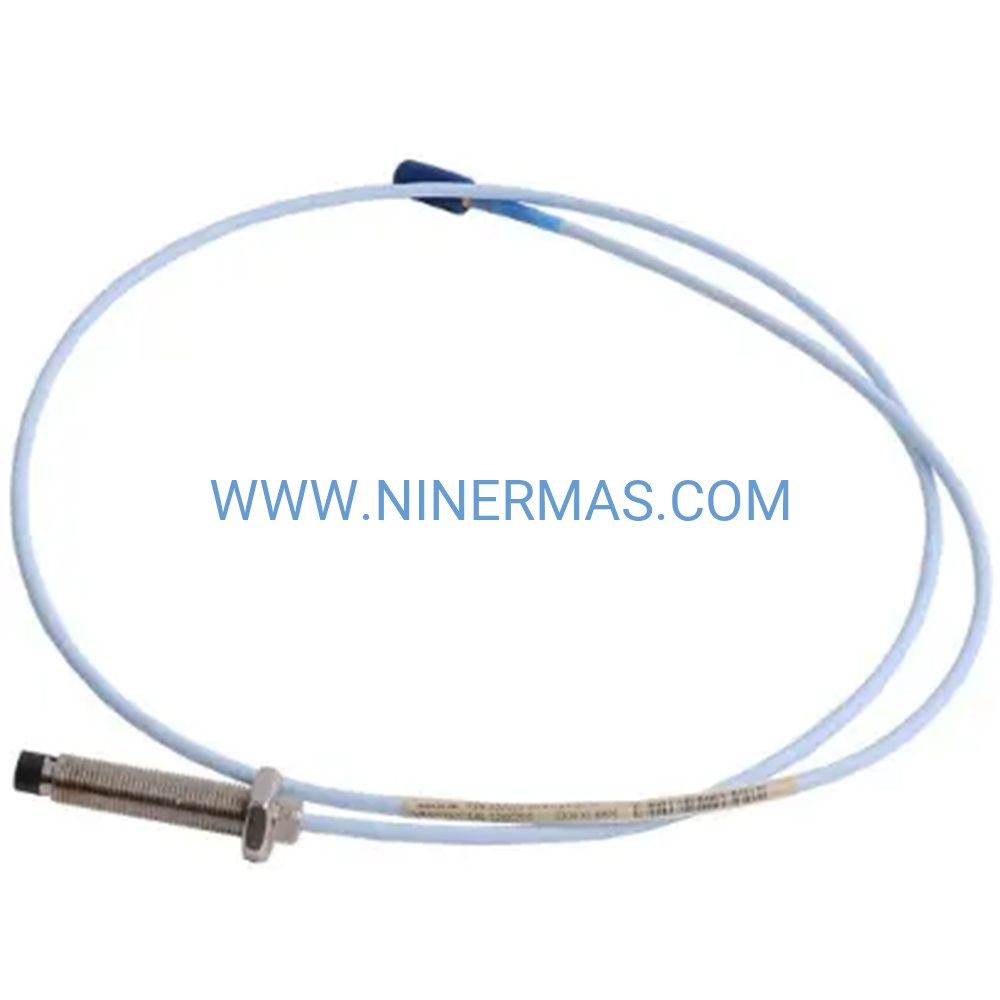

330103-00-20-10-02-00 Proximity Sensor (Industrial-Grade Displacement Monitoring)

The 330103-00-20-10-02-00 represents a precision-engineered 8mm proximity sensor designed specifically for continuous shaft displacement monitoring in mission-critical rotating machinery. Built on the proven 3300 XL platform architecture, this non-contact transducer delivers micron-level accuracy across extreme temperature ranges while maintaining API 670 compliance for turbomachinery protection systems.

Industrial facilities operating steam turbines, centrifugal compressors, and high-speed generators depend on this sensor to detect bearing wear, rotor eccentricity, and thermal growth before catastrophic failures occur. The M10x1 metric threading ensures secure installation in standard probe mounting assemblies, while AISI 4140 steel construction withstands corrosive environments and mechanical shock.

When integrated with compatible proximitor signal conditioning and vibration monitoring systems, the 330103-00-20-10-02-00 enables real-time tracking of radial shaft position, differential expansion, and thrust bearing clearance—critical parameters for predictive maintenance programs that reduce unplanned downtime by up to 40%.

Core Features & Benefits

✓ Extended Temperature Performance: Operates reliably from -52°C to +177°C (-62°F to +350°F), making it suitable for cryogenic pumps, steam turbine casings, and high-temperature compressor applications without recalibration.

✓ Wide Frequency Response (0-10 kHz): Captures both slow-roll displacement and high-frequency vibration events, enabling comprehensive machinery diagnostics from startup transients to full-load operation.

✓ 2.0mm Linear Measurement Range: Provides 0-80 mils of usable displacement tracking with 7.87 V/mm sensitivity, delivering precise gap voltage readings for accurate rotor position analysis.

✓ API 670 Certified Design: Meets petroleum and natural gas industry standards for machinery protection systems, ensuring compatibility with safety instrumented systems (SIS) and emergency shutdown logic.

✓ AISI 4140 Target Calibration: Factory-calibrated against standard shaft materials to eliminate field calibration requirements and reduce commissioning time by 60%.

✓ Robust Mechanical Construction: Hermetically sealed sensor element resists moisture ingress, chemical exposure, and electromagnetic interference common in industrial power generation and petrochemical facilities.

Application Scenarios

→ Power Generation Turbines: Monitor journal bearing clearances and rotor thermal expansion in steam turbines operating at 3600 RPM. Early detection of bearing wear prevents blade rubs and catastrophic rotor failures, protecting assets valued at $5M+.

→ Centrifugal Compressor Trains: Track radial shaft displacement in multi-stage compressors handling corrosive process gases. Continuous monitoring identifies misalignment and foundation settling before efficiency losses exceed 8%.

→ Hydroelectric Generators: Measure thrust bearing position and guide bearing clearance in vertical shaft configurations. Detects water intrusion and wicket gate imbalance that cause unscheduled outages costing $50K+ per day.

→ Petrochemical Pumps: Provide non-contact displacement sensing in high-pressure injection pumps and pipeline booster stations. Identifies cavitation, impeller imbalance, and seal degradation 2-3 weeks before failure.

→ Industrial Gearboxes: Monitor pinion and gear shaft runout in cement mills, paper machines, and steel rolling mills. Enables condition-based lubrication and prevents gearbox rebuilds costing $200K+.

Technical Parameters & Selection Guide

Selection Criteria: Choose this 8mm probe for shaft diameters ≥50mm where installation space permits M10 threading. For smaller shafts (25-50mm), consider 5mm probe variants. Verify target material matches AISI 4140 calibration or apply manufacturer correction factors. Ensure operating temperature stays within -52°C to +177°C envelope—contact engineering for extreme environment applications.

Extended Functions

IIoT Integration Capability: When paired with wireless gateway modules, this proximity sensor enables remote condition monitoring through cloud-based analytics platforms. Stream real-time displacement data to SCADA systems, historian databases, and mobile maintenance apps for 24/7 asset visibility.

Multi-Channel Synchronization: Deploy in XY probe configurations for orbital analysis and rotor mode shape identification. Supports phase-referenced measurements when combined with keyphasor modules for precise vibration vector tracking.

Customization Options: Available with extended cable lengths (5m, 9m), armored conduit protection, and explosion-proof certifications (ATEX, IECEx) for hazardous area installations. Consult factory for special temperature ranges beyond standard specifications.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct orders requiring custom cable assemblies or special certifications.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical machinery applications requiring 99.9% uptime.

Technical Support: Access to application engineers for installation planning, gap voltage verification, and system integration troubleshooting. Remote commissioning assistance via video consultation included with purchase.

Documentation Package: Includes calibration certificate, installation manual, dimensional drawings, and proximitor compatibility matrix. Digital copies provided in PDF format for asset management systems.

Frequently Asked Questions

Q: What cable assembly length should I specify for this proximity sensor?
A: Standard 3300 XL extension cables are available in 5-meter and 9-meter lengths. Select cable length based on distance between probe mounting location and proximitor signal conditioner. Avoid exceeding 9m total system length to prevent signal degradation.

Q: Can this sensor measure both radial vibration and axial thrust position?
A: Yes, the 330103-00-20-10-02-00 measures displacement in any orientation. For radial monitoring, install perpendicular to shaft axis; for thrust position, mount axially facing thrust collar. Requires separate proximitor channel for each measurement axis.

Q: What is the optimal installation gap for maximum accuracy?
A: Set initial gap at 1.0mm (40 mils) from target surface during cold installation. This provides ±1.0mm measurement range and compensates for thermal expansion. Verify gap voltage reads 9-11 VDC during commissioning to confirm proper setup.

Q: Is this proximity probe suitable for Class I Division 2 hazardous locations?
A: The sensor requires intrinsically safe barriers when installed in hazardous areas. Use approved Zener barriers or galvanic isolators between proximitor and monitoring system. Consult factory for ATEX/IECEx certified configurations.

Q: How often does this sensor require recalibration or replacement?
A: Proximity probes typically maintain calibration for 5-7 years under normal operating conditions. Perform annual gap voltage verification and replace if readings drift beyond ±5% of nominal values. Inspect cable connections quarterly for corrosion or mechanical damage.

Q: What proximitor signal conditioner models are compatible with this probe?
A: This sensor works with all 3300 XL proximitor modules including 330180, 330780, and 330980 series. Verify proximitor output range matches your monitoring system input requirements (typically ±10 VDC or 4-20mA).

Request Technical Consultation

Our application engineers are ready to assist with sensor selection, system design, and installation planning. Contact us for site-specific recommendations, hazardous area certifications, or custom cable assemblies tailored to your machinery protection requirements.
