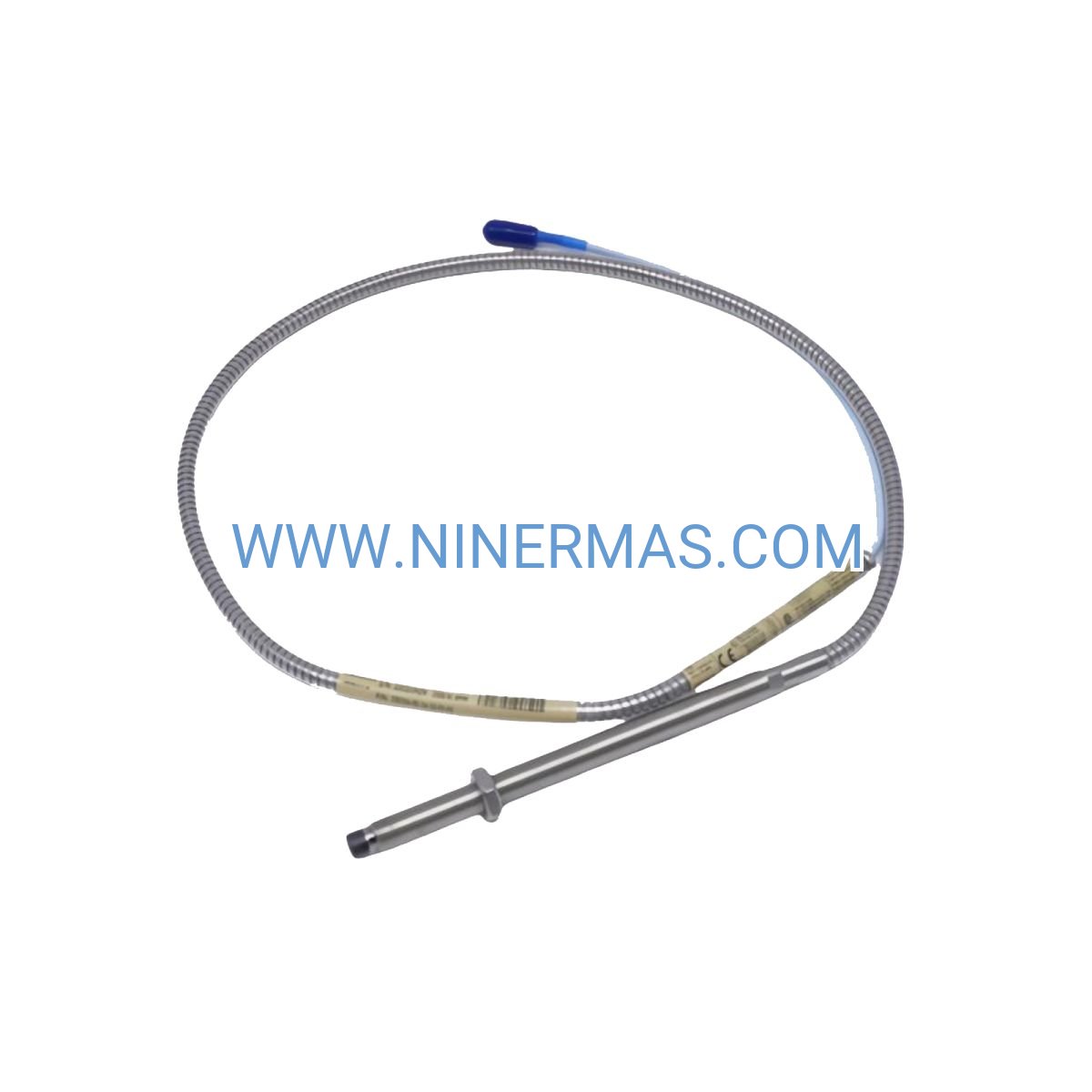

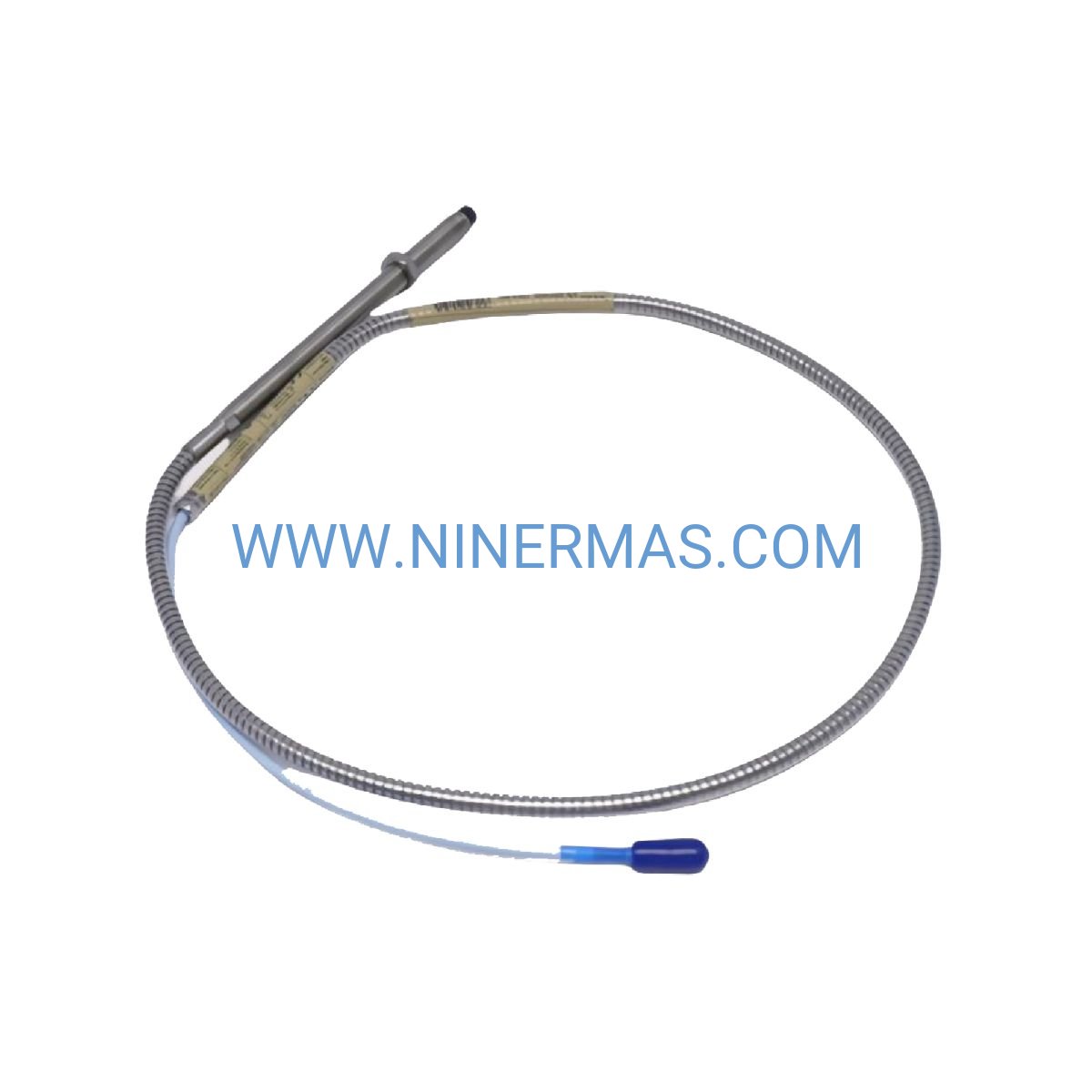

330103-00-19-10-12-00 Eddy Current Proximity Sensor (Industrial-Grade Shaft Monitoring Solution)

The 330103-00-19-10-12-00 represents a precision-engineered eddy current proximity transducer designed for non-contact measurement of shaft displacement, vibration amplitude, and rotational speed in mission-critical rotating machinery. Built on the proven 3300 XL platform architecture, this 8mm diameter sensor combines extended 190mm active sensing length with robust 10-meter cabling to deliver reliable performance in demanding industrial environments where equipment uptime directly impacts operational profitability.

Engineered for process industries requiring continuous machinery health surveillance, this proximity probe addresses the fundamental challenge of detecting early-stage mechanical degradation before catastrophic failure occurs. Target applications include power generation turbines, petrochemical compressor trains, pulp and paper machinery, and any high-value rotating asset where unplanned downtime costs exceed $50,000 per hour. The sensor's hermetically sealed construction and wide temperature tolerance make it suitable for installations exposed to lubricant mist, process steam, and corrosive atmospheres.

What distinguishes the 330103-00-19-10-12-00 from standard proximity sensors is its optimized geometry for deep bearing housing installations and compatibility with API 670 machinery protection standards. The factory-matched system delivers 200 mV/mil sensitivity when paired with 3300 XL signal conditioning modules, providing the measurement resolution necessary to detect bearing wear progression measured in micrometers. This level of precision enables predictive maintenance strategies that reduce spare parts inventory costs by 30-40% while extending mean time between overhauls.

Core Performance Advantages

→ Extended Measurement Range: 190mm (7.48") active tip length accommodates installations requiring deep penetration through bearing housings, seal chambers, or thick machinery casings without compromising signal integrity. This eliminates the need for custom probe extensions that introduce additional failure points.

→ Factory-Calibrated System Accuracy: Pre-matched to 3300 XL proximitor modules with documented linearity across 1.0-2.0mm operating gap, reducing commissioning time by 60% compared to field-calibrated systems. Traceable calibration certificates ensure compliance with ISO 17025 quality standards.

→ Harsh Environment Durability: Stainless steel 300-series housing with hermetic sealing rated for continuous operation from -40°C to +125°C (-40°F to +257°F). Resists degradation from synthetic lubricants, hydraulic fluids, and acidic condensate common in steam turbine applications.

→ Integrated 10-Meter Cable Assembly: Factory-terminated with 12-pin Bently Nevada connector eliminates field splicing errors that account for 35% of proximity probe system failures. Cable armor provides mechanical protection during installation in congested machinery spaces.

✓ High-Frequency Response Capability: 0-10 kHz bandwidth captures transient vibration events including blade pass frequencies, gear mesh harmonics, and bearing defect signatures that lower-bandwidth sensors miss entirely.

✓ Universal Mounting Compatibility: M10 x 1.0 metric threading interfaces with standard proximity probe mounting hardware across European, Asian, and North American machinery platforms, reducing spare parts complexity for multinational operations.

Industrial Application Scenarios

Steam Turbine Generator Sets: In combined-cycle power plants, the 330103-00-19-10-12-00 monitors journal bearing clearances on high-pressure turbine rotors operating at 3,600 RPM. The sensor detects thermal growth during startup sequences and identifies bearing wear patterns that predict lubrication system failures 4-6 weeks before vibration levels reach alarm thresholds. Installation at thrust bearing locations provides axial position monitoring critical for preventing blade tip rubs that cause $2-5 million in turbine damage.

Centrifugal Compressor Trains: Petrochemical facilities deploy these probes on multi-stage compressors handling corrosive process gases at discharge pressures exceeding 1,500 PSI. The 190mm length penetrates through seal gas injection ports to measure shaft radial position at each bearing location. Real-time displacement data feeds into automated shutdown systems that prevent rotor-to-stator contact during surge events, eliminating the need for costly compressor rebuilds averaging $800,000 per incident.

Large Industrial Fans and Blowers: Cement plants and mining operations use the 330103-00-19-10-12-00 to monitor induced draft fans and primary air blowers where bearing failures cause production losses exceeding $150,000 per day. The sensor's ability to operate in environments with heavy particulate loading and temperature swings of 80°C enables continuous monitoring without requiring environmental enclosures that complicate maintenance access.

Hydroelectric Generator Monitoring: Utility-scale hydro plants install these proximity probes on generator guide bearings to detect shaft eccentricity caused by wicket gate imbalance or runner cavitation damage. The extended cable length accommodates routing from bearing pedestals to control rooms located 30+ meters away, reducing signal degradation that compromises measurement accuracy in conventional systems.

Paper Machine Dryer Sections: Pulp and paper mills utilize the sensor on dryer drum bearings operating in 150°C ambient temperatures with exposure to steam condensate and fiber dust. The hermetic seal construction maintains calibration stability for 5+ years in these aggressive environments, compared to 18-month replacement cycles for non-sealed proximity probes.

Technical Specifications & Selection Criteria

Selection Criteria: Choose the 330103-00-19-10-12-00 when your application requires probe installation depth between 150-250mm and proximitor mounting distance does not exceed 8 meters. For shallower bearing housings (90-150mm), consider the 330103-00-09 variant. If cable routing exceeds 10 meters, specify extension cables in 5-meter increments to maintain signal quality. Verify shaft material composition—titanium and aluminum shafts require conductive coatings for accurate eddy current measurement.

Advanced Integration Capabilities

The 330103-00-19-10-12-00 functions as the sensing element within a complete machinery protection system architecture. When connected to 3300 XL proximitor signal conditioners (model 330180 series), the raw eddy current signal converts to industry-standard -5 to -24 VDC output proportional to gap distance. This conditioned signal feeds into 3500 series monitoring racks equipped with vibration analysis modules that perform real-time FFT processing, trend analysis, and alarm logic.

For facilities implementing IIoT predictive maintenance strategies, the sensor integrates with System 1 condition monitoring software through 3500/92 communication gateways. This enables cloud-based vibration analytics, automated work order generation, and machine learning algorithms that predict remaining useful life with 85% accuracy. The system supports Modbus TCP, OPC-UA, and HART protocols for integration with DCS platforms from Honeywell, Emerson, and Siemens.

Advanced installations utilize dual-probe configurations at each bearing location to measure X-Y shaft position, enabling orbit analysis that distinguishes between unbalance, misalignment, and bearing clearance issues. The 330103-00-19-10-12-00's phase-matched construction ensures accurate orbit representation when paired with a second probe installed 90 degrees apart on the bearing housing.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for stock items; custom cable lengths or special terminations require 2-3 weeks manufacturing time.

Warranty Protection: 12-month comprehensive warranty covering manufacturing defects, calibration drift, and cable integrity failures under normal operating conditions. Extended 36-month warranty available for installations with documented environmental controls.

Technical Support: Access to application engineers with turbomachinery expertise for installation guidance, troubleshooting, and system optimization. Support includes proximity probe gap setting procedures, proximitor compatibility verification, and vibration signature interpretation.

Documentation Package: Each sensor ships with calibration certificate traceable to NIST standards, installation manual with torque specifications, and dimensional drawings in AutoCAD DXF format for integration into machinery documentation systems.

Frequently Asked Questions

What proximitor model is required for the 330103-00-19-10-12-00 proximity probe?
The sensor requires a 3300 XL proximitor from the 330180 series, specifically models 330180-50-00 (standard) or 330180-51-00 (extended temperature). These proximitors provide the -24 VDC excitation voltage and signal conditioning necessary for proper operation. Using non-compatible proximitors will result in incorrect gap measurements and potential equipment damage.

How do I determine the correct installation gap for optimal linear range?
The factory-recommended installation gap is 1.5mm (60 mils), which centers the sensor in its 1.0-2.0mm linear range. Use a feeler gauge or calibrated shim stock during installation to set initial gap, then verify using an oscilloscope to confirm the proximitor output voltage falls between -10 to -12 VDC at static conditions. This ensures adequate range for shaft runout and thermal growth.

Can the 330103-00-19-10-12-00 measure vibration on non-ferrous shafts like titanium or aluminum?
Eddy current sensors are optimized for ferrous (magnetic) target materials. Titanium and aluminum shafts have significantly different electrical conductivity, resulting in reduced sensitivity and non-linear response. For non-ferrous applications, apply a conductive coating (typically nickel or chrome plating) to the shaft observation area, or consider alternative sensor technologies such as laser displacement sensors.

What mounting hardware is needed for installation in existing machinery?
Typical installations require a proximity probe mounting bracket (Bently Nevada part 330929-00-xx series), lock nut with integral sealing washer, and thread sealant rated for your operating temperature. The M10 x 1.0 thread requires a 17mm wrench for installation torque of 20-25 N⋅m. Consult the machinery OEM documentation for specific mounting hole locations and depth requirements.

How does cable length affect measurement accuracy and what is the maximum allowable distance?
The 10-meter factory-terminated cable is optimized for minimal signal loss and electromagnetic interference rejection. While extension cables up to 20 meters total length are technically feasible, each additional 5 meters reduces high-frequency response by approximately 5% and increases susceptibility to electrical noise. For distances exceeding 15 meters, consider relocating the proximitor closer to the probe or implementing shielded cable routing.

What is the expected service life in high-temperature steam turbine applications?
In continuous operation at 125°C (maximum rated temperature), the hermetically sealed construction typically provides 7-10 years of service before calibration drift exceeds ±5% tolerance. Lower operating temperatures (80-100°C) extend service life to 12-15 years. The primary failure mode is cable insulation degradation rather than sensing element failure, making the factory-terminated cable design a reliability advantage over field-spliced assemblies.

Request Technical Consultation

Our machinery monitoring specialists provide complimentary application reviews to ensure optimal sensor selection for your specific rotating equipment. Contact our team to discuss bearing housing geometry, shaft material compatibility, environmental conditions, and integration with existing monitoring systems. We offer site surveys, installation supervision, and commissioning support for critical machinery installations.
