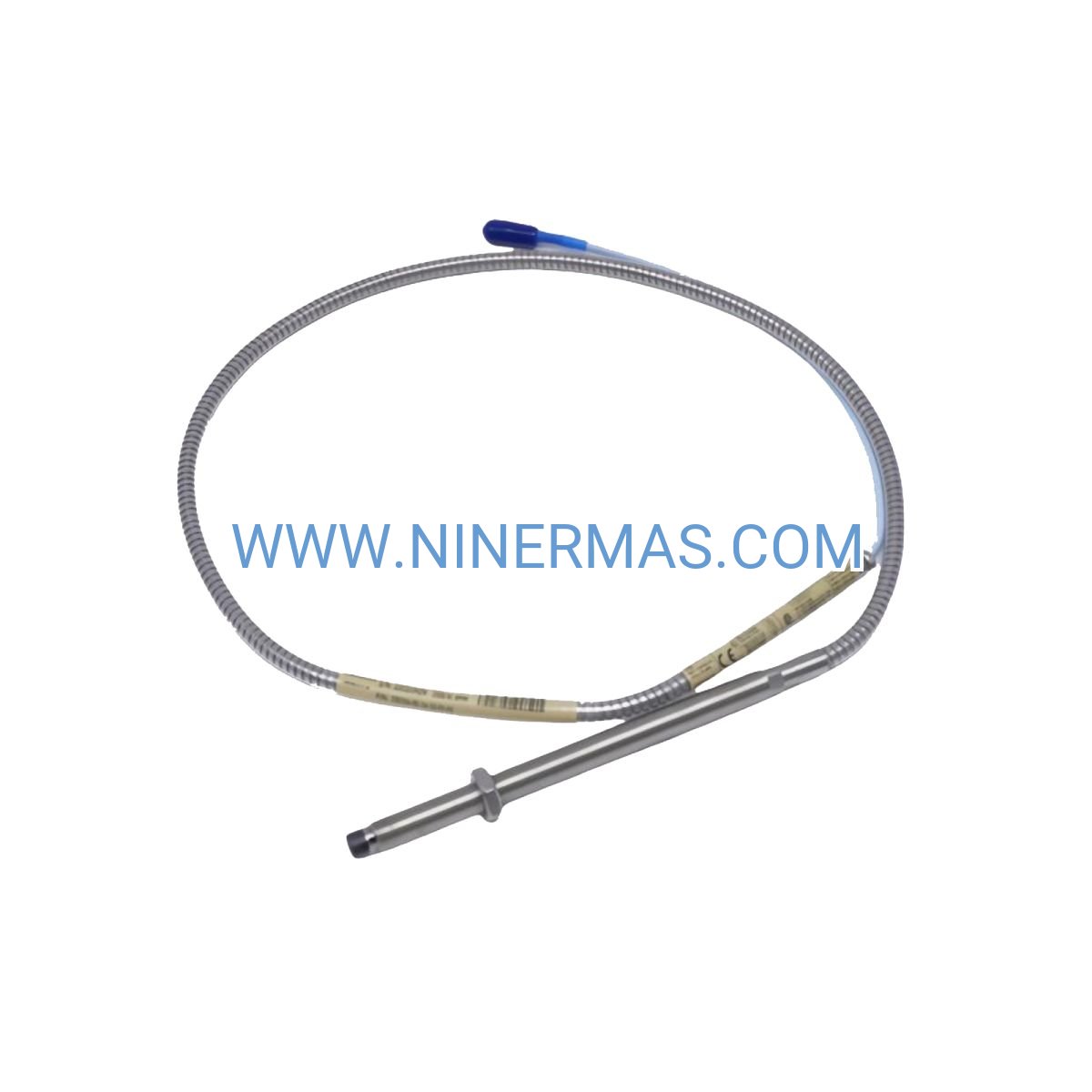

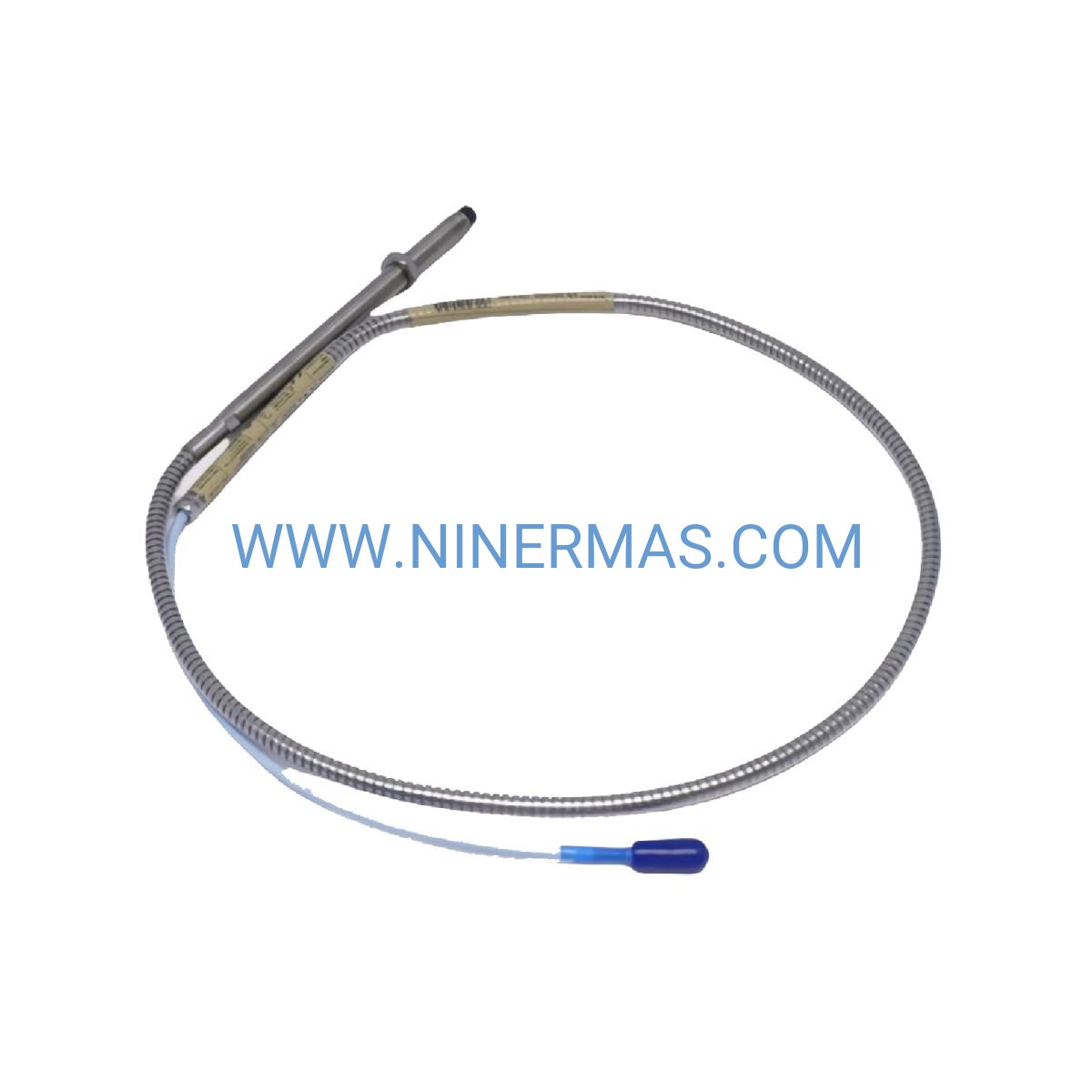

330103-00-18-10-12-00 Proximity Sensor (Industrial-Grade Vibration Transducer)

The 330103-00-18-10-12-00 represents a field-proven solution for non-contact displacement and vibration measurement in mission-critical rotating equipment. Engineered within the Bently Nevada 3300 XL platform, this 8mm metric proximity transducer combines robust mechanical design with superior electrical performance to deliver consistent, accurate data across power generation, petrochemical processing, and heavy manufacturing sectors.

Designed for engineers and maintenance teams managing turbines, centrifugal compressors, large motors, and gearboxes, this sensor addresses the fundamental challenge of early fault detection in high-value assets. By providing real-time shaft position and dynamic motion data, it enables predictive maintenance strategies that reduce unplanned downtime by up to 40% and extend equipment service intervals.

Key differentiators include exceptional temperature stability across -30°C to +120°C operating range, stainless steel construction for corrosive environment resilience, and seamless integration with existing 3300 XL monitoring infrastructure—eliminating costly system overhauls during sensor replacement or expansion projects.

Core Features & Benefits

✓ High-Precision Measurement Architecture
Delivers ±1% linearity over 0–80 mil (2.0 mm) range with 200 mV/mil sensitivity, ensuring accurate trending for bearing wear, rotor eccentricity, and thermal growth analysis. Supports API 670 compliance for machinery protection systems.

✓ Extreme Environment Durability
M18×1.0 threaded housing withstands 50g shock loads and continuous vibration exposure. Hermetically sealed electronics resist moisture ingress in offshore platforms, chemical plants, and outdoor installations where IP67-rated protection is mandatory.

✓ Plug-and-Play System Compatibility
Direct replacement for legacy 3300 series probes without recalibration or wiring modifications. Reduces retrofit labor costs by 60% compared to competitive systems requiring proximitor driver upgrades or DCS configuration changes.

→ Extended Cable Integration
Factory-installed armored extension cable eliminates field termination errors and provides mechanical strain relief in high-vibration mounting locations. Available in custom lengths for challenging installation geometries.

→ Multi-Parameter Monitoring Capability
Simultaneous tracking of radial vibration, axial position, and differential expansion when deployed in XY probe pairs or thrust position configurations. Enables comprehensive rotor dynamics analysis from a single sensor type.

→ Reduced Total Cost of Ownership
Interchangeable with existing 3300 XL inventory, minimizing spare parts complexity. Mean time between failures exceeds 150,000 hours in typical industrial duty cycles, lowering lifecycle replacement expenses.

Application Scenarios

Steam & Gas Turbine Monitoring
Tracks journal bearing clearances and thrust position in power generation turbines operating at 3,600–10,000 RPM. Detects bearing wear progression before catastrophic failure, preventing multi-million dollar forced outages in combined-cycle plants.

Centrifugal Compressor Protection
Monitors rotor position in API 617 compressor trains handling corrosive gases or high-pressure hydrocarbon streams. Provides trip signals for magnetic bearing systems and validates surge control valve response during transient operations.

Pump Reliability Programs
Measures shaft runout and coupling misalignment in boiler feed pumps, crude oil transfer pumps, and cooling water circulation systems. Enables condition-based maintenance scheduling that reduces pump overhaul frequency by 25–35%.

Paper Machine Roll Monitoring
Assesses dryer can eccentricity and calender roll positioning in high-speed paper production lines. Minimizes web breaks and quality defects by maintaining ±0.002" roll alignment tolerances during 4,000 FPM operation.

Marine Propulsion Systems
Survives saltwater exposure and engine room temperatures in diesel-electric and gas turbine propulsion plants. Meets naval and commercial marine classification society requirements for shaft line monitoring and thrust bearing surveillance.

Technical Parameters & Selection Guide

Selection Criteria: Choose 8mm probes for standard industrial machinery with M18 mounting provisions and moderate speed ranges (≤12,000 RPM). For higher speeds or tighter installation constraints, consider 5mm alternatives. Verify proximitor driver compatibility—this probe requires 3300 XL 8mm drivers (330180 or 330780 series). Installation gap should be set to 40 mils (1.0 mm) for optimal linearity; consult factory for non-standard target materials or coating thicknesses exceeding 0.05 mm.

Extended Functions

Integrated Condition Monitoring: When paired with Bently Nevada ADAPT software or System 1 platforms, enables automated fault diagnosis using orbit analysis, Bode plots, and waterfall spectra. Supports IIoT connectivity via Modbus TCP and OPC UA protocols for enterprise asset management integration.

Customization Options: Available with alternative cable lengths (5m, 7m, 9m), high-temperature variants (-40°C to +177°C), and explosion-proof certifications (ATEX, IECEx) for Zone 1 hazardous area installations. Consult engineering for special target materials or non-standard mounting geometries.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3–5 business days from regional distribution centers. Custom cable lengths or certified variants require 2–3 weeks for factory assembly and testing.

Warranty Coverage: 12-month comprehensive warranty against manufacturing defects, including free replacement and return shipping. Extended 36-month coverage available for critical spares programs.

Technical Support: Access to application engineers with turbomachinery expertise for installation planning, calibration verification, and troubleshooting assistance. Remote diagnostics available via secure VPN for urgent field issues.

Documentation Package: Includes calibration certificate traceable to NIST standards, installation drawings with torque specifications, proximitor wiring diagrams, and recommended spare parts list. Digital copies provided in PDF and CAD formats.

Frequently Asked Questions

What proximitor driver models are compatible with this 8mm proximity probe?
This sensor requires a 3300 XL 8mm proximitor driver from the 330180 or 330780 product families. Common pairings include 330180-90-00 (standard) or 330780-90-00 (high-temperature). Legacy 3300 drivers (330901 series) are not electrically compatible due to different buffering circuits.

Can I install this probe in hazardous area classifications?
The standard version is suitable for non-classified areas. For Zone 1/Division 1 installations, specify the -CN suffix variant with ATEX/IECEx certification. Intrinsically safe barriers are required between the proximitor and monitoring system in these applications.

How does cable length affect measurement accuracy?
Integral extension cables up to 9 meters introduce negligible error (≤0.5% FSO) when used with matched 3300 XL drivers. Field-installed extension cables are not recommended as they degrade frequency response and increase susceptibility to electromagnetic interference.

What is the recommended installation torque for the M18 threads?
Apply 20–25 N·m (15–18 lb-ft) torque using a calibrated wrench. Over-torquing can distort the housing and shift electrical characteristics; under-torquing risks vibration-induced loosening. Use thread sealant rated for the operating temperature range.

Does this sensor support wireless or battery-powered operation?
No, this is a passive eddy-current transducer requiring continuous DC excitation from a proximitor driver. For wireless applications, consider Bently Nevada's Ranger Pro system with integrated battery-powered transmitters, though at reduced bandwidth (0–1 kHz).

How do I verify proper gap voltage after installation?
With the shaft stationary and probe at 40 mil gap, measure DC voltage at the proximitor output—should read -10 VDC ±0.5V. Deviations indicate incorrect gap setting, target material issues, or proximitor calibration drift. Consult the 3300 XL manual section 4.2 for adjustment procedures.

Take the Next Step

Protect your critical assets with proven vibration monitoring technology. Contact our application specialists at sale@ninermas.com or +0086 187 5021 5667 to discuss your specific machinery configuration, receive installation support, or request a formal quotation with volume pricing. Same-day technical responses guaranteed for urgent projects.
