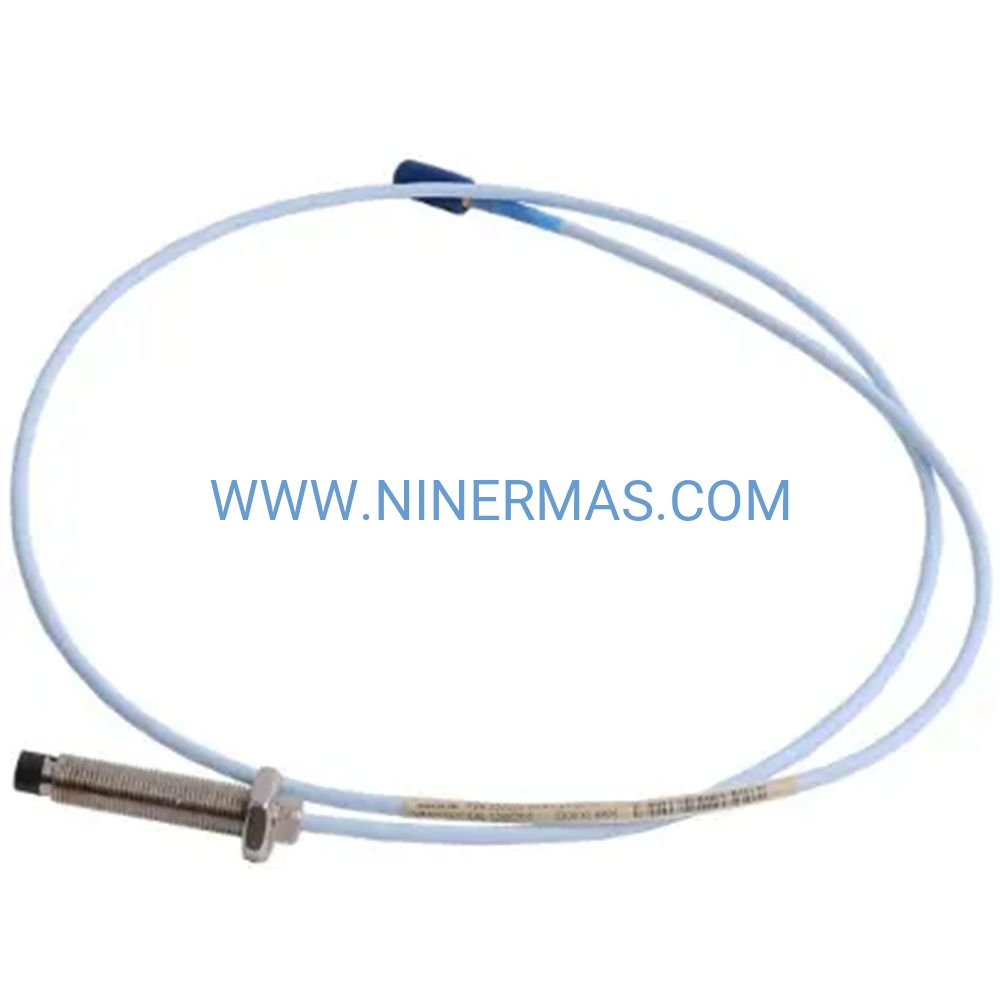

330103-00-16-10-02-05 Proximity Sensor (Industrial-Grade Eddy Current Technology)

The 330103-00-16-10-02-05 represents a field-proven solution for non-contact displacement measurement in critical rotating machinery applications. Engineered with 8mm eddy current technology, this proximity sensor delivers consistent performance across steam turbines, gas compressors, and centrifugal pump installations where vibration data integrity directly impacts operational safety and asset longevity.

Designed for integration with Bently Nevada 3300 XL monitoring ecosystems, this sensor addresses the core challenge faced by reliability engineers: obtaining accurate shaft position data under extreme temperature fluctuations and electromagnetic interference. With a 10-meter integral cable and M10 x 1.0 threading, the unit simplifies retrofit installations while maintaining signal fidelity required for API 670 machinery protection compliance.

Industrial facilities operating continuous-duty equipment gain a decisive advantage through early fault detection capabilities—identifying bearing degradation, rotor imbalance, and misalignment conditions before catastrophic failure occurs. The sensor's 0-10 kHz frequency response captures both slow-roll baseline measurements and high-frequency transient events, enabling comprehensive condition monitoring strategies that reduce unplanned downtime by up to 40%.

Core Capabilities & Performance Advantages

→ Extended Temperature Resilience: Operates reliably from -40°C to +125°C, eliminating sensor failures in cryogenic pump applications and high-temperature turbine environments where conventional sensors degrade within months.

→ Precision Measurement Architecture: Delivers 7.87V/mm nominal output with 0.5-2.0mm linear range, providing the resolution necessary to detect 25-micron shaft movements that indicate early-stage bearing wear patterns.

→ Electromagnetic Immunity: Robust shielding design maintains measurement accuracy in VFD-heavy installations and near high-voltage switchgear, where competing sensors produce erratic signals requiring constant recalibration.

✓ Plug-and-Play System Integration: BNC connector interface ensures seamless compatibility with existing 3300 XL proximitor infrastructure, reducing commissioning time from days to hours during plant turnarounds.

✓ Harsh Environment Construction: Hermetically sealed probe tip withstands oil mist, coolant spray, and particulate contamination common in paper mills, steel rolling operations, and offshore platforms.

✓ Regulatory Compliance Foundation: Meets API 670 machinery protection standards and ISO 10816 vibration severity criteria, satisfying insurance requirements and jurisdictional safety mandates for critical equipment monitoring.

Industrial Application Scenarios

Power Generation Turbine Monitoring
Utility-scale steam turbines demand continuous shaft radial position tracking to prevent bearing failures that trigger multi-million dollar forced outages. The 330103-00-16-10-02-05 provides the dual-channel redundancy foundation for trip systems protecting 500+ MW generating units, where a single sensor failure could delay grid synchronization for weeks.

Petrochemical Compressor Protection
Centrifugal compressors handling volatile hydrocarbons require fail-safe vibration monitoring to prevent seal failures and process gas releases. This sensor's 10-meter cable length accommodates the physical separation between hazardous compressor casings and safe-area monitoring panels, while maintaining the signal quality necessary for 2-millisecond trip response times.

Pulp & Paper Machine Surveillance
High-speed dryer rolls and calender stacks operating at 1,800+ FPM generate vibration signatures that reveal roll bearing condition and web tension anomalies. Deploying these sensors at critical measurement points reduces web breaks by 30% through predictive maintenance interventions based on trending displacement data.

Mining Crusher & Mill Diagnostics
SAG mills and gyratory crushers subject proximity sensors to severe shock loads and abrasive dust ingress. The ruggedized construction withstands these conditions while detecting the slow-developing eccentricity patterns that precede catastrophic liner failures, enabling planned maintenance during scheduled production pauses rather than emergency shutdowns.

Marine Propulsion System Monitoring
Ship propulsion turbines and reduction gears require vibration monitoring systems that function reliably despite salt fog, temperature cycling, and continuous vibration exposure. This sensor's corrosion-resistant materials and wide operating range support 5-year inspection intervals mandated by classification societies.

Technical Parameters & Selection Criteria

Selection Guidelines: For shaft diameters below 50mm, consider 5mm probe alternatives to minimize installation stress concentrations. When cable routing exceeds 10 meters, specify extension cables in 5-meter increments rather than custom lengths to maintain inventory standardization. Applications involving non-ferrous targets (stainless steel, Inconel, titanium) require factory calibration data to compensate for reduced eddy current coupling efficiency.

Advanced Integration & Customization Options

Multi-Channel Monitoring Architectures: Combine with 3500/42M proximitor modules to create 4-channel radial vibration monitoring systems with independent alarm setpoints and 4-20mA outputs for DCS integration. Typical configurations monitor X-Y shaft position at both drive-end and non-drive-end bearing locations.

Wireless Retrofit Solutions: Pair with battery-powered wireless transmitters for temporary monitoring during commissioning or troubleshooting campaigns where permanent wiring installation is cost-prohibitive. Achieves 30-day battery life at 1-second sample rates.

Hazardous Area Deployment: When combined with intrinsically safe proximitor barriers (Pepperl+Fuchs KFD2-SR2 or equivalent), achieves Class I Division 1 / Zone 0 certification for installation in explosive atmospheres without hot work permits.

Predictive Analytics Integration: Export vibration data to cloud-based machine learning platforms (AWS IoT, Azure Industrial IoT) for automated anomaly detection and remaining useful life calculations based on fleet-wide performance benchmarking.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items shipping from regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day dispatch available for critical outage support at premium rates.

Custom Configurations: Factory-direct orders for non-standard cable lengths (15m, 20m, 25m) or special materials (Inconel housings, PTFE cables) ship within 4-6 weeks subject to minimum order quantities.

Warranty Coverage: 18-month comprehensive warranty covering manufacturing defects, cable integrity, and connector workmanship. Extended 36-month coverage available for installations documented with proper gap voltage calibration records.

Technical Support: Unlimited phone and email consultation with vibration analysis specialists for installation planning, troubleshooting, and system optimization. On-site commissioning services available through certified field service partners in 40+ countries.

Documentation Package: Each sensor ships with calibration certificate, installation drawing, gap voltage chart for common target materials, and proximitor compatibility matrix. Digital copies accessible via QR code for mobile field reference.

Frequently Asked Questions

What proximitor models are compatible with the 330103-00-16-10-02-05 sensor?
This probe works with all 3300 XL proximitor models (330180, 330780 series) and legacy 7200 series units when using appropriate signal conditioners. Verify your proximitor accepts BNC input connectors and provides -24 VDC probe excitation.

How does cable length affect measurement accuracy in proximity sensor installations?
The integral 10-meter cable is factory-calibrated as a system component. Adding extension cables beyond this length introduces capacitance that shifts the voltage-to-gap relationship by approximately 2-3% per additional 5 meters, requiring recalibration with the complete cable assembly installed.

Can this eddy current sensor detect axial shaft movement or thrust position?
Yes, when installed perpendicular to the shaft end face rather than radially. However, axial installations require different gap voltage calibration curves and typically use shorter active tip lengths (8-10mm) to accommodate limited axial clearance in thrust bearing housings.

What maintenance intervals are recommended for proximity sensors in continuous operation?
Inspect probe tip condition and cable integrity during annual machinery outages. Verify gap voltage remains within ±10% of installation baseline—deviations indicate target surface degradation, probe contamination, or cable damage requiring corrective action before returning to service.

How do I troubleshoot negative voltage readings from my proximity sensor system?
Negative voltages indicate the probe is installed beyond the linear range (gap too large) or the target material has insufficient conductivity. Reduce the installation gap to 1.0-1.5mm and confirm the target is ferrous material with minimum 4140 steel equivalent magnetic permeability.

Are replacement cables available separately if the original cable is damaged?
No—the probe and cable form a calibrated assembly that cannot be field-separated. Cable damage requires complete sensor replacement. Protect cables with armored conduit in areas subject to mechanical abuse or chemical exposure to maximize service life.

Secure Your Machinery Protection Investment

Implement the industry-standard 330103-00-16-10-02-05 proximity sensor to transform reactive maintenance practices into predictive reliability programs. Contact our application engineering team to configure complete monitoring solutions tailored to your specific equipment portfolio and operational objectives.
