Bently Nevada 330103 Proximity Probe – Industrial Eddy Current Vibration Sensor

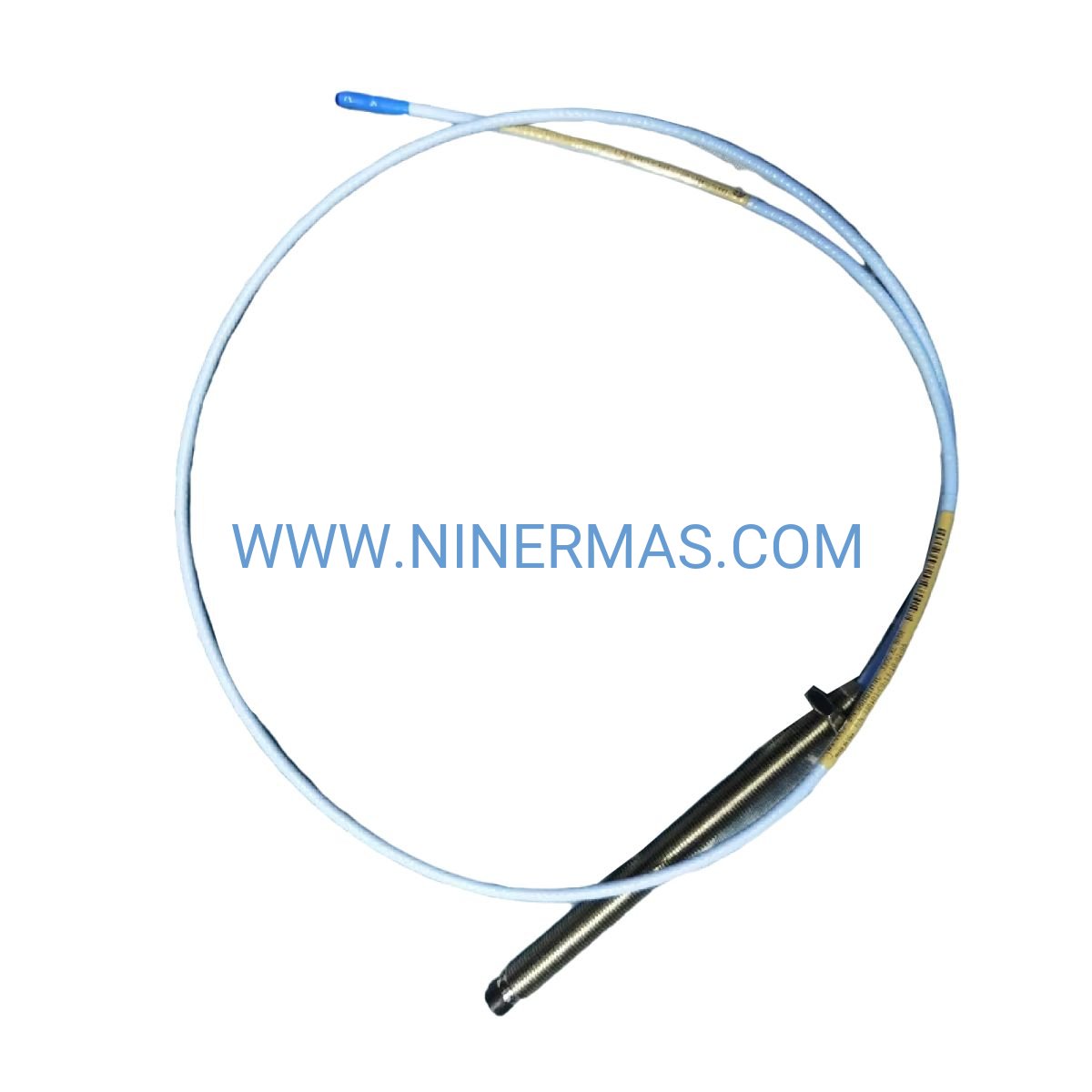

The Bently Nevada 330103-00-14-10-02-05 is an industrial-grade eddy current proximity probe designed for continuous vibration monitoring, axial displacement measurement, and rotational speed detection in critical rotating machinery. Through non-contact eddy current sensing technology combined with high-precision signal processing, this sensor achieves real-time tracking of shaft position, radial vibration amplitude, and dynamic displacement variations.

Ideal for turbine generator sets, centrifugal compressors, industrial pump systems, and heavy-duty motor applications, this probe addresses common challenges including bearing wear detection delays, vibration threshold alarm failures, manual inspection inefficiencies, and unplanned shutdown risks caused by mechanical faults.

Featuring standardized design with customizable cable lengths and mounting configurations, the 330103 series offers superior temperature stability, electromagnetic interference resistance, and long-term calibration retention. Suitable for design institutes, EPC contractors, system integrators, and end-user maintenance teams. Contact our application engineers for project-specific selection guidance and technical quotations.

Core Features & Advantages

Non-Contact Eddy Current Measurement
Utilizes electromagnetic induction principles to measure target displacement without physical contact, eliminating wear-related drift and enabling maintenance-free operation in high-speed rotating applications up to 10,000 RPM.

Wide Operating Temperature Range
Engineered for -40°C to +105°C continuous operation, this probe maintains ±1% linearity across the full temperature spectrum, making it suitable for steam turbine casings, compressor hot gas sections, and outdoor installations in extreme climates.

High-Frequency Response Capability
With 0-10 kHz bandwidth, the sensor captures both low-frequency shaft runout (1X, 2X harmonics) and high-frequency bearing defect signatures, providing comprehensive diagnostic data for condition-based maintenance programs.

Robust Stainless Steel Construction
Housing fabricated from 300-series stainless steel with hermetically sealed electronics, offering IP65-equivalent protection against moisture, oil mist, and chemical exposure common in petrochemical and power generation environments.

Standardized Signal Interface
Outputs industry-standard -24 VDC linear voltage proportional to gap distance, ensuring plug-and-play compatibility with Bently Nevada 3300 proximitors, third-party monitoring systems, and DCS/PLC analog input modules.

Factory Calibration & Traceability
Each probe ships with NIST-traceable calibration curves specific to target material and operating temperature, reducing commissioning time and ensuring measurement accuracy within ±2% of full scale.

Typical Application Scenarios

This proximity probe is engineered for installations demanding high reliability, continuous operation, and precise displacement measurement, particularly in:

Steam & Gas Turbine Generator Sets
Monitors journal bearing clearances and thrust collar axial position in utility-scale turbines, providing early warning of bearing wear, thermal growth anomalies, and rotor-to-stator rub conditions that could lead to catastrophic failures.

Centrifugal Compressor Trains
Tracks radial shaft vibration and axial float in multi-stage compressors used for natural gas transmission, air separation, and refinery hydrogen recycle services, enabling operators to detect surge conditions and mechanical seal failures before process upsets occur.

Large Industrial Motors & Generators
Installed on induction motors above 500 HP and synchronous generators, measuring rotor eccentricity, magnetic center shifts, and coupling misalignment to optimize preventive maintenance intervals and reduce unscheduled outages.

Critical Process Pumps
Applied to boiler feed pumps, pipeline transfer pumps, and reactor circulation pumps where loss of containment poses safety or environmental risks, the probe enables automated shutdown on excessive vibration or thrust bearing failure.

Paper Machine Dryer Sections
Monitors roll vibration and bearing condition in high-speed dryer cylinders operating at 1,200-1,800 FPM, where undetected faults can cause web breaks and production losses exceeding $50,000 per hour.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide the following standard configuration parameters, with custom specifications available for unique project requirements:

Selection Recommendations: When specifying proximity probes, consider shaft diameter and surface finish (Ra < 32 μin recommended), installation space constraints, ambient temperature extremes, and required cable routing distance to the proximitor module. For applications involving non-standard target materials, high-vibration mounting locations, or hazardous area classifications, consult our engineering team with detailed operating parameters for customized solutions.

System Integration & Compatibility

The 330103 proximity probe integrates seamlessly with Bently Nevada 3300 series proximitor modules (such as 3300 XL 8mm, 3300 XL 11mm, and legacy 3300 5mm systems) to form complete vibration monitoring channels. The probe-proximitor combination can interface with:

• Bently Nevada Rack Monitoring Systems: 3500 series machinery protection systems, 1900/65A general purpose equipment monitors
• Distributed Control Systems (DCS): Via 4-20 mA transmitters or direct voltage input modules
• Programmable Logic Controllers (PLC): Allen-Bradley, Siemens, GE analog input cards with ±10 VDC or ±24 VDC ranges
• Vibration Analyzers: Portable data collectors and online monitoring platforms supporting API 670 standards
• SCADA & Historian Systems: For long-term trending, alarm management, and predictive analytics

For hazardous area installations (Class I Division 1/2, ATEX Zone 1/2), intrinsically safe (IS) barriers must be installed between the proximitor and monitoring system. Consult our application notes for proper grounding, shielding, and cable separation practices to minimize electrical noise interference.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable lengths and special configurations require 10-15 business days for factory assembly and testing.

Warranty Coverage: All Bently Nevada proximity probes include a 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended warranty programs available for critical applications.

Technical Support: Our certified vibration specialists provide remote commissioning assistance, calibration verification guidance, and troubleshooting support via phone, email, and video conferencing. On-site installation supervision and startup services available in major industrial regions (subject to geographic location and project scope).

Documentation Package: Each probe ships with factory calibration certificate, dimensional drawings, installation instructions, and wiring diagrams. Digital copies of product manuals, API 670 compliance statements, and material certifications (MTRs) provided upon request.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems with full traceability to raw material certifications and final test records. Meets API 670 machinery protection system requirements for vibration monitoring in petroleum and natural gas industries.

Frequently Asked Questions (FAQ)

Q: How do I install the Bently Nevada 330103 proximity probe in existing machinery?
A: Installation requires drilling and tapping a mounting hole perpendicular to the shaft surface, typically in the bearing housing or casing. The probe tip should be positioned at the calibrated gap distance (usually 40-60 mils) from a smooth, clean shaft surface. Verify target area runout is within acceptable limits using a dial indicator before final installation. Detailed mounting procedures are provided in the installation manual.

Q: What is the maximum number of proximity probes I can connect to a single monitoring system?
A: This depends on your monitoring system architecture. A typical Bently Nevada 3500 rack can accommodate 10-20 vibration channels (each requiring 2 probes for X-Y measurement), while standalone proximitor modules support one probe each. For large turbine-generator sets, 8-12 probes are common (journal bearings, thrust position, eccentricity).

Q: What level of vibration reduction or energy savings can I expect?
A: The proximity probe itself does not reduce vibration but enables early fault detection that prevents catastrophic failures. Studies show condition-based maintenance programs using continuous vibration monitoring reduce unplanned downtime by 35-50% and extend bearing life by 20-30% compared to time-based maintenance. Energy savings occur indirectly through optimized machinery operation and reduced emergency repairs.

Q: What are the environmental requirements for probe installation?
A: The probe housing is rated for IP65-equivalent protection, suitable for indoor and outdoor installations with protection from direct water spray. Avoid submerged applications or continuous condensation exposure. Operating temperature must remain within -40°C to +105°C. For corrosive atmospheres (H2S, chlorine, acids), consult our materials compatibility guide or specify upgraded coatings.

Q: Can the system support remote monitoring and data acquisition?
A: Yes, when integrated with Bently Nevada 3500 rack systems or third-party vibration monitoring platforms, probe data can be transmitted via Modbus TCP/IP, OPC UA, or proprietary protocols to cloud-based analytics platforms. This enables remote diagnostics, automated alarm notifications, and machine learning-based anomaly detection. Ensure your network infrastructure supports industrial cybersecurity best practices (firewalls, VLANs, encrypted communications).

Request Technical Selection Support

To receive a customized proximity probe selection recommendation, detailed quotation, or application engineering support, please provide the following information to our technical team:

• Project name and application description (e.g., "Steam turbine vibration monitoring upgrade")
• Machinery type and operating speed range (RPM)
• Shaft diameter and target material (carbon steel, stainless steel, Inconel, etc.)
• Number of measurement points required (radial, axial, speed)
• Ambient temperature range and environmental conditions
• Existing monitoring system brand and model (if retrofit application)
• Required cable lengths and routing constraints
• Hazardous area classification (if applicable)

Our application engineers will respond within 24 business hours with probe model recommendations, system architecture diagrams, and budget pricing. For urgent projects, expedited quoting and technical review services are available.
