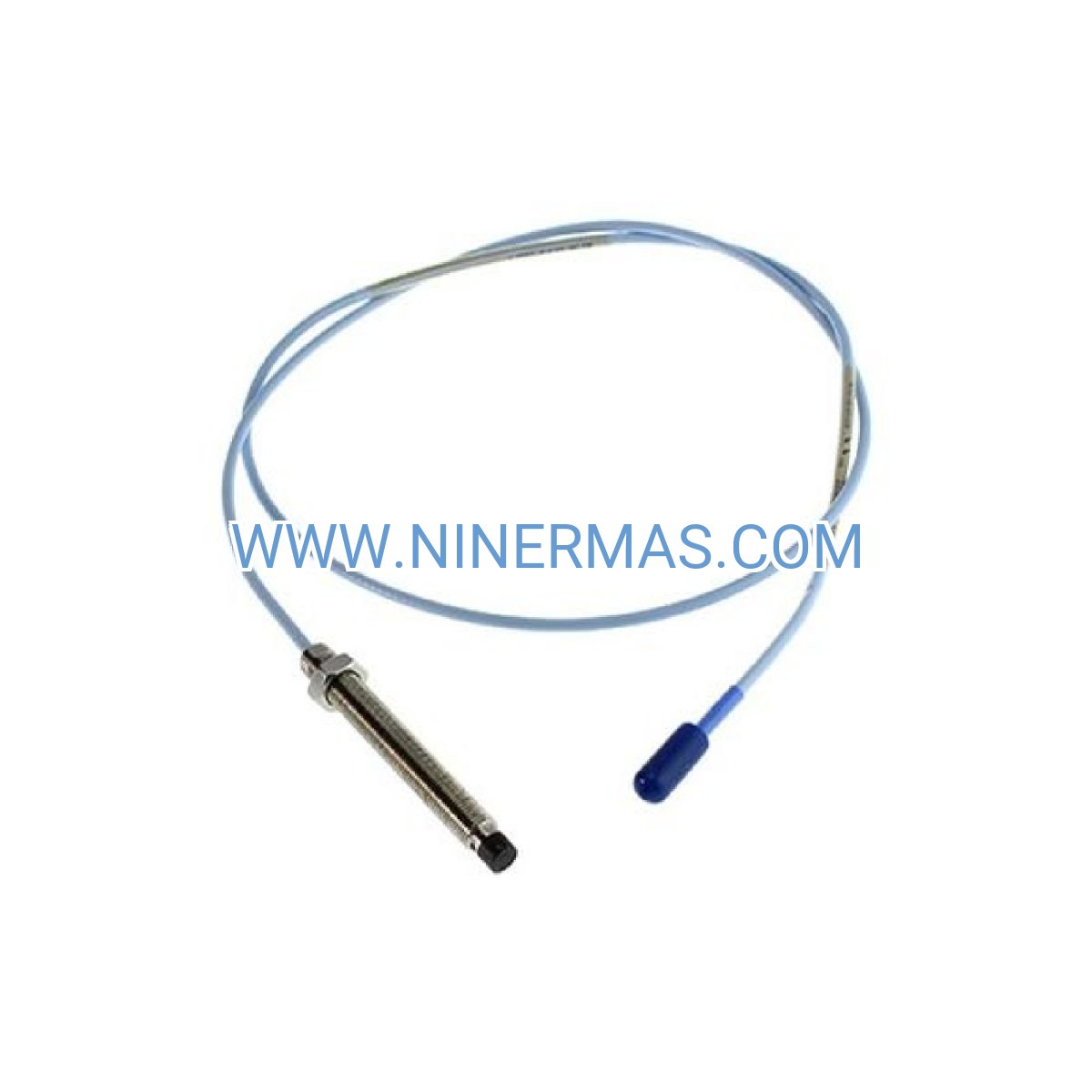

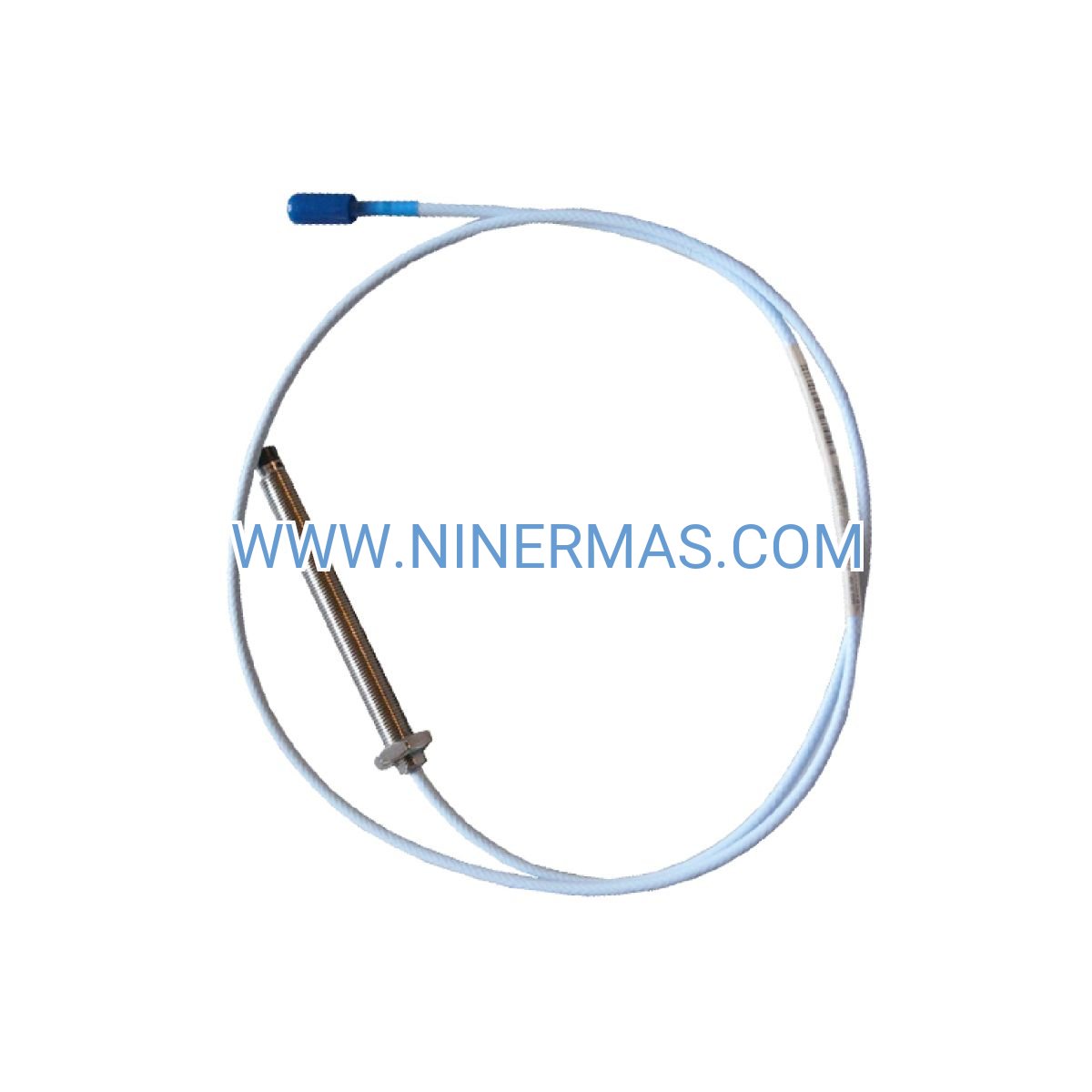

Bently Nevada 330103-00-12-15-01-05 Eddy Current Proximity Probe (Industrial Vibration Monitoring Solution)

The Bently Nevada 330103-00-12-15-01-05 is a precision-engineered eddy current proximity probe designed for continuous vibration and shaft displacement monitoring in critical rotating machinery. Utilizing non-contact electromagnetic sensing technology, this probe delivers real-time displacement data with exceptional accuracy, enabling early fault detection and minimizing unplanned downtime in industrial operations.

Ideal for turbomachinery applications including steam turbines, gas turbines, centrifugal compressors, and high-speed pumps, this sensor addresses common challenges such as bearing wear, shaft misalignment, rotor imbalance, and thermal growth. It serves power generation plants, oil and gas facilities, petrochemical refineries, pulp and paper mills, and heavy manufacturing environments where machinery reliability is mission-critical.

Through field-proven design and compatibility with Bently Nevada 3300/3300 XL monitoring ecosystems, the 330103-00-12-15-01-05 offers superior temperature stability, minimal drift, and robust performance in harsh industrial conditions. Suitable for design engineers, maintenance teams, instrumentation contractors, and OEM integrators seeking reliable condition monitoring solutions. Contact our application engineers for customized selection guidance and technical specifications.

Core Features & Performance Advantages

High-Precision Non-Contact Measurement
Eddy current technology provides accurate shaft displacement and vibration amplitude measurement without physical contact, eliminating wear and extending sensor lifespan while maintaining measurement integrity across 0-200 mils (0-5 mm) range.

Wide Operating Temperature Range
Engineered to perform reliably from -40°C to +85°C, this probe withstands extreme thermal environments common in turbine casings, compressor housings, and outdoor installations, ensuring consistent data quality regardless of ambient conditions.

Excellent Frequency Response
With 0 to 10 kHz bandwidth, the sensor captures both slow thermal expansion events and high-frequency vibration signatures, enabling comprehensive machinery health assessment from startup transients to steady-state operation.

Robust Industrial Construction
Stainless steel housing and industrial-grade cable assembly resist corrosion, mechanical shock, and electromagnetic interference, reducing maintenance requirements and ensuring long-term reliability in demanding process environments.

Seamless System Integration
Direct compatibility with Bently Nevada 3300 Series proximitor systems and monitoring platforms eliminates integration complexity, supports standardized installation practices, and leverages existing infrastructure investments.

Proven Reliability & Global Support
Backed by decades of field experience across thousands of installations worldwide, this probe benefits from comprehensive technical documentation, application expertise, and responsive engineering support for troubleshooting and optimization.

Typical Application Scenarios

This proximity probe is engineered for installations requiring continuous shaft position monitoring, vibration surveillance, and rotational speed measurement, particularly in:

Power Generation Turbomachinery
Monitors steam turbine shaft displacement, thrust position, and differential expansion in utility-scale power plants, combined-cycle facilities, and cogeneration systems, protecting high-value assets from catastrophic bearing failures and rotor rubs.

Oil & Gas Compression Systems
Tracks compressor rotor dynamics, axial position, and vibration patterns in pipeline compression stations, LNG facilities, and offshore platforms, enabling condition-based maintenance and reducing unscheduled shutdowns in critical production equipment.

Petrochemical Process Machinery
Provides real-time displacement data for centrifugal pumps, blowers, and agitators in refineries and chemical plants, detecting early-stage mechanical degradation before process upsets or safety incidents occur.

Heavy Industry Rotating Equipment
Supports predictive maintenance programs for large motors, gearboxes, and mill drives in steel production, mining operations, and cement manufacturing, optimizing maintenance intervals and extending equipment service life.

Marine Propulsion & Auxiliary Systems
Monitors main engine crankshaft position, turbocharger shaft vibration, and generator rotor displacement in commercial vessels and naval applications, ensuring propulsion reliability and regulatory compliance.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications with customization options for project-specific requirements:

Selection Considerations:
When specifying this proximity probe, evaluate the following parameters: target shaft material and surface finish, required measurement range and resolution, mounting space constraints and probe tip clearance, ambient temperature and environmental conditions, cable routing distance to proximitor, and system integration requirements. For assistance with probe selection, calibration curve matching, or custom cable lengths, please provide machinery specifications and installation drawings to our engineering team for personalized recommendations.

Installation & Configuration Options

Mounting Flexibility: Supports radial, axial, and thrust position measurement configurations with adjustable mounting hardware and lock nuts for precise gap setting.

Cable Length Options: Standard and custom cable lengths available (typically 1m to 9m) to accommodate various proximitor locations and cable routing requirements.

System Pairing: Compatible with Bently Nevada proximitor models including 330180, 330780, and 3300 XL series for signal conditioning and output to monitoring systems.

Calibration Data: Each probe ships with individual calibration curve data for accurate displacement measurement when paired with appropriate proximitor and target material.

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 3-5 business days; custom cable configurations and special mounting accessories typically require 10-15 business days lead time. All products include a minimum 12-month manufacturer warranty covering materials and workmanship defects. Technical support includes remote application assistance, installation guidance, and troubleshooting consultation (on-site commissioning services available for select regions).

Complete documentation package accompanies each shipment: installation instructions, dimensional drawings, calibration certificates, proximitor pairing guidelines, and maintenance recommendations. Products meet ISO 9001 quality standards and are traceable to original manufacturer specifications for compliance and asset management purposes.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 330103-00-12-15-01-05 proximity probe interface with existing monitoring systems?
A: This probe connects to a Bently Nevada proximitor (signal conditioner) via coaxial cable, which then outputs a -24 VDC proportional signal to PLC systems, DCS platforms, or dedicated vibration monitors. Verify proximitor compatibility and cable impedance matching for optimal performance.

Q: What is the maximum number of probes that can be installed on a single machine?
A: Installation quantity depends on machinery configuration and monitoring objectives. Typical turbine installations use 2 probes per bearing (X-Y radial), plus axial position probes, totaling 8-16 probes for a multi-bearing machine. Consult API 670 standards for machinery protection system requirements.

Q: What level of vibration reduction or energy savings can be achieved with this monitoring solution?
A: While the probe itself is a measurement device, the condition monitoring data it provides enables predictive maintenance strategies that reduce unplanned downtime by 30-50%, extend bearing life by 20-40%, and optimize maintenance intervals, resulting in significant operational cost savings and improved asset availability.

Q: What are the environmental and installation requirements for this proximity probe?
A: The probe is rated IP65/IP67 (when properly installed) and operates in -40°C to +85°C environments. Mounting requires a threaded hole in the machine casing with appropriate probe tip-to-shaft gap (typically 40-80 mils). Avoid installation near strong magnetic fields or high-voltage cables that may cause interference.

Q: Does this probe support remote monitoring and data acquisition protocols?
A: When integrated with Bently Nevada 3500 rack systems or modern DCS platforms, the probe data can be transmitted via Modbus, OPC, or proprietary protocols for remote SCADA monitoring, cloud-based analytics, and IIoT predictive maintenance applications. Consult system integrator for specific protocol requirements.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or procurement inquiries, please provide the following information: project name and location, machinery type and operating parameters (speed, temperature, bearing type), number of measurement points required, proximitor model preference (if known), cable length and routing requirements, environmental conditions and hazardous area classification. Our engineering team will respond within 24 hours with tailored selection recommendations and competitive pricing.
