8mm Proximity Probe for Industrial Turbomachinery Monitoring (3300 XL Series)

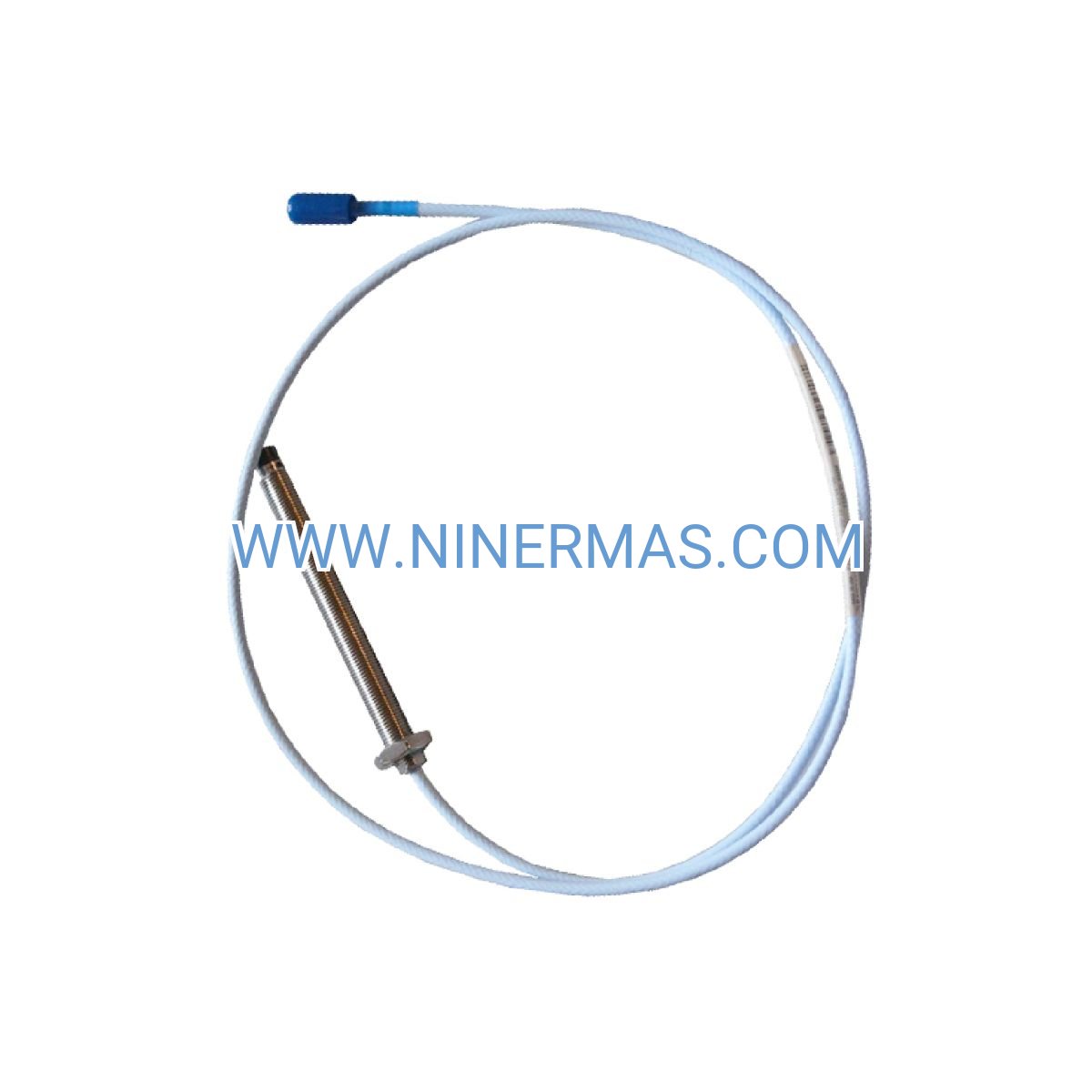

The Bently Nevada 330103-00-12-10-12-00 is an industrial-grade 8mm proximity probe engineered for continuous vibration monitoring and shaft displacement measurement in critical rotating machinery. Through eddy current sensing technology and precision mechanical design, this transducer delivers real-time non-contact displacement data for turbine protection systems, compressor health monitoring, and predictive maintenance programs.

Designed for power generation facilities, petrochemical plants, oil & gas processing units, and heavy manufacturing operations where equipment downtime translates to significant production losses. This probe addresses common challenges including bearing failure detection, rotor eccentricity measurement, axial position tracking, and thermal growth compensation—helping maintenance teams transition from reactive repairs to condition-based strategies.

Built on the proven 3300 XL platform with standardized mounting interfaces and universal proximitor compatibility, the 330103-00-12-10-12-00 integrates seamlessly into new installations or retrofit projects. Suitable for reliability engineers, instrumentation contractors, OEM equipment manufacturers, and plant maintenance departments. Contact our application engineers for system configuration assistance, calibration guidance, or project-specific technical specifications.

Core Features & Technical Advantages

• Wide Frequency Response (DC to 10 kHz)
  Captures both slow-roll baseline data and high-frequency vibration events, enabling comprehensive machinery diagnostics from startup transients to steady-state operation without signal distortion.
• Extended Temperature Range (-40°C to +105°C)
  Maintains measurement accuracy in extreme thermal environments including steam turbine casings, gas compressor housings, and outdoor installations across diverse climate zones.
• Stainless Steel Construction with 5/8-18 UNF Threading
  Provides corrosion resistance in harsh chemical atmospheres while ensuring secure mechanical installation and repeatable probe positioning through industry-standard thread specification.
• Optimized 8mm Sensing Diameter
  Balances spatial resolution with robust signal strength, ideal for mid-size shaft applications (50-300mm diameter) commonly found in industrial pumps, motors, and auxiliary drive systems.
• Linear Output Across 80-mil Range
  Delivers proportional voltage response from 0 to 2.0mm displacement, simplifying calibration procedures and enabling accurate gap voltage verification during commissioning.
• Universal 3300 XL System Compatibility
  Works with all standard proximitor sensors and extension cables in the 3300 XL family, allowing flexible cable routing up to 300 meters without signal degradation or recalibration requirements.

Typical Application Scenarios

This proximity probe serves industries and equipment types demanding continuous machinery health visibility and automated protection logic:

• Steam & Gas Turbine Generator Sets
  Monitors journal bearing clearances, thrust position, and differential expansion in power plant turbines rated from 10 MW to 500+ MW, providing trip signals to prevent catastrophic rotor-to-stator contact during load transients or lubrication failures.
• Centrifugal & Axial Compressor Trains
  Tracks rotor vibration amplitude and phase angle in multi-stage compressors for natural gas pipelines, air separation units, and refrigeration systems—detecting surge conditions, impeller imbalance, and coupling misalignment before performance degradation occurs.
• Large Industrial Pumps & Blowers
  Measures radial shaft motion in boiler feed pumps, cooling water circulation pumps, and forced draft fans, enabling early detection of cavitation, bearing wear, and foundation settling in continuous-duty applications.
• Motor-Driven Rotating Equipment
  Provides non-intrusive vibration data for electric motors (above 100 HP), gearboxes, and coupling assemblies in steel mills, paper machines, and mining conveyors where accessibility and safety constraints limit manual inspection.
• Test Stand & R&D Facilities
  Supports aerospace engine testing, automotive dynamometer validation, and university research labs requiring high-fidelity displacement measurement with traceable calibration and repeatable installation geometry.

Technical Specifications & Selection Parameters

To ensure optimal performance and compatibility with your monitoring system, review the following specifications and consult our engineering team for application-specific validation:

Selection Guidance: When specifying this probe, confirm the following project parameters—shaft diameter and material composition, maximum expected vibration amplitude, available mounting depth and radial clearance, ambient temperature range including transient conditions, proximitor model and power supply voltage, extension cable length and routing path. For installations in hazardous areas (Class I Div 1/2, ATEX Zone 1/2), verify that the paired proximitor carries appropriate certifications. Our application engineers can provide system drawings, calibration curves, and installation torque specifications upon request.

System Integration & Configuration Options

The 330103-00-12-10-12-00 probe functions as the sensing element within a complete proximity measurement chain:

• Proximitor Sensor Pairing: Connects to 3300 XL proximitor modules (such as 330180 or 330780 series) that provide -24 VDC excitation, signal conditioning, and 4-20mA or ±10 VDC output to DCS/PLC systems.
• Extension Cable Flexibility: Supports field-length adjustment using 3300 series extension cables (available in 1m, 3m, 5m, 9m lengths) to accommodate cable tray routing and junction box locations without affecting calibration.
• Multi-Channel Monitoring: Typically deployed in XY pairs (90° orientation) for orbit analysis, or in axial/radial combinations for comprehensive rotor position tracking on critical machines.
• Retrofit Compatibility: Direct replacement for legacy 7200 series probes when upgrading to 3300 XL architecture, using existing mounting holes and cable penetrations in most cases.
• Hazardous Area Certification: When combined with intrinsically safe proximitors and barriers, achieves FM, CSA, ATEX, and IECEx approvals for Zone 1/Division 1 installations in explosive atmospheres.

Delivery, Warranty & Technical Support

Standard catalog items ship within 3-5 business days from our regional distribution centers; custom cable lengths or special thread configurations require 10-15 business days lead time. Each probe includes a 24-month manufacturer warranty covering material defects and workmanship under normal operating conditions. Warranty support encompasses replacement parts, technical troubleshooting, and RMA processing through our global service network.

All units ship with factory calibration certificates traceable to NIST standards, installation instructions with torque specifications, and dimensional drawings in PDF and DWG formats. On-site commissioning assistance and vibration analyst training are available through our professional services team (quoted separately based on location and scope). Remote technical support via phone and email is included at no charge for system integration questions, gap voltage verification, and troubleshooting guidance.

Frequently Asked Questions (FAQ)

Q: How does the 8mm probe compare to 5mm or 11mm alternatives for my application?
A: The 8mm diameter offers an optimal balance for shafts between 50-300mm diameter. Smaller 5mm probes suit compact machinery or tight radial clearances but have reduced sensing range; larger 11mm probes provide deeper penetration for heavy-duty turbines but require more mounting space. Consult shaft diameter, available clearance, and expected vibration amplitude when selecting probe size.

Q: What is the recommended installation gap and how do I verify it?
A: Target gap is typically 40 mils (1.0mm) from probe tip to shaft surface, yielding -10 VDC gap voltage with standard 3300 XL proximitors. Verification requires a digital voltmeter and feeler gauges during installation; our technical manual provides step-by-step procedures. Proper gap ensures linear operation and maximizes dynamic range.

Q: Can this probe measure non-ferrous shafts like stainless steel or aluminum?
A: Standard eddy current probes require ferromagnetic targets (carbon steel, 4140 alloy). For non-magnetic shafts, consider installing a ferrous sleeve or collar at the measurement location, or specify alternative sensing technologies (capacitance probes). Contact our engineering team for material compatibility confirmation.

Q: What cable length is included, and can I extend it in the field?
A: The probe ships with an integral coaxial lead (typically 0.5m) that connects to a proximitor or extension cable. Total system length (probe + extension + proximitor cable) can reach 300 meters using appropriate 3300 XL extension cables without recalibration. Avoid field splicing; use factory-terminated extensions to maintain signal integrity.

Q: Is this probe suitable for hazardous area installations?
A: The probe itself is a passive sensor; hazardous area compliance depends on the proximitor and barrier configuration. When paired with intrinsically safe proximitors (e.g., 330780 series) and approved barriers, the complete system meets FM/CSA Class I Div 1, ATEX Zone 1, and IECEx standards. Provide your area classification for specific certification guidance.

Q: How often does the probe require recalibration or replacement?
A: Proximity probes are passive devices with no wearing parts; typical service life exceeds 10 years in normal industrial environments. Recalibration is not required unless physical damage occurs or the probe is moved to a different shaft material. Annual gap voltage verification during planned outages is recommended to confirm system health.

Request Technical Consultation & Quotation

For detailed system design support, pricing information, or application-specific recommendations, please provide the following details to our engineering team:

• Project name and equipment type (e.g., steam turbine model, compressor manufacturer)
• Shaft diameter, material, and surface finish at measurement location
• Expected vibration amplitude and frequency range
• Number of measurement points and probe orientation (radial XY, axial, etc.)
• Proximitor model preference and output signal type (4-20mA, voltage, Modbus)
• Total cable run length from probe to control room
• Ambient temperature range and hazardous area classification (if applicable)
• Delivery timeline and installation support requirements

Our application engineers will respond within 24 hours with system recommendations, calibration data, and project-specific pricing. For urgent inquiries or after-hours support, contact our technical hotline.
