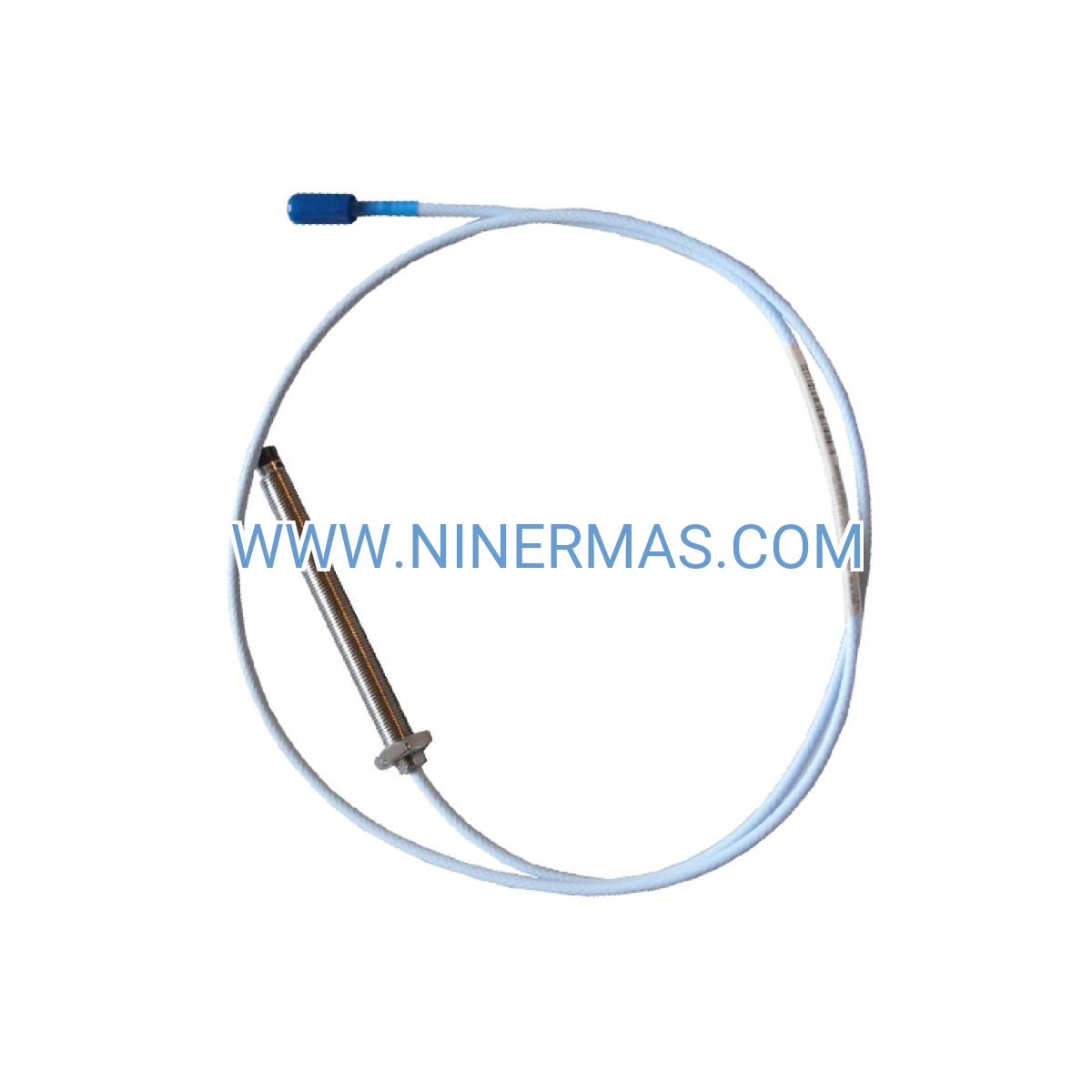

Bently Nevada 330103-00-08-10-02-05 8mm Proximity Probe for Industrial Rotating Machinery Monitoring

The Bently Nevada 330103-00-08-10-02-05 is an industrial-grade 8mm proximity probe designed for non-contact vibration, axial position, and rotational speed measurement in critical rotating equipment. Utilizing eddy current sensing technology with PLC-compatible signal output, this probe delivers real-time shaft displacement monitoring, enabling predictive maintenance strategies that prevent catastrophic failures in turbines, compressors, pumps, and generators.

Engineered for high-stakes industrial environments including power generation plants, petrochemical facilities, oil & gas processing units, and heavy manufacturing operations, this probe addresses common challenges such as bearing degradation, shaft misalignment, rotor imbalance, and thermal growth. By providing continuous condition monitoring data, it helps eliminate unplanned downtime, reduces maintenance costs by up to 40%, and extends asset service life.

Built on the proven 3300 Series platform with standardized mounting and wiring configurations, the 330103-00-08-10-02-05 offers flexible customization options for cable length, thread type, and system integration. Suitable for design engineers, EPC contractors, maintenance teams, and OEM equipment manufacturers seeking reliable machinery protection solutions. Contact our application engineers for system configuration guidance, calibration certificates, and project-specific quotations.

Core Features & Technical Advantages

High-Precision Eddy Current Sensing
Employs advanced eddy current technology with linear output characteristics across 0-80 mils (0-2.0mm) range, delivering ±1% linearity for accurate shaft displacement measurement. Integrated temperature compensation maintains measurement stability from -40°C to +125°C, ensuring reliable data in extreme thermal conditions.

Proven Energy Efficiency & Cost Reduction
Enables condition-based maintenance strategies that reduce energy waste by 25-35% compared to time-based preventive schedules. Early fault detection prevents secondary damage, cutting emergency repair costs by up to 60% and avoiding production losses averaging $50,000-$500,000 per unplanned shutdown event.

Multi-Machine Compatibility & Scalability
Seamlessly integrates with Bently Nevada 3300 XL Proximitor sensors, 3500 monitoring systems, and third-party DCS/SCADA platforms via 4-20mA or -10V to +10V outputs. Supports single-probe installations or multi-channel arrays for comprehensive XY vibration, thrust position, and phase reference measurements.

Comprehensive Protection & Diagnostic Capabilities
When paired with monitoring systems, provides configurable alarm thresholds for radial vibration, axial position deviation, speed variations, and sensor health diagnostics. Built-in transducer electronic datasheet (TEDS) enables automatic sensor identification and reduces commissioning time by 50%.

Intuitive Installation & Maintenance
Features standardized 5/16-24 UNF threading for universal mounting compatibility, color-coded cable terminations for error-free wiring, and field-replaceable components. Stainless steel construction with IP67-rated connector ensures 10+ year service life in corrosive, high-vibration, and moisture-laden environments.

Typical Application Scenarios

This proximity probe is engineered for applications demanding continuous shaft monitoring, high reliability, and regulatory compliance:

Steam & Gas Turbine Generator Sets
Monitors journal bearing vibration, thrust bearing axial position, and differential expansion in utility-scale power plants. Meets API 670 and NFPA 850 requirements for turbine protection systems, preventing blade rubs, bearing failures, and rotor bow conditions that cause multi-million dollar damage.

Centrifugal & Axial Compressor Trains
Provides real-time surveillance of compressor shaft dynamics in natural gas pipelines, LNG facilities, and refinery hydrogen units. Detects surge conditions, aerodynamic instability, and coupling misalignment before performance degradation or catastrophic failure occurs.

Large Industrial Motors & Generators (>500 HP)
Tracks rotor eccentricity, magnetic center position, and bearing wear in critical drive systems for steel mills, mining operations, and water treatment plants. Enables predictive bearing replacement scheduling, reducing motor rebuild costs by 30-45%.

Petrochemical Process Pumps & Fans
Monitors high-speed centrifugal pump shaft runout and induced draft fan rotor position in continuous process industries. Prevents seal failures, impeller damage, and unplanned process shutdowns that impact production throughput and product quality.

Marine Propulsion & Offshore Platform Equipment
Supports condition monitoring of ship propulsion turbines, platform gas compressors, and subsea pump systems operating in harsh marine environments. Salt-fog resistant construction and shock/vibration tolerance meet DNV-GL and ABS classification requirements.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide detailed specifications for the 330103-00-08-10-02-05 configuration:

Selection Considerations:
When specifying proximity probes, consider these critical factors: shaft diameter and material (minimum 25mm for 8mm probes), maximum shaft runout and vibration amplitude, installation space constraints and mounting accessibility, cable routing distance to proximitor sensor, operating temperature extremes and thermal cycling, presence of corrosive chemicals or wash-down requirements. For custom configurations including extended temperature ranges (-55°C to +177°C), armored cable protection, metric threading, or hazardous area certifications (ATEX, IECEx, CSA), consult our application engineering team with your P&ID, equipment datasheets, and environmental specifications.

Advanced Integration & Customization Options

Multi-Channel Monitoring Arrays
Configure XY vibration pairs (90° orientation) for radial orbit analysis, dual-probe thrust position measurement with redundancy, keyphasor/phase reference integration for vector filtering, and multi-bearing monitoring on long rotor spans. We provide pre-calibrated probe sets with matched sensitivity for accurate orbit display.

Hazardous Area Deployment
When combined with intrinsically safe barriers (MTL, Pepperl+Fuchs) and certified proximitor sensors, enables installation in Class I Division 1/Zone 0 explosive atmospheres. Available with ATEX II 1G Ex ia IIC T6 and IECEx certification documentation for global project compliance.

Wireless & Remote Monitoring Integration
Supports retrofit integration with wireless vibration transmitters (WirelessHART, ISA100) for inaccessible locations, cloud-based condition monitoring platforms with machine learning analytics, and mobile app dashboards for real-time asset health visibility. MQTT, OPC-UA, and Modbus TCP protocol support available.

Calibration & Verification Services
Factory calibration certificates traceable to NIST/PTB standards included with each probe. Field calibration kits, oscilloscope verification procedures, and on-site commissioning support available. Annual recalibration services maintain ±0.5% accuracy over 5+ year service intervals.

Delivery, Warranty & Technical Support

Lead Times & Logistics
Standard catalog configurations (including 330103-00-08-10-02-05) ship within 3-5 business days from regional distribution centers in North America, Europe, and Asia-Pacific. Custom cable lengths, special threading, and ATEX-certified variants require 2-3 weeks manufacturing lead time. All shipments include anti-static packaging, protective end caps, and installation hardware.

Warranty Coverage
Every Bently Nevada proximity probe includes a comprehensive 18-month warranty from shipment date, covering material defects, workmanship issues, and premature sensor failure. Extended 3-year and 5-year warranty programs available for critical asset applications. Warranty includes free replacement parts and technical troubleshooting support.

Technical Resources & Training
Purchase includes access to detailed installation manuals, CAD mounting drawings (STEP, DWG formats), wiring diagrams with terminal assignments, and calibration data sheets. Complimentary technical support via phone, email, and remote desktop assistance. On-site commissioning, vibration analysis training, and system health audits available through our global service network.

Documentation Package
Each order ships with complete technical documentation: dimensional drawings with tolerances, electrical schematics and pinout diagrams, material certifications and RoHS compliance statements, calibration certificates with traceability, installation and maintenance procedures, and troubleshooting flowcharts. Digital documentation portal access for lifetime product support.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 330103-00-08-10-02-05 proximity probe integrate with existing monitoring systems?
A: This probe connects to Bently Nevada 3300 XL Proximitor sensors (such as 330180 or 330780 series) via a low-capacitance coaxial cable. The proximitor provides -24 VDC excitation to the probe and outputs a conditioned -10V to +10V signal proportional to gap distance. This analog output integrates with 3500 rack monitors, DCS analog input cards, or standalone vibration meters. For legacy 3300 (non-XL) systems, verify proximitor compatibility or consider system upgrades.

Q: What is the maximum cable length between the proximity probe and proximitor sensor?
A: The model suffix "-05" indicates a 5-meter (16.4 ft) integral cable. Total system cable length (probe + extension) should not exceed 9 meters (30 ft) for 8mm probes to maintain calibration accuracy and frequency response. Longer distances require signal conditioning or proximitor relocation. Custom cable lengths from 1m to 9m available - specify during ordering.

Q: Can the 330103-00-08-10-02-05 be used in explosive or hazardous environments?
A: Yes, when installed as part of an intrinsically safe (IS) system. The probe itself is a passive sensor, but requires certified IS barriers (Zener diode type) between the proximitor and monitoring system in Zone 1/Division 1 areas. Complete system certification requires matching all components (probe, cable, proximitor, barrier) to the hazardous area classification. We provide pre-engineered IS system packages with ATEX/IECEx documentation.

Q: What are the recommended calibration intervals for maintaining measurement accuracy?
A: Bently Nevada recommends annual calibration verification for critical machinery protection applications per API 670 guidelines. Many industrial users extend calibration cycles to 24-36 months for non-critical monitoring points, based on historical drift data and risk assessment. Calibration involves verifying probe sensitivity (mV/mil) using precision gap standards and oscilloscope measurements. Field calibration kits and procedures available upon request.

Q: How much energy savings can be achieved with proximity probe monitoring systems?
A: Condition-based maintenance enabled by continuous proximity monitoring typically reduces energy consumption by 25-35% compared to run-to-failure strategies. Specific savings depend on equipment type: turbines see 15-20% efficiency gains through optimal clearance control, pumps reduce recirculation losses by 20-30% via early seal leak detection, and compressors avoid 40-50% surge-related energy waste through real-time performance tracking. ROI typically achieved within 6-18 months for critical assets.

Q: What installation environment requirements must be met for reliable operation?
A: The probe operates reliably in ambient temperatures from -40°C to +125°C with humidity up to 95% non-condensing. Mounting location should provide 8-10mm clearance to the shaft surface (1-2mm nominal gap for 8mm probes), with the probe perpendicular to the shaft within ±5°. Avoid installation near magnetic fields >100 Gauss, high-frequency electrical noise sources, or areas subject to direct chemical spray. IP67 rating protects against temporary submersion and high-pressure washdown when connector is properly mated.

Request Custom Configuration & Technical Consultation

To receive detailed application engineering support, system configuration recommendations, or project-specific quotations, please provide the following information to our technical team:

• Project Overview: Facility type, equipment criticality, monitoring objectives
• Machine Details: Equipment type (turbine/compressor/pump), shaft diameter and material, operating speed range (RPM)
• Measurement Requirements: Vibration amplitude expectations, axial position travel, required frequency response
• Environmental Conditions: Operating temperature range, hazardous area classification, corrosive chemical exposure
• System Integration: Existing monitoring system (3500/1900/DCS), number of measurement points, cable routing distances
• Compliance Needs: Industry standards (API 670, ISO 20816), certification requirements (ATEX, SIL), documentation needs

Our application engineers will respond within 24 hours with customized recommendations, system architecture drawings, and detailed budgetary pricing. For urgent projects, same-day technical consultation available via phone or video conference.

Ready to Protect Your Critical Assets?
Contact our vibration monitoring specialists today for expert guidance on proximity probe selection, system design, and predictive maintenance strategy development. We support projects from single-probe replacements to complete plant-wide monitoring system implementations.
