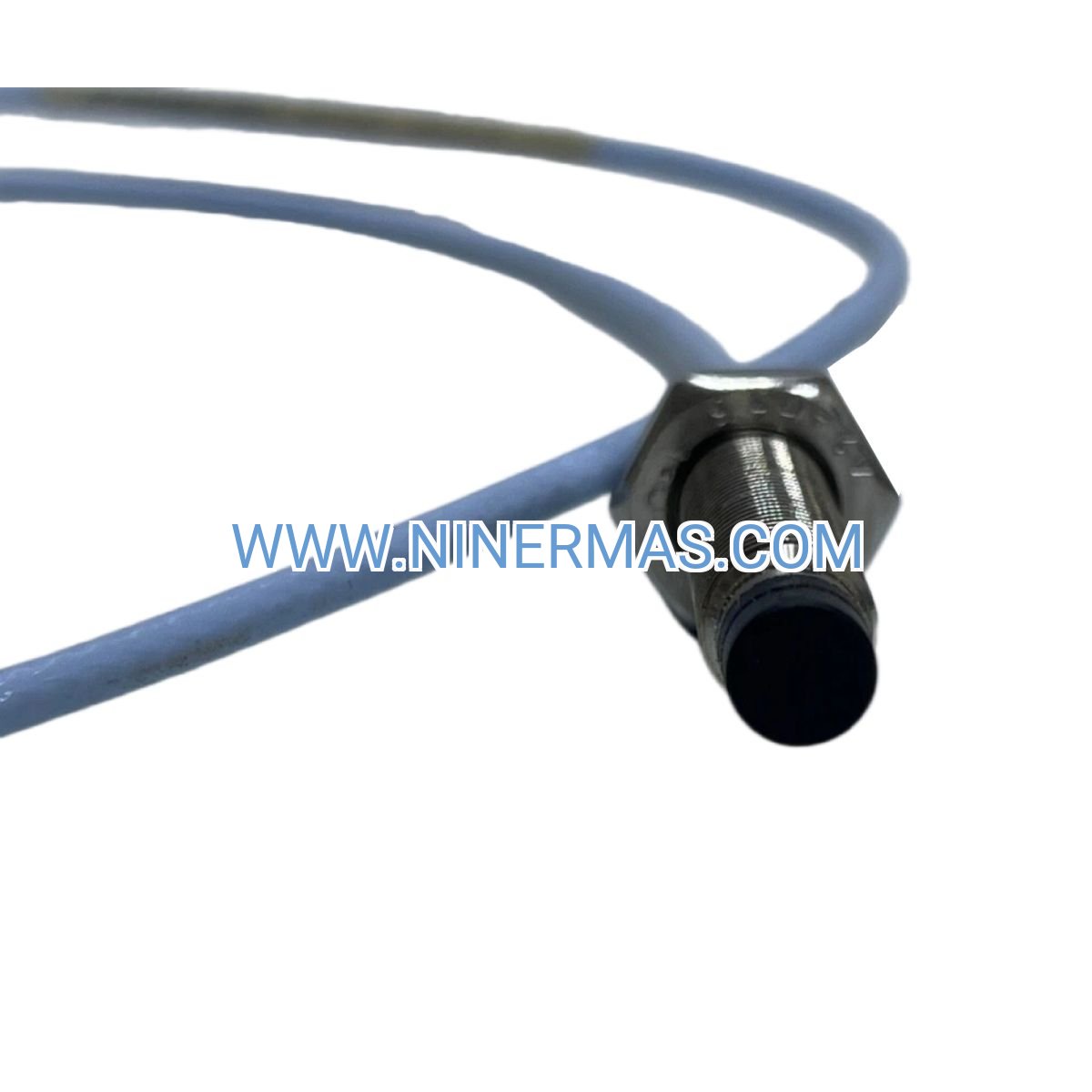

330103-00-07-10-02-05 Eddy Current Proximity Probe (Industrial-Grade Vibration Sensor)

The 330103-00-07-10-02-05 is a precision-engineered eddy current proximity probe designed for continuous shaft displacement and vibration monitoring in critical rotating machinery. Built to withstand extreme industrial environments, this 8mm sensor delivers reliable, non-contact measurement for turbines, compressors, pumps, and high-speed motors where equipment failure is not an option.

Engineered for power generation facilities, petrochemical plants, and heavy manufacturing operations, this probe integrates seamlessly with Bently Nevada 3300 XL monitoring systems to provide real-time machinery health data. Whether you're protecting multi-million dollar turbine assets or ensuring continuous production uptime, the 330103-00-07-10-02-05 offers the accuracy and durability demanded by mission-critical applications.

With factory calibration, API 670 compliance, and proven field reliability across thousands of installations worldwide, this proximity probe represents the gold standard in condition monitoring technology. Invest in proven protection for your rotating equipment and gain the early warning capability that prevents catastrophic failures.

Technical Specifications & Performance Characteristics

Key Advantages & Engineering Benefits

→ Factory-Calibrated Precision
Every 330103-00-07-10-02-05 undergoes NIST-traceable calibration before shipment. You receive documented sensitivity curves, linearity data, and temperature coefficients—eliminating field calibration requirements and ensuring measurement accuracy from day one. This translates to faster commissioning and immediate confidence in your monitoring data.

→ API 670 Compliance Assurance
Meet mandatory safety instrumented system (SIS) requirements for turbomachinery protection without additional engineering effort. The probe's certified performance characteristics satisfy API 670 5th Edition specifications for vibration monitoring systems, streamlining regulatory compliance and insurance approvals.

→ Extreme Environment Durability
Hermetically sealed electronics and stainless steel construction enable reliable operation in corrosive chemical atmospheres, high-humidity coastal installations, and temperature extremes from Arctic cold to desert heat. The probe maintains calibration accuracy through thermal cycling and resists degradation from process contamination.

✓ Wide Frequency Bandwidth
Capture both slow-roll shaft position (DC) and high-frequency vibration events up to 10 kHz. This dual capability allows simultaneous monitoring of bearing clearances, rotor eccentricity, blade pass frequencies, and gear mesh harmonics with a single sensor installation.

✓ Electromagnetic Interference Immunity
Advanced shielding design rejects noise from variable frequency drives, high-voltage switchgear, and wireless communication systems. Maintain clean measurement signals even in electrically noisy industrial environments where conventional sensors produce unreliable data.

✓ Long-Term Measurement Stability
Proprietary coil winding and potting techniques deliver less than 1% sensitivity drift over five years of continuous operation. Reduce recalibration frequency, lower maintenance costs, and maintain consistent trending data for predictive analytics programs.

Industrial Application Solutions

Steam Turbine Generator Protection
Power plants rely on the 330103-00-07-10-02-05 to monitor journal bearing clearances and detect rotor thermal growth during startup sequences. Early detection of bearing wear, rotor bow, or foundation settlement prevents forced outages that cost hundreds of thousands of dollars per day in lost generation revenue. The probe's high-frequency response captures blade passing vibrations that indicate potential blade failures before catastrophic release events.

Centrifugal Compressor Train Monitoring
Petrochemical facilities use this proximity probe to track shaft position in multi-stage compressor trains handling explosive hydrocarbons. Continuous displacement monitoring enables automated shutdown systems that prevent rotor-to-stator contact during surge conditions or bearing failures. The sensor's chemical resistance ensures reliable operation despite exposure to process gas leakage and corrosive atmospheres.

Gas Turbine Auxiliary Systems
Lube oil pumps, fuel gas compressors, and generator cooling fans in combined-cycle plants depend on 330103-00-07-10-02-05 probes for condition-based maintenance programs. Vibration trending identifies developing faults such as impeller imbalance, coupling misalignment, and bearing degradation—allowing planned maintenance during scheduled outages rather than emergency repairs.

Pipeline Compressor Stations
Remote natural gas transmission facilities install these probes on reciprocating and centrifugal compressors to enable unmanned operation with centralized monitoring. The sensor's proven reliability in outdoor installations with extreme temperature swings and limited maintenance access makes it ideal for pipeline infrastructure applications.

Industrial Fan & Blower Systems
Cement kilns, steel mill blast furnaces, and wastewater treatment plants utilize the 330103-00-07-10-02-05 to monitor large induced draft fans and forced draft blowers. Early detection of rotor rubs, foundation looseness, and bearing wear prevents unplanned shutdowns that halt entire production processes.

System Integration & Compatible Components

Achieve optimal measurement performance by pairing the 330103-00-07-10-02-05 proximity probe with genuine Bently Nevada signal conditioning modules and extension cables. The complete measurement chain—probe, cable, and proximitor sensor—must be matched for accurate calibration and reliable operation.

Recommended Proximitor Sensors:

• 330180-XO-05: Single-channel signal conditioner with -24 VDC power supply and buffered output
• 330180-12-00: Dual-channel processor for simultaneous X-Y shaft position measurement
• 330780-XO-00: Rack-mounted proximitor with enhanced diagnostics and HART communication

Extension Cable Options:

• 330130-XXX series: Field-installable extension cables in 1m to 9m lengths
• Custom lengths available for specific installation geometries

Mounting Hardware:

• Probe mounting brackets and lock nuts for secure installation
• Gap setting tools for precise initial positioning
• Calibration targets for field verification

Installation Guidelines & Best Practices

Mount the 330103-00-07-10-02-05 in machinery casings using the 5/8-18 UNF precision thread. Apply 15-20 ft-lbs torque to ensure mechanical stability without damaging the probe body. Position the probe tip 1.0mm to 1.5mm (40-60 mils) from the shaft surface—this gap provides optimal linearity and allows for thermal expansion during operation.

The target shaft surface must be smooth ferromagnetic material (carbon steel or low-alloy steel) with surface finish better than 32 microinches Ra. Avoid measuring near keyways, coupling bolt holes, or shaft steps that create discontinuities in the magnetic field. For shafts with chrome plating or other non-ferrous coatings, consult factory application engineering for calibration adjustments.

Route the integral cable through dedicated conduit or cable tray, maintaining minimum 6 inches (150mm) separation from high-current power conductors. Terminate the cable shield at the proximitor sensor end only—never ground both ends, as this creates ground loops that introduce 50/60 Hz noise into the measurement signal.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via international courier (DHL, FedEx, UPS)
Expedited Service: 2-3 business days available for emergency replacements and critical outage support
Custom Configurations: 3-4 weeks for special cable lengths or non-standard specifications

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Complimentary application engineering assistance for installation, troubleshooting, and system integration
Documentation Package: Calibration certificate, material certifications, API 670 compliance declaration, and installation manual included with every shipment

Frequently Asked Questions

What differentiates the -07 variant from other 330103 models?
The -07 designation indicates specific mechanical dimensions and cable configuration tailored for particular machinery installations. While electrical performance remains consistent across the 330103 family, dimensional variations accommodate different mounting depths, clearance constraints, and casing geometries found in diverse turbomachinery designs.

Can I use this probe with non-Bently Nevada monitoring systems?
Yes, the 330103-00-07-10-02-05 produces a standard -1 to -24 VDC output signal compatible with most industrial monitoring systems, PLCs, and data acquisition equipment. However, you must use a Bently Nevada proximitor sensor for signal conditioning to maintain factory calibration accuracy and warranty coverage.

How do I verify the probe is functioning correctly after installation?
Connect the complete measurement chain (probe + cable + proximitor) and observe the DC voltage output while manually varying the gap to a steel calibration target. Voltage should change smoothly and linearly from approximately -2V at close gap to -18V at far gap. Erratic readings, voltage spikes, or non-linear response indicate cable damage, contaminated probe tip, or improper target material.

What is the minimum recommended shaft diameter for accurate measurements?
For 8mm diameter probes, minimum shaft diameter should be 50mm (2 inches) to avoid curvature effects that reduce measurement linearity. Smaller shaft diameters require calibration corrections or alternative sensor technologies such as capacitance probes or laser displacement sensors.

Does the probe require periodic recalibration?
Under normal operating conditions, the 330103-00-07-10-02-05 maintains calibration accuracy for 5+ years without adjustment. Recalibration is recommended only after mechanical damage, exposure to temperatures exceeding rated limits, or as required by plant maintenance procedures. The hermetically sealed design eliminates drift caused by moisture ingress or contamination.

Can this sensor measure aluminum or titanium shafts?
No, eddy current proximity probes require electrically conductive ferromagnetic targets (iron, steel, or magnetic alloys). For non-ferrous materials like aluminum, titanium, or stainless steel (300-series), consider capacitance displacement sensors or optical measurement systems.

Order Your 330103-00-07-10-02-05 Proximity Probe Today

Protect your critical rotating assets with proven Bently Nevada technology trusted by thousands of industrial facilities worldwide. The 330103-00-07-10-02-05 delivers the measurement accuracy, environmental durability, and long-term reliability essential for predictive maintenance programs that maximize equipment uptime and prevent catastrophic failures.

Contact our technical sales team for:

• Application-specific sensor selection guidance
• System integration support and compatibility verification
• Volume pricing for multi-unit orders and plant-wide projects
• Expedited shipping for emergency replacements
• Custom cable lengths and special configurations

Invest in machinery protection that pays for itself by preventing a single unplanned outage. Order now and experience the reliability that powers the world's most demanding industrial operations.
