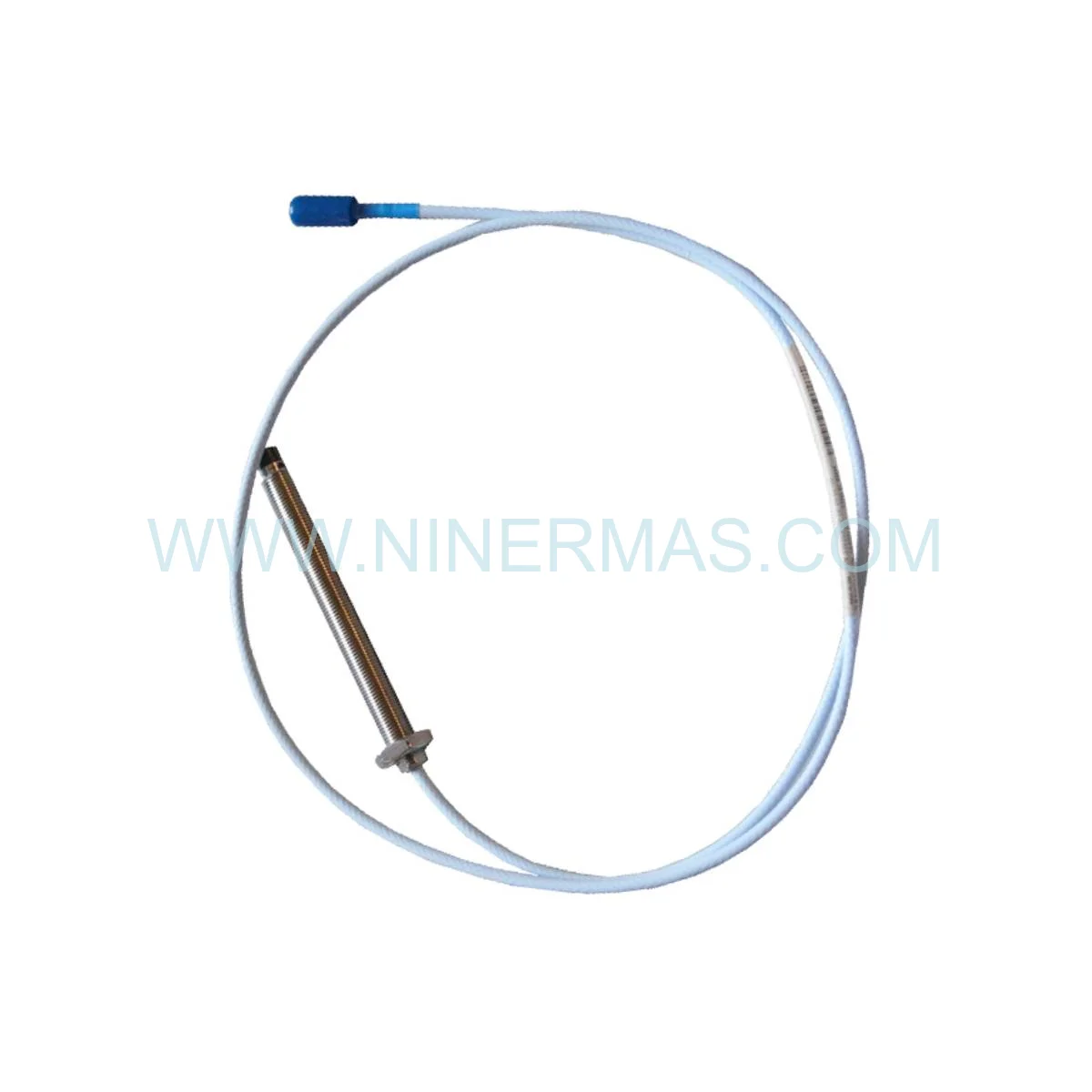

8mm Proximity Transducer (Industrial-Grade Eddy Current Technology)

The 330103-00-05-10-12-00 represents a field-proven solution for non-contact displacement measurement in turbomachinery environments. Engineered with 8mm metric geometry and hermetic sealing, this eddy current transducer delivers continuous shaft position data across temperature extremes from -40°C to +105°C. Designed for power plants, refineries, and process industries where machinery uptime directly impacts operational revenue.

Critical rotating assets—steam turbines, centrifugal compressors, high-speed motors—demand real-time position feedback to prevent catastrophic bearing failures and unplanned shutdowns. This proximity sensor integrates into 3300 XL monitoring architectures, providing the foundational measurement layer for predictive maintenance programs. Maintenance teams rely on its stable output to detect rotor eccentricity, thermal growth anomalies, and bearing wear patterns before they escalate into forced outages.

Built with stainless steel housing and M12×1.0 threading, the probe withstands vibration loads exceeding 50g while maintaining ±1% linearity across its 0.4mm to 1.6mm measurement span. When paired with compatible proximitor modules and extension cabling, it forms a complete signal chain capable of resolving shaft movements down to micron-level precision—essential for ISO 7919 compliance and API 670 machinery protection standards.

Performance Advantages & Technical Capabilities

→ Extended Frequency Bandwidth: 0 to 10kHz (-3dB) response captures both slow-roll thermal expansion and high-frequency blade-pass vibrations, enabling comprehensive rotor dynamics analysis without sensor swapping.

✓ Hermetic Environmental Protection: Welded construction with IP67-equivalent sealing prevents moisture ingress in steam-saturated atmospheres, offshore platforms, and washdown zones—eliminating drift caused by condensation or chemical exposure.

→ Calibrated Linearity Zone: Factory-tuned for 4140 steel targets with documented sensitivity curves, reducing commissioning time and ensuring interchangeability across multi-unit installations without field recalibration.

✓ Thermal Stability Architecture: Compensated electronics maintain measurement accuracy within ±2% across the full -40°C to +105°C operating envelope, critical for cryogenic pumps and high-temperature turbine applications.

→ Electromagnetic Immunity: Shielded cable design and grounded housing reject VFD noise, welding interference, and RF emissions common in industrial electrical environments—preserving signal integrity in electrically harsh installations.

✓ Standardized Mounting Interface: M12 metric threading matches ISO 4762 specifications, enabling direct retrofit into existing probe bosses without machining modifications or adapter hardware.

Industrial Application Scenarios

Power Generation – Steam Turbine Monitoring: Installed at journal bearings and thrust collars to track rotor centerline position during startup thermal transients and load changes. Detects rubs before blade tip damage occurs, protecting multi-million dollar rotating assemblies. Typical installations use 4-8 probes per turbine with XY measurement configurations.

Oil & Gas – Compressor Train Protection: Monitors shaft displacement in multi-stage centrifugal compressors handling sour gas and hydrocarbon streams. Early detection of bearing wear prevents seal failures that lead to process gas releases. Integrates with emergency shutdown systems per API 618 requirements.

Chemical Processing – High-Speed Pump Surveillance: Tracks impeller axial position in vertical turbine pumps and horizontal process pumps operating above 3600 RPM. Identifies cavitation-induced vibration and hydraulic instability before mechanical seal damage. Supports condition-based maintenance strategies that extend mean time between overhauls by 40-60%.

Manufacturing – Motor-Driven Equipment: Applied to large induction motors, synchronous motors, and gearbox input shafts in paper mills, steel rolling mills, and mining operations. Provides continuous rotor position feedback for alignment verification and foundation settling detection.

Marine Propulsion – Shaft Line Monitoring: Measures propeller shaft displacement in diesel-electric and gas turbine propulsion systems. Detects bearing clearance changes caused by saltwater corrosion and shock loading from heavy seas. Meets classification society requirements for machinery monitoring systems.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this 8mm probe for applications requiring metric threading compatibility and moderate temperature exposure. For higher temperature zones (up to 177°C), consider high-temperature variants. Verify target material composition—non-ferromagnetic materials (aluminum, titanium, stainless 300-series) require specialized calibration and exhibit reduced linear range. Ensure adequate radial clearance (minimum 12mm target diameter) to avoid edge effects that compromise linearity.

System Integration & Advanced Features

The 330103-00-05-10-12-00 functions as the sensing element within a three-component measurement chain: proximity probe → extension cable → proximitor signal conditioner. This modular architecture allows flexible cable routing (up to 9 meters total length with 330130-series extensions) while maintaining signal fidelity through differential transmission.

Proximitor Compatibility: Pairs with 330180-series proximitors that convert the probe's variable inductance into industry-standard -10 to -2 VDC output signals. This voltage range interfaces directly with 3500 rack monitoring systems, DCS analog inputs, and portable vibration analyzers.

Digital Connectivity Options: When integrated with 3500/42M monitors or System 1 evolution platforms, measurement data streams to SCADA networks via Modbus TCP, OPC-UA, or proprietary protocols. Enables remote diagnostics, automated alarm management, and predictive analytics using machine learning algorithms trained on historical vibration signatures.

Customization Capabilities: Available with alternative cable lengths, special temperature ratings, and explosion-proof certifications (ATEX, IECEx) for hazardous area installations. Custom calibration for exotic target materials (Inconel, Monel, ceramic-coated shafts) provided upon request with documented traceability to NIST standards.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with same-day dispatch for orders placed before 2:00 PM CST. Expedited shipping available via DHL/FedEx for emergency breakdown situations.

Custom Configurations: 10-15 business days for non-standard cable lengths or special certifications requiring factory coordination.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, material failures, and workmanship issues. Warranty includes free replacement and return shipping for confirmed defects.

Technical Support: Unlimited access to application engineers for installation planning, calibration procedures, and troubleshooting assistance. Support includes gap voltage verification, target material compatibility analysis, and system commissioning guidance.

Documentation Package: Each shipment includes calibration certificate, installation manual, dimensional drawings, and material certifications. Digital copies available via secure download portal for asset management systems.

Frequently Asked Questions

What proximitor model is required to complete the measurement system?
The 330180-50-00 or 330180-90-00 proximitor modules provide the necessary signal conditioning. Select the -50 version for standard rack mounting or -90 for DIN rail installations. Both deliver identical electrical performance with -24 VDC power requirements.

Can this probe measure non-ferrous targets like aluminum or brass?
Yes, but with reduced linear range (typically 30-50% of ferromagnetic performance) and altered sensitivity. Non-ferrous applications require custom calibration curves and may necessitate closer installation gaps. Contact technical support for material-specific calibration data.

How does installation gap affect measurement accuracy and range?
Optimal gap is 1.0mm ± 0.2mm from the target surface, positioning the probe at the electrical center of its linear zone. Gaps below 0.4mm risk mechanical contact during transient events; gaps exceeding 1.6mm enter the non-linear region where sensitivity degrades exponentially.

What cable length limitations exist for this proximity probe?
The integral probe cable plus extension cable total length should not exceed 9 meters (30 feet) to maintain signal quality. Longer runs require intermediate proximitor placement or fiber-optic transmission systems for distances beyond 15 meters.

Is this sensor suitable for machinery operating above 10,000 RPM?
Absolutely. The 10kHz bandwidth supports shaft speeds exceeding 60,000 RPM (1,000 Hz fundamental frequency). For ultra-high-speed applications (>100,000 RPM), verify that blade-pass frequencies remain within the sensor's response envelope.

How do I verify proper probe installation and gap setting?
Use a DC voltmeter to measure the proximitor output with the machine at rest. Voltage should read between -8 and -6 VDC for a 1.0mm gap with 4140 steel targets. Deviations indicate incorrect gap, target material issues, or wiring faults requiring correction before operation.
